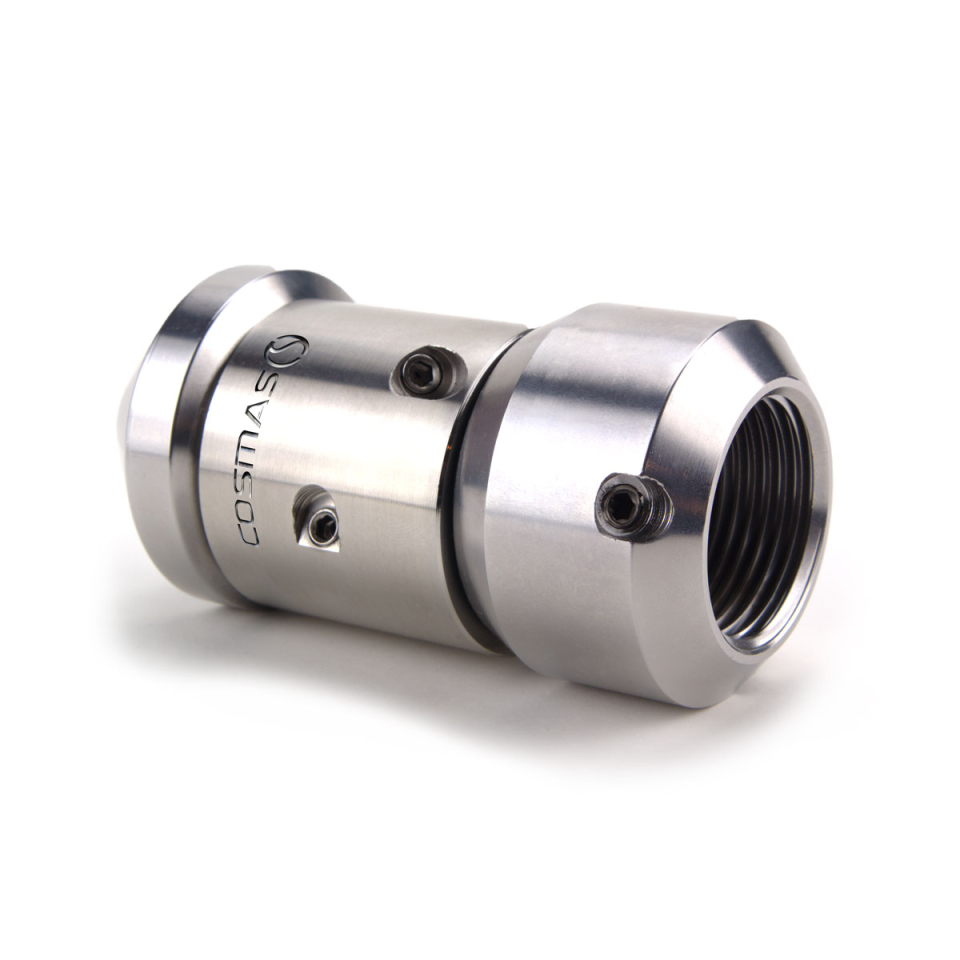

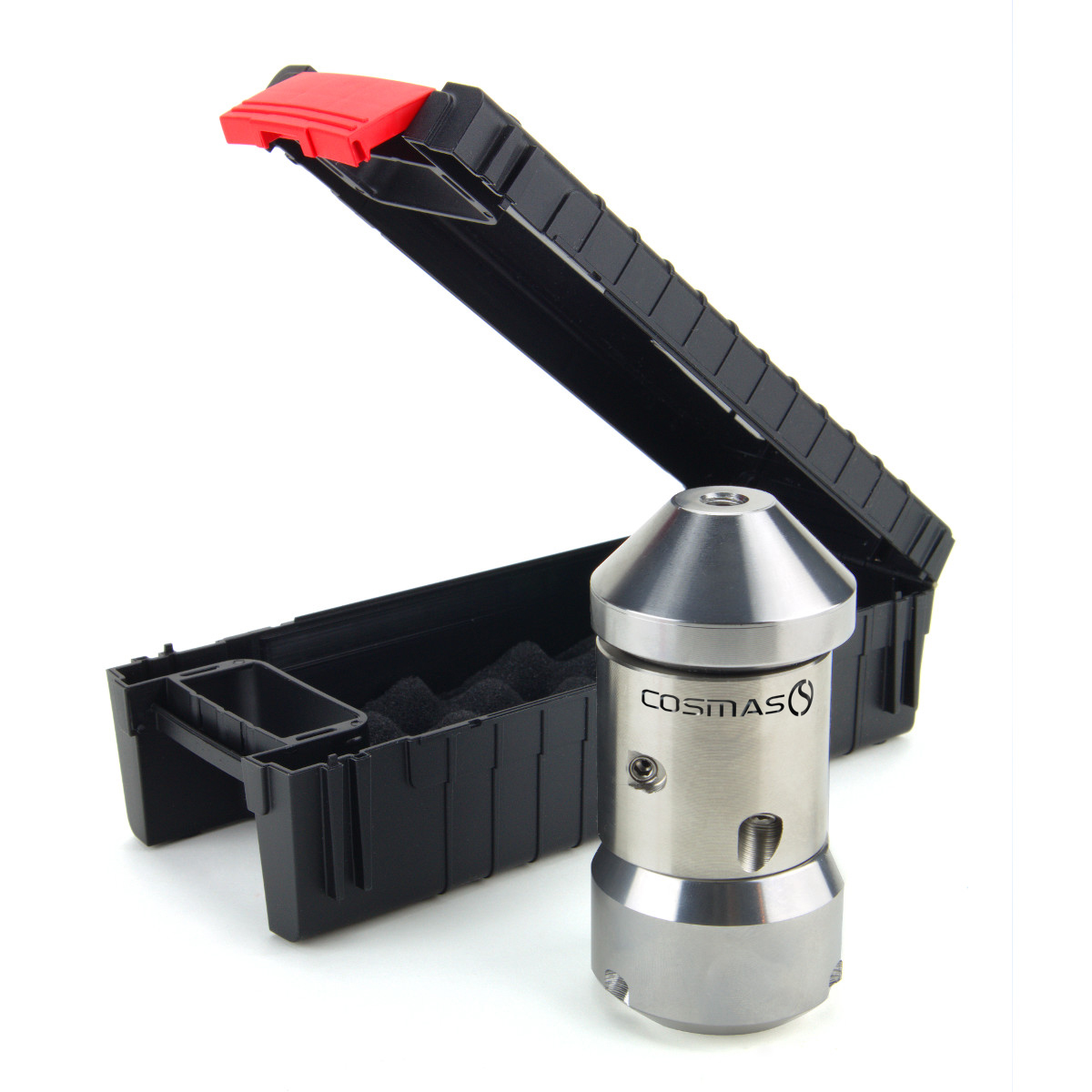

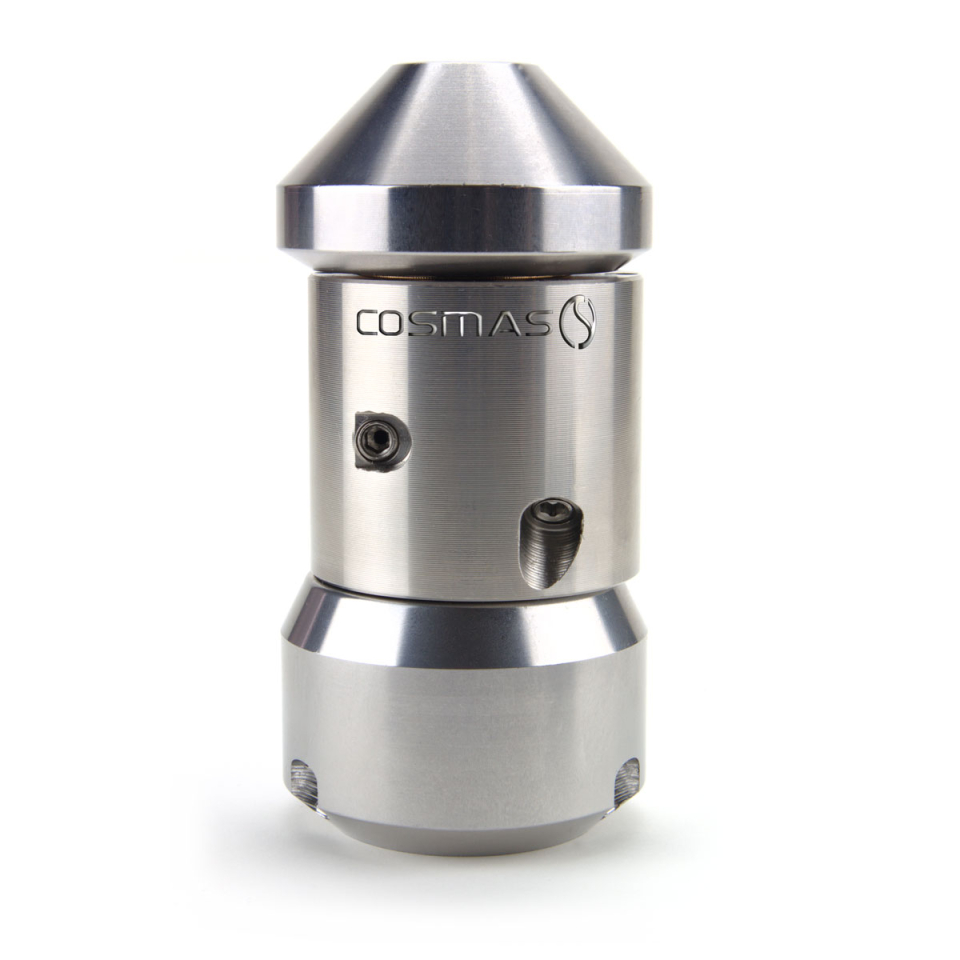

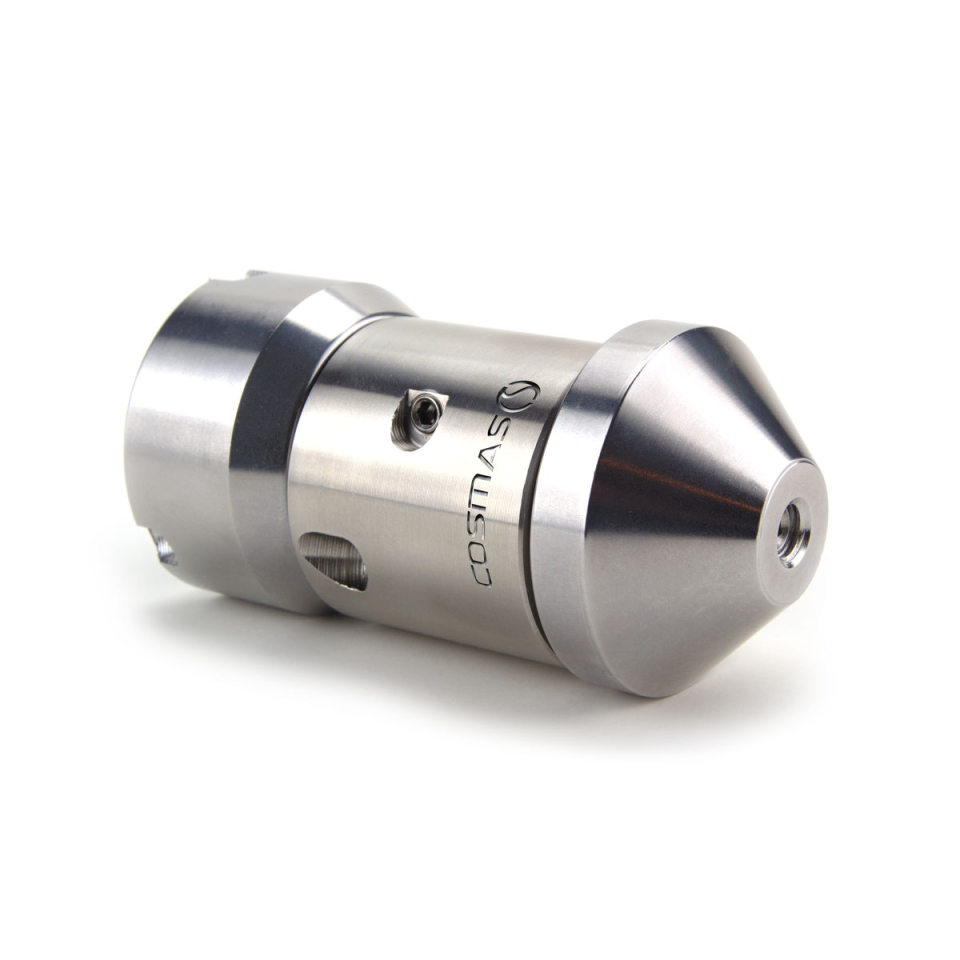

Vibrating Nozzle - Flat

These nozzles are characterized by an eccentric central body and crowned rear shaft and head that produce bracking vibrations crushing sedimented obstructions.
In order to extend vibrating nozzle life time and achieve the best cleaning result, it' s recommended to plunging them into lubricating liquid after each use.

Application :

• Crushing of compact limestone, gravel, stones,concrete
  Do not use in gres pipes

Part No.	Description	Inlet	Inserts	Rear Jets	Rotating Jets	ØxL mm	Kg	Ø Pipe	Max Bar
18560.01T	Vibrating Ø 16 mm	1/8"F	drilled	Drilled 2x25°	Drilled 2x90°2x45°	16x30	0,03	18 - 60	250
18560.15T	Vibrating Ø 17 mm	1/4"F	drilled	Drilled 2x25°	Drilled 2x90°2x45°	16x30	0,03	18 - 60	250
18560.02TC	Vibrating Ø 30 mm	1/4"F	ceramic	3 - M4x5 - 35°	M4x5 2x90°2x45°	30x56	0,20	30 - 100	250
18560.03TC	Vibrating Ø 30 mm	3/8"F	ceramic	3 - M4x5 - 35°	M4x5 2x90°2x45°	30x56	0,20	30 - 100	250
18560.04TC	Vibrating Ø 38 mm	3/8"F	ceramic	3 - M6x8 - 35°	M6x6 2x90°2x45°	35x77	0,40	50 - 150	250
18560.05TC	Vibrating Ø 38 mm	1/2"F	ceramic	3 - M6x8 - 35°	M6x6 2x90°2x45°	35x77	0,40	50 - 150	250
18560.06TC	Vibrating Ø 50 mm	1/2"F	ceramic	3 - M6x8 - 35°	M6x6 2x90°2x45°	50x100	0,90	100 - 200	250
18560.07TC	Vibrating Ø 50 mm	3/4"F	ceramic	3 - M6x8 - 35°	M6x6 2x90°2x45°	50x100	0,90	100 - 200	250
18560.08TC	Vibrating Ø 50 mm	1" F	ceramic	3 - M6x8 - 35°	M6x6 2x90°2x45°	50x100	0,90	100 - 200	250
18560.09TC	Vibrating Ø 70 mm	1"F	ceramic	6 - M6x8 - 35°	M6x8 2x90°2x45°	70x160	2,90	100 - 400	250
18560.10TC	Vibrating Ø 70 mm	1" 1/4"F	ceramic	6 - M6x8 - 35°	M6x8 2x90°2x45°	70x160	2,90	100 - 400	250
18560.11TC	Vibrating Ø 100 mm	1" F	ceramic	6 - 10x10x1 - 35°	M10x0x1 2x90°2x45°	100x180	7,20	200 - 600	250
18560.12TC	Vibrating Ø 100 mm	1" 1/4"F	ceramic	6 - 10x10x1 - 35°	M10x0x1 2x90°2x45°	100x180	7,20	200 - 600	250
