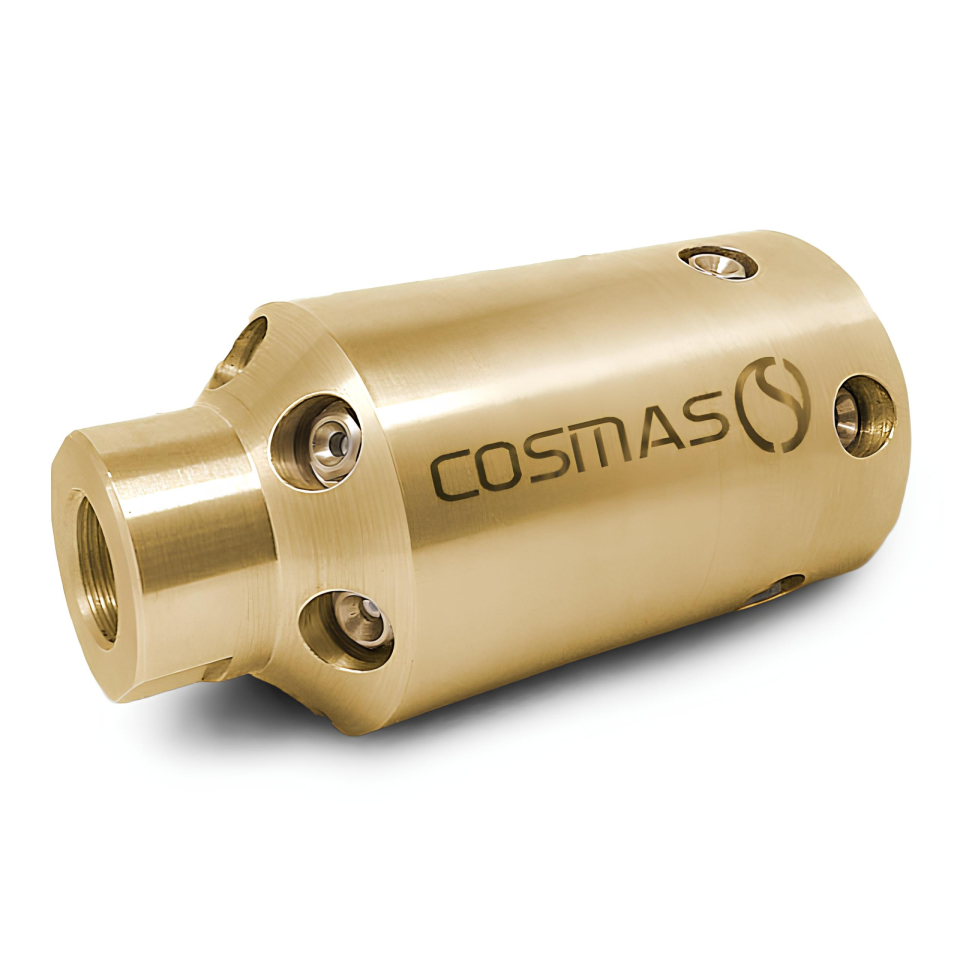

Brass Tank Cleaning Nozzle

Big Nozzle 1" made in brass supplied with 18 1/4" M brass-ceramic inserts.
Thanks to its brass building material and to different inclination jets, this nozzle is excellent for cleaning tankers containing flammable liquids such as fuel.
The use of this nozzle allows a perfect cleaning avoiding the danger of fire sparkles.

Application :

Cleaning of tanks full of flammable liquids (ex. fuel).
Explosion-proof, fireproof jobs in hazardous areas.

Min lt 190/200 max lt5 00
Min bar 100 max 300

Part No.	Description	Inlet	Inserts	Rear,Radial,Front Jets	ØxL mm	Kg	Ø Pipe	Max Bar
12330.01B	Big Brass Nozzle	1" F	Brass + Ceramic	8 x Rear 30° 1/4"M	100x200	10,00	150 - 800	300
			Brass + Ceramic	6 x Radial 90°/15° (3+3 1/4”M)
			Brass + Ceramic	4 x Front 0°/20°(1+3 1/4”M)

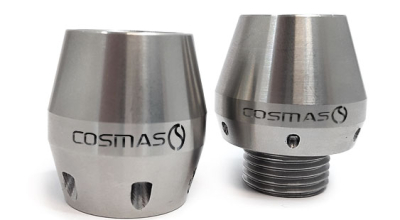

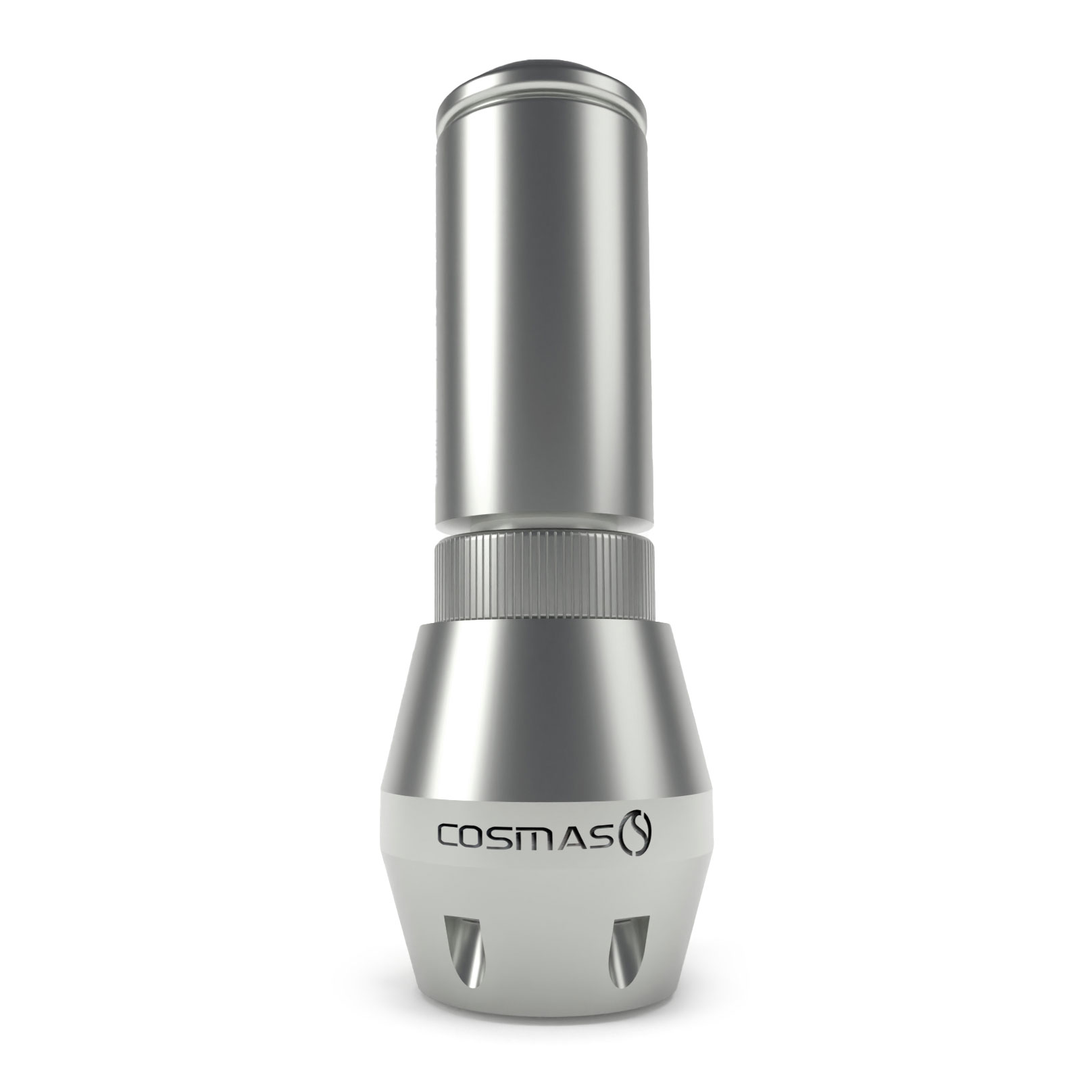

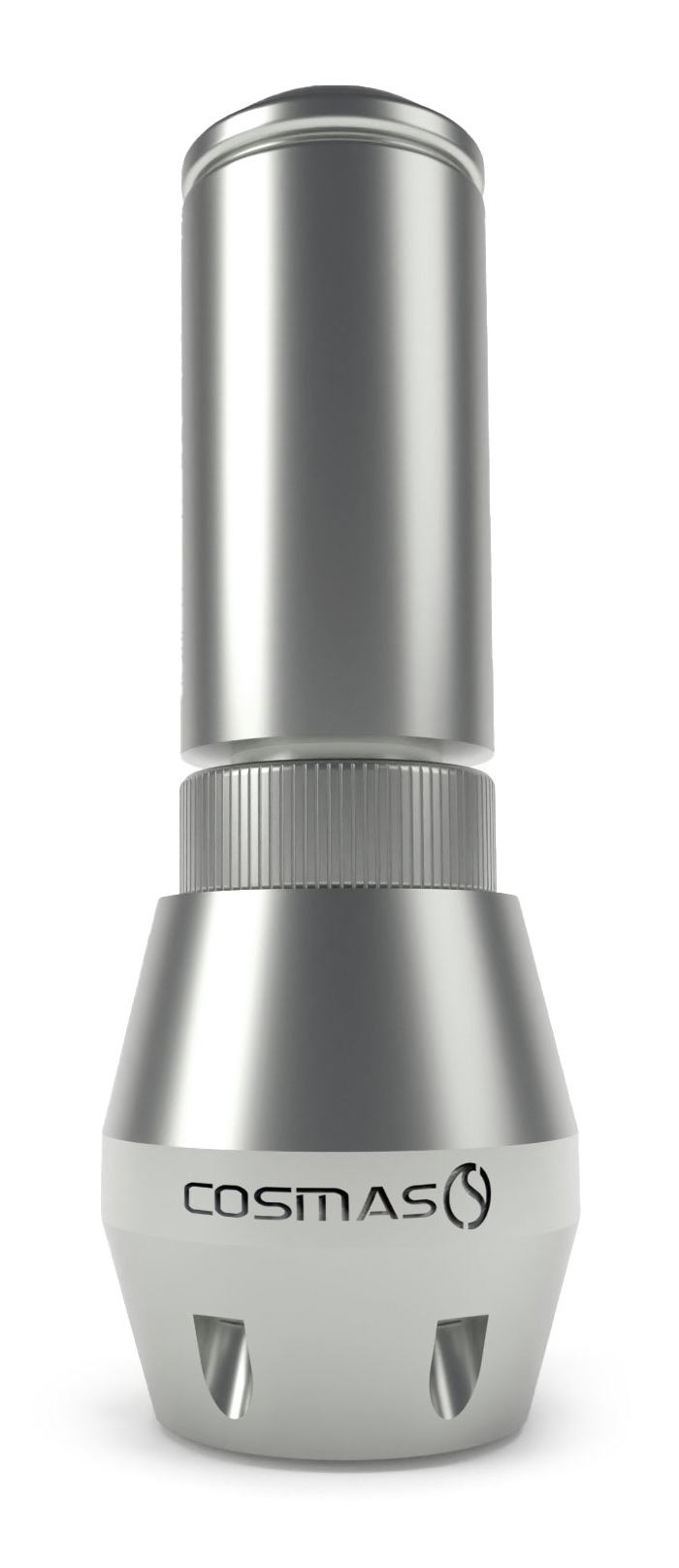

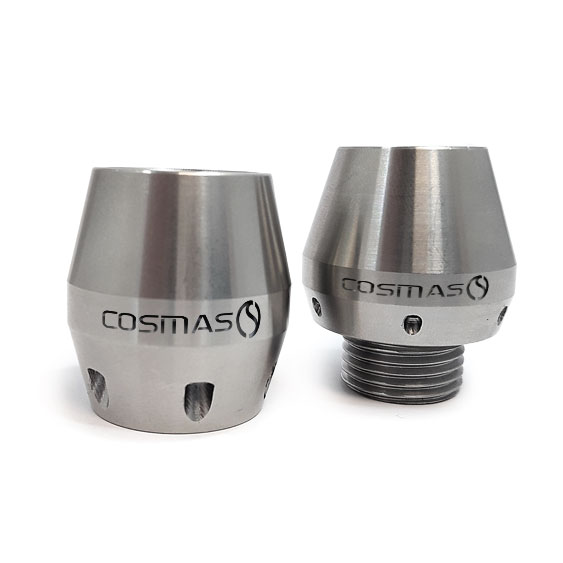

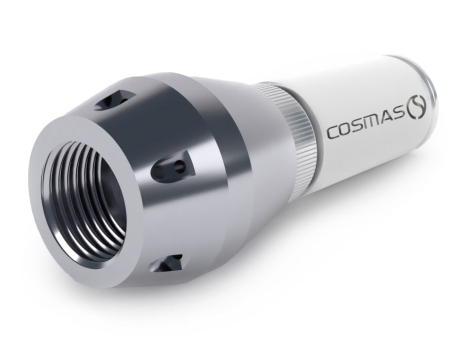

Moving Remote Transmitter Nozzle

Application :

This nozzle allows the remote transmitter to move forward into the pipe.

Part No.	Inlet	Material	Rear Jets	ØxL mm	Kg	Ø Pipe	Max Bar
13322.01	3/8" F	S/Steel	6 x Drilled - 20°	30x37	0,11	50 - 200	250
13323.01	3/8" M	S/Steel	6 x Drilled - 20°	30x34	0,13	50 - 200	250
13325.01/01	1/2"F	S/Steel	6 x Drilled - 20°	35x37	0,14	50 - 200	250
13326.01/01	1/2"M	S/Steel	6 x Drilled - 20°	35x41	0,16	50 - 200	250

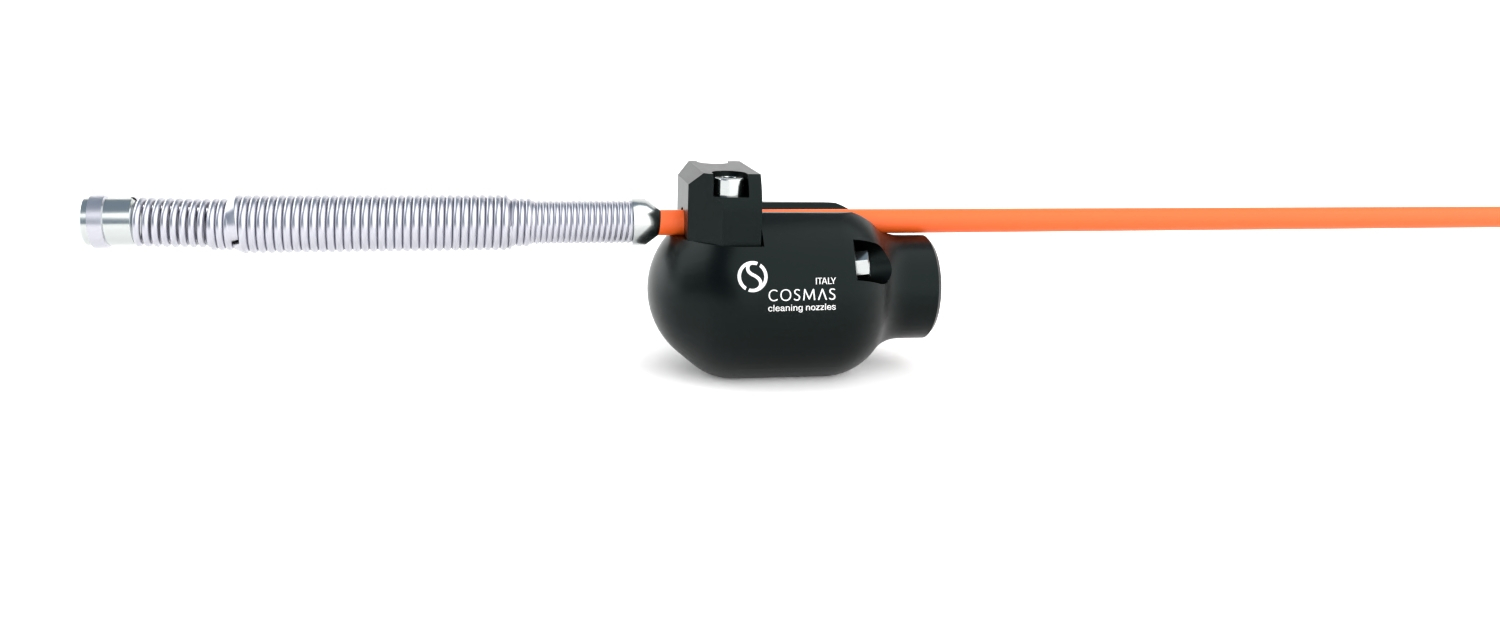

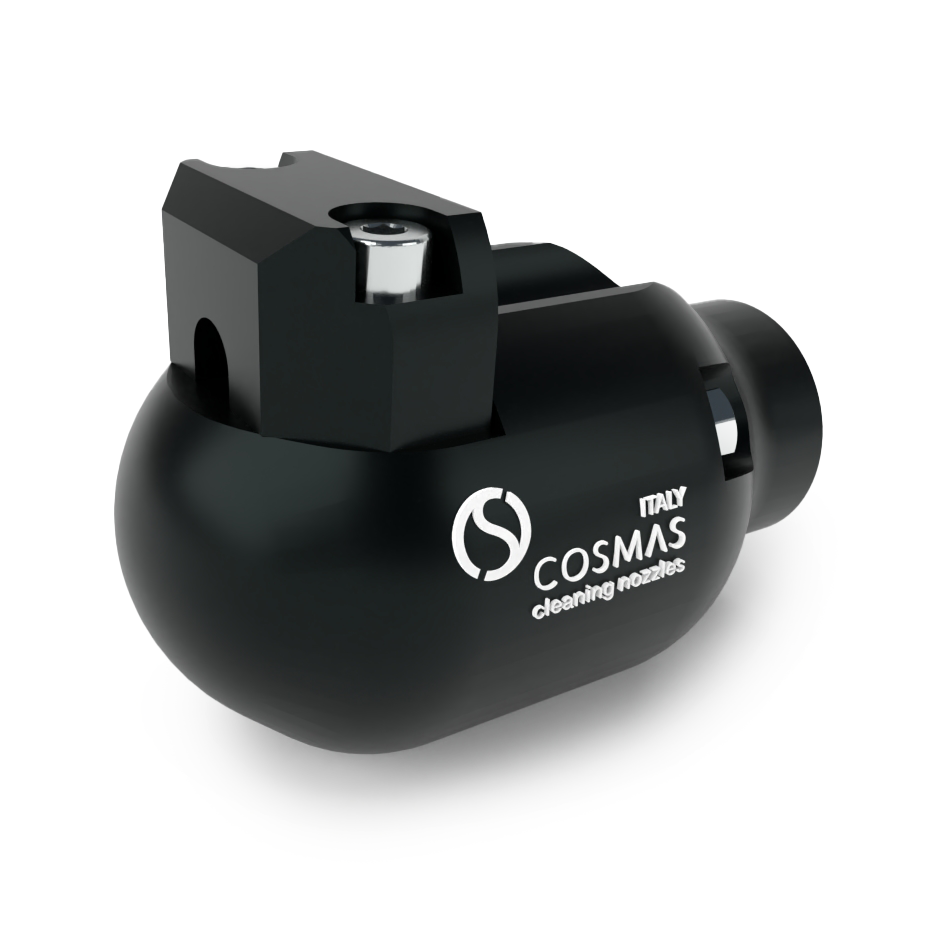

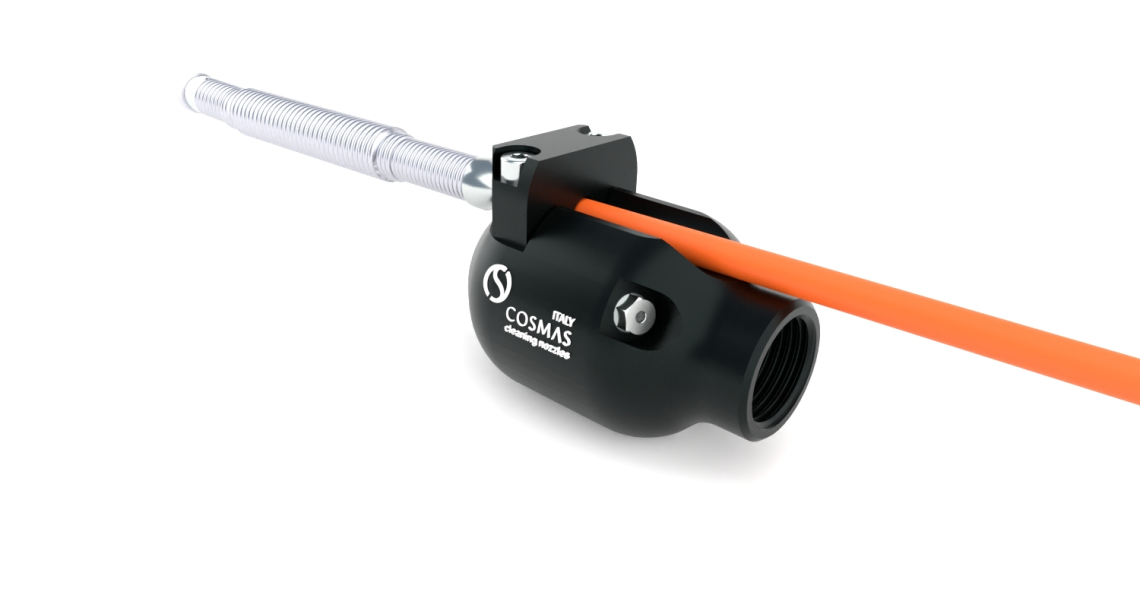

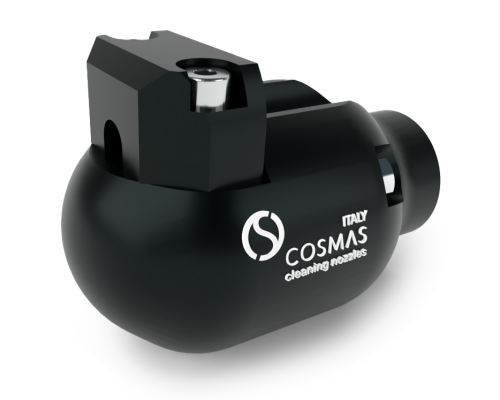

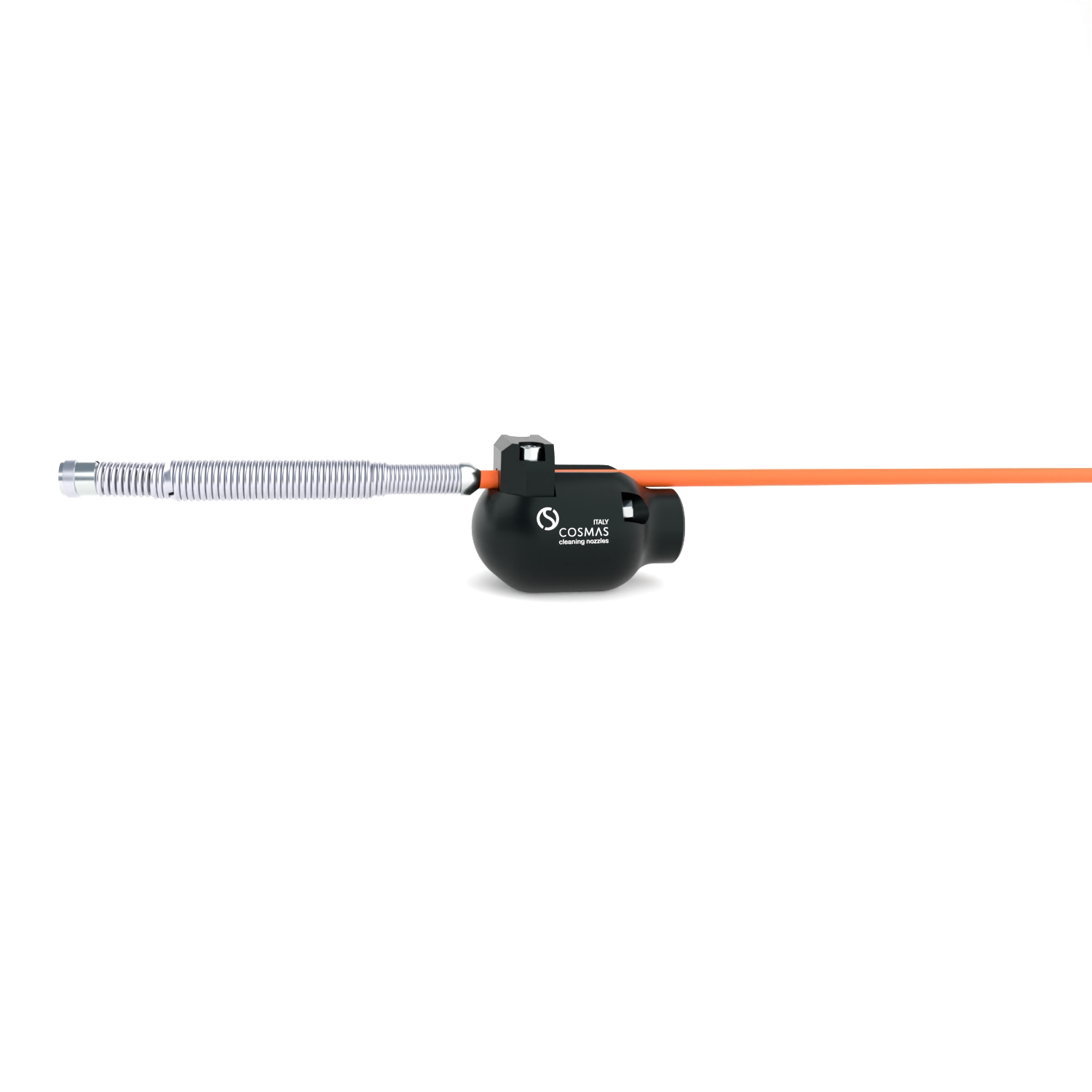

Thrust Moving Rod Camera Nozzle

Application :

Thrust of the rod camera into the pipe.

Part N.	Description	Inlet	Material	Rear Jets	ØxL mm	Kg	Ø Pipe	Max Bar
15400.01C	Moving rod camera Nozzle supplied	1/2"F	Aluminum	3 - Ceramic M8x10 - 20°	70x51	0,27	60 - 250	250
	with 7 clamps for different cable thickness
	Ø 6,0 - Ø 6,8 - Ø 8,0 - Ø 9,0 - Ø 11 - Ø 12,50 - Ø 15

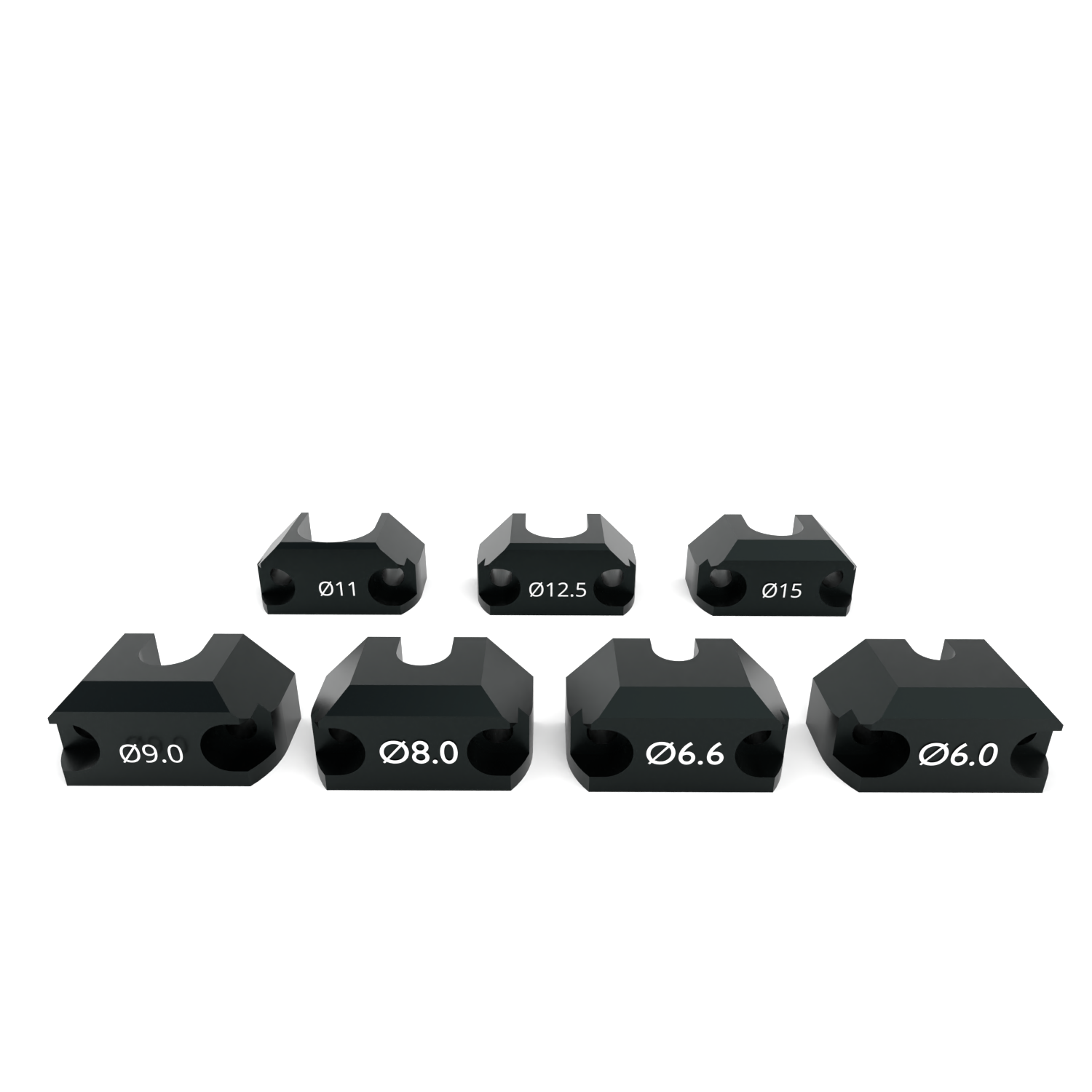

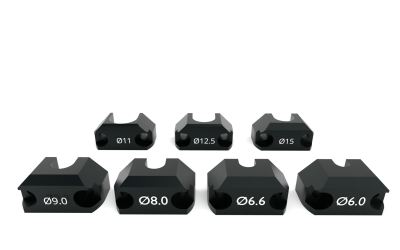

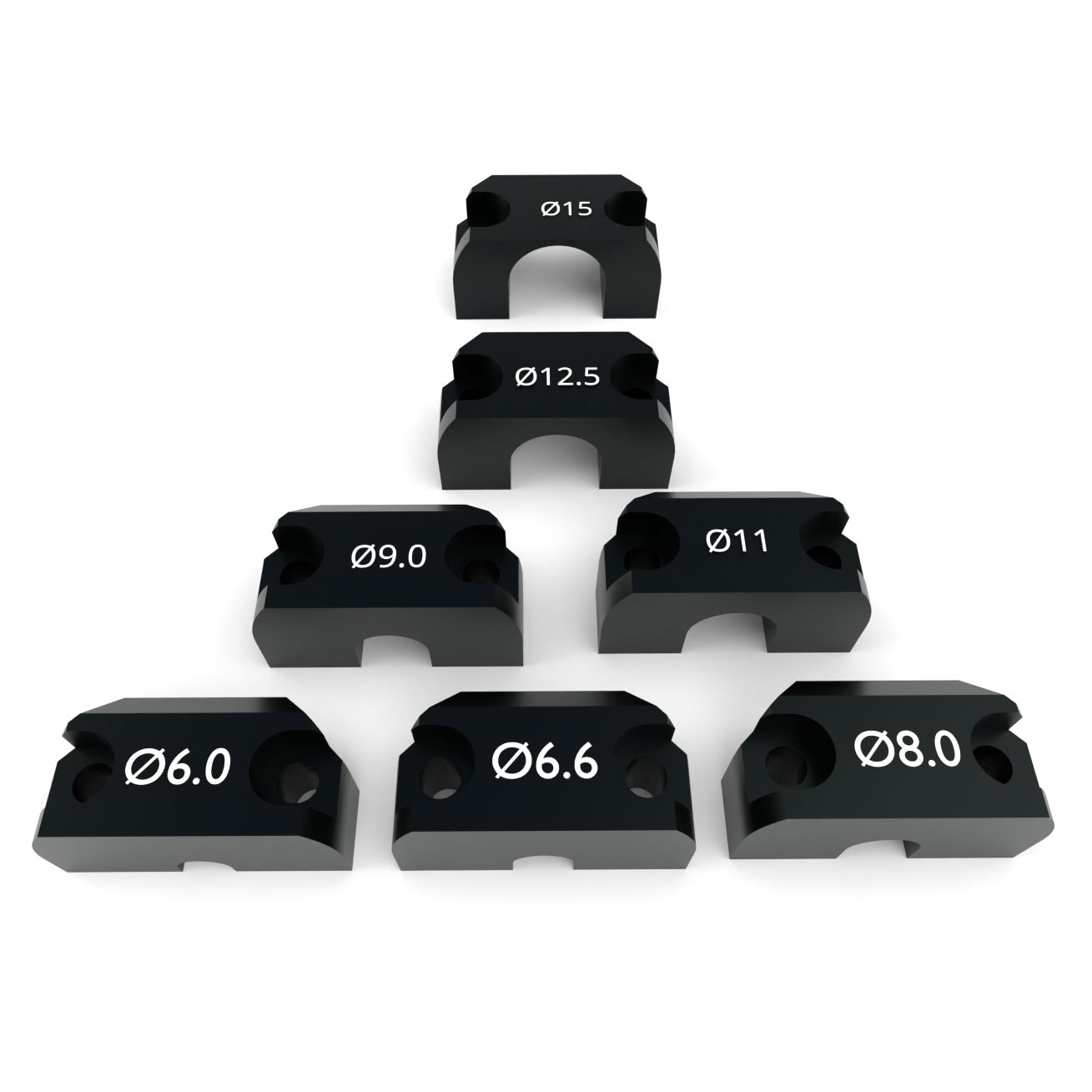

15400.02	Kit of 7 clamps
	Ø 6,0
	Ø 6,8
	Ø 8,0
	Ø 9,0
	Ø 11
	Ø 12,50
	Ø 15

Spark-proof Nozzles

These nozzles are suitable for cleaning pipes which have flammable liquid inside avoiding danger of fire sparks.
Different nozzles of Cos.ma.s. range can be produced in brass on demand.
Here below list of the most required ones.

Application :

• Explosion-proof jobs in hazardous areas.

Part N.	Description	Inlet	Inserts	Rear Jets	Front Jet	ØxL mm	Kg	Ø Pipe	Max Bar

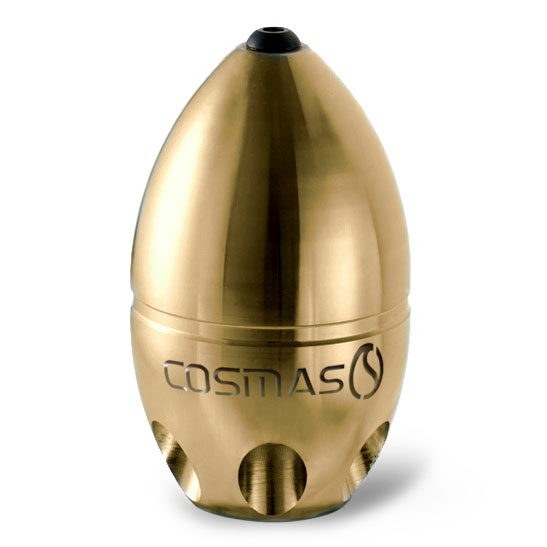

15140.23CO	ET4 Brass	3/4"	Brass + Ceramic	8 - M10x12	1 - Tbei M10	70x98	2,00	80 - 300	300
15140.24CO	ET4 Brass	1"F	Brass + Ceramic	8 - 1/4"M	1 - Tbei M10	88x145	4,10	150 - 500	300
15140.25CO	ET4 Brass	1" 1/4" F	Brass + Ceramic	8 - 1/4"M	1 - Tbei M10	88x145	4,10	150 - 500	300

Part N.	Description	Inlet	Inserts	Rear Jets	Front Jet	ØxL mm	Kg	Ø Pipe	Max Bar
13110.01O	Round Head	1/8"F	_	Drilled	Drilled or blind	14x17	0,02	25 - 50	250
13125.01O	Round Head	1/2"F	_	Drilled	Drilled or blind	28x42	0,90	50 - 100	250
13126.01O	Round Head	1/2"M	_	Drilled	Drilled or blind	28x53	0,17	50 - 100	250
13125.01AO	Round Head	1/2"F	Brass	M6x8 - Drilled	M6x8	28x42	0,90	50 - 100	250
13126.01AO	Round Head	1/2"M	Brass	M6x8 - Drilled	M6x8	28x53	0,17	50 - 100	250
13127.01AO	Round Head	3/4"F	Brass	M6x8 - Drilled	M6x8	32x62	0,26	60 - 130	250
13128.01AO	Round Head	1"F	Brass	M6x8 - Drilled	M6x8	45x66	0,38	80 - 200	250
13125.01CO	Round Head	1/2"F	Brass + Ceramic	M6x8 - Ceramic	M6x8	28x42	0,90	50 - 100	250
13126.01CO	Round Head	1/2"M	Brass + Ceramic	M6x8 - Ceramic	M6x8	28x53	0,17	50 - 100	250
13127.01CO	Round Head	3/4"F	Brass + Ceramic	M6x8 - Ceramic	M6x8	32x62	0,26	60 - 130	250
13128.01CO	Round Head	1"F	Brass + Ceramic	M6x8 - Ceramic	M6x8	45x66	0,38	80 - 200	250

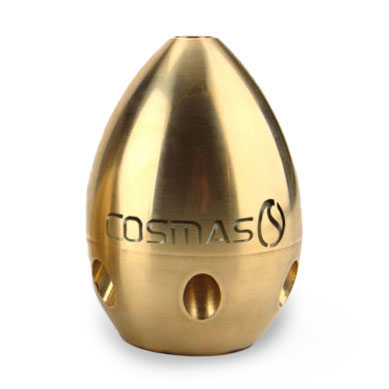

Part N.	Description	Inlet	Inserts	Rear Jets	Front Jet	ØxL mm	Kg	Ø Pipe	Max Bar

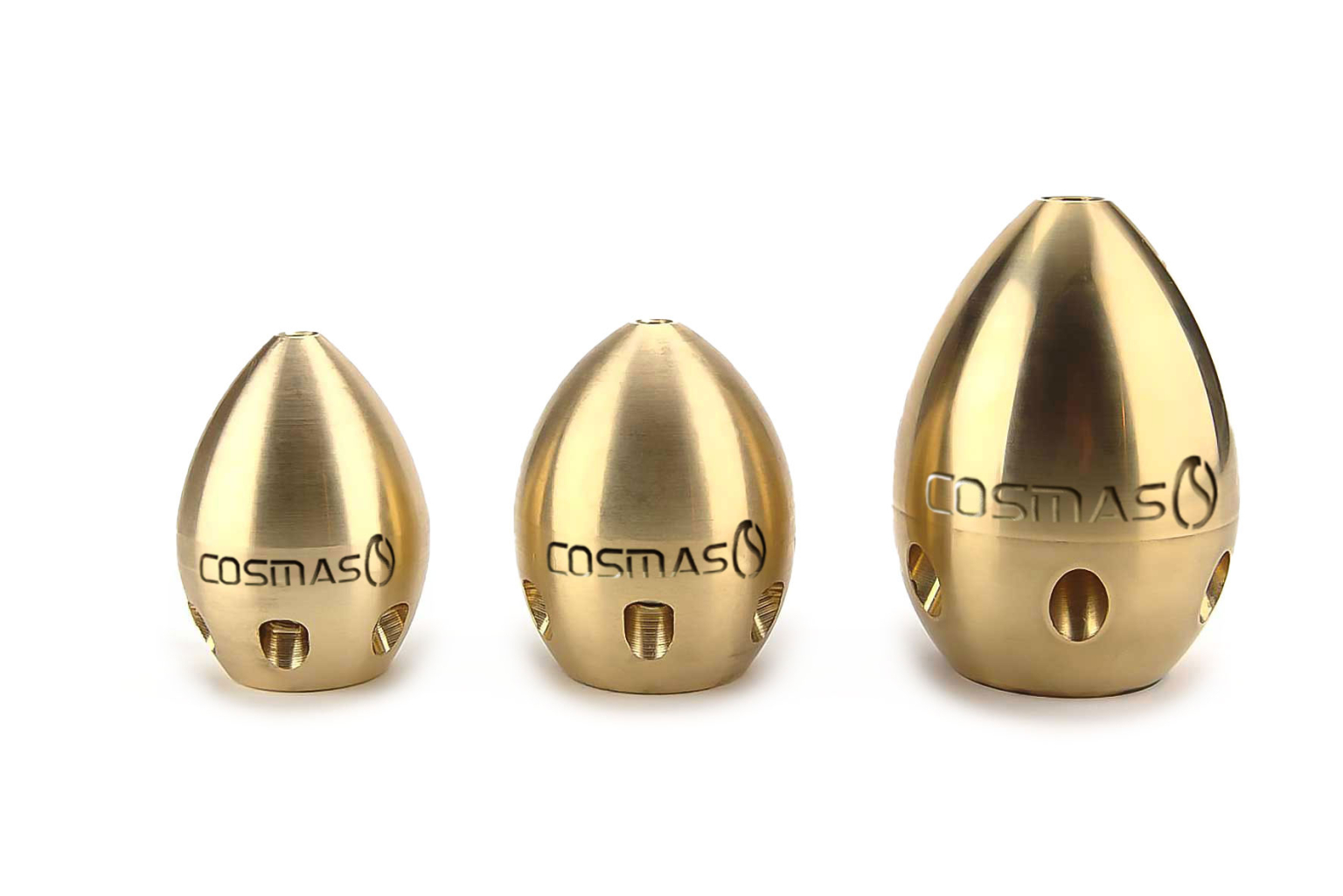

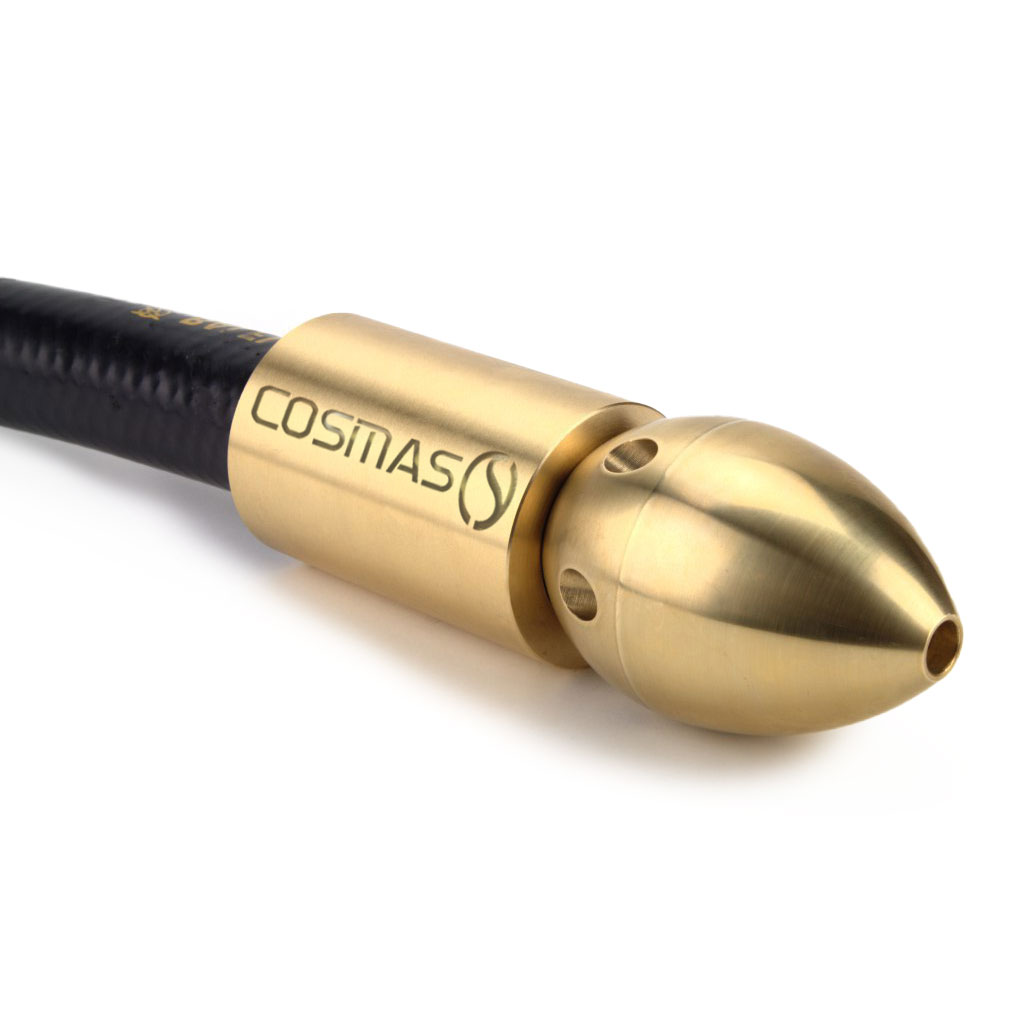

12351.01AO	Ovoidal	1/2"M	Brass	M6x8 - Drilled	M6x8	32x48	0,15	35 - 70	250
12352.01AO	Ovoidal	1/2"F	Brass	M6x8 - Drilled	M6x8	42x58	0,32	45 - 80	250
12353.01AO	Ovoidal	3/4"F	Brass	M6x8 - Drilled	M6x8	48x60	0,37	60 - 150	250
12354.01AO	Ovoidal	1"F	Brass	M6x8 - Drilled	M6x8	60x78	0,82	100 - 300	250
12351.01CO	Ovoidal	1/2"M	Brass + Ceramic	M6x8 - Ceramic	M6x8	32x48	0,16	35 - 70	250
12352.01CO	Ovoidal	1/2"F	Brass + Ceramic	M6x8 - Ceramic	M6x8	42x58	0,32	45 - 80	250
12353.01CO	Ovoidal	3/4"F	Brass + Ceramic	M6x8 - Ceramic	M6x8	48x60	0,37	60 - 150	250
12354.01CO	Ovoidal	1"F	Brass + Ceramic	M6x8 - Ceramic	M6x8	60x78	0,82	100 - 300	250

Part N.	Description	Inlet	Inserts	Rear Jets	Front Jet	ØxL mm	Kg	Ø Pipe	Max Bar

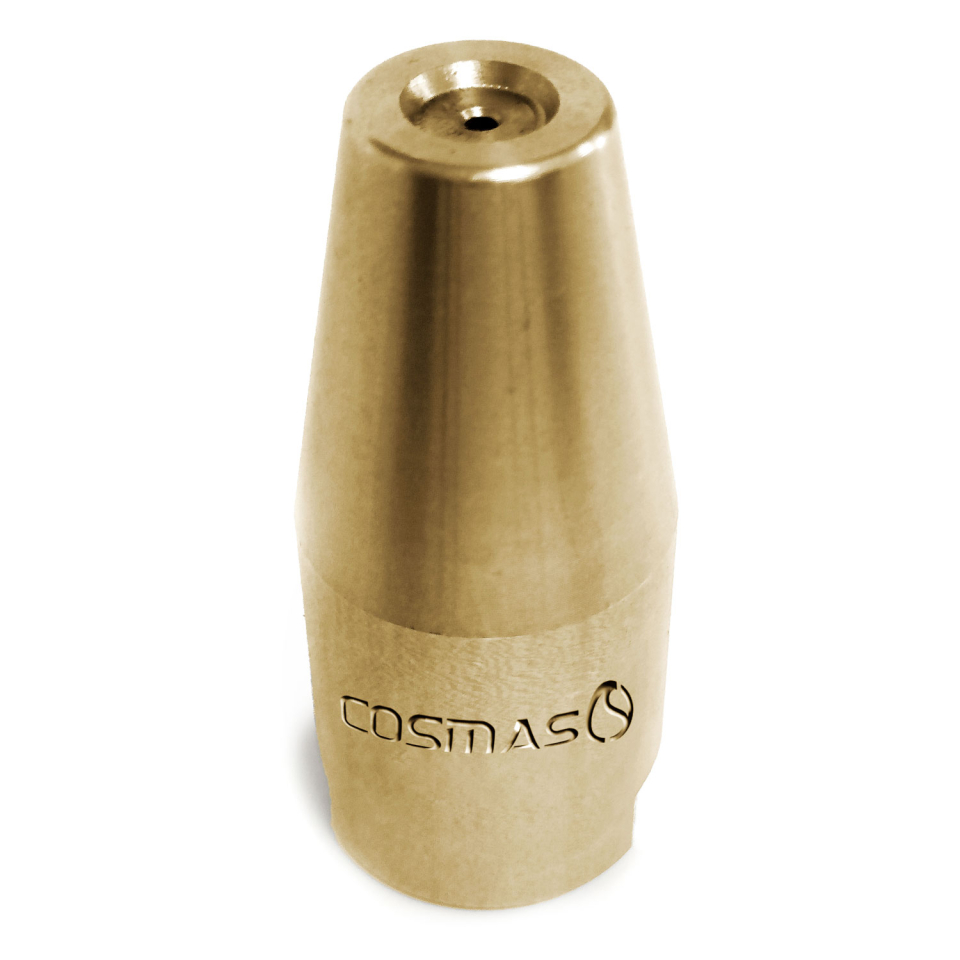

15170.02O	ET7	1/2"F	Brass	-	Drilled	26x65	0,18	-	250

Part N.	Description	Inlet	Inserts	ØxL mm	Kg	Ø Pipe	Max Bar

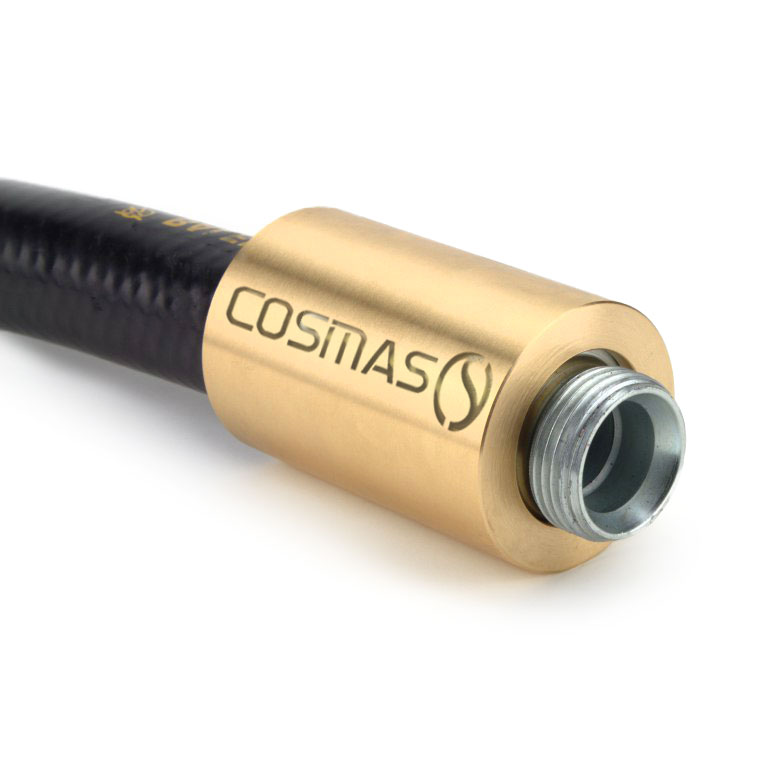

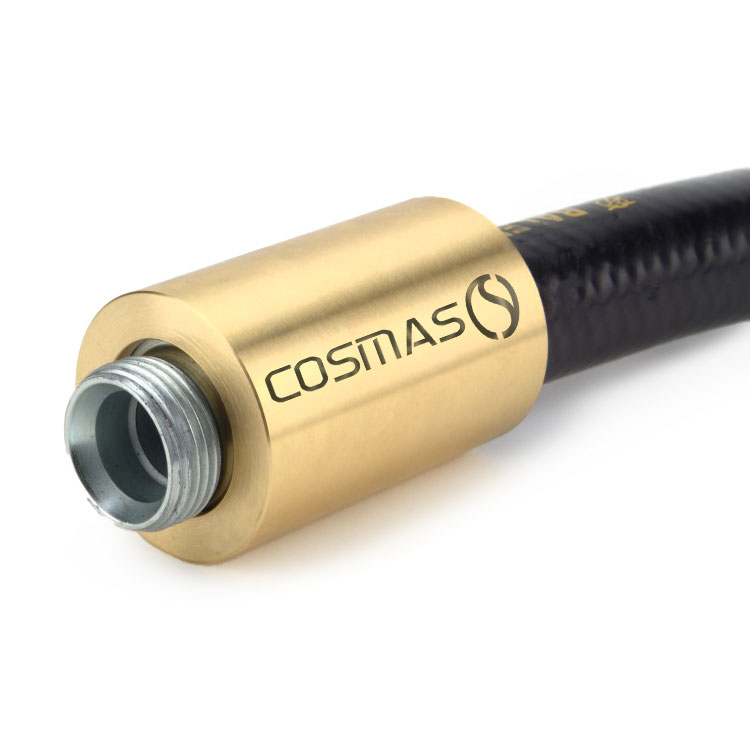

13840.11	Cover Hose Bushing		1/2"F	35x55	0,32		250
13840.12	Cover Hose Bushing		3/4"F	42x79	0,18		250
13840.13	Cover Hose Bushing		1"F	54x82	0,11		250

Part N.	Description	Inlet	Inserts	Rear Jets	Front Jet	ØxL mm	Kg	Ø Pipe	Max Bar
12330.01B	Tank Nozzle	1"F	Brass - Ceramic	8 x 1/4"M	8 x 1/4"M	100x200	10	150-800	300
