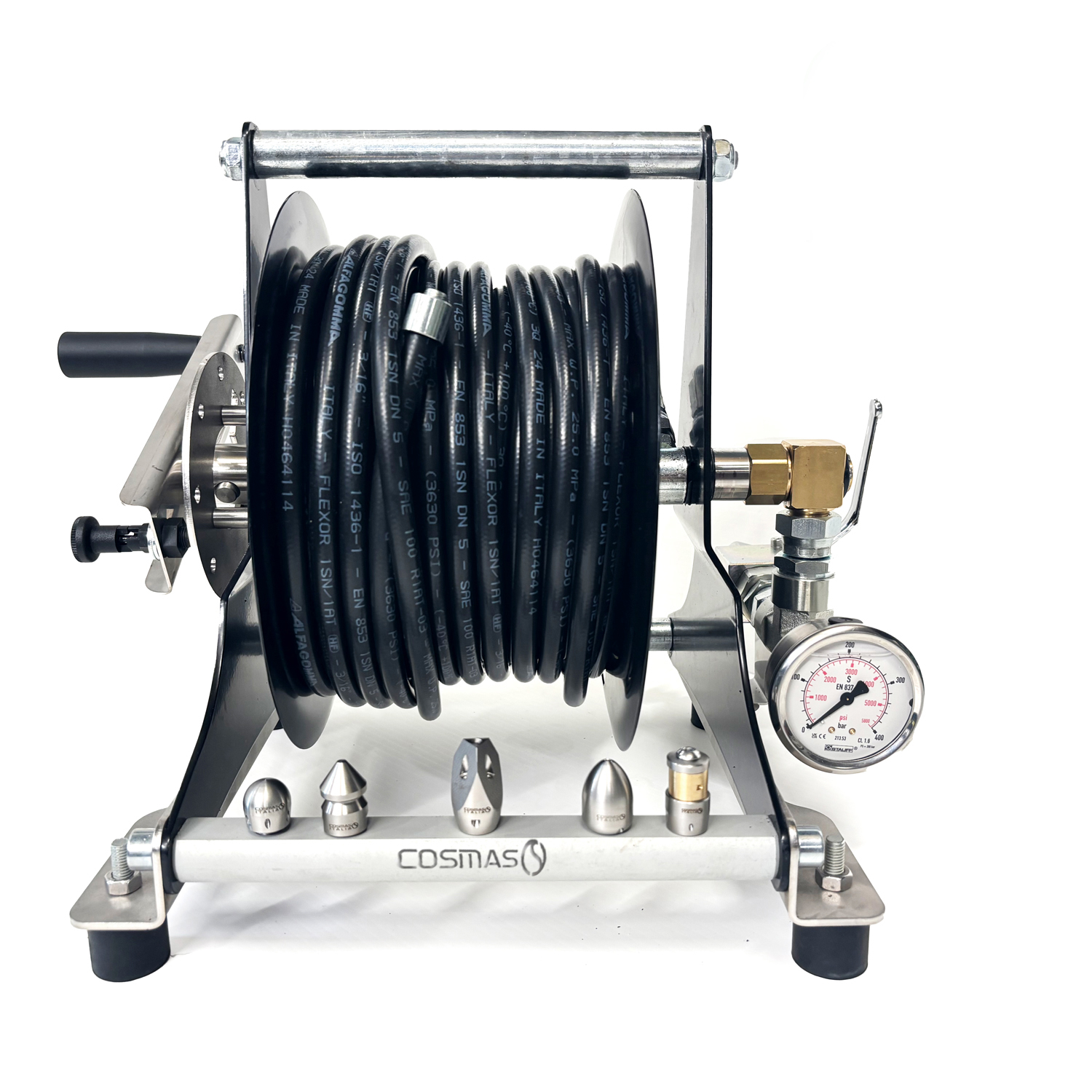

Small & Big Reel for 3/16"-1/4"-3/8" Hoses

https://cosmasitalia.com/wp-content/uploads/2025/06/ReelCompletoBloccaggioVista360.mp4

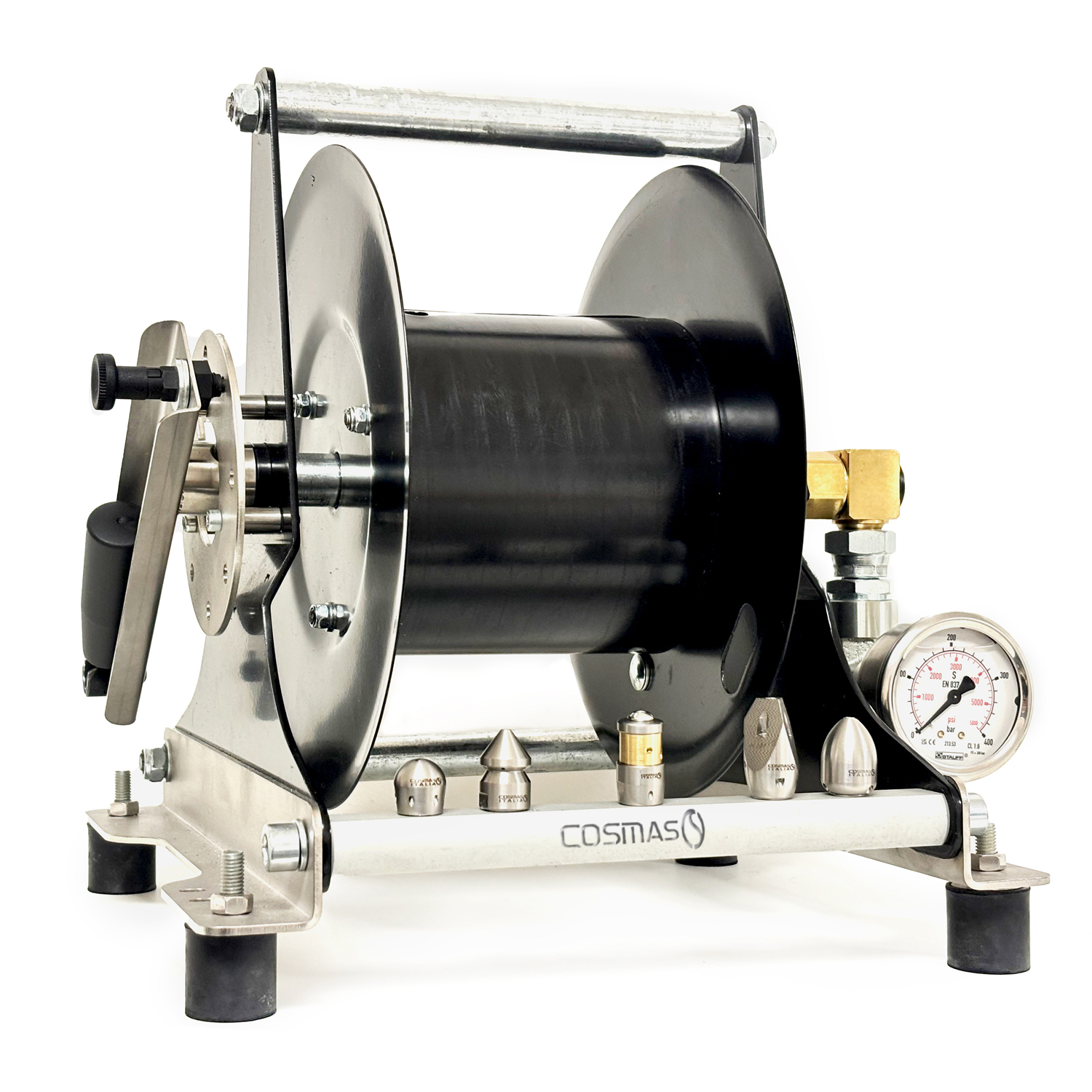

This cutting-edge product is designed to offer the utmost in reliability, practicality, and stability.

 Here are its distinctive features:

• Equipped with all Stainless Steel Plates, this Reel guarantees exceptional resistance. Its plates are specifically designed to be anti-corrosive and rust-proof ensuring a long lifespan and reduced maintenance.

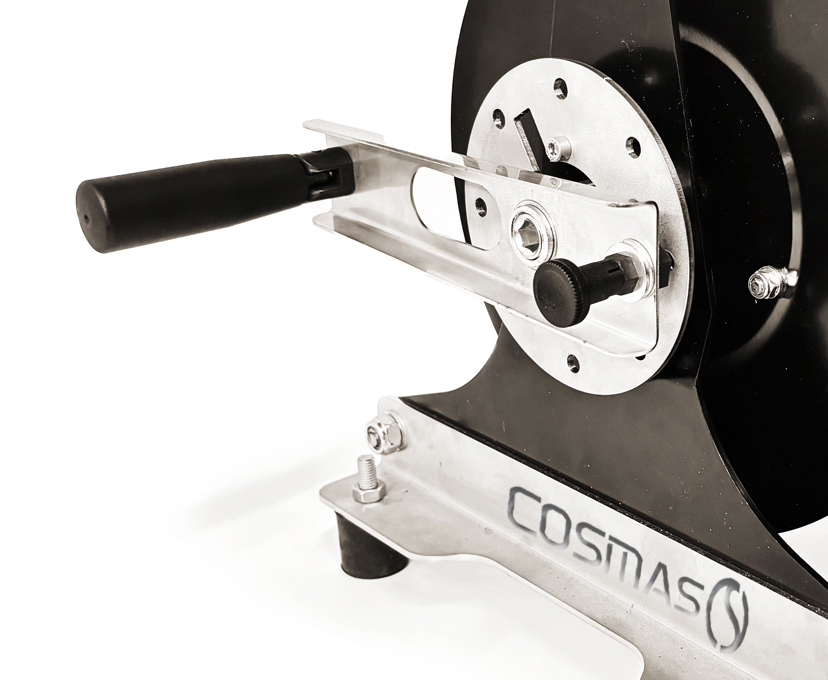

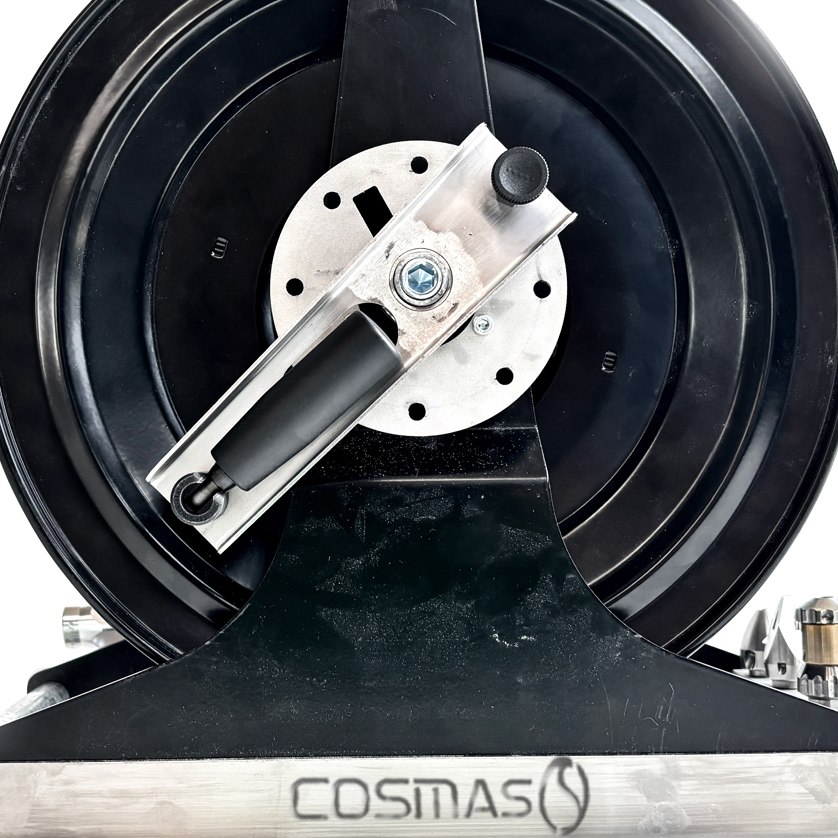

• Includes an easily extractable and retractable Handle with a spring which facilitates transport and storage.
• It integrates a Tube Locking System completely in stainless steel that safeguards it from accidental unrolling ensuring greater safety and operational stability.

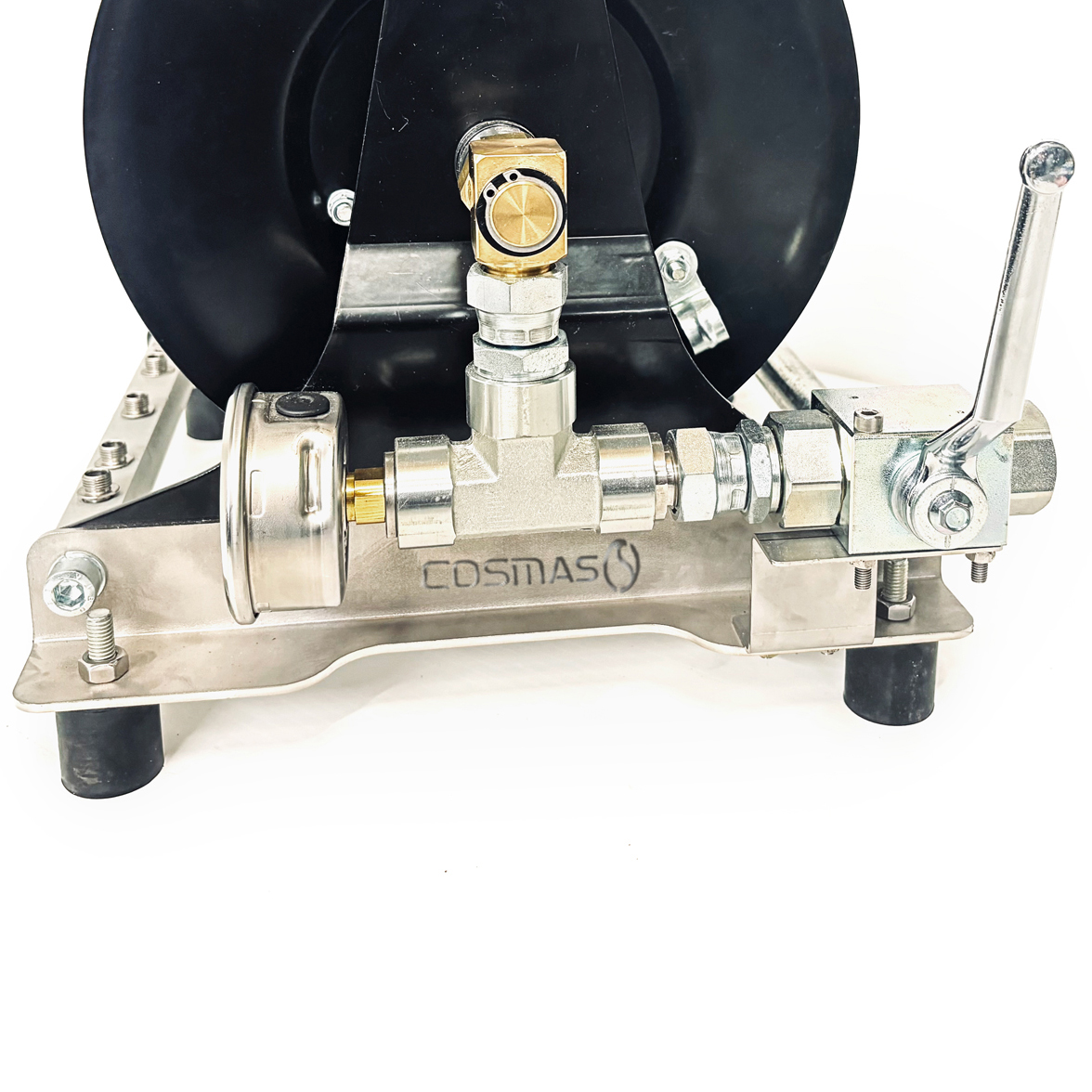

• An integrated Pressure Gauge allows monitoring of pressure up to 400 bar offering detailed control of operations.
• The presence of a Brass Swivel Joint and various Fittings ensures versatility in connections.
• It includes a Valve and, in particular, a dedicated Swivel Joint for attaching the hose which, once engaged allows the hose to be easily screwed on, ensuring quick and secure connections.

• The Reel is equipped with a practical Nozzle Holder Bar.
  This allows you to always have up to 5 purging nozzles available ensuring greater safety and operational stability.

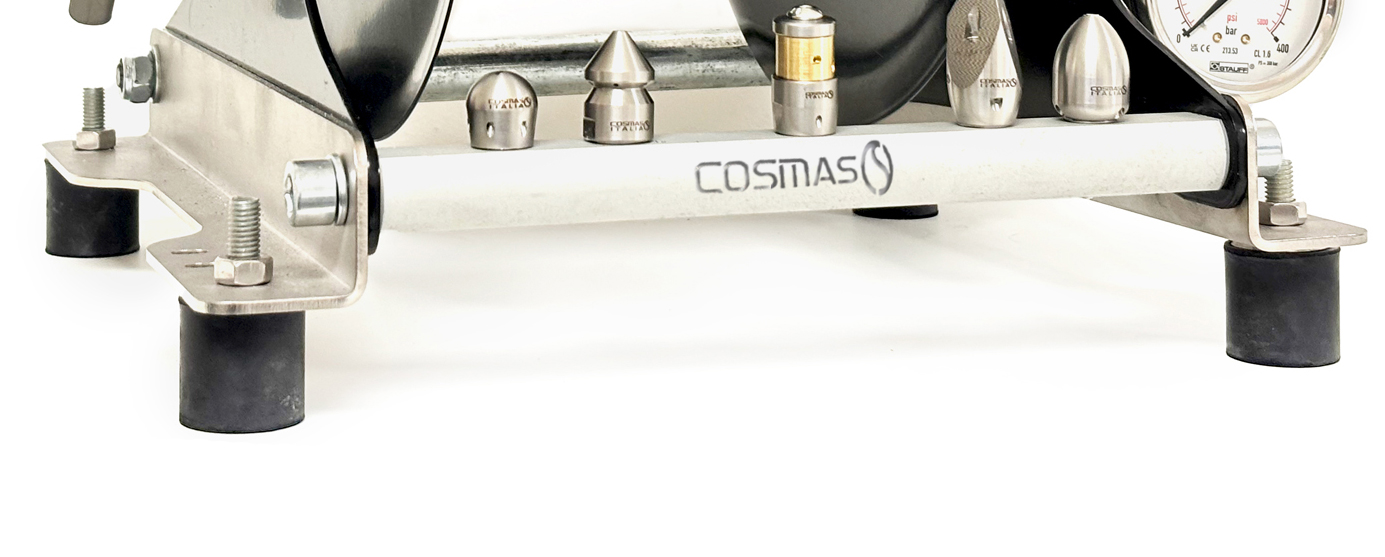

• It is mounted on Anti-vibration Rubber Feet.
  This feature allows for greater stability and excellent grip on various work surfaces.

• Robust and Durable Construction.
• Ergonomic and Functional Design.
• Precision and Connectivity.
• Maximum Practicality for Every Situation.
• Operational Safety and Stability.

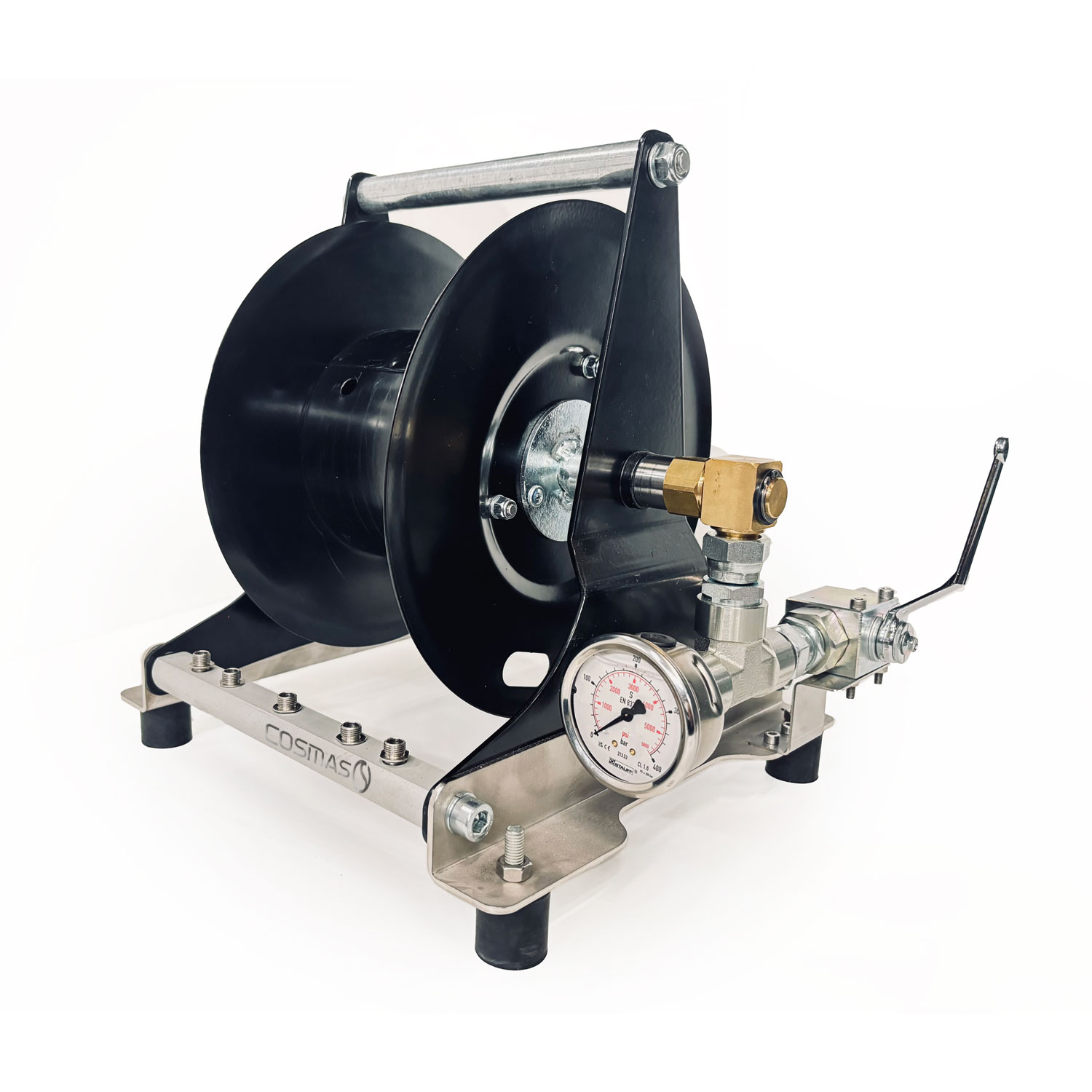

Small Reel for 3/16"-1/4" Hoses

REEL 1

with aluminum plate with 1/8"M Nipples
No Nozzles
No Hose

Dimensions 350x360xh330mm
Kgs 7,5

REEL 2

4with aluminum plate with 1/4"M Nipples
No Nozzles
No Hose

Dimensions 350x360xh330mm
Kgs 7,5

REEL1A

REEL with 5 x Nozzle 1/8" Plate
1 x Mini Ball
1 x Conical Head
1 x Rotating
1 x Triangular
1 x Propeller

No Hose

Dimensions 350x360xh330mm
Kg 8,5

REEL2A

REEL with 5 x Nozzle 1/4" Plate
1 x Mini Ball
1 x Conical Head
1 x Rotating
1 x Triangular
1 x Ovoidal

No Hose

Dimensions 350x360xh330mm
Kg 8,5

REEL1AB

REEL with 5 x Nozzle 1/8" Plate
1 x Mini Ball
1 x Conical Head
1 x Rotating
1 x Triangular
1 x Propeller

with Hose 20m

Dimensions 350x360xh330mm
Kgs 10,5

REEL2AB

REEL with 5 x Nozzle 1/4" Plate
1 x Mini Ball
1 x Conical Head
1 x Rotating
1 x Triangular
1 x Ovoidal

with Hose 20m

Dimensions 350x360xh330mm
Kgs 11,5

HOSES suitable for SMALL REEL

High Felxible Hose
Light Weight
Extremely tight bend radii
Superior Resistanc to Kinking

Part N.	Description	Brand	L	Hose	Bend Radius	Inlet	Inlet	Ø Pipe
			m		mm			mm

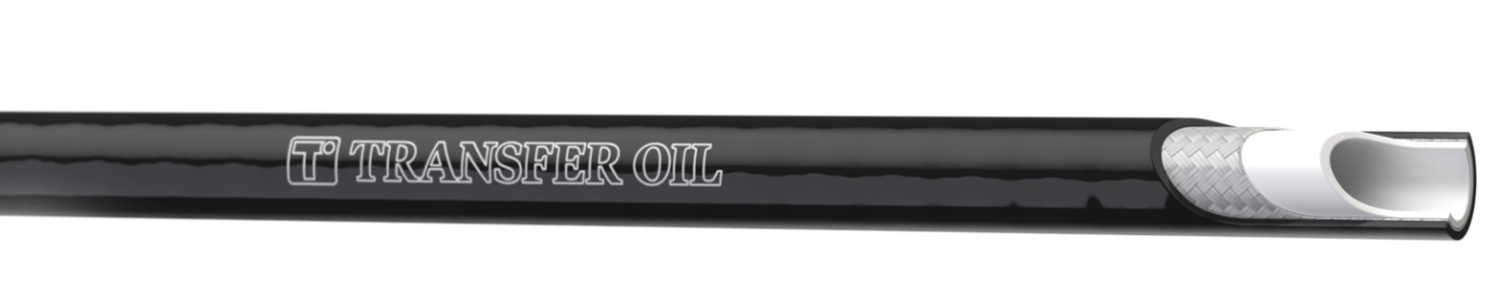

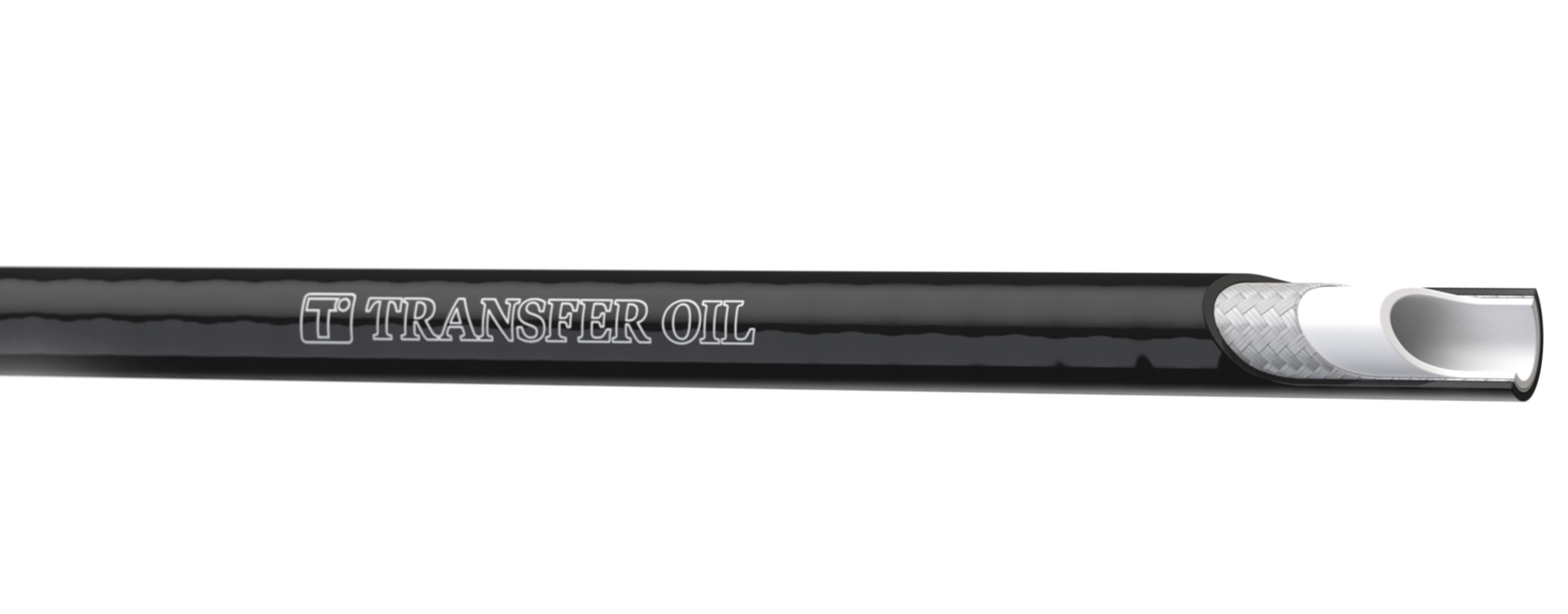

53100.01	Flexible Thermoplastic Hose with braid of high tensile textil wire	TRANSFER OIL	20m	3/16"	25	1/8"M	1/2"M	40
53100.02	Flexible Thermoplastic Hose with braid of high tensile textil wire	TRANSFER OIL	20m	1/4"	40	1/8"M	1/2"M	50

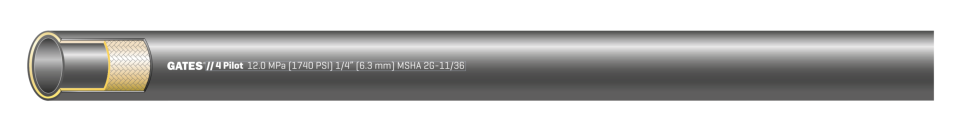

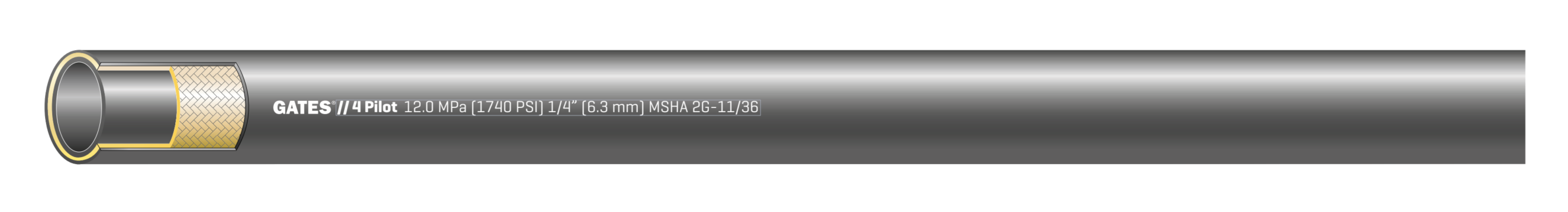

53200.02	Flexible Rubber Hose with braid of high tensile steel wire	GATES	20m	3/16"	20	1/8"M	1/2"M	40
53200.02	Flexible Rubber Hose with braid of high tensile steel wire	GATES	20m	1/4"	25	1/8"M	1/2"M	50

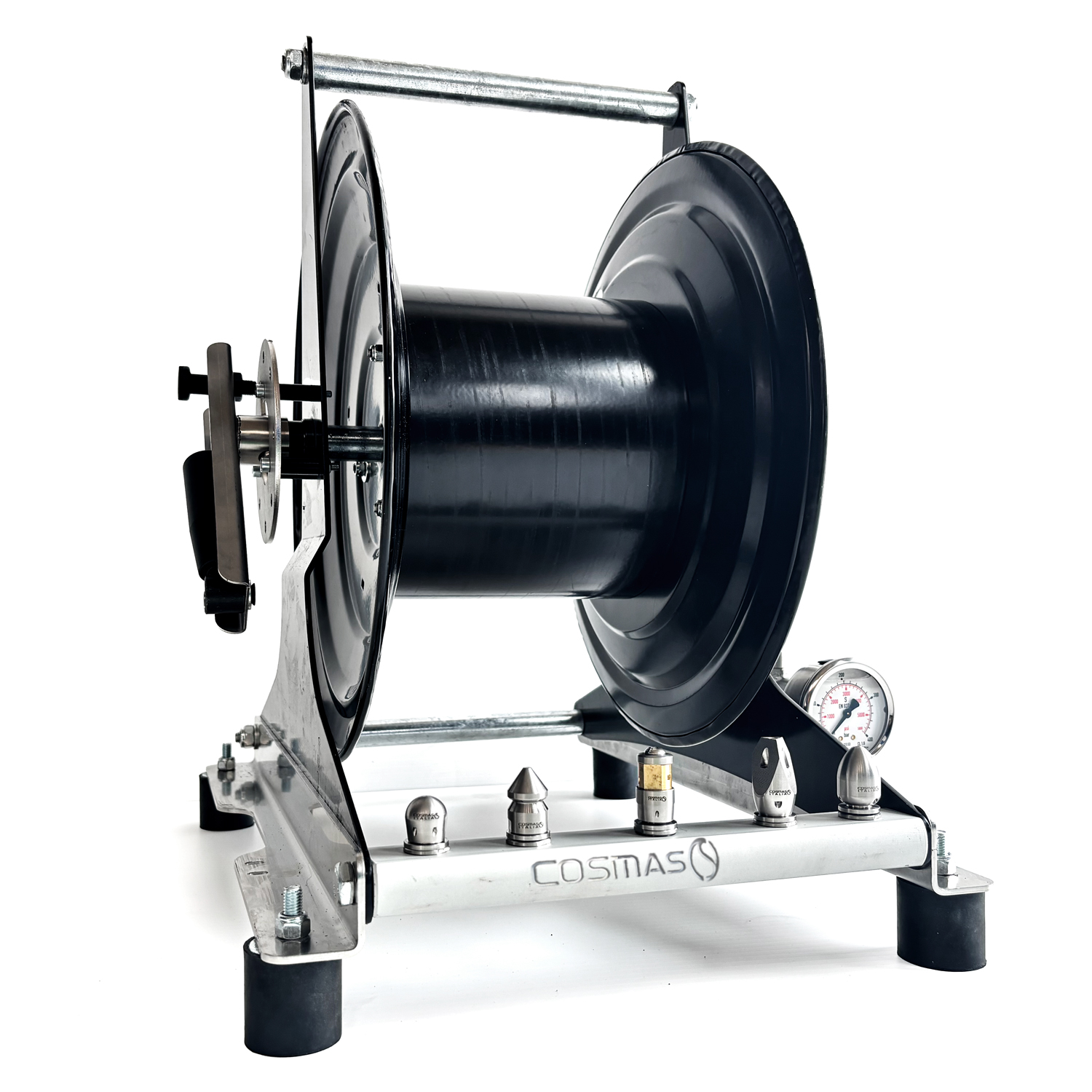

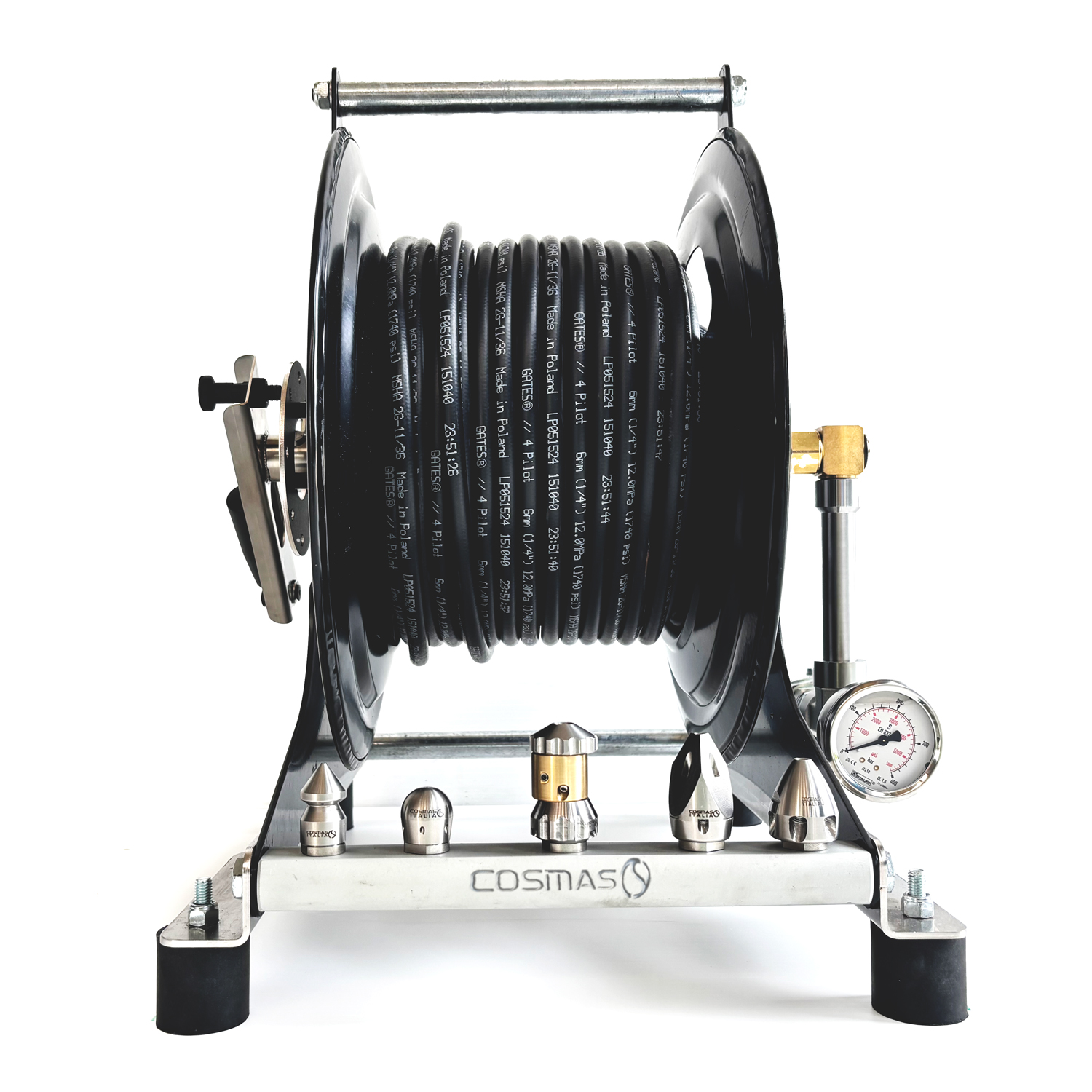

Big Reel for 1/4"-3/8" Hoses

REEL3

with aluminum plate with 1/4"M Nipples
No Nozzles
No Hose

Dimensions 420x530xh340mm
Kgs 12

REEL4

4with aluminum plate with 3/8"M Nipples
No Nozzles
No Hose

Dimensions 420x530xh340mm
Kgs 12

REEL3A

REEL with 5 x Nozzle 1/4" Plate
1 x Mini Ball
1 x Conical Head
1 x Rotating
1 x Triangular
1 x Ovoidal

No Hose

Dimensions 420x530xh340mm
Kg 13

REEL4A

REEL with 5 x Nozzle 3/8 Plate
1 x Mini Ball
1 x Conical Head
1 x Rotating
1 x Triangular
1 x Ovoidal

No Hose

Dimensions 420x530xh340mm
Kg 13

REEL3AB

REEL with 5 x Nozzle 1/4" Plate
1 x Mini Ball
1 x Conical Head
1 x Rotating
1 x Triangular
1 x Ovoidal

with Hose 20m

Dimensions 420x530xh340mm
Kg 15

REEL4AB

REEL with 5 x Nozzle 3/8 Plate
1 x Mini Ball
1 x Conical Head
1 x Rotating
1 x Triangular
1 x Ovoidal

with Hose 20m

Dimensions 420x530xh340mm
Kg 19

HOSES suitable for BIG REEL

High Felxible Hose
Light Weight
Extremely tight bend radii
Superior Resistantto Kinking

Part N.	Description	Brand	L	Hose	Bend Radius	Inlet	Inlet	Ø Pipe
			m		mm			mm
53100.02	Flexible Thermoplastic Hose with braid of high tensile textil wire	TRANSFER OIL	20m	1/4"	40	1/8"M	1/2"M	50
53200.02	Flexible Rubber Hose with braid of high tensile steel wire	GATES	20m	1/4"	25	1/8"M	1/2"M	50
53200.03A	Flexible Rubber Hose with braid of high tensile steel wire	GATES	20m	3/8"	45	3/8"M	1/2"M	80
53200.03B	Flexible Rubber Hose with braid of high tensile steel wire	GATES	20m	3/8"	45	3/8"F	1/2"M	80

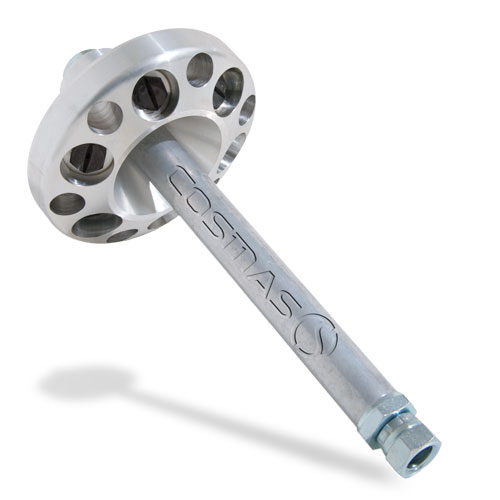

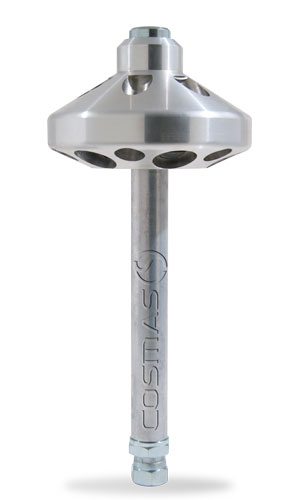

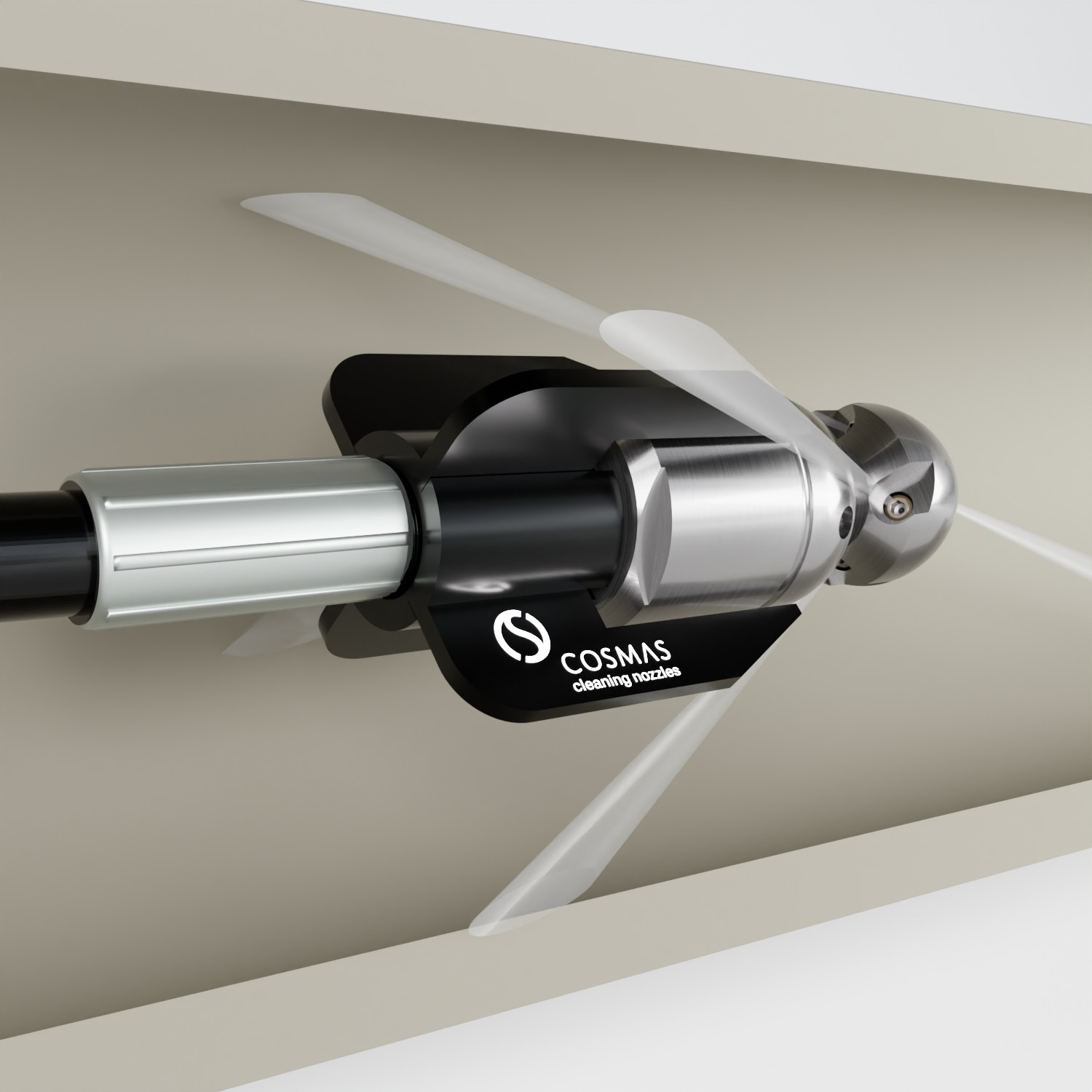

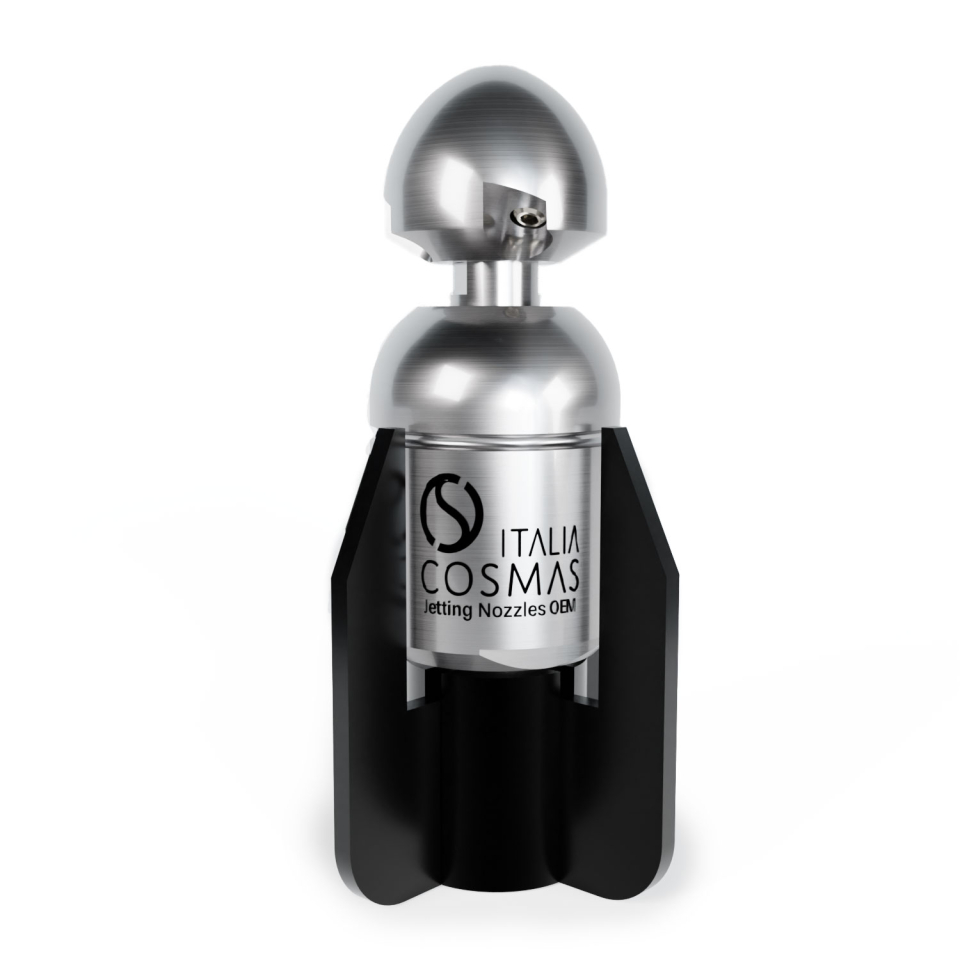

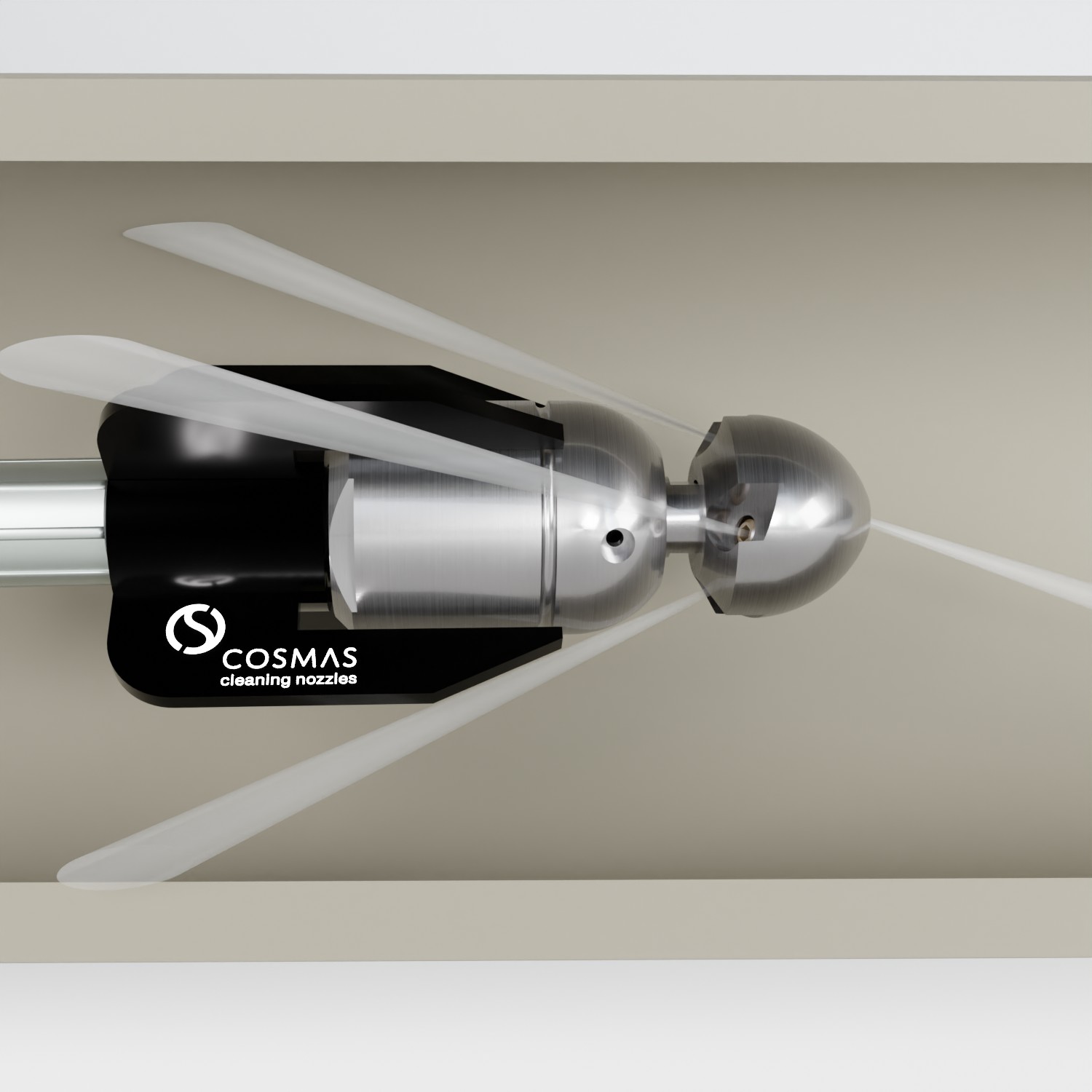

Slow Rotation Nozzle 360

360 Nozzle thanks to its slow rotation system and 4 rear and 1 front double inclination jets.
Equipped with inner splitting system that permits to clean @360° the entire inner pipe surface.

360 Slow Rotation Nozzle made in Stainless Steel gives resistance and durability.

In order to achieve the best cleaning result.

360 Slow Rotaion Nozzle has to be used with centralizer

Applications :

• Removal of Grease, Limestone, Roots, Solidified Soap, Concrete, Stones, All kind of Deposits
• Suitable for Cutting, Ripping, Descaling
• Cleaning @360°
• Made in Stainless Steel
• Equipped with Centralizer
• Slow Rotation System 600 RPM
• Double Inclination Rear Jets + 1 Front
• Special Inner Splitting Water Jets
• Also Suitable with Recycled Water
• Range 85-250 Bar
• Min. Flow: 50 L/min

Part N.	Description	Inlet	ØxL mm	Kg	Ø Pipe
18100.04	Nozzle 360	1/2"M	49x118	1,00	60 – 150
18100.05	Nozzle 360 with Small Centalizer	1/2″F	80x118	1,35	80 – 170
18100.06	Nozzle 360 with Medium Centalizer - Medium	1/2″F	100x118	1,40	100 – 250

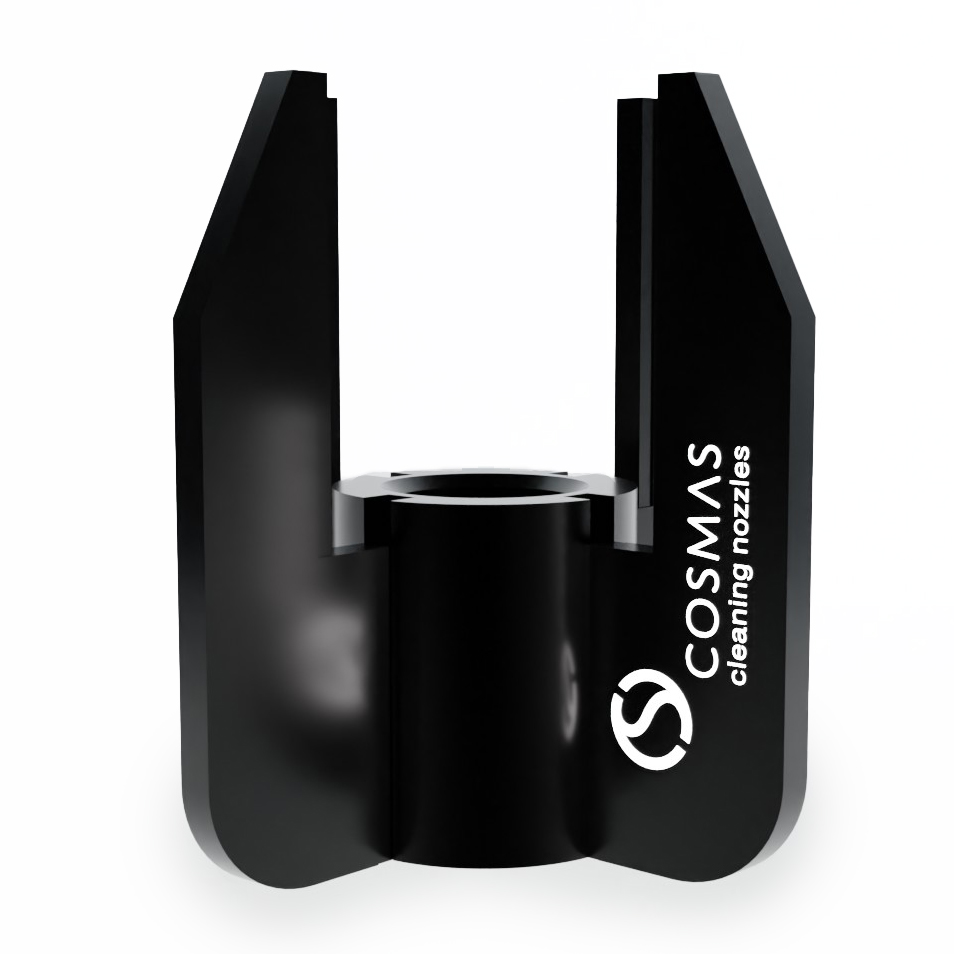

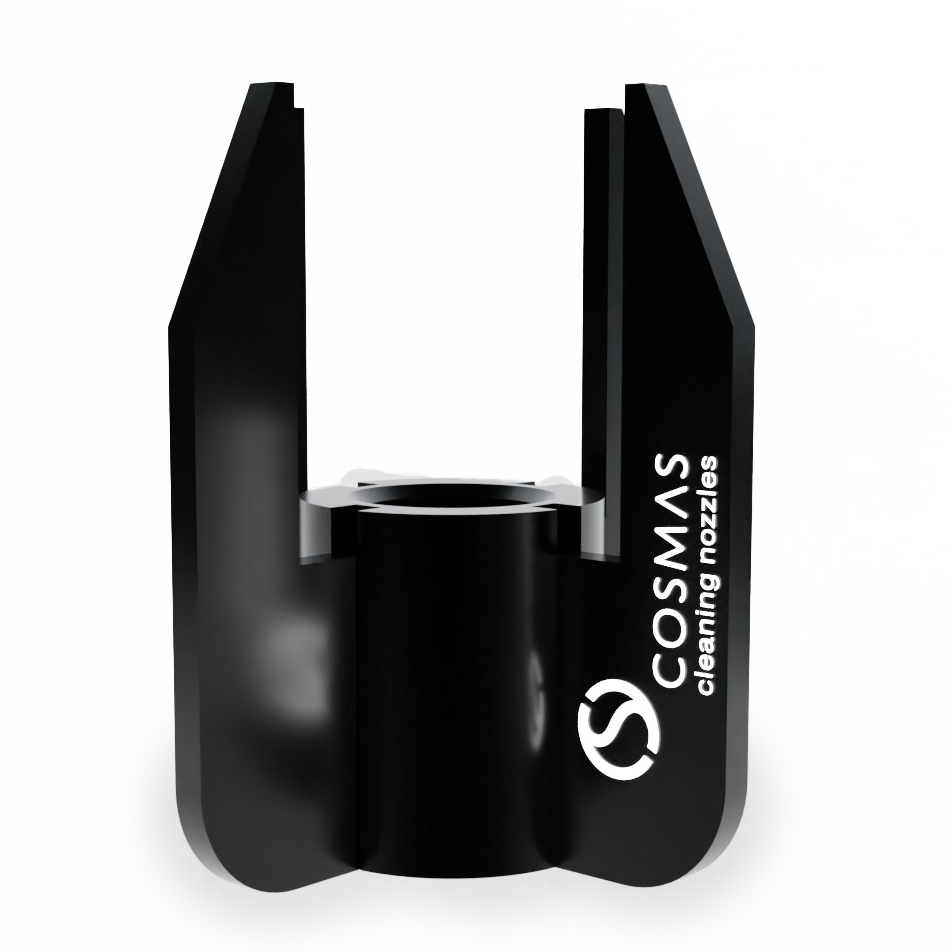

Centralizer

Part N.	Description	Inlet	ØxL mm
18100.25	Centralizer	1/2"F	80x85
18100.26	Centralizer	1/2"F	100x85
