ET9 Bifurcations Nozzle

ET9 Bifurcations Nozzle

Ovoidal Cleaning Washing nozzle featured by lateral edge and side Jet 15°.
Side jet 15° gives opposite thrust to direct nozzle into the bend direction.

Application :

Cleaning of limestone, mud, grease, soap, oily debris.
Moving forward bends and bifurcations.

Part N.DescriptionInletInsertsRear JetsFront JetØxL mmKgØ PipeMax Bar
15190.01IET 9 Bifurcation Nozzle SS1/4" FDrilled3 - Drilled 15°2 -M4x5 0°/15°20x270,0525 - 60250
15190.02IET 9 Bifurcation Nozzle SS3/8" FSS inserts3 - M6x6 15°2 -M6x6 0°/15°30x410,1650 - 100250
15190.03IET 9 Bifurcation Nozzle SS1/2" FSS inserts3 - M6x8 15°2 -M6x8 0°/15°41x650,4080 - 200250
15190.04IET 9 Bifurcation Nozzle SS3/4" FSS inserts6 - M6x8 25°2 -M6x8 0°/15°60x851,20100 - 300250
15190.05IET 9 Bifurcation Nozzle SS1" FSS inserts6 - M6x8 25°2 -M6x8 0°/15°70x951,80100 - 400250
15190.02CIET 9 Bifurcation Nozzle SS3/8" FCeramic Inserts3 - M6x6 15°2 -M6x6 0°/15°30x410,1650 - 100250
15190.03CIET 9 Bifurcation Nozzle SS1/2" FCeramic Inserts3 - M6x8 15°2 -M6x8 0°/15°41x650,4080 - 200250
15190.04CIET 9 Bifurcation Nozzle SS3/4" FCeramic Inserts6 - M6x8 25°2 -M6x8 0°/15°60x851,20100 - 300250
15190.05CIET 9 Bifurcation Nozzle SS1" FCeramic Inserts6 - M6x8 25°2 -M6x8 0°/15°70x951,80100 - 400250

Read more...

Ogive

Ogive

Ogive nozzle made in s/steel material with 8 rear jet s at 10° and 30°.
This double inclination gives at the same time significant traction power and washing inside sewers.
Supplied with s/steel inserts or ceramic ones.

Application :

Great washing before inspection
Vertical columns
Oily debris, limestone, soap, grease
Long run jobs

Part N.DescriptionInletInsertsRear JetsFront JetØxL mmKgØ PipeMax Bar
12310.01AIOgive 10°+30°1/2"FSS inserts4+4 M6x81 - M6x850x650,6560 - 150250
12310.02AIOgive 10°+30°3/4"FSS inserts4+4 M6x81 - M6x860x851,1570 - 300250
12310.03AIOgive 10°+30°1"FSS inserts4+4 M6x81 - M6x870x852,0080 - 400250
12310.01CIOgive 10°+30°1/2"FCeramic Inserts4+4 M6x81 - M6x850x650,6560 - 150250
12310.02CIOgive 10°+30°3/4"FCeramic Inserts4+4 M6x81 - M6x860x851,1570 - 300250
12310.03CIOgive 10°+30°1"FCeramic Inserts4+4 M6x81 - M6x870x852,0080 - 400250

Read more...

Arrows

Arrows

The Arrow device lets the rotating nozzle advance into the pipe, giving stability and improving its cleaning performances.
Particularly suitable for removing cement and concrete encrustations inside canalisations.
Supplied with 1/4″M – 1/4″M short stainless steel nipple and nozzles with a front rotating ceramic jet.

Application :

Removal of sludge deposits.
Washing out of liemestone, soap, grease from drain. Unblocking pipeslines obstructed by ice, stones, rocks. Removing sedimented tar.
Cutting woods,roots.
Cement, Concrete https://cosmasitalia.com/wp-content/uploads/2024/07/Biturbo3in1High.mp4

Arrows 1

Part N.DescriptionInletRotating NozzleFront JetØxL mmKgØ PipeMax Bar
30100.01Arrow 1 +1 Rotojet1/4"1 - 1/4"F1 x M6x864x40x250,3080 - 150250

Arrow 1 device supplied with:

2 x short SS Nipples 1/4"M
1 x Ceramic Rotating Nozzle 1/4"F
1 x Open/ blind Front insert M6x8

Arrows 2

Part N.DescriptionInletRotating NozzleFront JetØxL mmKgØ PipeMax Bar
30100.02Arrows 2 + 2 Rotojet1/4"2 - 1/4"F_67x52x250,4080 - 200250
30100.02BArrows 2 + 2 Rotojet BIG1/4"2 - 1/4"F_85x52x250,47100-300400

Arrow 2 device supplied with:

3 x short SS Nipples 1/4"M
2 x Ceramic Rotating Nozzle 1/4"F

Arrows 3

Part N.DescriptionInletRotating NozzleFront JetØxL mmKgØ PipeMax Bar
30100.03Arrows 3 + 2 Rotojet1/4"2 - 1/4"F1 x M6x870x67x46,50,6080 - 250250

Arrow 3 device supplied with:

3 x short SS Nipples 1/4"M
2 x Ceramic Rotating Nozzle 1/4"F
1 x Open/ blind Front insert M6x8

Arrows 4 & 5

Part N.DescriptionInletRotating NozzleFront JetØxL mmKgØ PipeMax Bar
30100.04Arrows 4 + 2 Rotojet3/8"2 - 1/4"F1+2 M8x10100x100x301,3120 - 350250
30100.05Arrows 5 + 2 Rotojet1/2"2 - 1/4"F1+2 M8x10100x100x301,3120 - 350250

Arrows 4 & 5 devices supplied with:
3 x short SS Nipples 1/4"M
2 x Ceramic Rotating Nozzle 1/4"F
1 x Open/blind Front insert M8x10
2 x Open/blind Lateral insert M8x10
https://cosmasitalia.com/wp-content/uploads/2024/07/biturbo-wood.mp4

Accessories

Part N.DescriptionInletØxL mmKgMax Bar
30100.255.025Rotojet 225 Bar FP025 Ø1,001/4" F32x790,25250
30100.255.030Rotojet 225 Bar FP025 Ø1,101/4" F32x790,25250
30100.255.045Rotojet 225 Bar FP045 Ø1,301/4" F32x790,25250
30100.255.08Rotojet 225 Bar FP08 Ø1,701/4" F32x790,25250
30100.400.035Rotojet 400 Bar FP035 Ø1,10 x Arrow2 BIG1/4" F43x1090,60400
30100.400.04Rotojet 400 Bar FP08 Ø1,20 x Arrow2 BIG1/4" F43x1090,60400
30100.400.07Rotojet 400 Bar FP11 Ø1,60 x Arrow2 BIG1/4" F43x1090,60400
30100.400.11Rotojet 400 Bar FP08 Ø2,20 x Arrow2 BIG1/4" F43x1090,60400

Part N.DescriptionInlet
17100.03SS Small Nipple1/4"M

Part N.DescriptionInlet
52900.01Hose Connector L=200mm1/4"F - 3/8"F
52900.02Hose Connector L=200mm1/4"F - 3/8"M
52900.03Hose Connector L=200mm1/4"F - 1/2"F
52900.04Hose Connector L=200mm1/4"F - 1/2"M
52900.05Hose Connector L=200mm1/4"F - 1/8"F
52900.07Hose Connector L=200mm1/4"F - 1/4"F

Part N.DescriptionInlet
GG14GSwivel Joint1/4"
GG38GSwivel Joint3/8"
GG12GSwivel Joint1/2"

Read more...

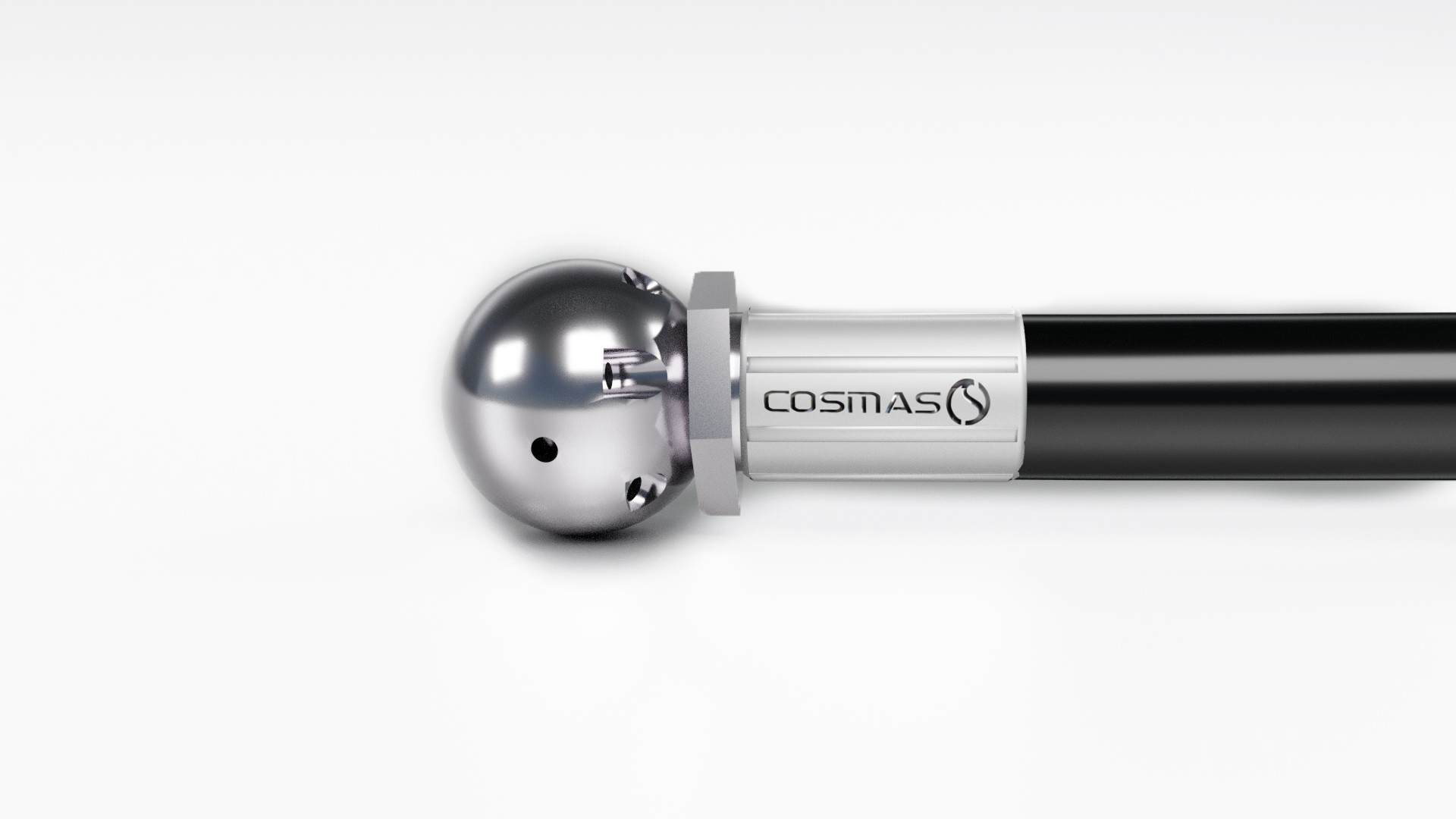

Sphera

Sphera

Nozzle made in stainless steel or brass, excellent for going over bends and keep right or left direction according to the lateral hole position.

Application :

Cleaning of limestone, soap, mud, oily residues, going over bends.

Part No.DescriptionInletRear JetsFront/Lateral JetsØxL mmKgPipe mmMax Bar
M4x5 ceramicM4x5 ceramic
15200.02CISphera SS1/4"F3x30° + 3x10°1x0°/ 1x90°35x350,1550 -150250
15200.03CISphera SS3/8"F3x30° + 3x10°1x0°/ 1x90°35x350,1550 -150250
15200.01CISphera SS1/2"F3x30° + 3x10°1x0°/ 1x90°35x350,1550 -150250
15200.12CISphera SS1/2"F12 x M4x5 7°1x0°35x350,2550 -150250
15200.01COSphera Brass1/2"F3x30° + 3x10°1x0°/ 1x90°35x350,2550 -150250
13840.11Brass Bushing1/2"F0,0850 -15050 -150

https://cosmasitalia.com/wp-content/uploads/2024/04/sfera-da-Lontano.mp4https://cosmasitalia.com/wp-content/uploads/2024/04/Video-Sewer-Nozzle-Sphera-Marchio.mp4
Read more...
