Reversible

1/4"F stainless steel nozzle with reversible thrusting jets.
Double thread on the back and in the front, permit to easily change cover head and have interchangeable thrusting jets.

Application :

Cleaning of domestic sewers, vertical columns and pipes, removal of oily debris, limestone, soap, grease, sanitary

Part No.	Description	Material	Inlet	Rear Jets	Front Jet	ØxL mm	Kg	Ø Pipe	Max Bar
12200.05I	Reversible	S/Steel	1/4"F	3 or 6 Drilled 35°	_	20x36	0,65	25 - 80	250

Back Jets

https://cosmasitalia.com/wp-content/uploads/2024/09/con-marchio-rot-high.mp4

Front Jets

Hose to be moved inside pipe by hands

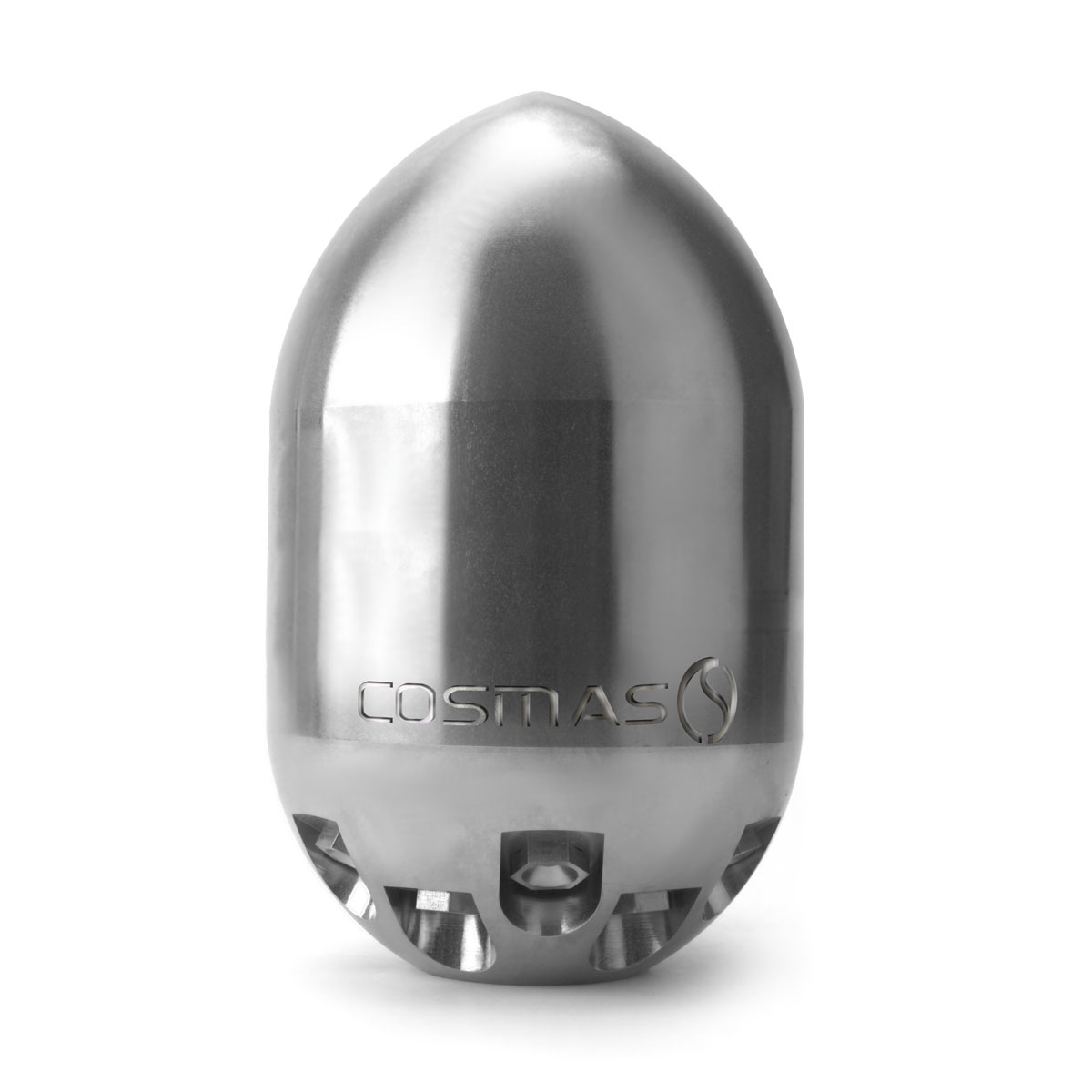

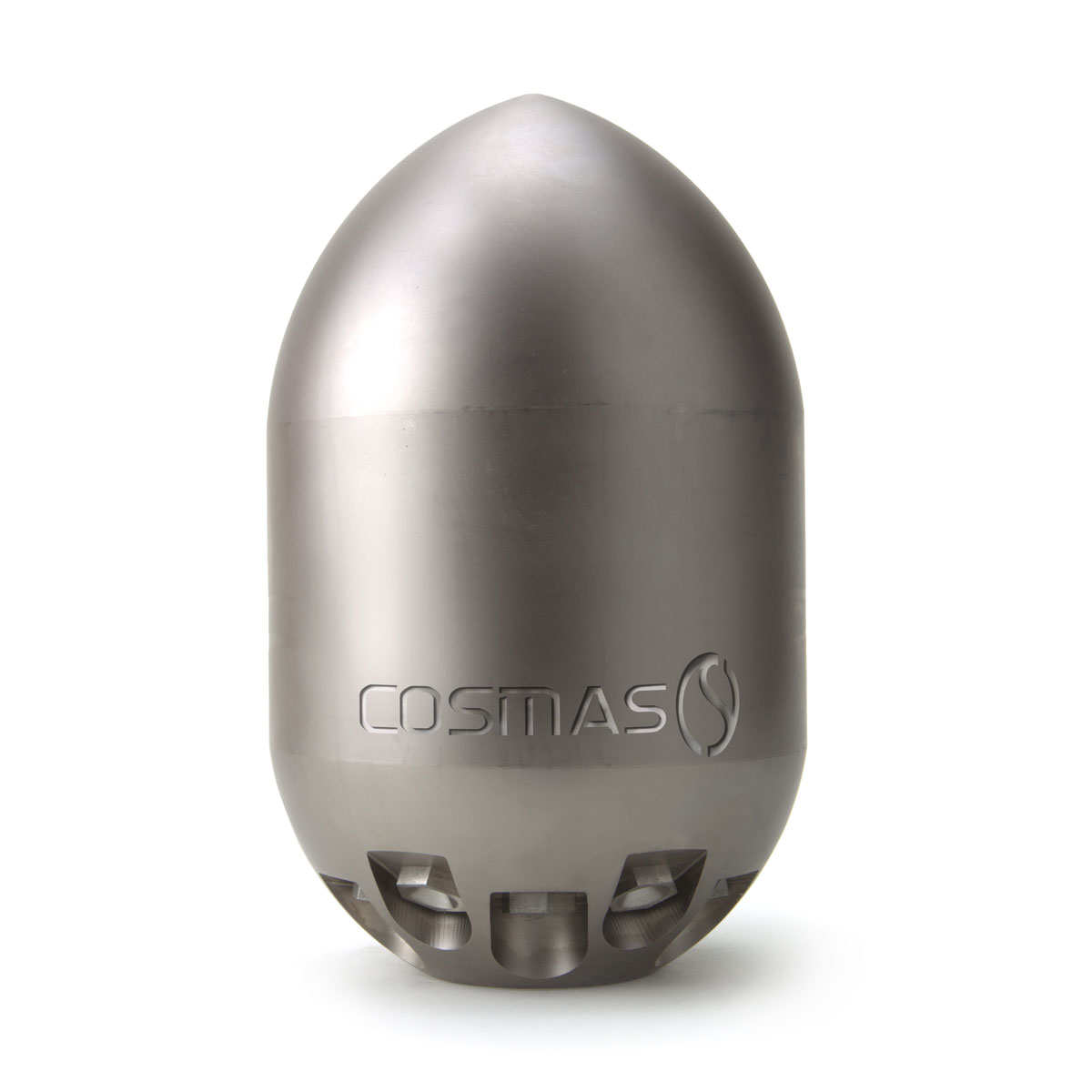

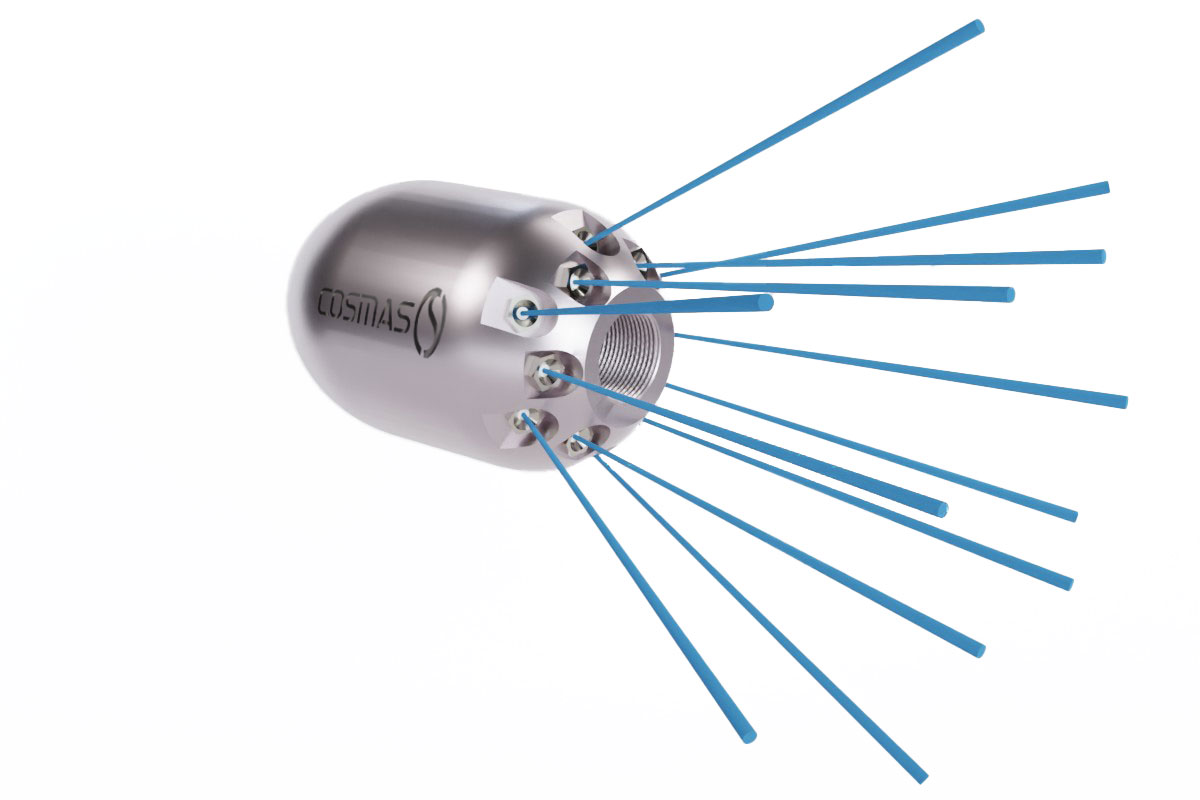

ET6

High Efficiency Nozzle 6x10°+ 6x30°

Strong thrust 10°in combination with washing power 30°, high quality steel and heavy weightare the peculiar features of this excellent washing nozzle.
Suitable for working out debris in long and big sewers.

Available with S/Steel or Ceramic Inserts.
Ceramic inserts are recommended using dirty or recycled water.

Application :

Removal and expulsion of strong blockages inside big pipes.
Flushing out of calcareous deposits, sand, sludge, gravel, mud,
long runs jobs.
Total obstructions.

Part N.	Material	Inlet	Insert	Rear Jets	Front Jet	ØxL mm	Kg	Ø Pipe	Max Bar
15160.04A	ET6	1"F	SS inserts	12 - 1/4"M	_	118x188	10,00	200 - 800	300
15160.05A	ET6	1" 1/4" F	SS inserts	12 - 1/4"M	_	118x188	10,00	200 - 800	300
15160.04C	ET6	1"F	Ceramic Inserts	12 - 1/4"M	_	118x188	10,00	200 - 800	300
15160.05C	ET6	1" 1/4"F	Ceramic Inserts	12 - 1/4"M		118x188	10,00	200 - 800	300
For stainless steel version write "I" (INOX) after part No. (Ex. 15160.04CI)

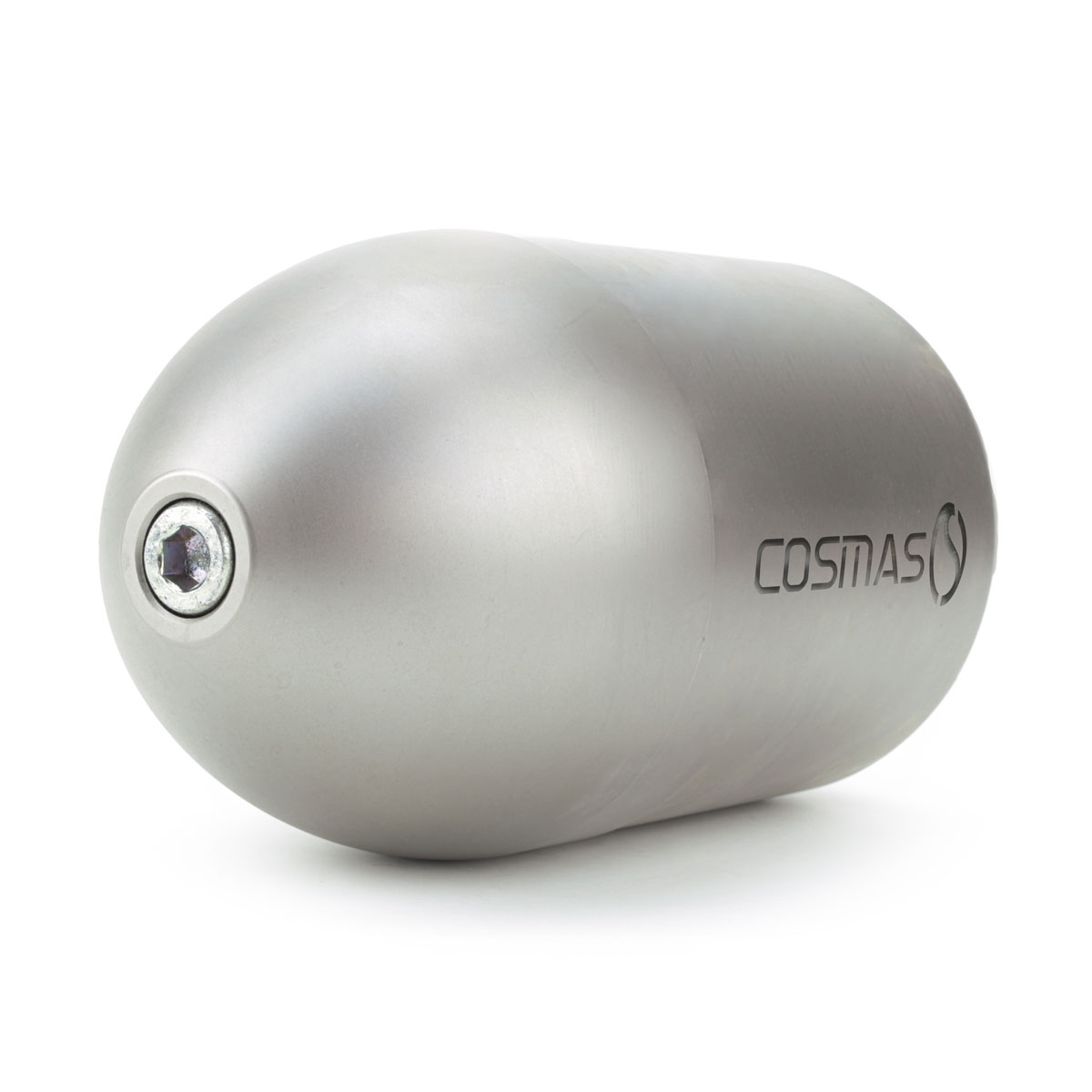

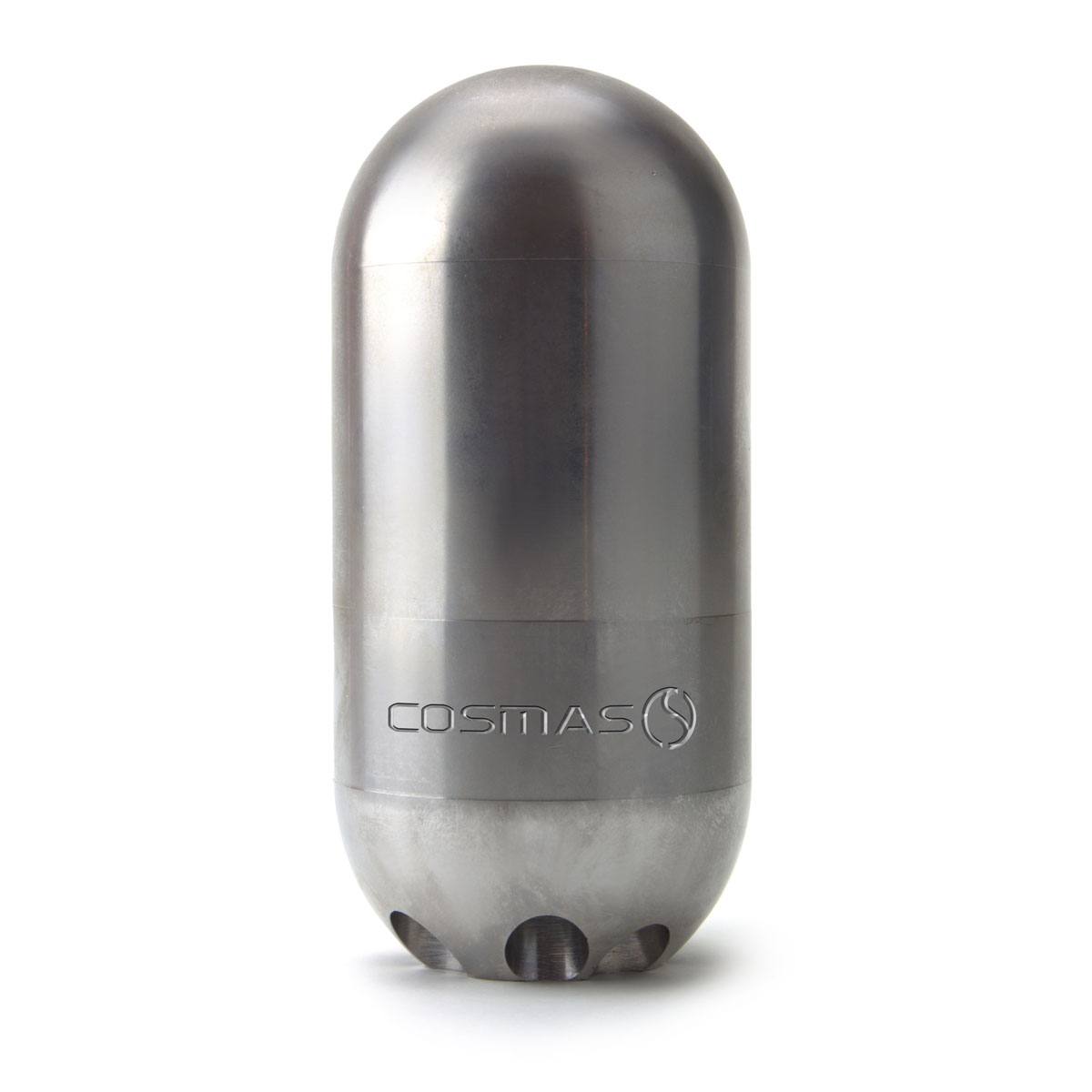

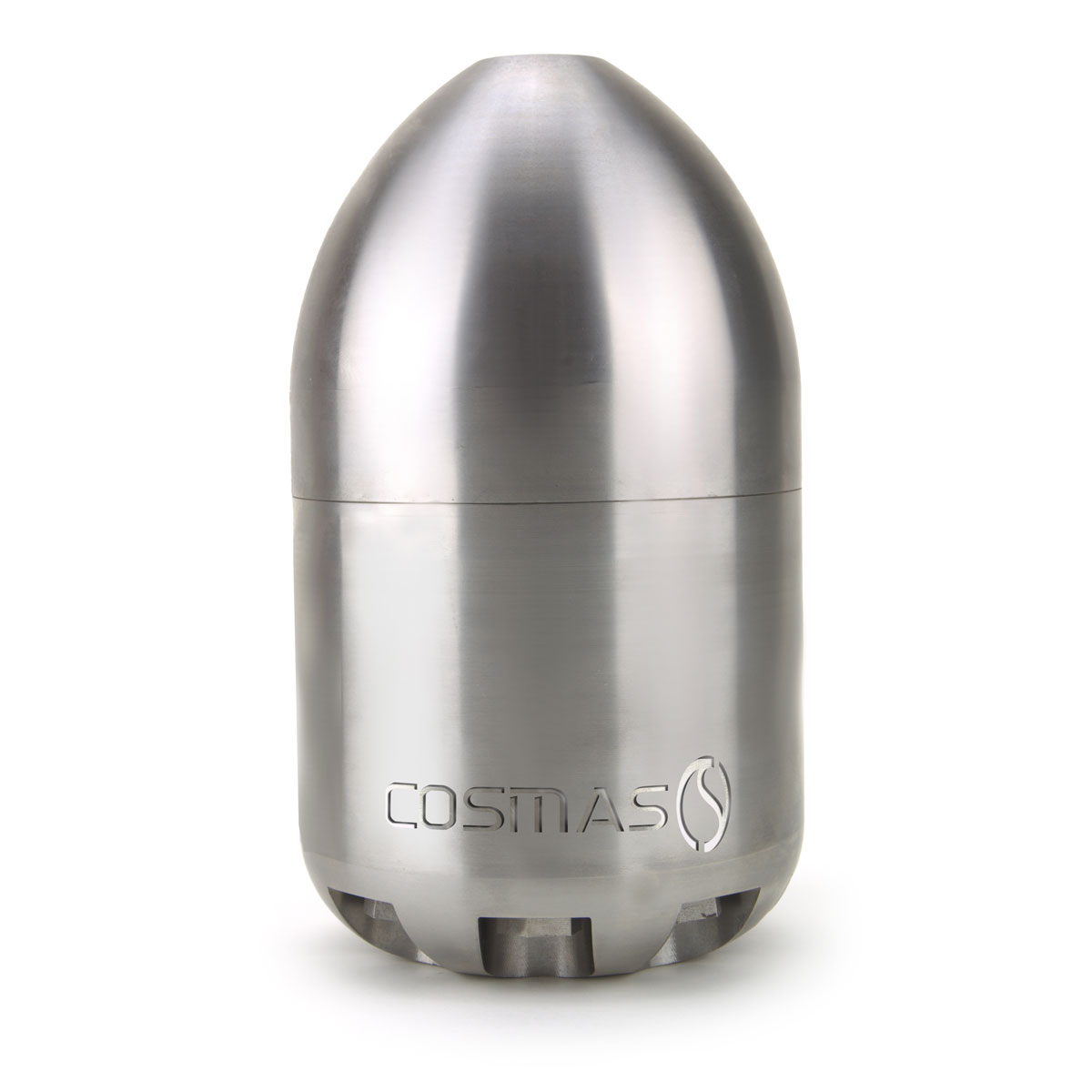

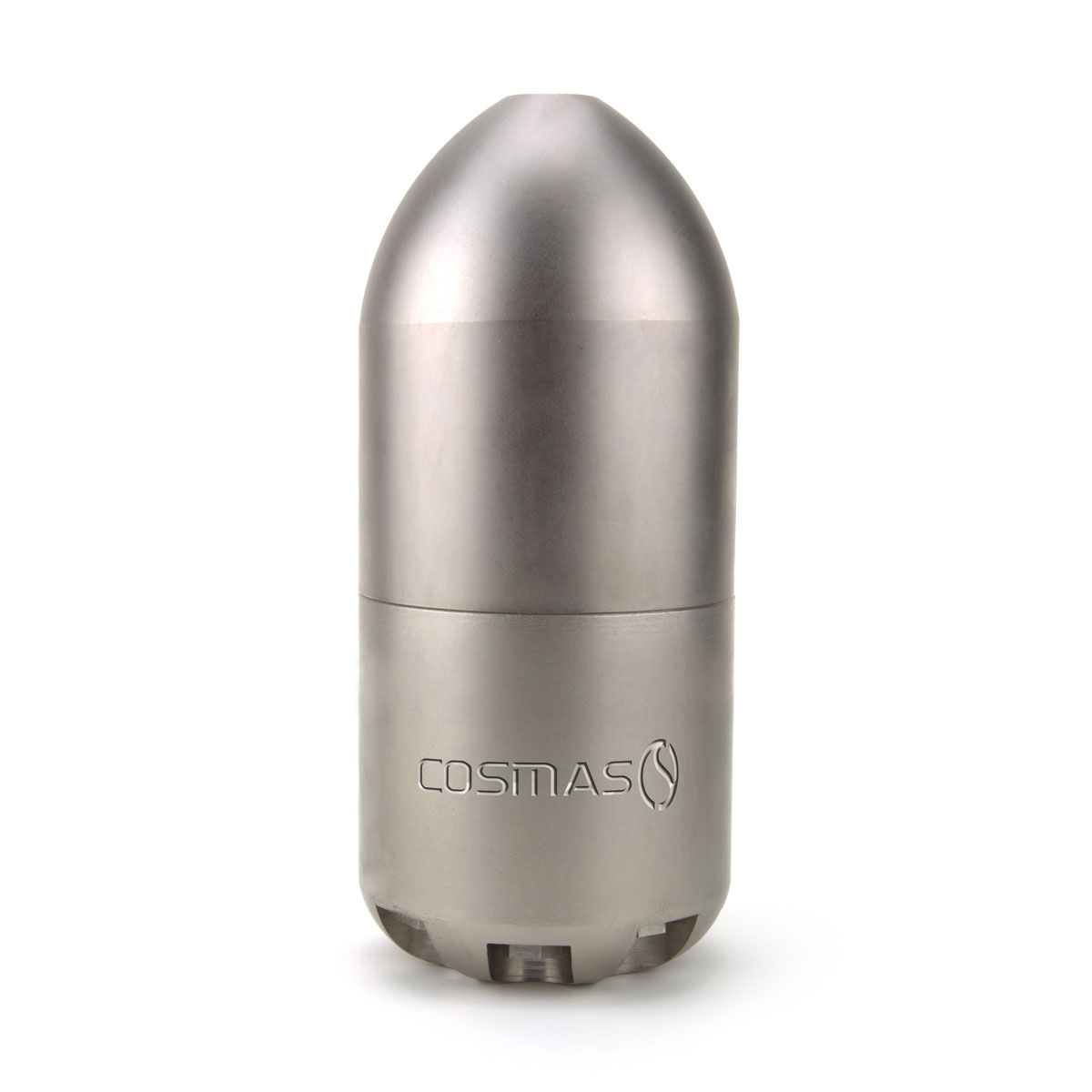

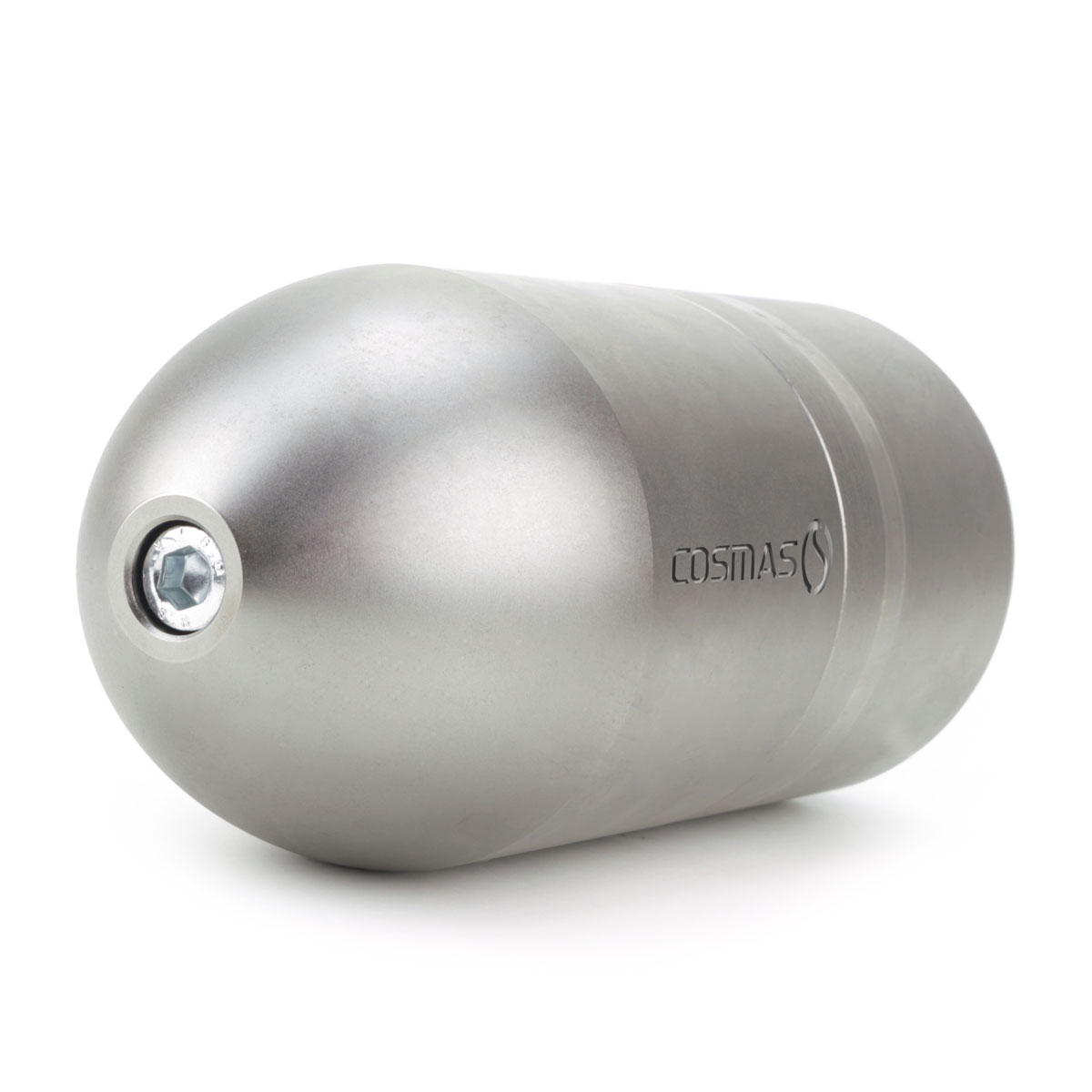

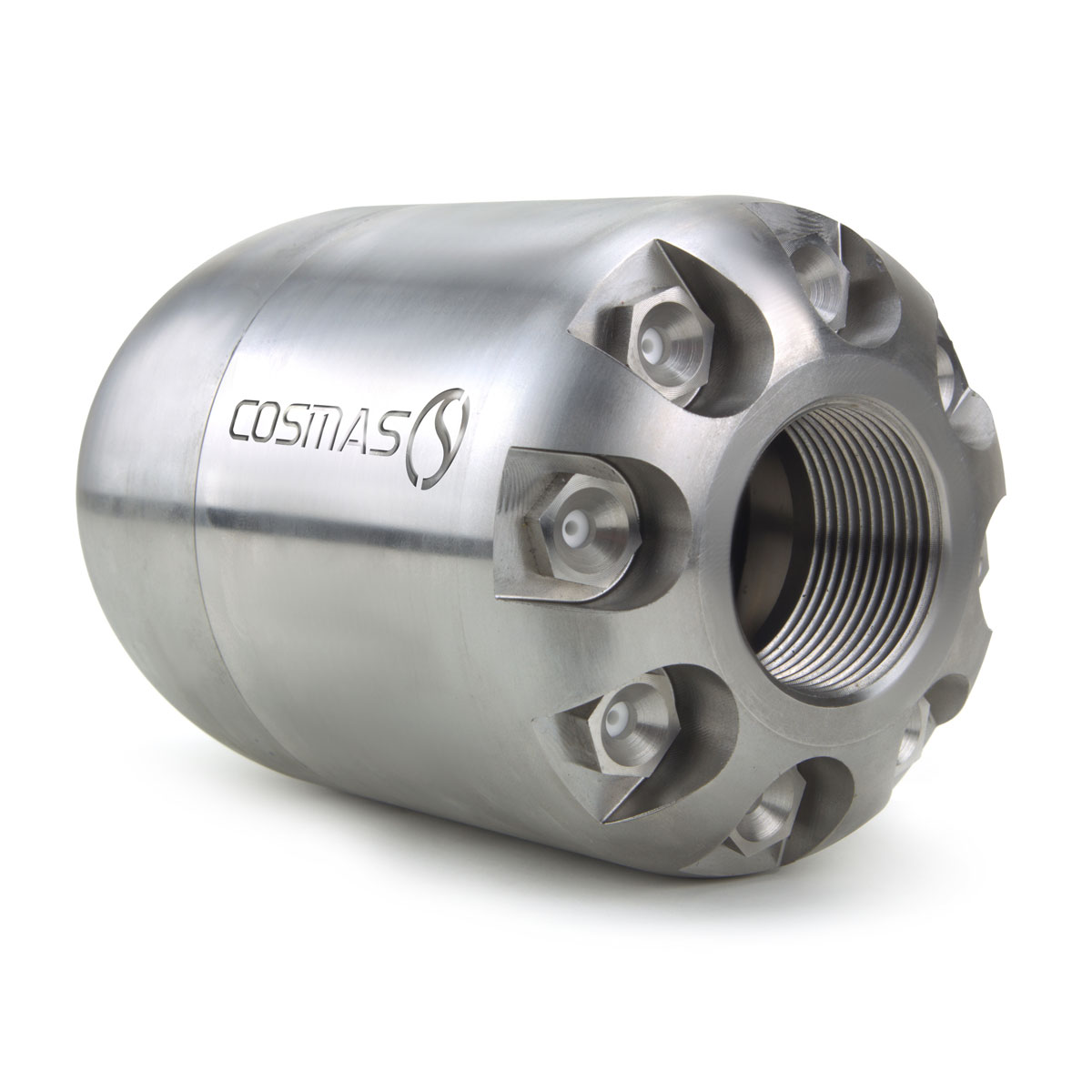

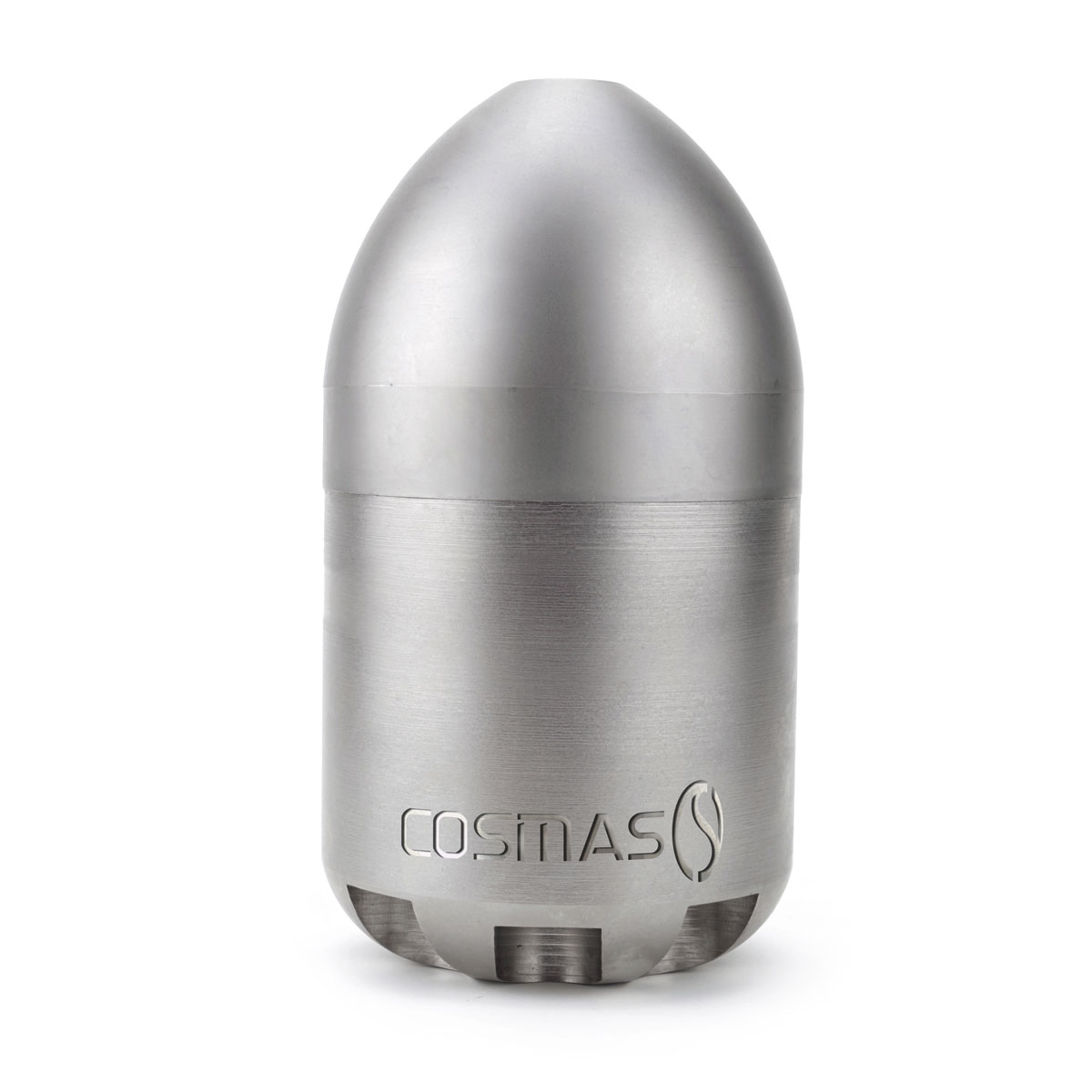

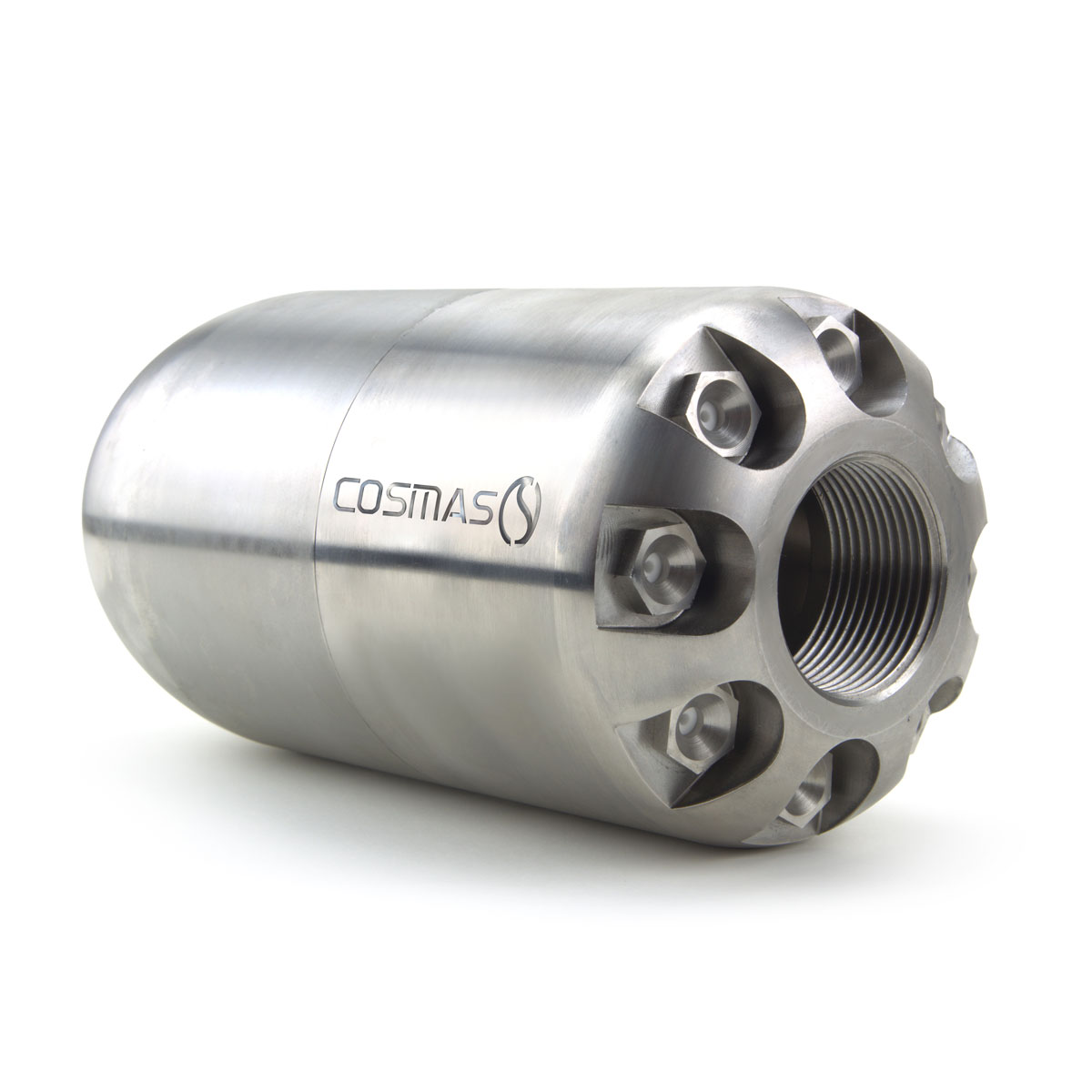

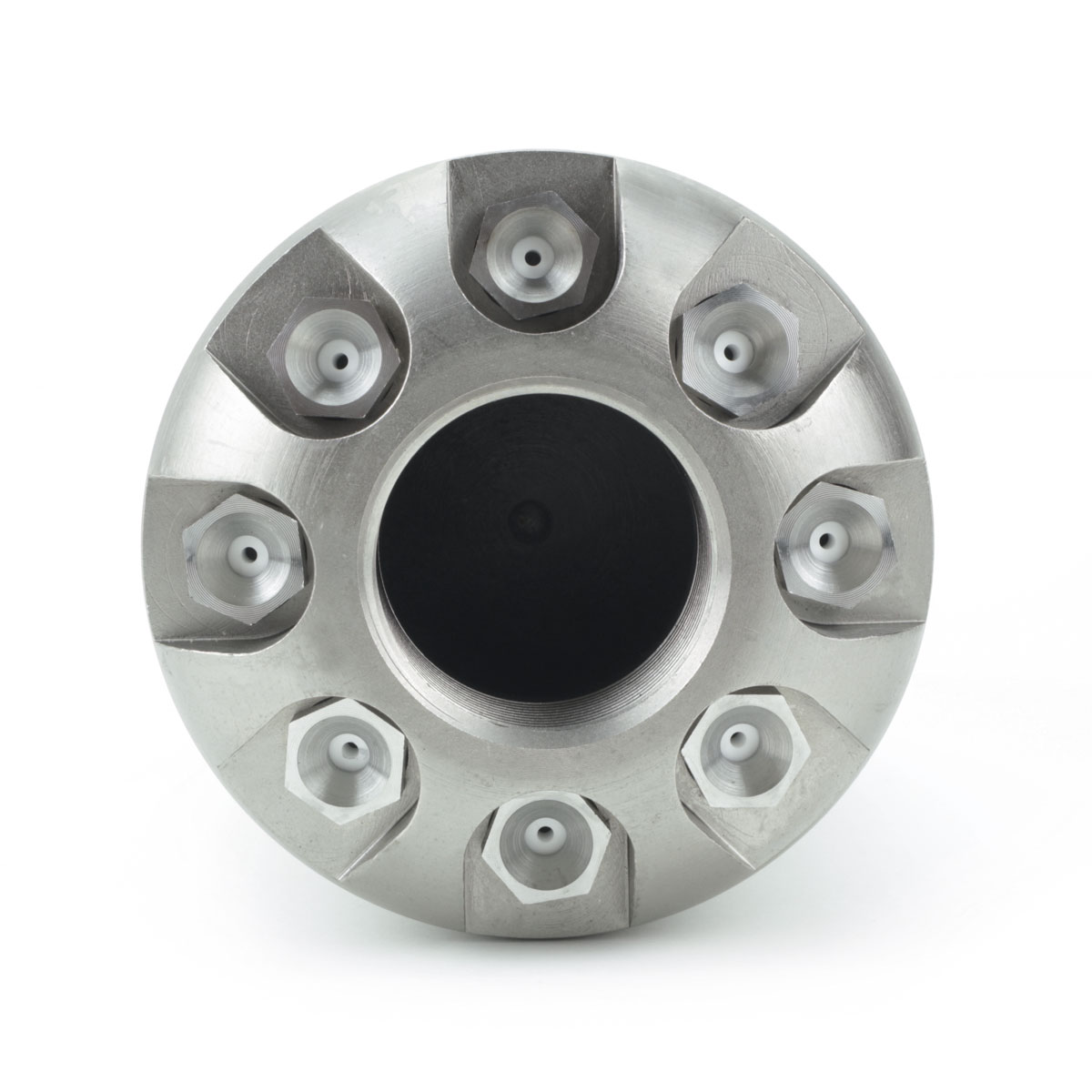

ET5

High Efficiency Nozzle 4x5° + 4x10°

L=150mm

L=220mm

L=172mm

ET5 distinctive feature is its double jets inclination at 5°and 10° which gives to this heavy nozzle a high traction power inside long pipes.
Thanks to its’ weight and oriented orifices this high efficiency nozzle has a very long life time.

Available with S/Steel or Ceramic Inserts.
Ceramic inserts are recommended using dirty or recycled water.

Application :

Removing and expulsion of strong blockages inside big pipes.
Flushing out calcareous deposits, sand, sludge, gravel, mud, long runs jobs.

L=172mm

L=172mm

L=172mm

Part N.	Description	Inlet	Insert	Rear Jets	Front Jet	ØxL mm	Kg	Ø Pipe	Max Bar
15150.03A	ET5 L=150mm	3/4"F	SS inserts	8 - M8x10	1 - M10x12	70x150	3,50	80 - 300	300
15150.02A	ET5 L=150mm	1"F	SS inserts	8 - M8x10	1 - M10x12	70x150	3,50	80 - 300	300
15150.04A	ET5 L=172mm	1"F	SS inserts	8 - 1/4"M	_	98x172	4,80	150 - 500	300
15150.14A	ET5 L=172mm	1" 1/4" F	SS inserts	8 - 1/4"M	_	98x172	4,80	150 - 500	300
15150.05A	ET5 L=220mm	1"F	SS inserts	8 - 1/4"M	_	98x220	5,30	150 - 500	300
15150.15A	ET5 L=220mm	1" 1/4" F	SS inserts	8 - 1/4"M	_	98x220	5,30	150 - 500	300
15150.03C	ET5 L=150mm	3/4"F	Ceramic Inserts	8 - M8x10	1 - M10x12	70x150	3,50	150 - 500	300
15150.02C	ET5 L=150mm	1"F	Ceramic Inserts	8 - M8x10	1 - M10x12	70x150	3,50	150 - 500	300
15150.04C	ET5 L=172mm	1"F	Ceramic Inserts	8 - 1/4"M	_	98x172	4,80	150 - 500	300
15150.14C	ET5 L=172mm	1" 1/4" F	Ceramic Inserts	8 - 1/4"M	_	98x172	4,80	150 - 500	300
15150.05C	ET5 L=220mm	1"F	Ceramic Inserts	8 - 1/4"M	_	98x220	5,30	150 - 500	300
15150.15C	ET5 L=220mm	1" 1/4" F	Ceramic Inserts	8 - 1/4"M	_	98x220	5,30	150 - 500	300
For stainless steel version write "I" (INOX) after part No. (Ex. 15150.04CI)

L=220mm

L=220mm

L=220mm

ET4 High Efficiency Nozzle 20°

8 x 20° rear jets have a great thrusting capacity to wash out sediments inside sewers.
Thanks to its shape, weight and 20°calibrated orifices, ET4 is considered as a very popular, efficient and performing heavy nozzle with an extended life time.

Available with S/Steel or Ceramic Inserts.
Ceramic inserts are recommended when using dirty or recycled water.

Applications :

Removal and expulsion of strong blockages inside big pipes.
Flushing out of calcareous deposits, sand, sludge, gravel, mud, long runs jobs.

Part N.	Material	Inlet	Insert	Rear Jets	Front Jet	ØxL mm	Kg	Ø Pipe	Max Bar
15140.03A	ET4 Steel	3/4"F	SS inserts	8 - M10x12	1 - Tbei M10	70x98	1,60	80 - 300	300
15140.04A	ET4 Steel	1"F	SS inserts	8 - 1/4"M	1 - Tbei M10	88x145	3,70	150 - 500	300
15140.05A	ET4 Steel	1" 1/4" F	SS inserts	8 - 1/4"M	1 - Tbei M10	88x145	3,70	150 - 500	300
15140.03C	ET4 Steel	3/4"F	Ceramic Inserts	8 - M10x12	1 - Tbei M10	70x98	1,60	80 - 300	300
15140.04C	ET4 Steel	1"F	Ceramic Inserts	8 - 1/4"M	1 - Tbei M10	88x145	3,70	150 - 500	300
15140.05C	ET4 Steel	1" 1/4" F	Ceramic Inserts	8 - 1/4"M	1 - Tbei M10	88x145	3,70	150 - 500	300
For Staniless Steel BODY Nozzle write "I" (INOX) after part n. (Ex. 15140.04CI)

Steel

S/Steel

Part N.	Material	Inlet	Inserts	Rear Jets	Front Jet	ØxL mm	Kg	Ø Pipe	Max Bar
15140.23A	ET4 Brass	3/4"	SS	8 - M10x12	1 - Tbei M10	70x98	2,00	80 - 300	300
15140.24A	ET4 Brass	1"F	SS	8 - 1/4"M	1 - Tbei M10	88x145	4,10	150 - 500	300
15140.24A	ET4 Brass	1" 1/4" F	SS	8 - 1/4"M	1 - Tbei M10	88x145	4,10	150 - 500	300
15140.24C	ET4 Brass	3/4"	Ceramic	8 - M10x12	1 - Tbei M10	70x98	2,00	80 - 300	300
15140.24C	ET4 Brass	1"F	Ceramic	8 - 1/4"M	1 - Tbei M10	88x145	4,10	150 - 500	300
15140.24C	ET4 Brass	1" 1/4" F	Ceramic	8 - 1/4"M	1 - Tbei M10	88x145	4,10	150 - 500	300

Part N.	Material	Inlet	Insert	Rear Jets	Front Jet	ØxL mm	Kg	Ø Pipe	Max Bar
15140.13A	ET4 Aluminum	3/4"	SS inserts	8 - M10x12	1 - Tbei M10	70x98	0,70	80 - 300	300
15140.14A	ET4 Aluminum	1"F	SS inserts	8 - 1/4"M	1 - Tbei M10	88x145	1,50	150 - 500	300
15140.15A	ET4 Aluminum	1" 1/4" F	SS inserts	8 - 1/4"M	1 - Tbei M10	88x145	1,50	150 - 500	300
15140.13C	ET4 Aluminum	3/4"	Ceramic Inserts	8 - M10x12	1 - Tbei M10	70x98	0,70	80 - 300	300
15140.14C	ET4 Aluminum	1"F	Ceramic Inserts	8 - 1/4"M	1 - Tbei M10	88x145	1,50	150 - 500	300
15140.15C	ET4 Aluminum	1" 1/4" F	Ceramic Inserts	8 - 1/4"M	1 - Tbei M10	88x145	1,50	150 - 500	300

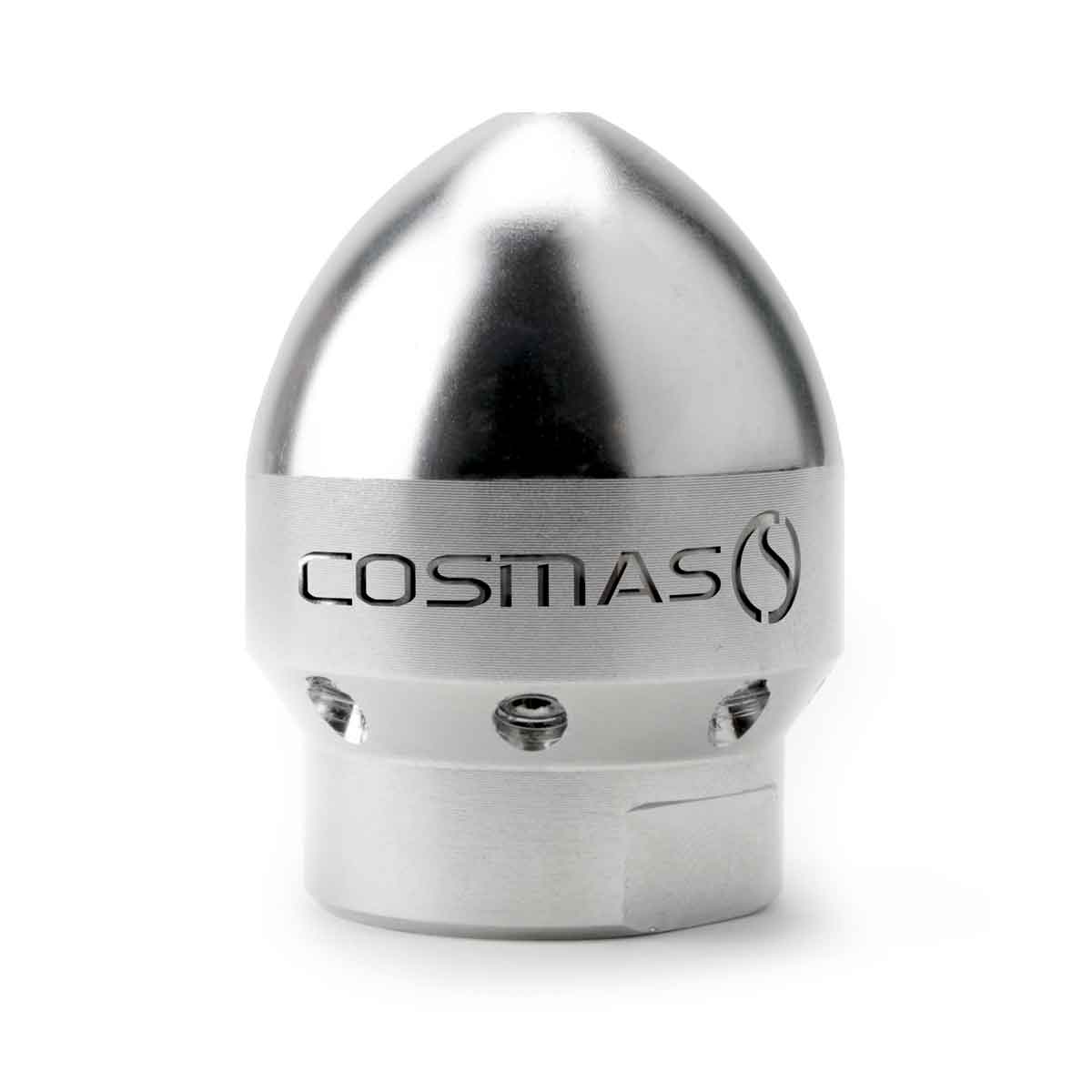

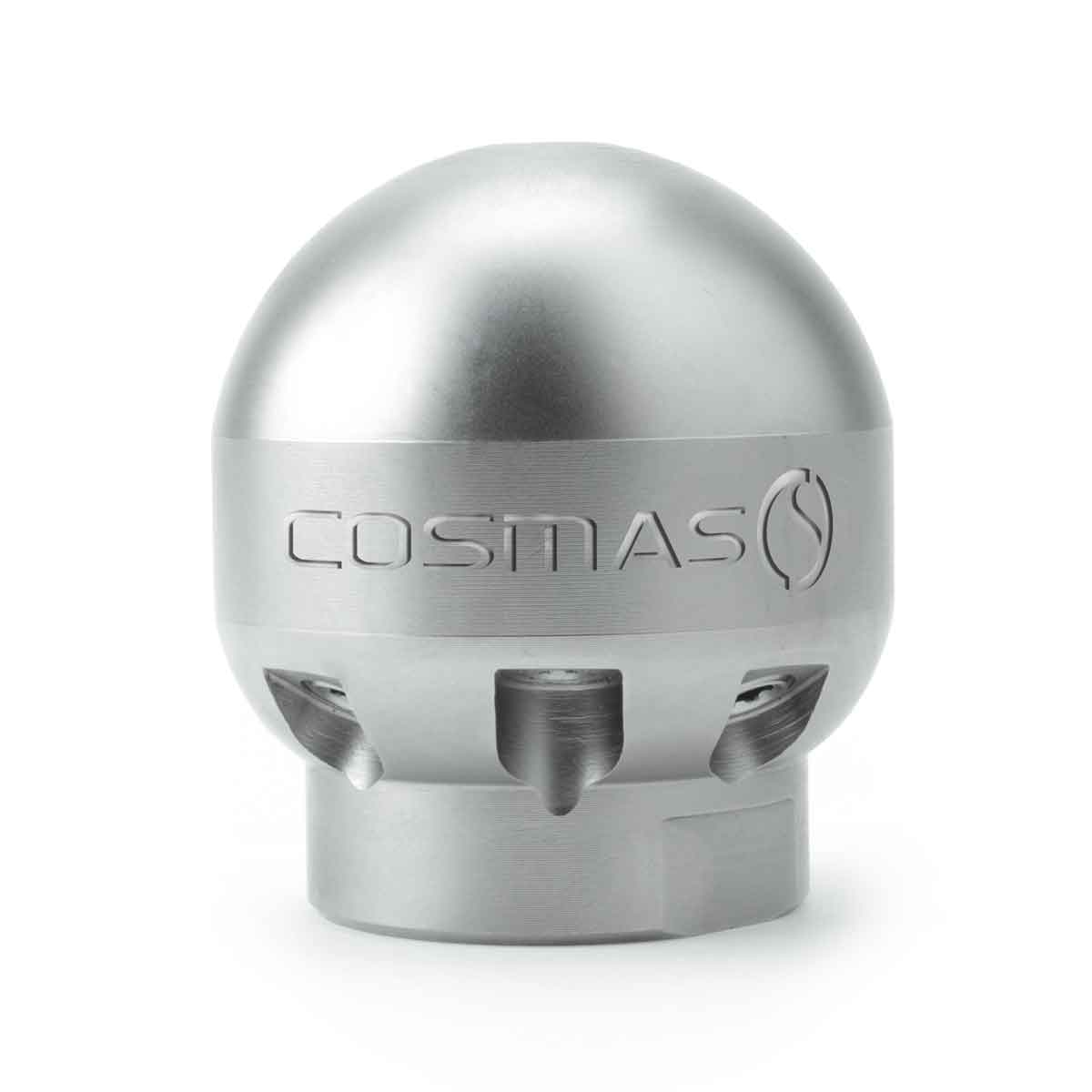

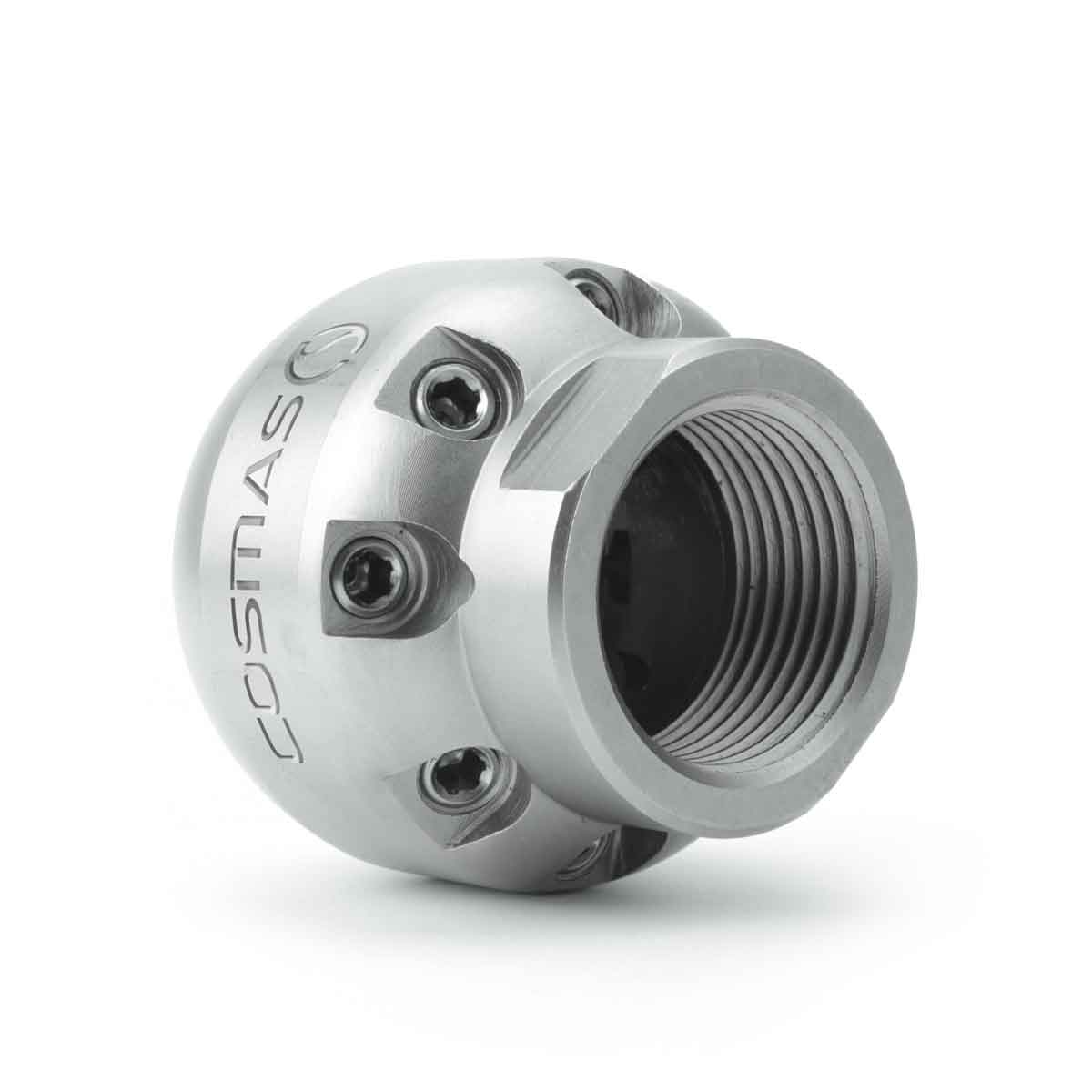

ET2

High Efficiency Nozzle 10°+30°

Nozzle with 8 rear jets at 2 different inclinations: 4 x 10° and 4 x 30°.
The 10° rear jets confer considerable thrusting power and facilitate the progress inside the pipes.
The 30° rear jets make an efficient washing effect.

Ceramic inserts are recommended when using dirty or recycled water.
Lifetime of ceramic inserts is longer than s/steel ones.

Application :

Cleaning of soap, grease, mud, sludge, debris, limestone.
Vertical columns and pipes

Part No.		Inlet	Insert	Rear Jets	Front Jet	ØxL mm	Kg	Ø Pipe	Max Bar
15120.01A	ET2 S/Steel	1/2"F	SS inserts	4+4 M4x5	1 - M4x5	35x47	0,16	25 - 60	250
15120.03A	ET2 S/Steel	3/4"F	SS inserts	4+4 M8x8	1 - M8x8	48x58	0,60	60 - 200	250
15120.04A	ET2 S/Steel	1"F	SS inserts	4+4 M8x8	1 - M8x8	48x58	0,65	60 - 200	250
15120.01C	ET2 S/Steel	1/2"F	Ceramic Inserts	4+4 M4x5	1 - M4x5	35x47	0,16	25 - 60	250
15120.03C	ET2 S/Steel	3/4"F	Ceramic Inserts	4+4 M8x8	1 - M8x8	48x58	0,60	60 - 200	250
15120.04C	ET2 S/Steel	1"F	Ceramic Inserts	4+4 M8x8	1 - M8x8	48x58	0,65	60 - 200	250

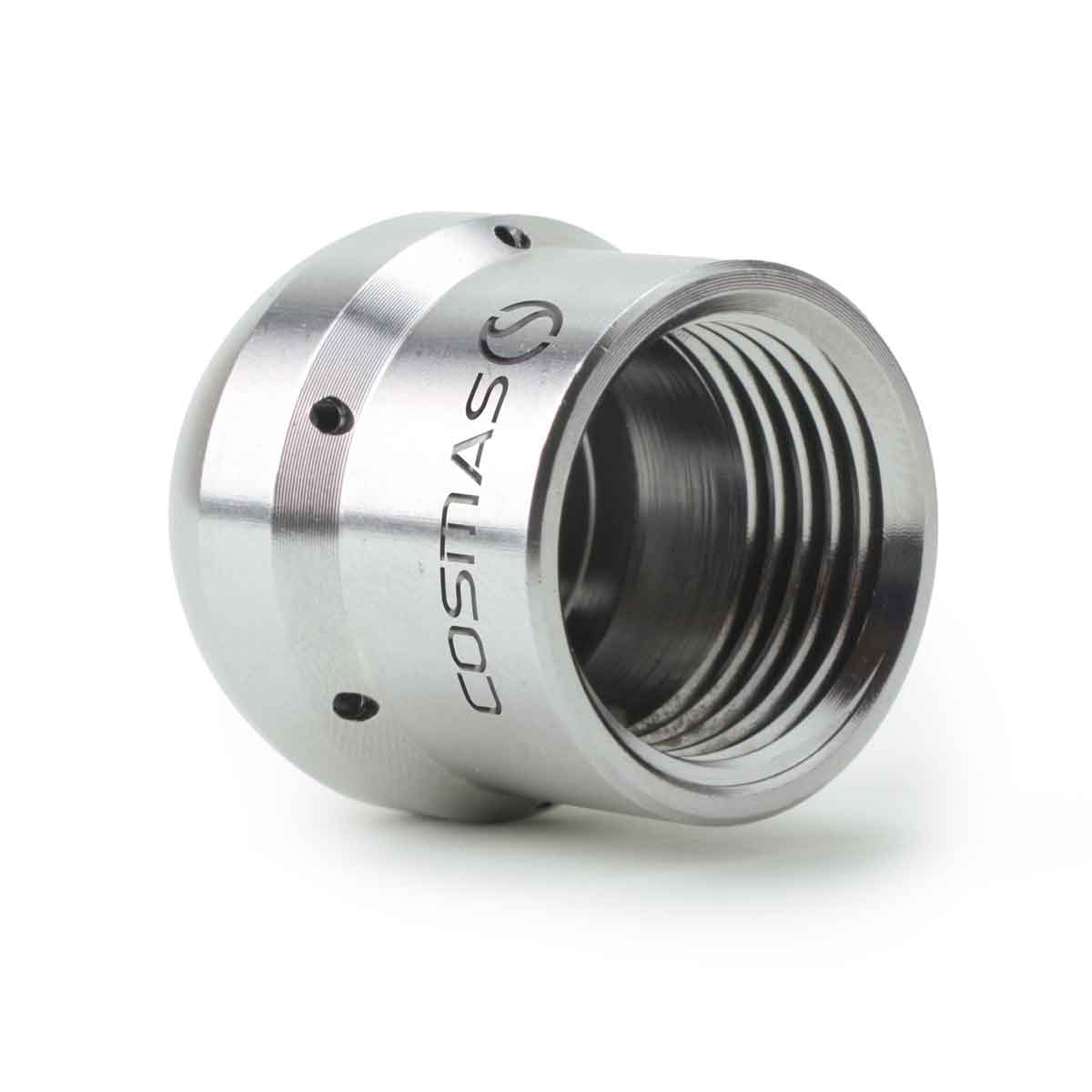

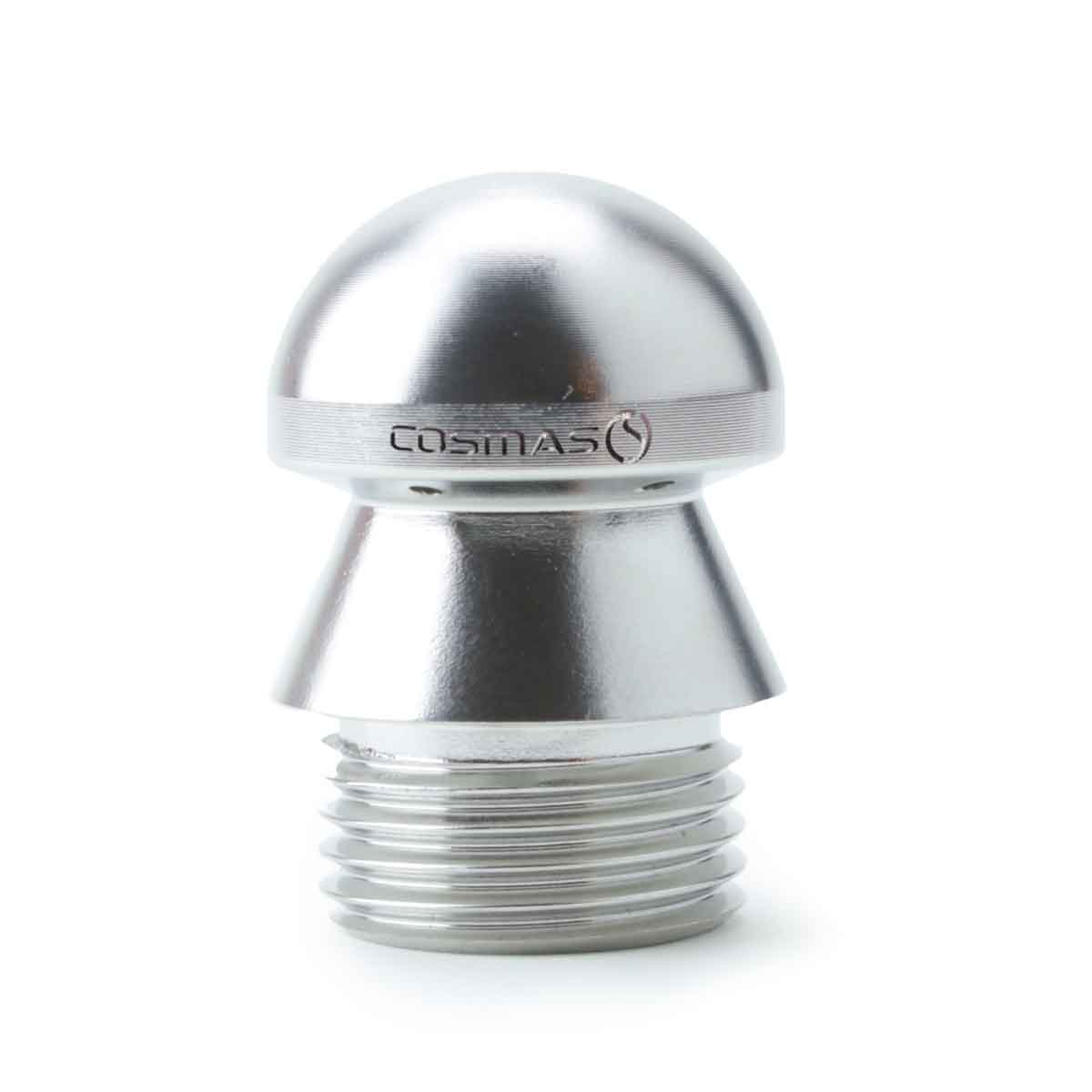

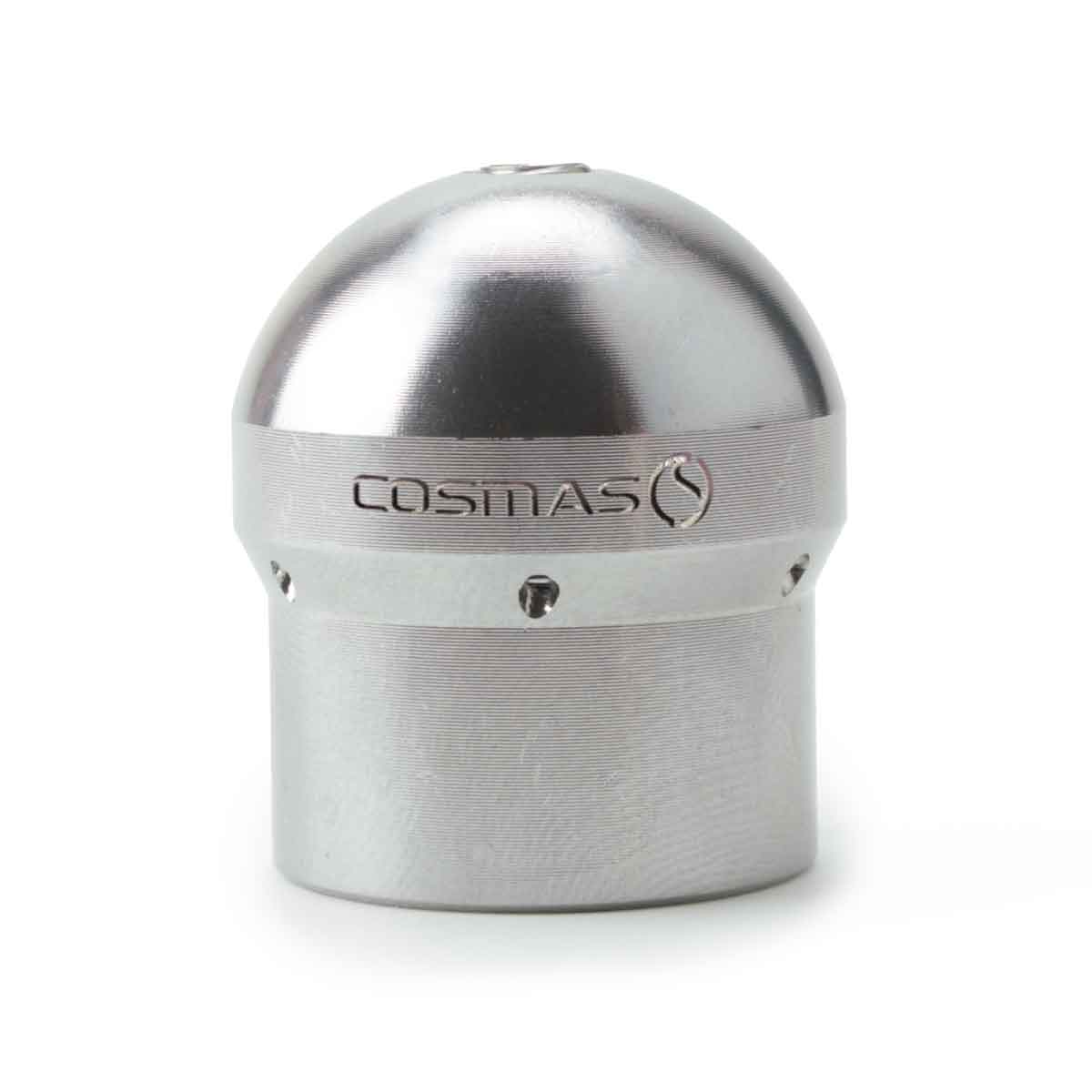

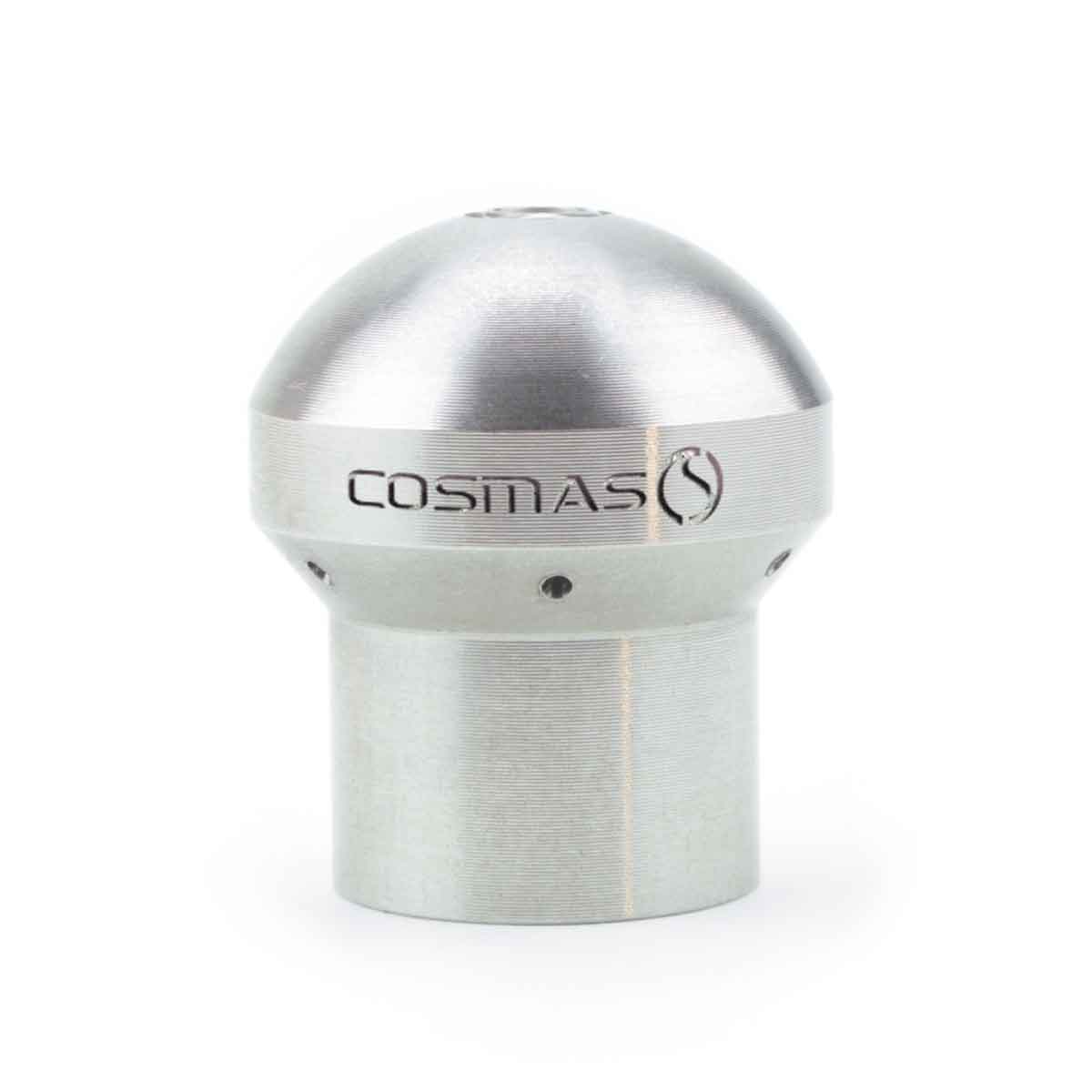

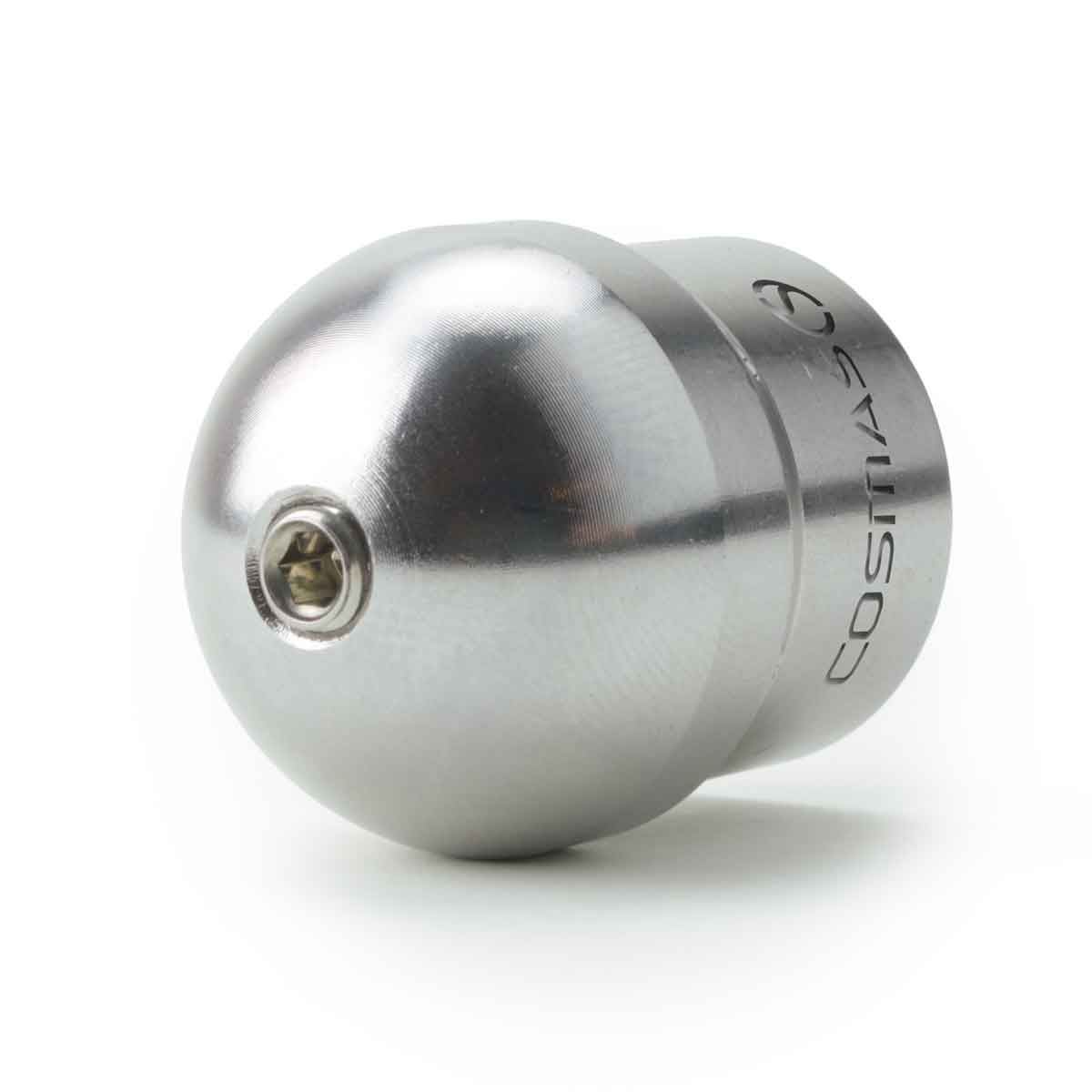

ET1

High Efficency Nozzle 20°

Thanks to its rear 20° angle jet, this nozzle is excellent for applications which need a strong thrust inside high vertical colums.

Application :

Cleaning of high pluvial columns
Building drainpipes, gutterhttps://cosmasitalia.com/wp-content/uploads/2024/07/15110.02-ET1-high-frontal-jet.mkv

Part No.	Material	Inlet	Rear jets	Front jet	ØxL mm	Kg	Ø Pipe	Max Bar
15110.06I	ET1	S/Steel	3/8"M (F+Np 1/2M)	6 - Drilled	1 - M6x8	25x43	0,065	30 - 130	250
15110.05I	ET1	S/Steel	3/8"F	6 - Drilled	1 - M6x8	25x29	0,040	30 - 130	250
15110.01I	ET1	S/Steel	1/2"M	6 - Drilled	Drilled	25x31	0,060	30 - 130	250
15110.02I	ET1	S/Steel	1/2"F	6 - Drilled	1 - M6x8	28x32	0,065	40 - 130	250

Hydros Umbrella Nozzle

Stainless steel high efficiency nozzle with rear ceramic inserts and drilled radial ones.

The peculiarity of this nozzle is the possiblity to regulate increasing or decreasing the umbrella water jet wit a T-key

The use of a centering guide is reccomended according to pipe's diameter.

Application :

Cleaning of vertical pipes, domestic drains and sewerages from oil, limestone, soap, grease and mud.

Part No.	Description	Inlet	Rear Jets	Radial Jet	ØxL mm	Kg	Ø Pipe	Max Bar
15350.01CI	Hydros	1/2"F	3 x M6x8 20°	Drilled 90°	40x60	0,40	60 - 200	250
