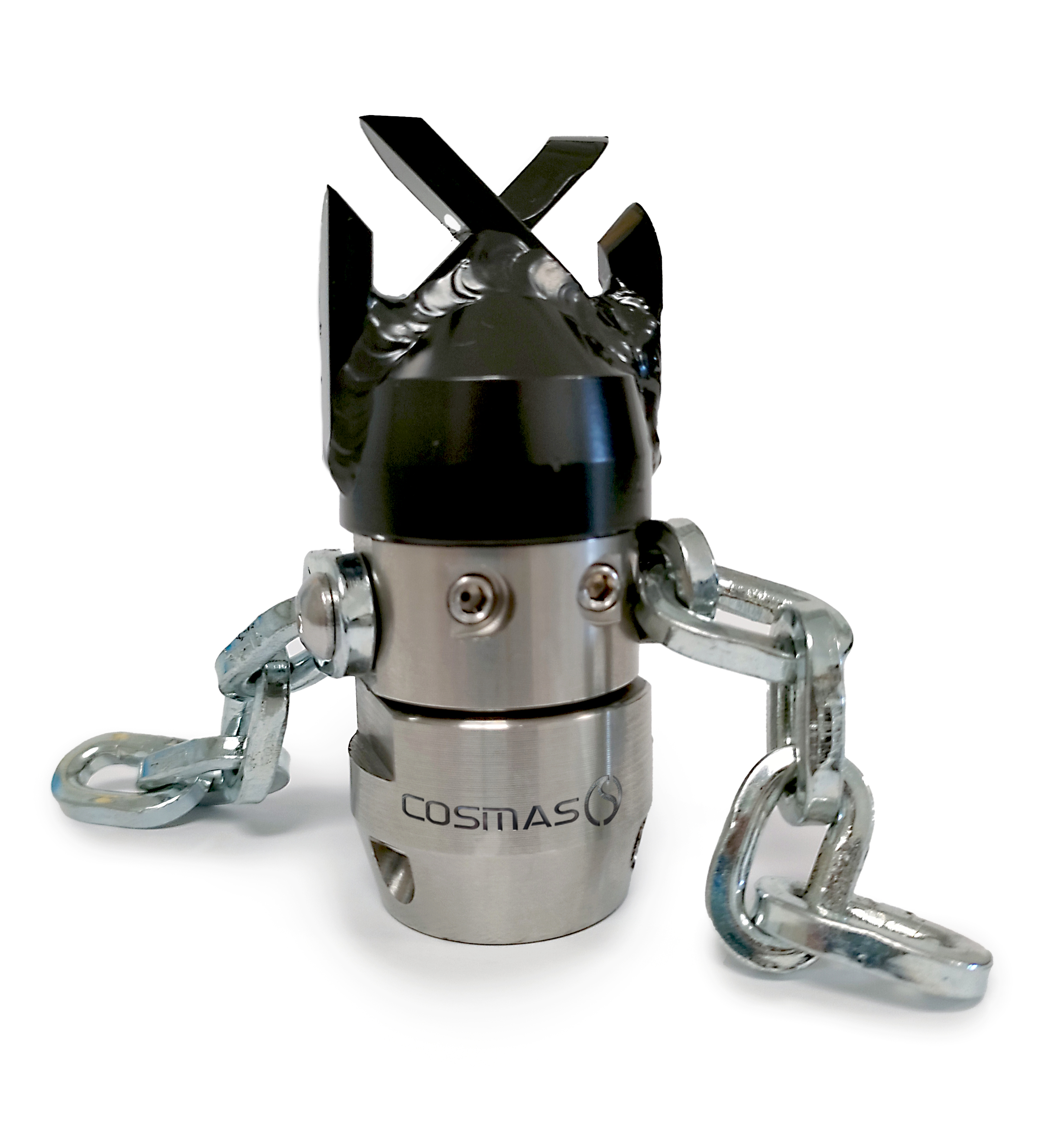

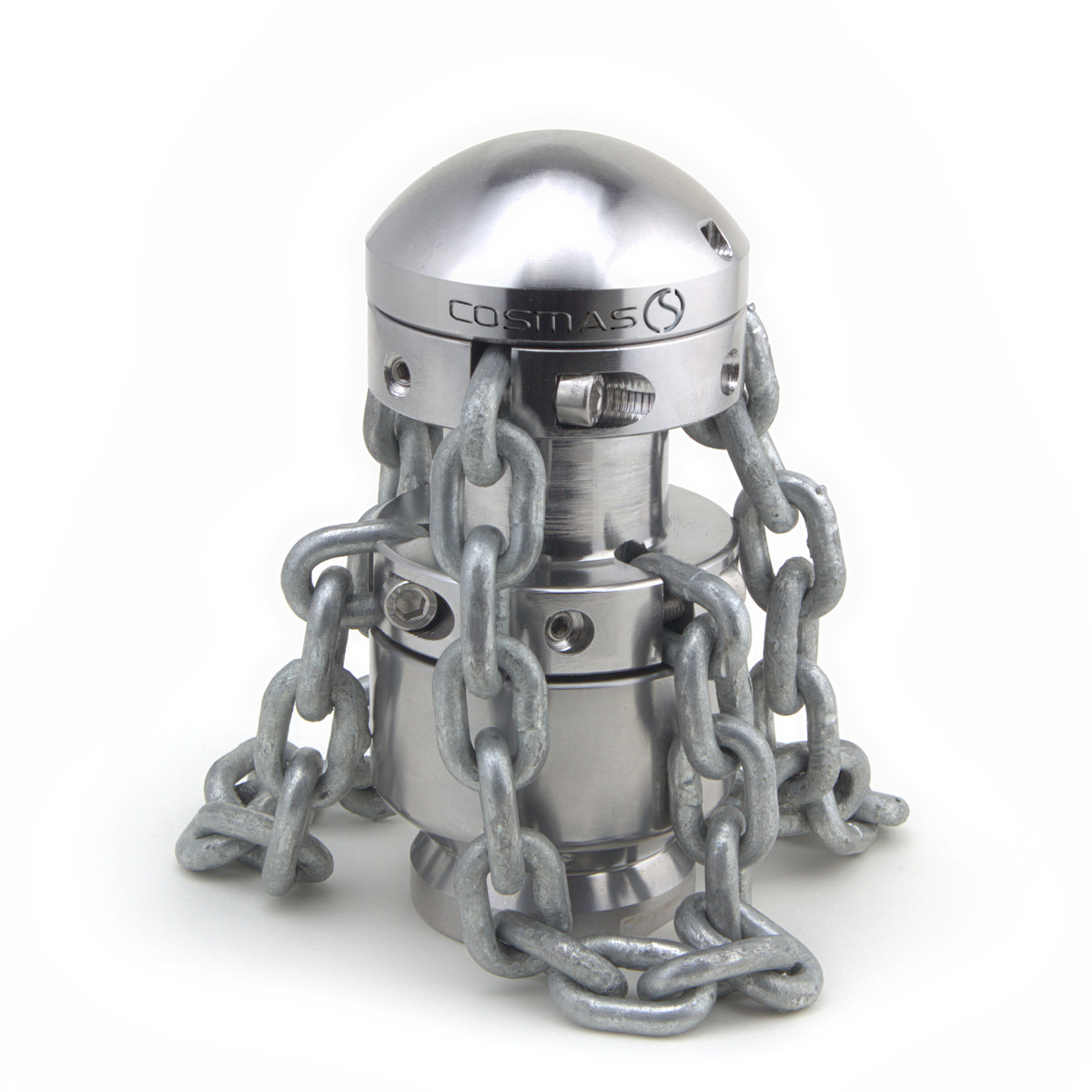

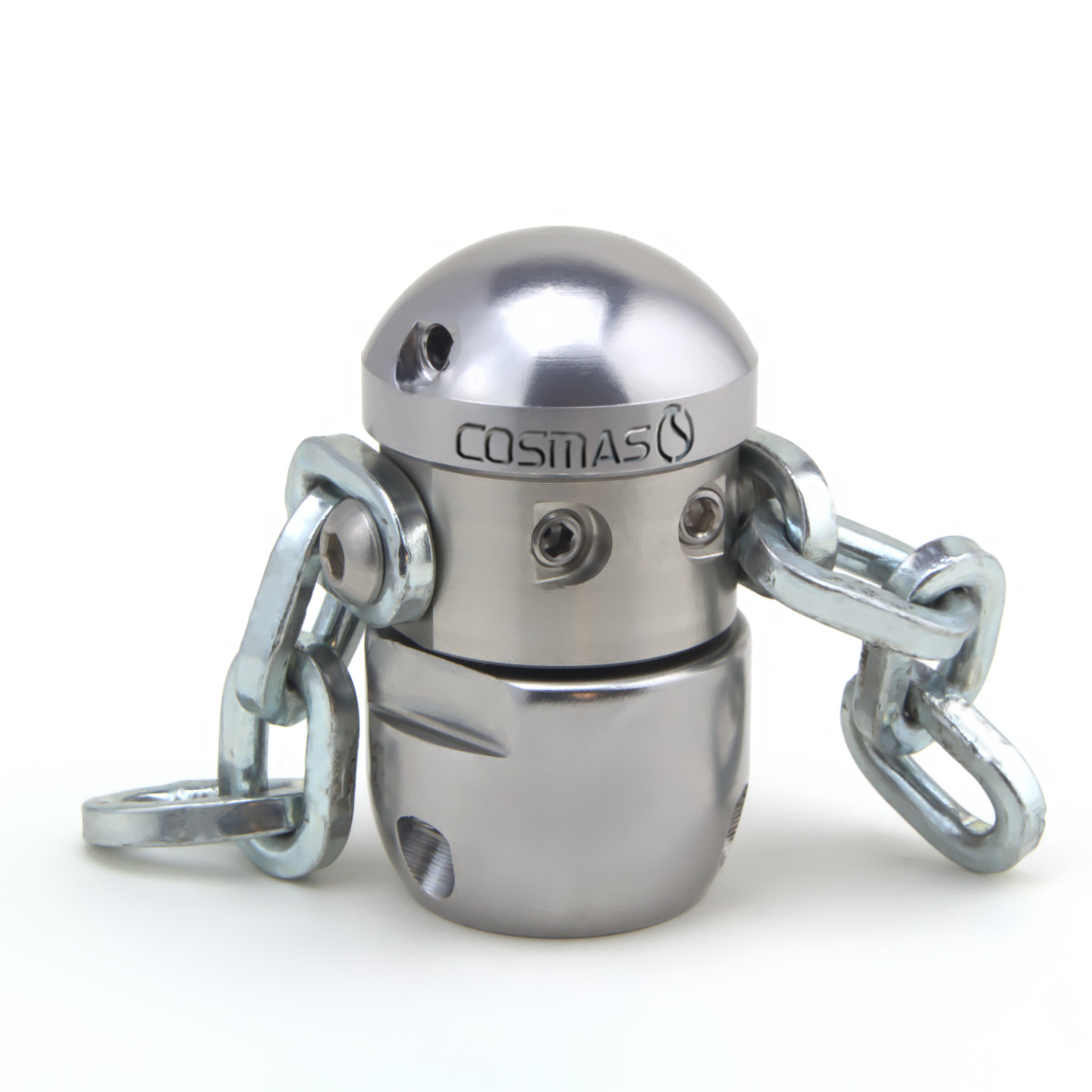

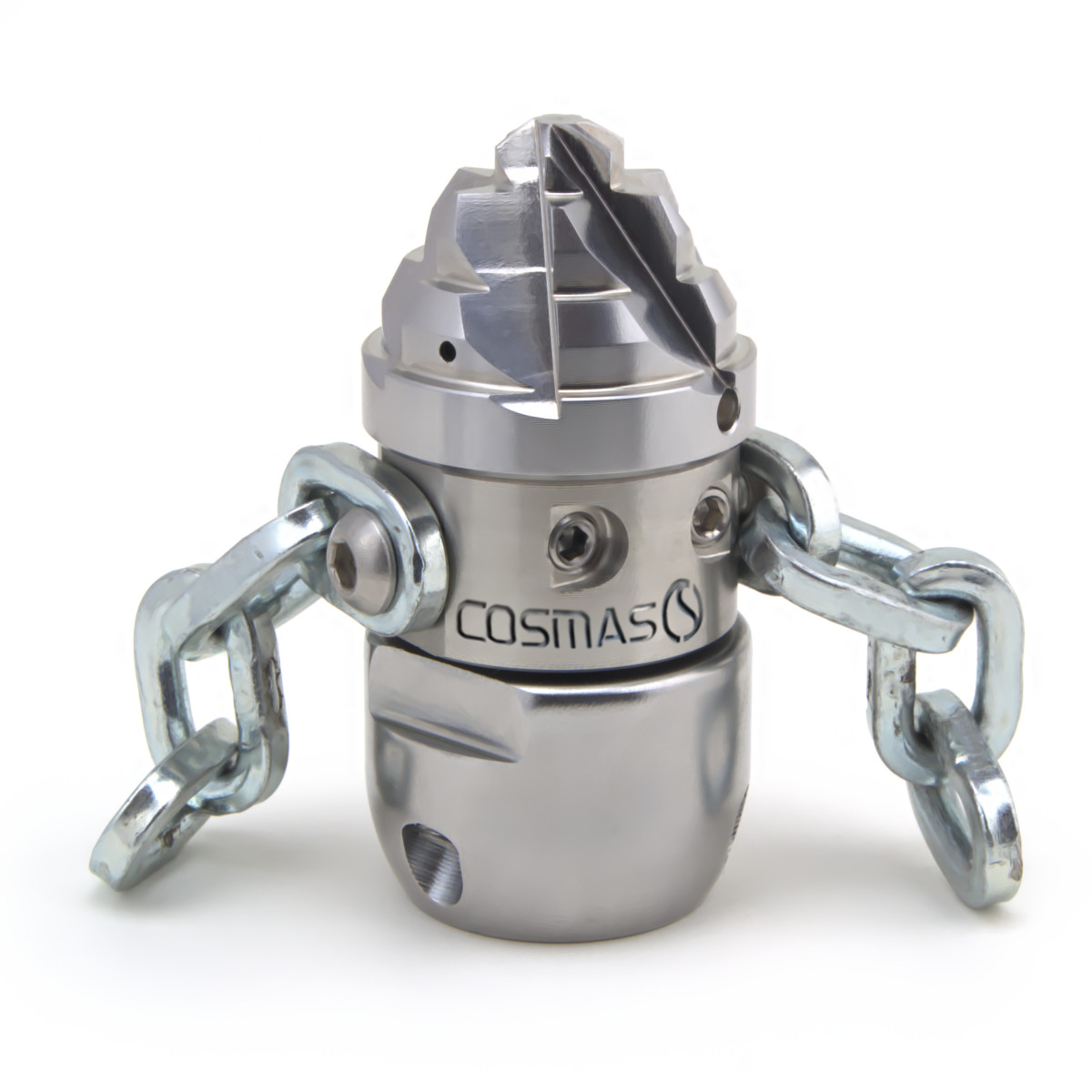

Chain Nozzles

Nozzles made in stainless steel equipped with high quality chains and available with 4 interchangeable heads:
Cover, Drilling, Carbide and Knives head.

Ceramic inserts are reccomended when using dirty or recycled water. Ceramic inserts lifetime is longer than s/steel ones.

In order to extend chain rotating nozzle life time and achieve the best cleaning result it' s recommended to use these nozzles with centering guides and to plunge them into lubricating liquid after each use.

Application :

Removal of roots, wood, grease, sluge, clogs, roots, foam, ice, rust.
Cover - foam, sludge.
Drilling - rust, soap, limestone.
Widia (Carbide) - ice, gravel, stones, concrete.
Knives - wood, roots.

Part No.	Description	Inlet	Rear Jets	Radial Jets	Inserts	ØxL mm	Kg	Ø Pipe	Max Bar
12580.01	Chain N. Ø35mm	3/8"F	3 - M6x8 - 35°	4 - M6x6 -90°	S/Steel	35x77	0,35	70 - 200	250
12580.02	Chain N. Ø35mm	1/2"F	3 - M6x8 - 35°	4 - M6x6 -90°	S/Steel	35x77	0,35	70 - 200	250
12620.01	Chain N. Ø55mm	1/2"F	6 - M6x8 - 35°	6 - M6x8 -90°	S/Steel	55x135	1,40	90 - 500	250
12620.02	Chain N. Ø55mm	3/4"F	6 - M6x8 - 35°	6 - M6x8 -90°	S/Steel	55x135	1,40	90 - 500	250
12620.03	Chain N. Ø55mm	1"F	6 - M6x8 - 35°	6 - M6x8 -90°	S/Steel	55x135	1,40	90 - 500	250
12630.01	Chain N. Ø70mm	1"F	6 - M6x8 - 35°	6 - M6x8 -90°	S/Steel	70x180	3,30	200 - 1000	250
12630.02	Chain N. Ø70mm	1" 1/4"F	6 - M6x8 - 35°	6 - M6x8 -90°	S/Steel	70x180	3,30	200 - 1000	250
12580.01C	Chain N. Ø35mm	3/8"F	3 - M6x8 - 35°	4 - M6x6 -90°	Ceramic	35x77	0,35	70 - 200	250
12580.02C	Chain N. Ø35mm	1/2"F	3 - M6x8 - 35°	4 - M6x6 -90°	Ceramic	35x77	0,35	70 - 200	250
12520.01C	Chain N. Ø55mm	1/2"F	6 - M6x8 - 35°	6 - M6x8 -90°	Ceramic	55x135	1,40	90 - 500	250
12620.02C	Chain N. Ø55mm	3/4"F	6 - M6x8 - 35°	6 - M6x8 -90°	Ceramic	55x135	1,40	90 - 500	250
12620.03C	Chain N. Ø55mm	1"F	6 - M6x8 - 35°	6 - M6x8 -90°	Ceramic	55x135	1,40	90 - 500	250
12630.01C	Chain N. Ø70mm	1"F	6 - M6x8 - 35°	6 - M6x8 -90°	Ceramic	70x180	3,30	200 - 1000	250
12630.02C	Chain N. Ø70mm	1" 1/4"F	6 - M6x8 - 35°	6 - M6x8 -90°	Ceramic	70x180	3,30	200 - 1000	250

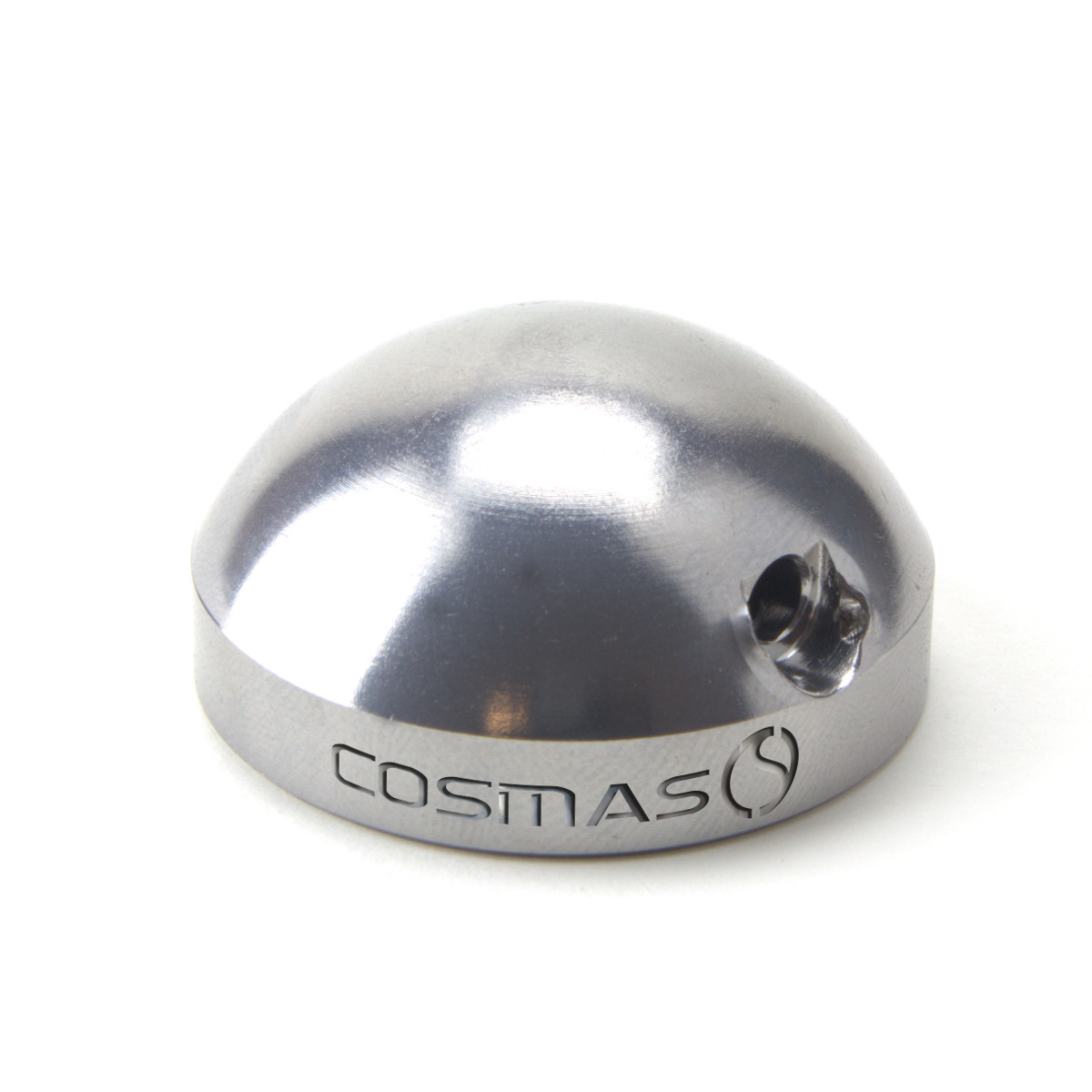

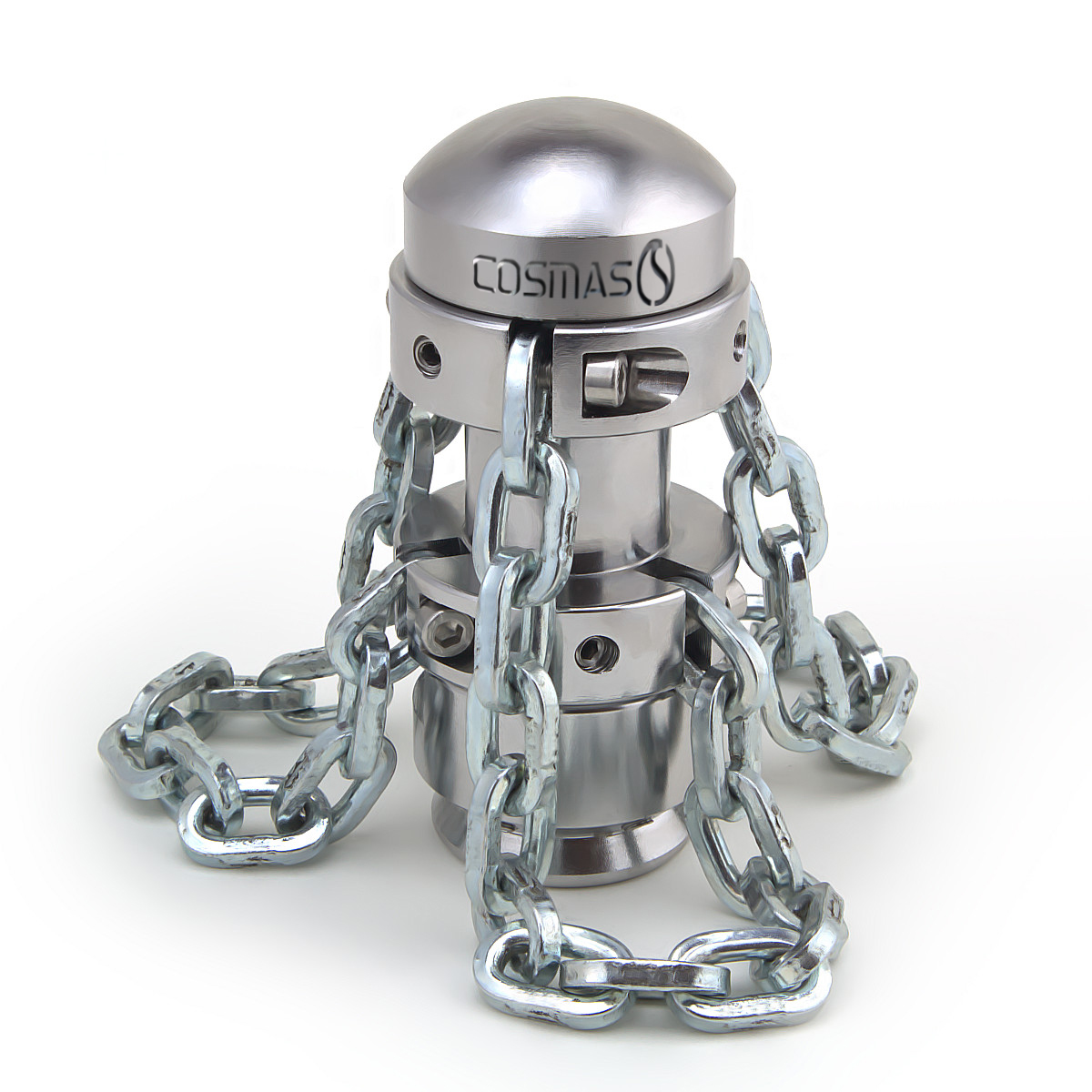

COVER HEAD Ø35 Ø55 Ø70mm

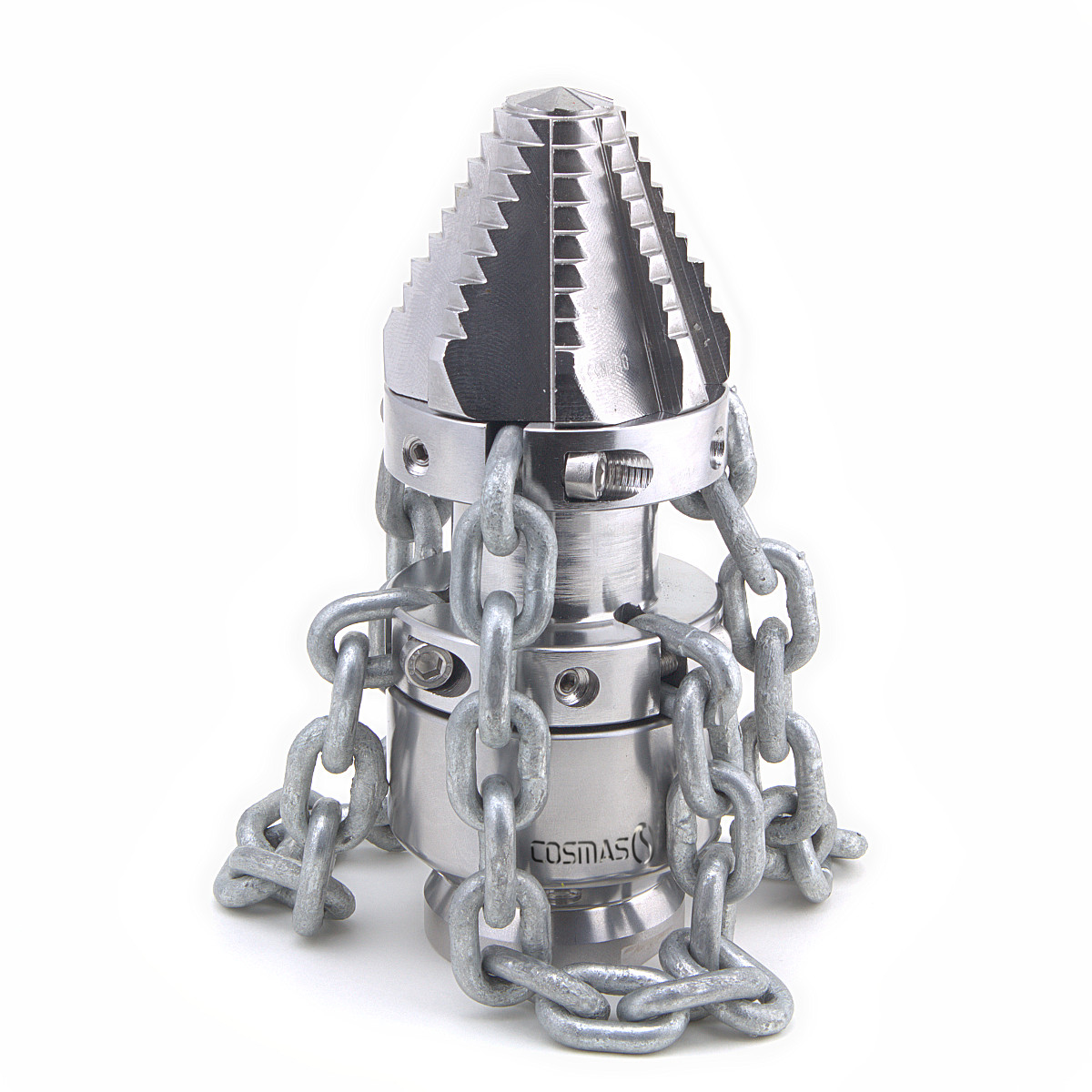

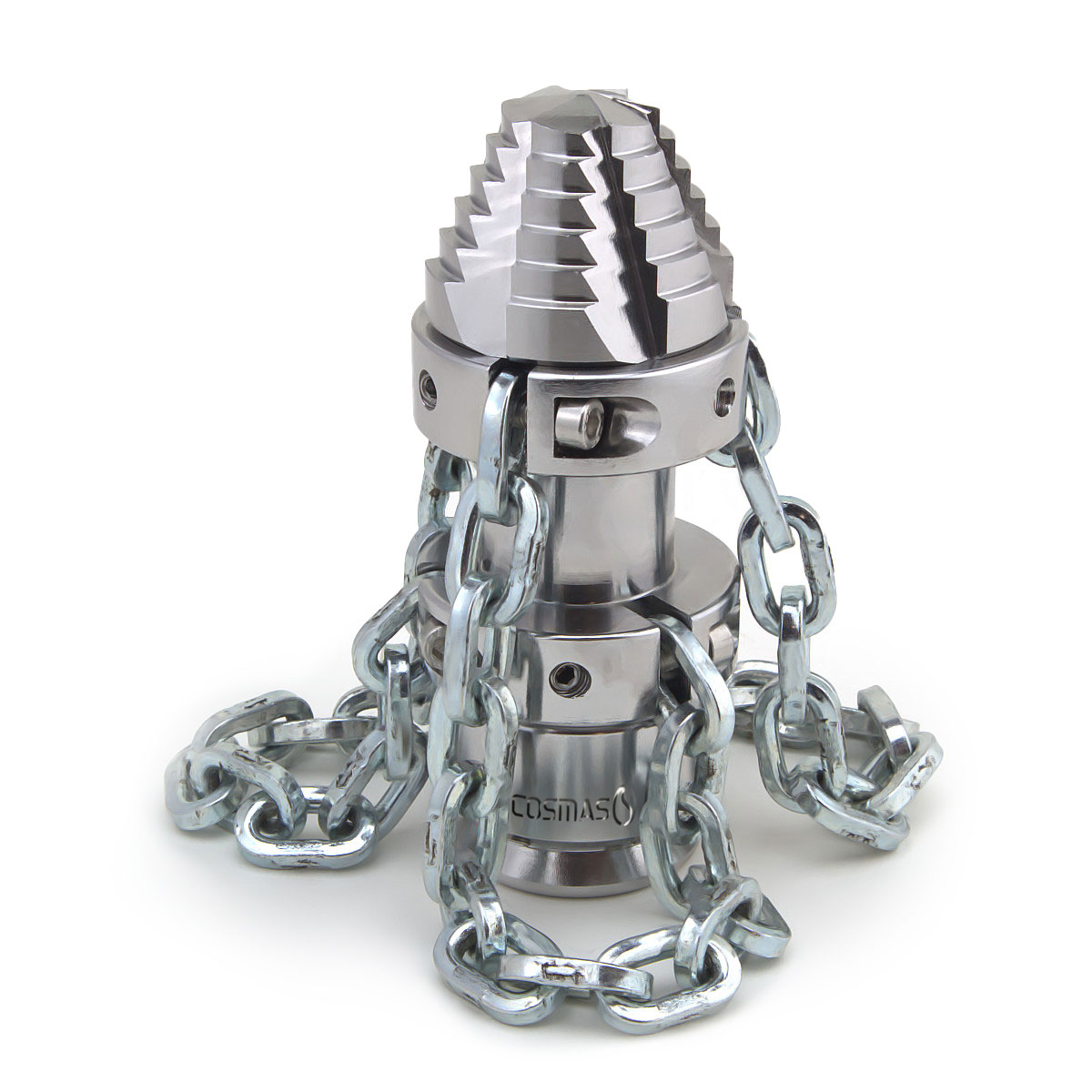

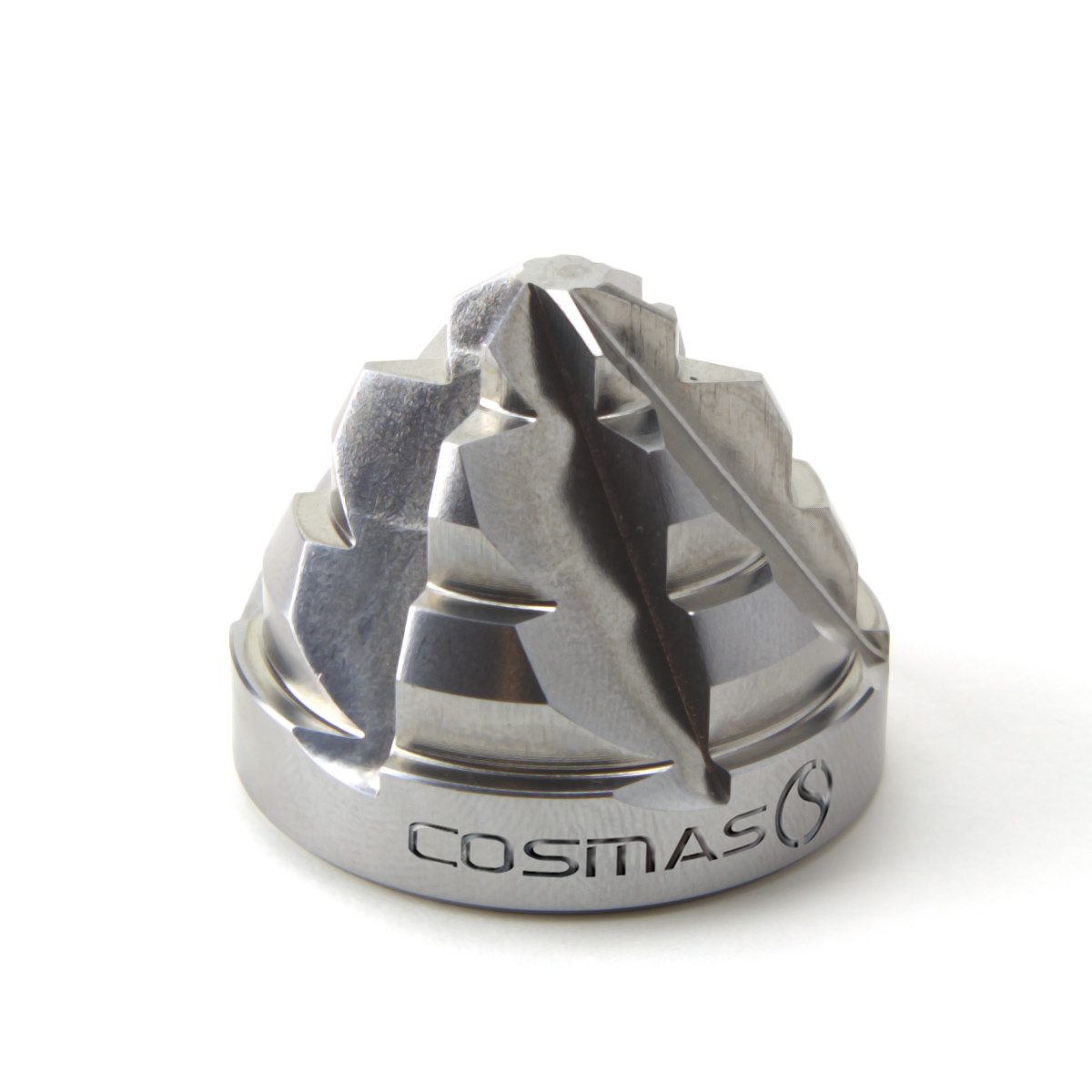

DRILLING HEAD Ø35 Ø55 Ø70mm

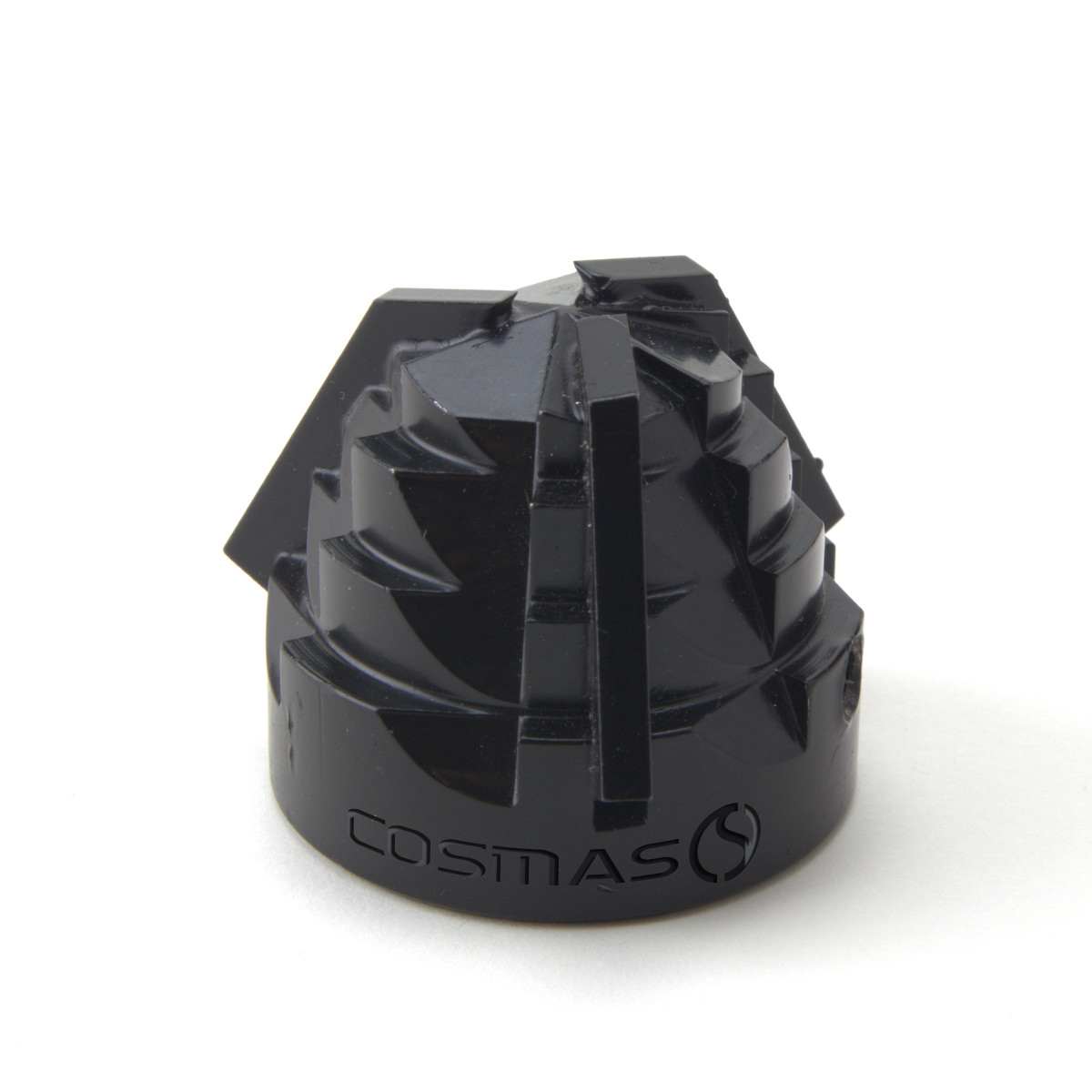

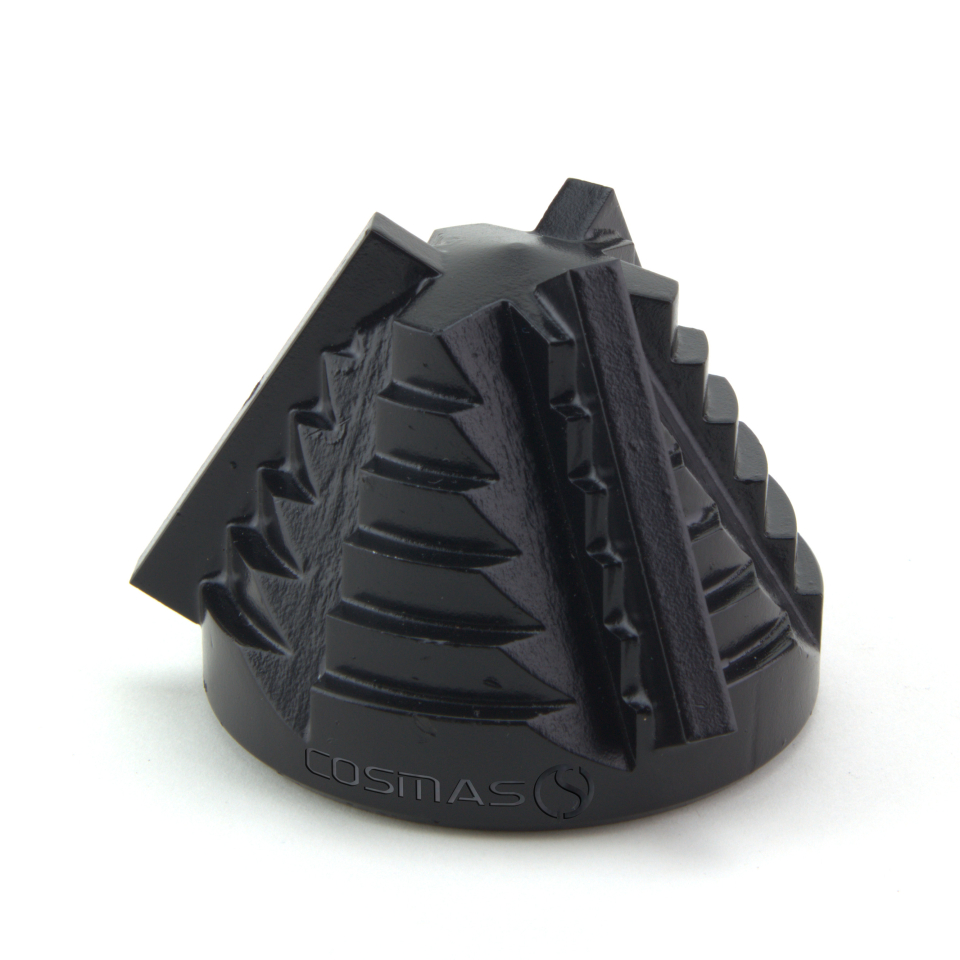

CARBIDE HEAD Ø35 Ø55 Ø70mm

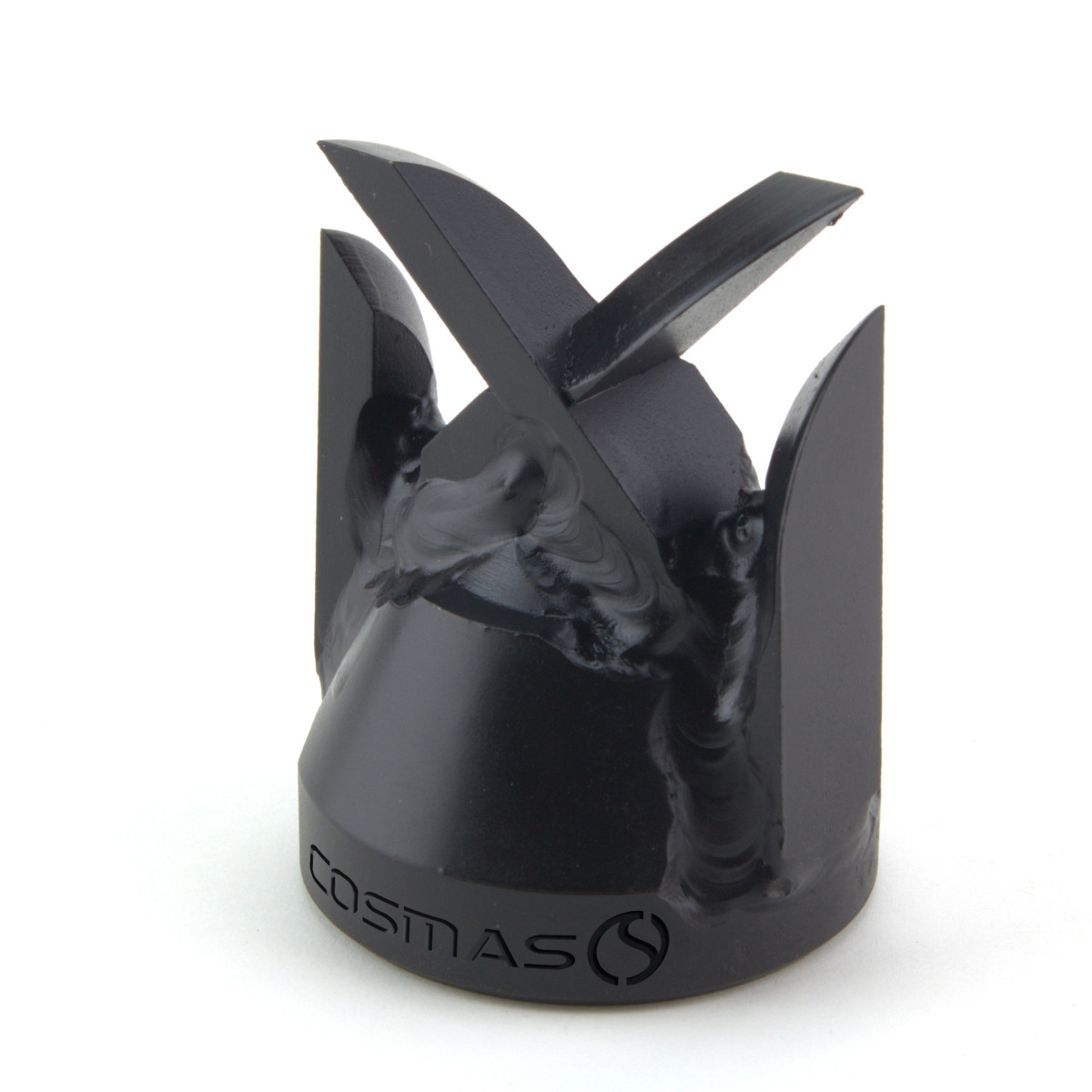

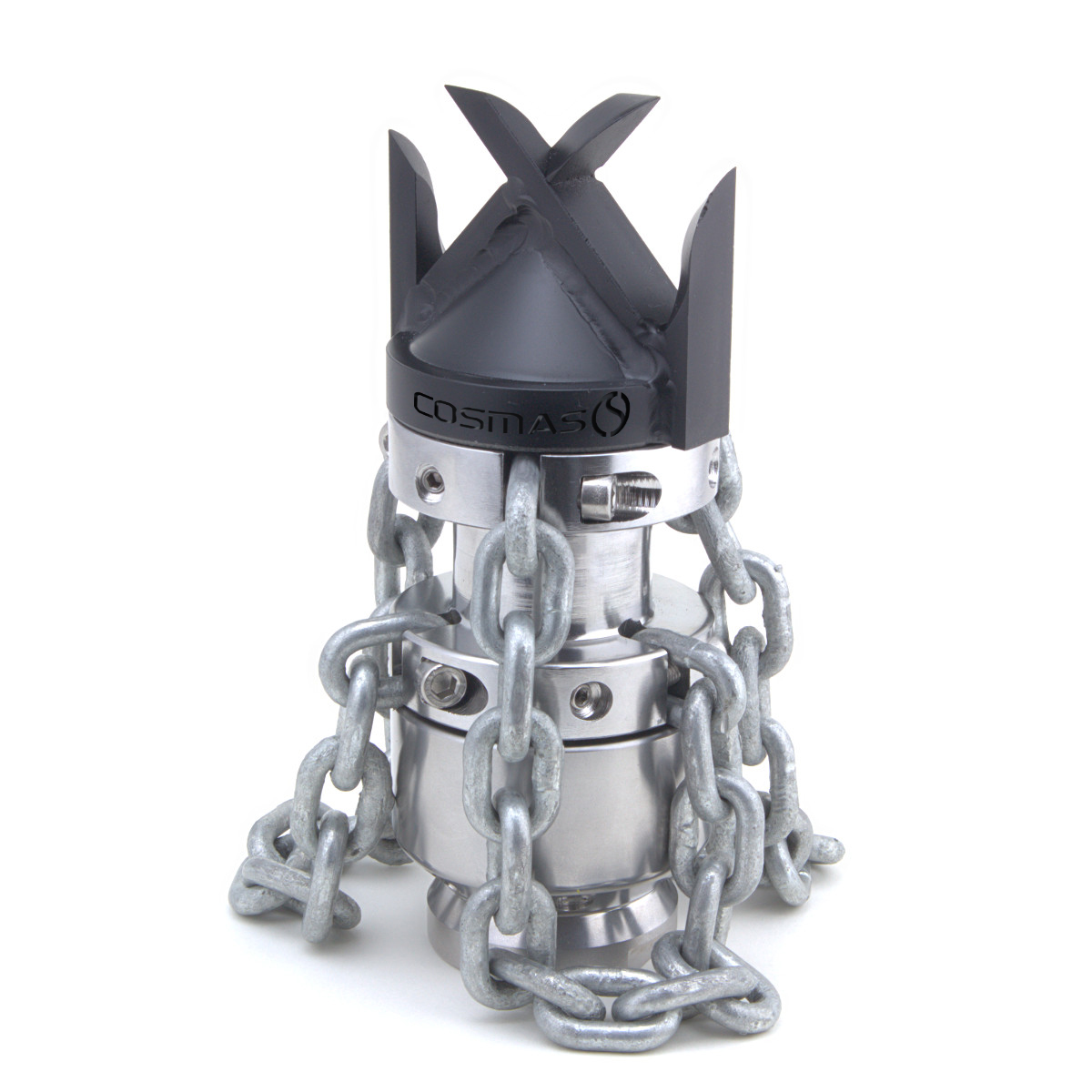

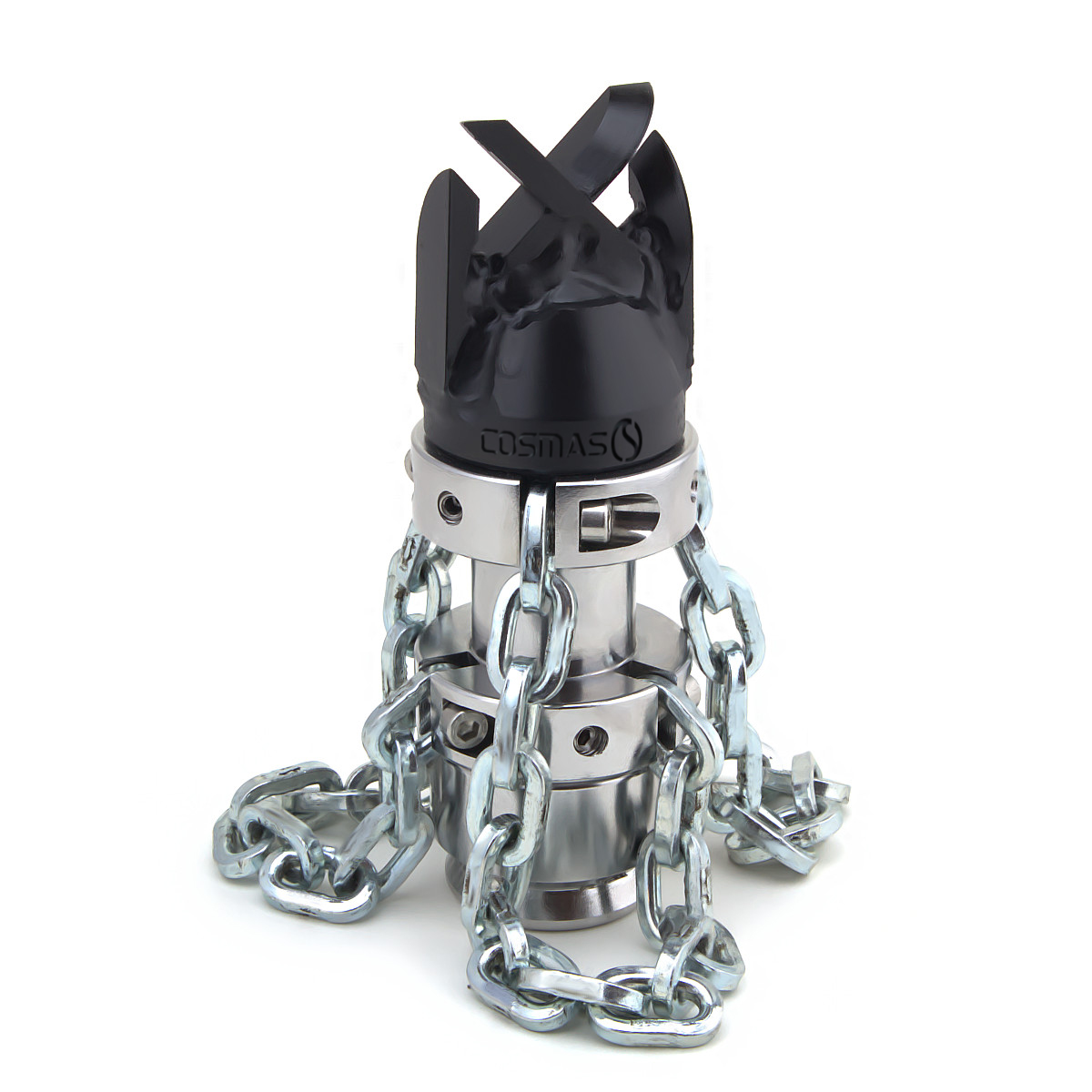

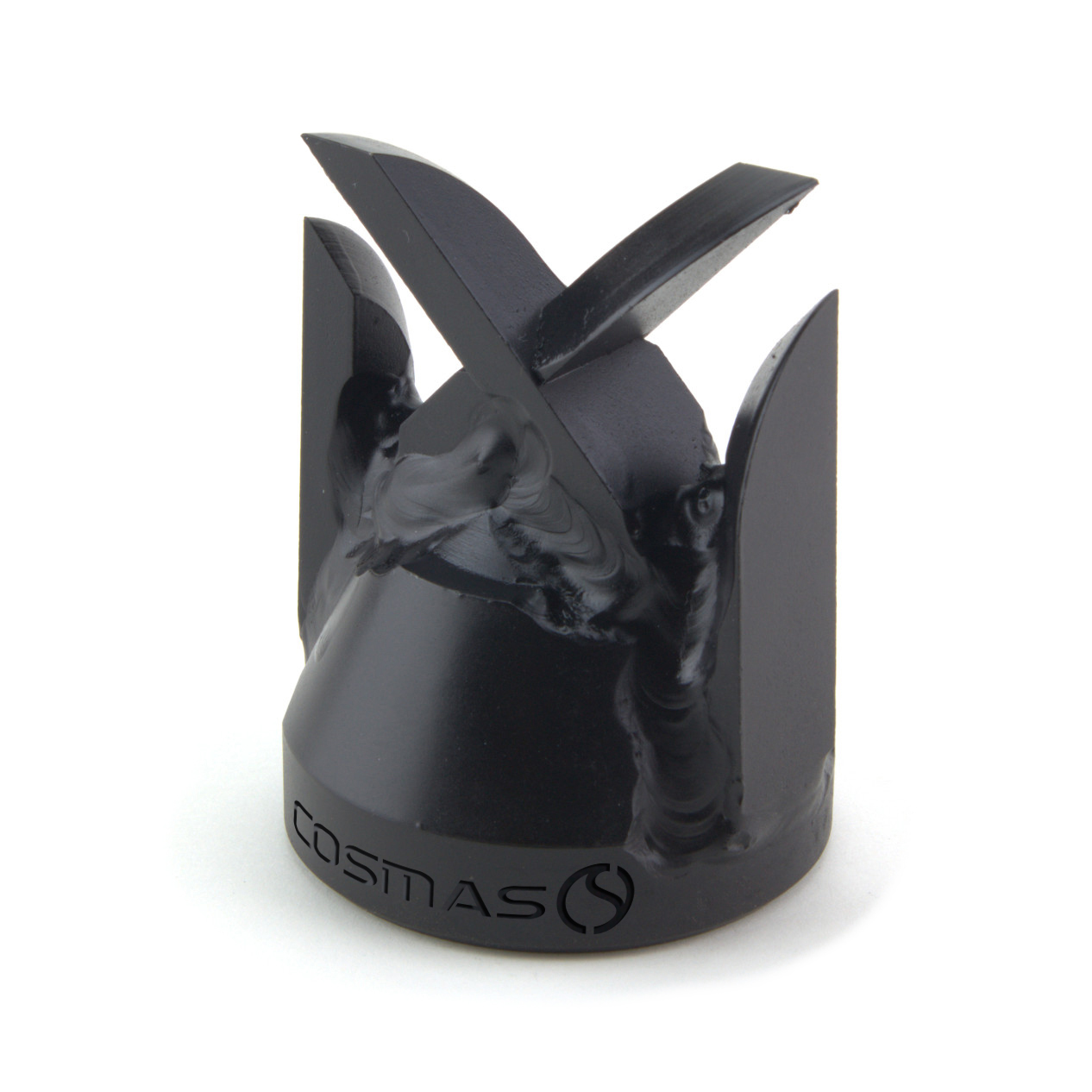

KNIVES HEAD Ø35 Ø55 Ø70mm

For HEADS write as follows after end of part n (ex. 12680.02T) :

For COVER Head write “T”

Go to Spare Parts

For DRILLING Head write “A”

Go to Spare Parts

For CARBIDE Head write “W”

Go to Spare Parts

For KNIVES Head write “C”

Go to Spare Parts

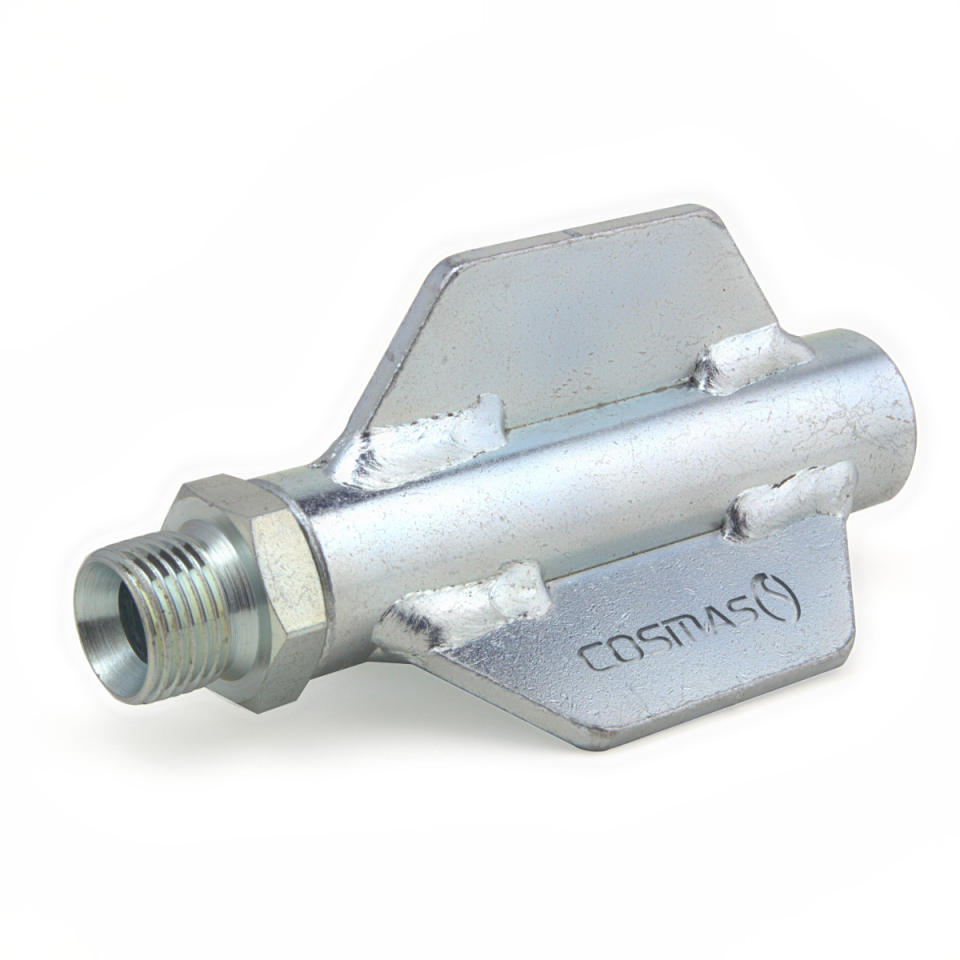

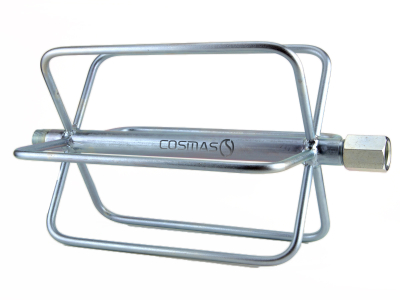

Fixed Guide

Go to Fixed Guides

Fixed Guide

Go to Fixed Guides

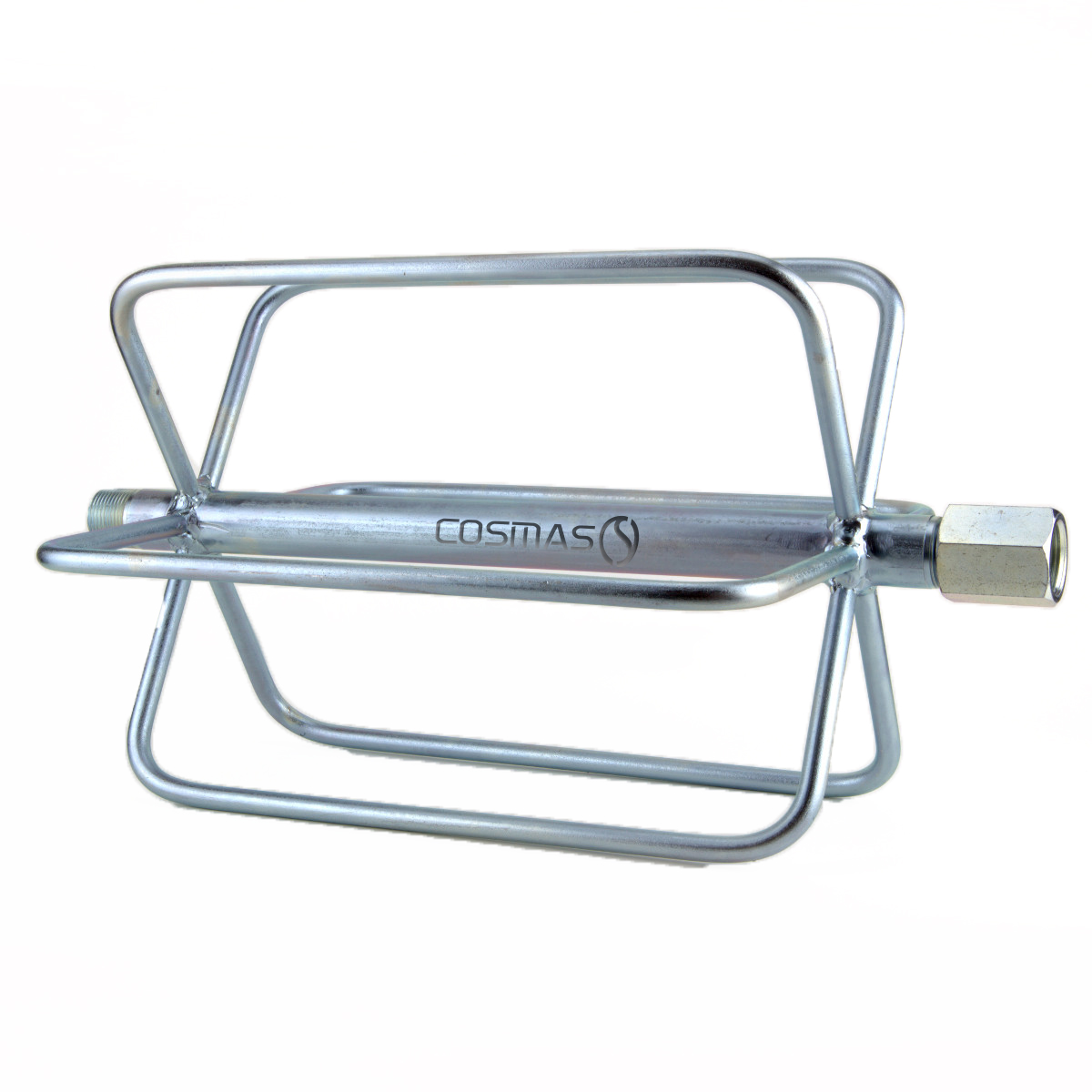

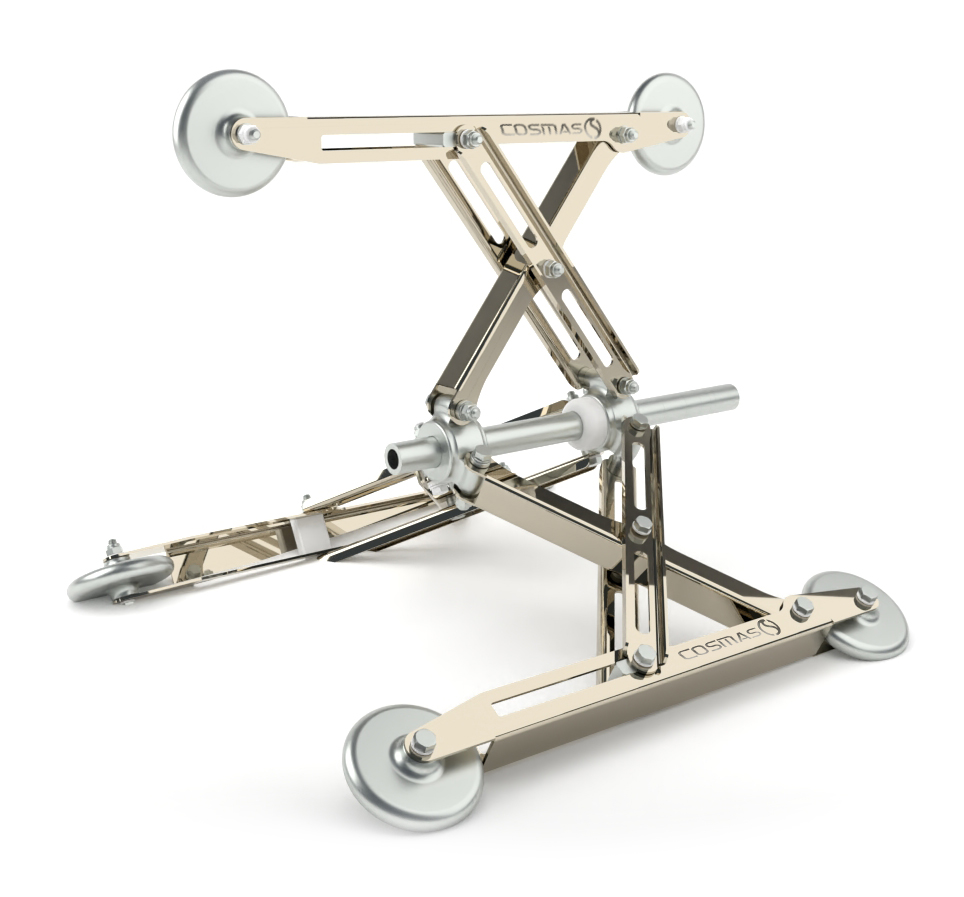

Extensible Guide

Go to Extensible Guides

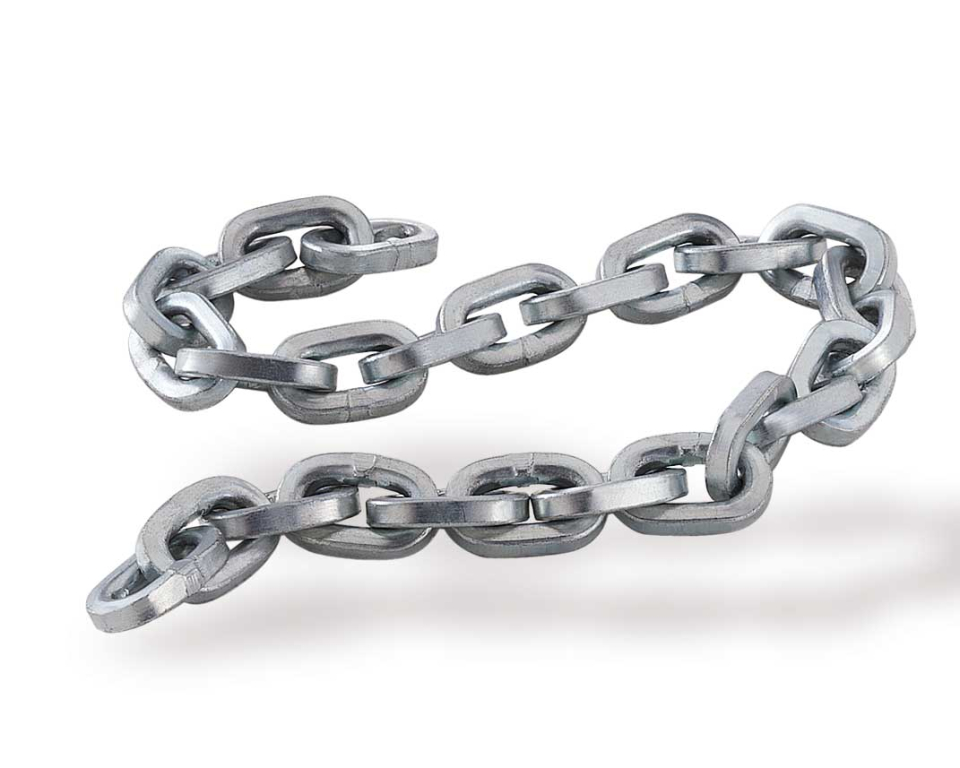

Chain

Go to Chain

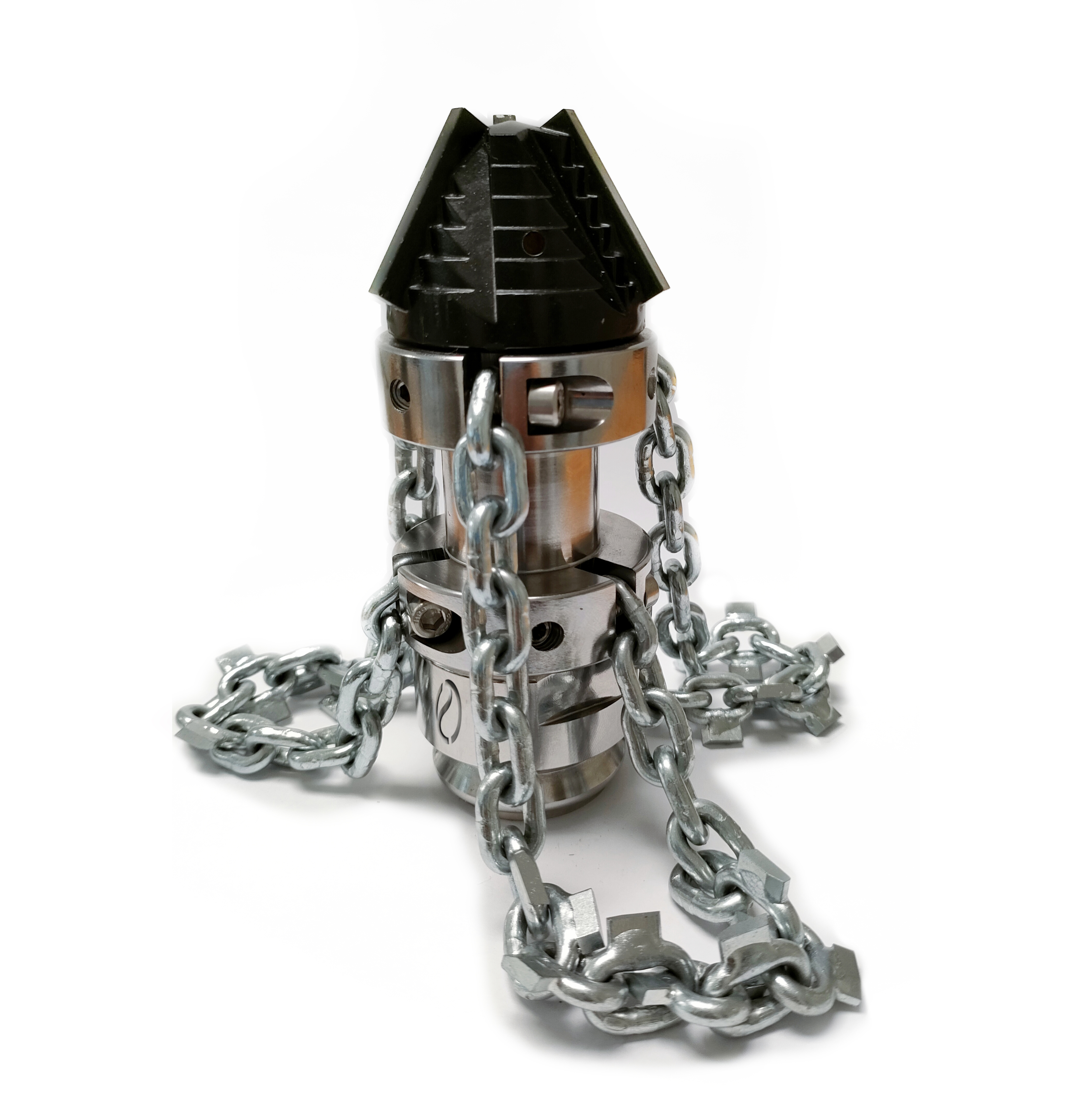

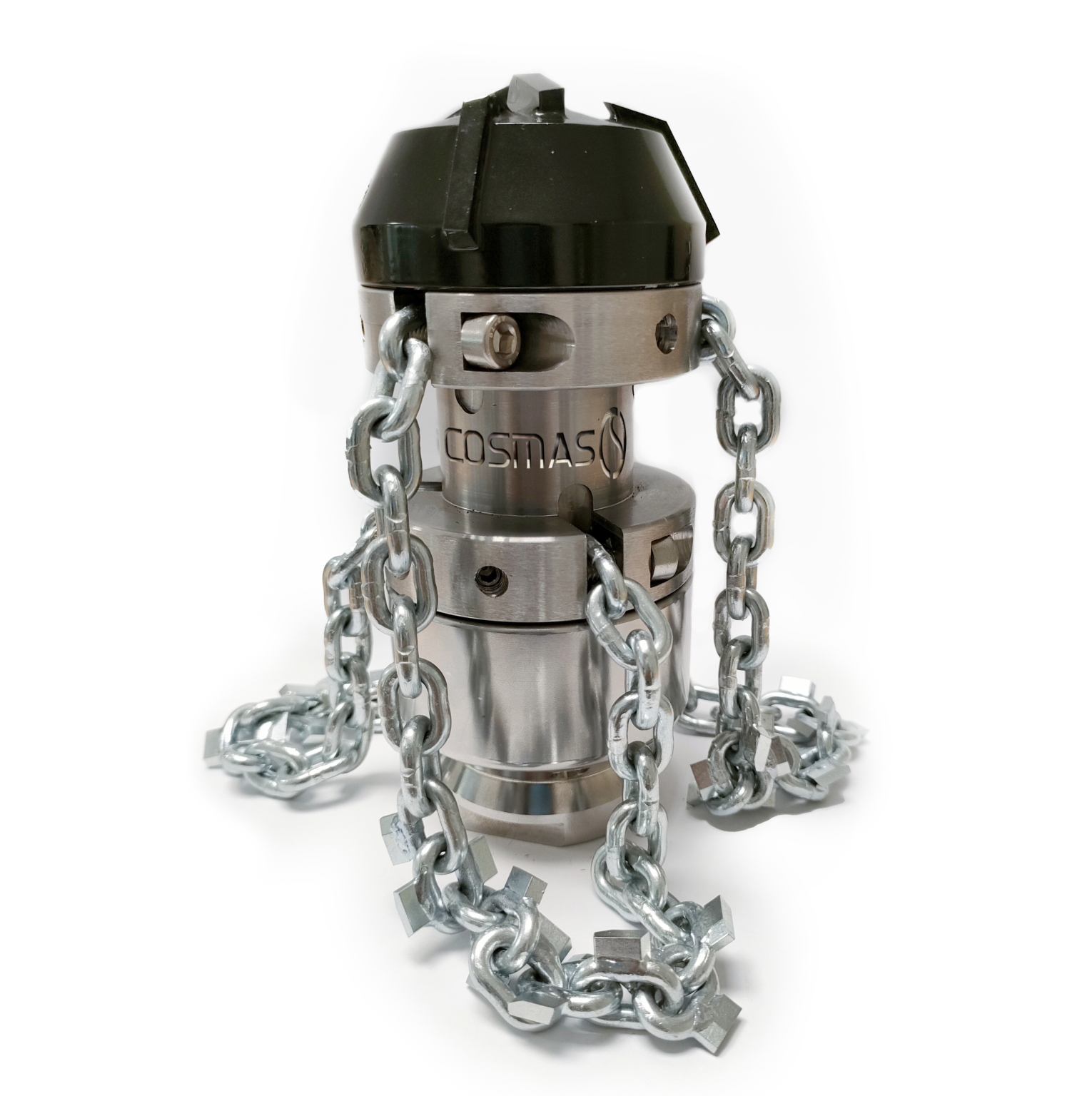

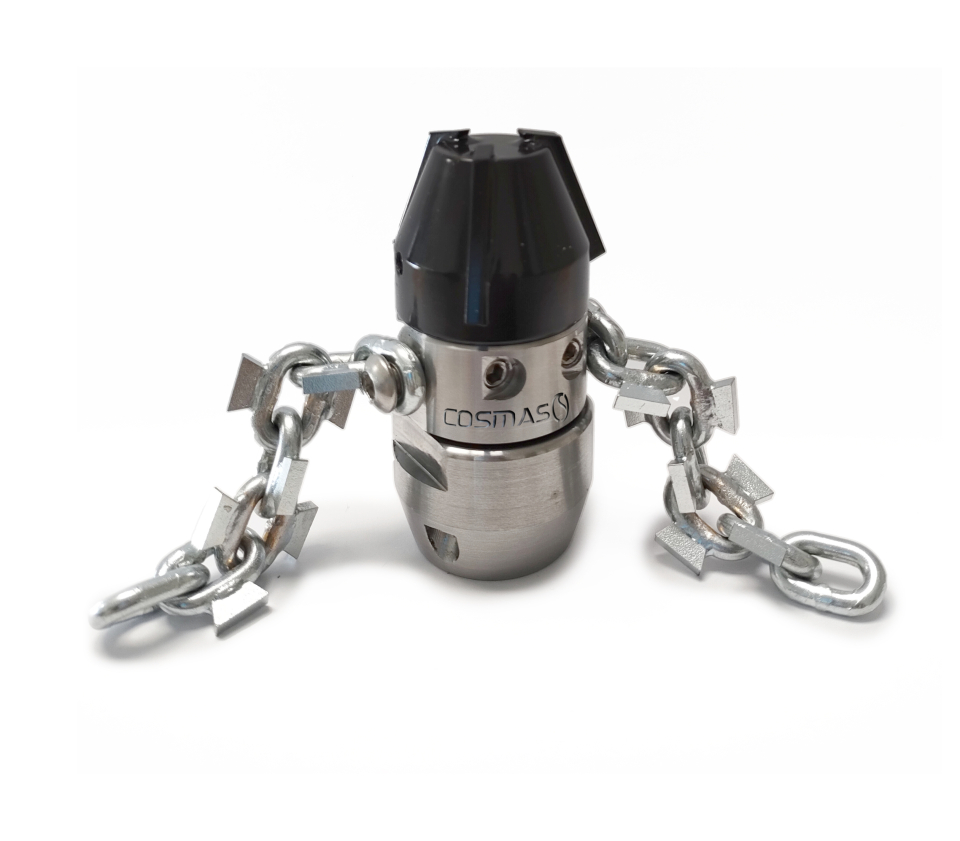

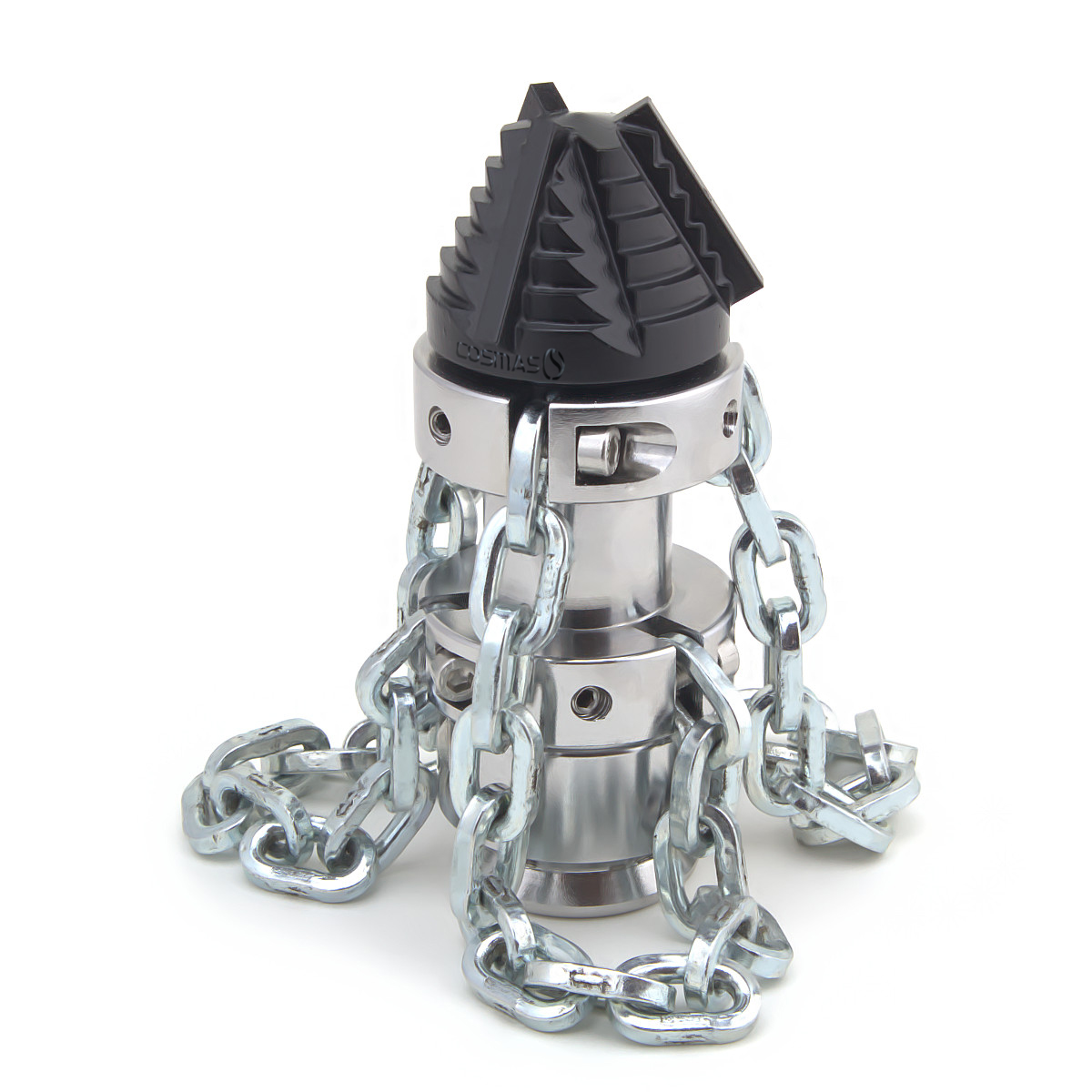

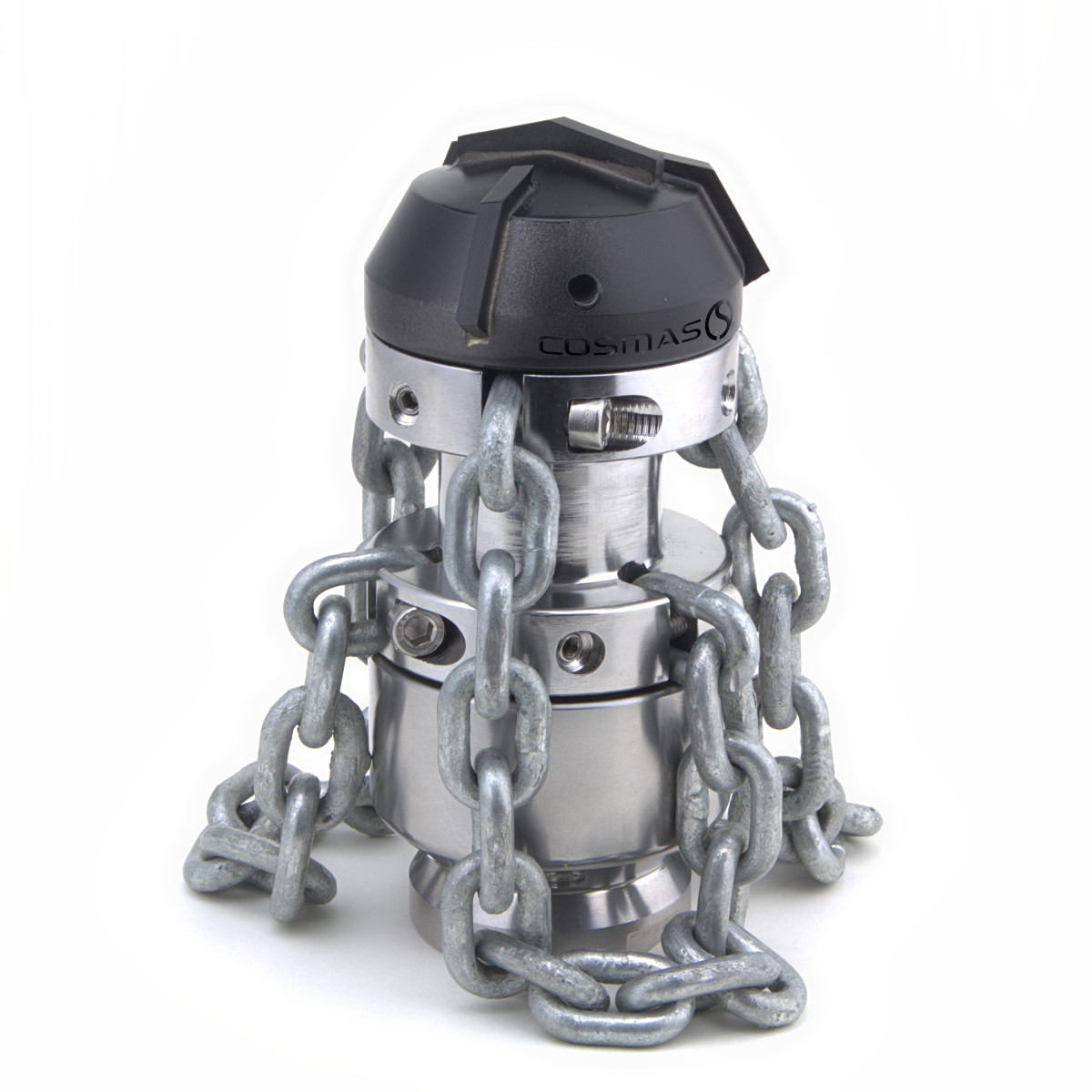

Carbide Chains Nozzles

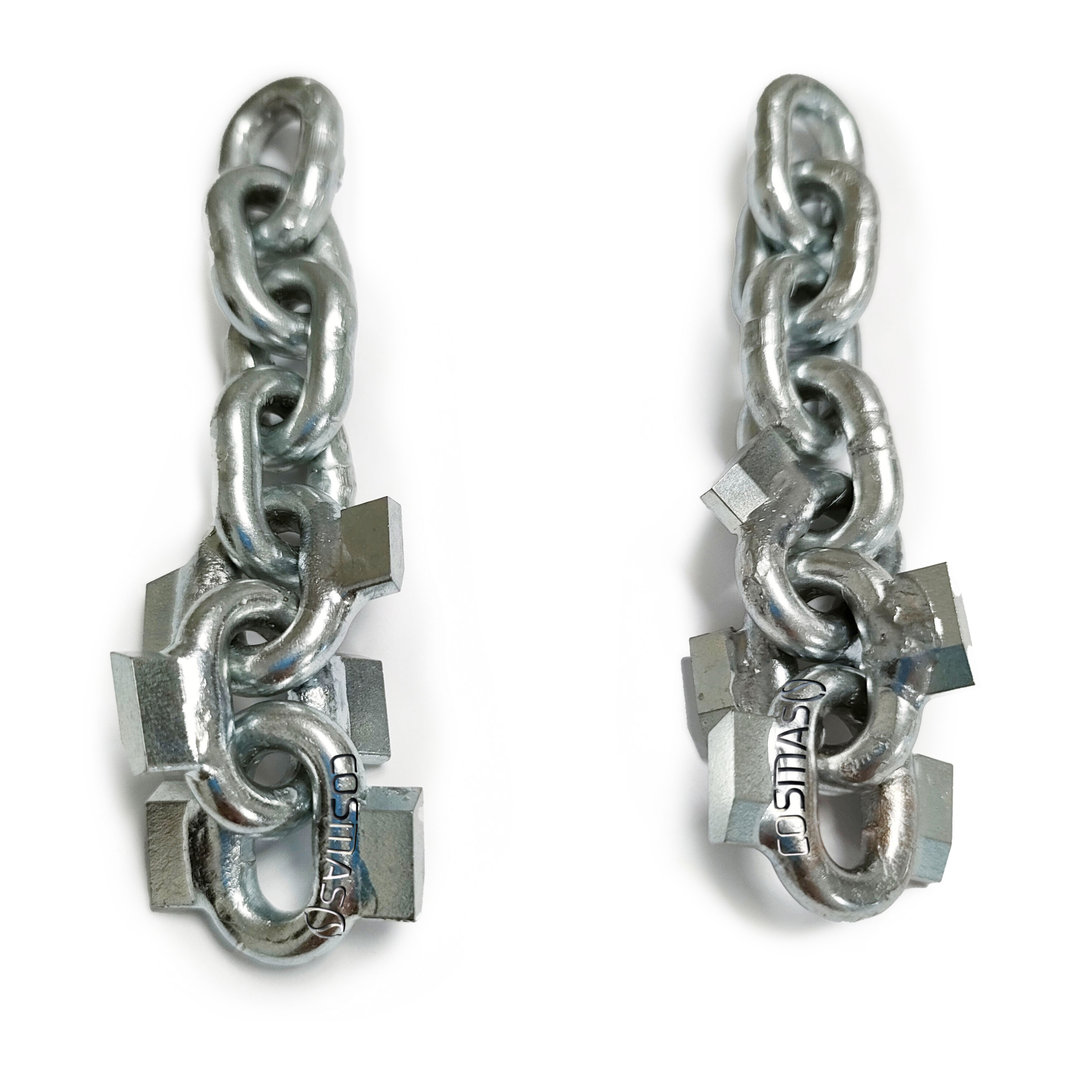

Nozzles made in stainless steel equipped with high quality carbide chains.

Thanks to carbide tips welded on chains, this nozzles is pefectly suitable to remove stones and concrete.

Available with 4 interchangeable heads: Cover, Drilling, Widia(Carbide) and Knives

It’s recommended to use ceramic inserts using dirty or recycled water. Ceramic inserts lifetime is longer than s/steel ones.

In order to extend chain rotating nozzle life time and achieve the best cleaning result, it' s recommended to use these nozzles with centering guides and plunging them into lubricating liquid after each use.

Do not use in gres and plastic pipes.

Application :

Removal of compact limestone, concrete, stones with carbide chains, moreover with following Heads is also possible to

• Cover - foam, sludge
• Drilling - rust, soap, limestone
• Widia (Carbide) - ice, gravel stones, concrete
• Knives - wood, roots

Part No.	Description	Inlet	Rear Jets	Rotating Jets	Inserts	ØxL mm	Kg	Ø Pipe	Max Bar
12680.01	Widia Chain Ø35mm	3/8"F	3 - M6x8 - 35°	4 - M6x6 -90°	S/Steel	35x77	0,35	70 - 200	250
12680.02	Widia Chain Ø35mm	1/2"F	3 - M6x8 - 35°	4 - M6x6 -90°	S/Steel	35x77	0,35	70 - 200	250
12720.01	Widia Chain Ø55mm	1/2"F	6 - M6x8 - 35°	6 - M6x8 -90°	S/Steel	55x135	1,40	90 - 500	250
12720.02	Widia Chain Ø55mm	3/4"F	6 - M6x8 - 35°	6 - M6x8 -90°	S/Steel	55x135	1,40	90 - 500	250
12720.03	Widia Chain Ø55mm	1"F	6 - M6x8 - 35°	6 - M6x8 -90°	S/Steel	55x135	1,40	90 - 500	250
12730.01	Widia Chain Ø70mm	1"F	6 - M6x8 - 35°	6 - M6x8 -90°	S/Steel	70x180	3,30	200 - 1000	250
12730.02	Widia Chain Ø70mm	1" 1/4"F	6 - M6x8 - 35°	6 - M6x8 -90°	S/Steel	70x180	3,30	200 - 1000	250
12680.01C	Widia Chain Ø35mm	3/8"F	3 - M6x8 - 35°	4 - M6x6 -90°	Ceramic	35x77	0,35	70 - 200	250
12680.02C	Widia Chain Ø35mm	1/2"F	3 - M6x8 - 35°	4 - M6x6 -90°	Ceramic	35x77	0,35	70 - 200	250
12720.01C	Widia Chain Ø55mm	1/2"F	6 - M6x8 - 35°	6 - M6x8 -90°	Ceramic	55x135	1,40	90 - 500	250
12720.02C	Widia Chain Ø55mm	3/4"F	6 - M6x8 - 35°	6 - M6x8 -90°	Ceramic	55x135	1,40	90 - 500	250
12720.03C	Widia Chain Ø55mm	1"F	6 - M6x8 - 35°	6 - M6x8 -90°	Ceramic	55x135	1,40	90 - 500	250
12730.01C	Widia Chain Ø70mm	1"F	6 - M6x8 - 35°	6 - M6x8 -90°	Ceramic	70x180	3,30	200 - 1000	250
12730.02C	Widia Chain Ø70mm	1" 1/4"F	6 - M6x8 - 35°	6 - M6x8 -90°	Ceramic	70x180	3,30	200 - 1000	250

For HEADS write as follows after end of part n (ex. 12560.02T) :

For COVER Head write “T”

Go to Spare Parts

For DRILLING Head write “A”

Go to Spare Parts

For CARBIDE Head write “W”

Go to Spare Parts

For KNIVES Head write “C”

Go to Spare Parts

Fixed Guide

Go to Fixed Guides

Extensible Guide

Go to Extensible Guides

Chain
