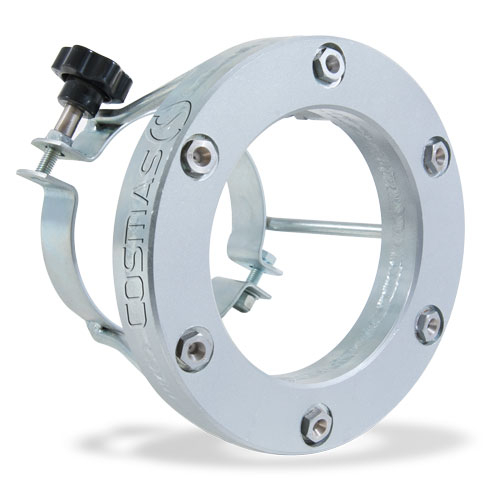

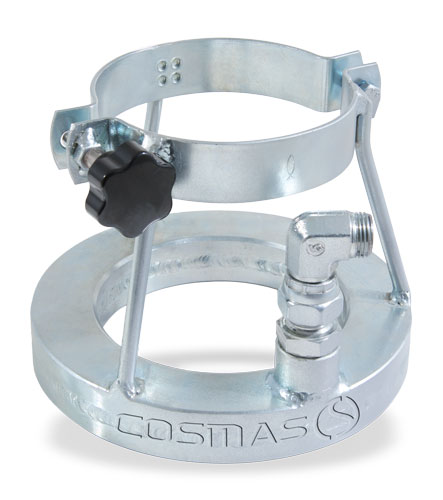

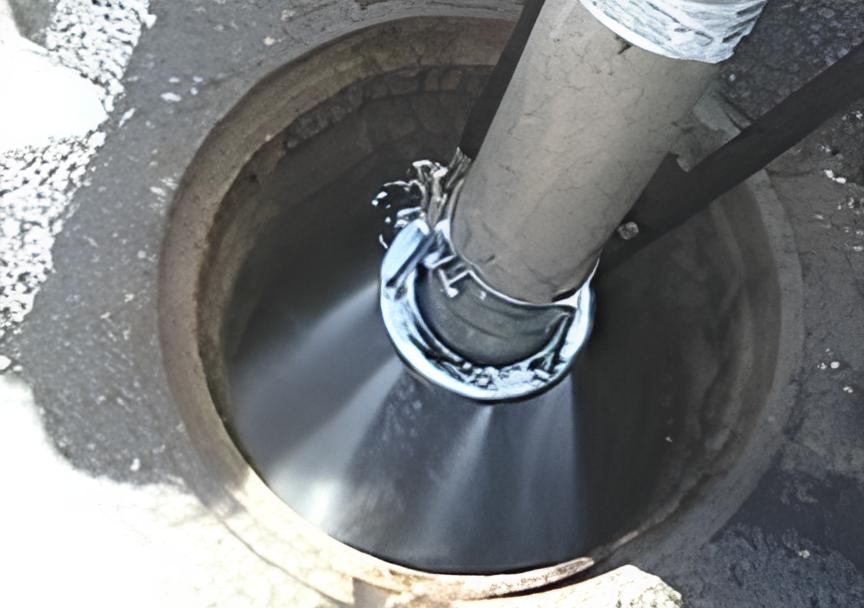

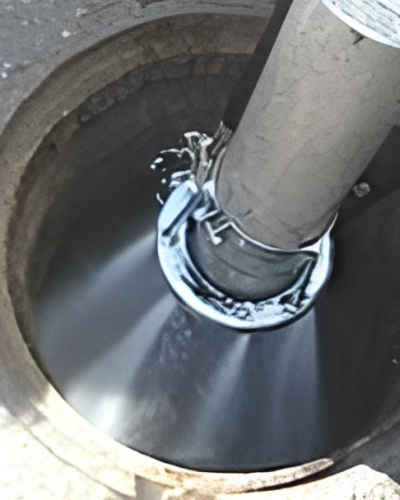

ManHole Washing Device

Flushing ring to be fixed on steel suction pipe, made in high quality steel and supplied with ceramic inserts.
This device washes sides and bottom of manhole.
Great combination of suction made by suction pipe, and washing, made by this equipment.

Part No.	Description	Inlet	Rear Inserts	DN	Kg
24100.01	Manhole Washing Device	1/2"	6 - 1/4"M Ceramic	80 - 3"	3,00
24100.02	Manhole Washing Device	1/2"	6 - 1/4"M Ceramic	100 - 4"	3,30
24100.03	Manhole Washing Device	1/2"	6 - 1/4"M Ceramic	120 - 5"	3,80
24100.04	Manhole Washing Device	1/2"	6 - 1/4"M Ceramic	150 - 6"	3,90
24100.05	Manhole Washing Device	1/2"	6 - 1/4"M Ceramic	200 - 8"	5,50

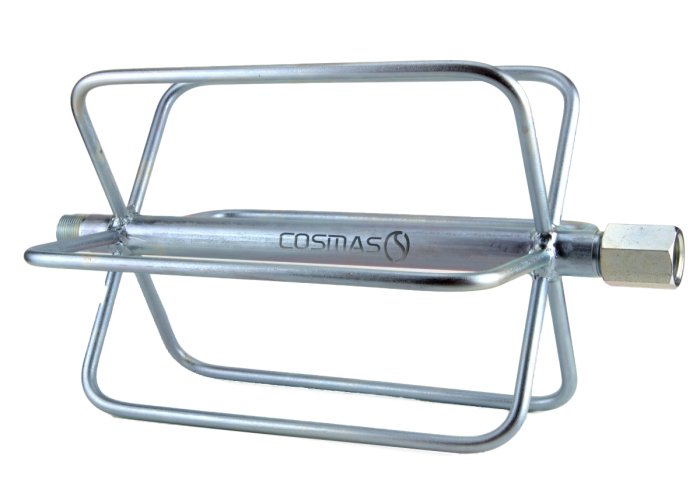

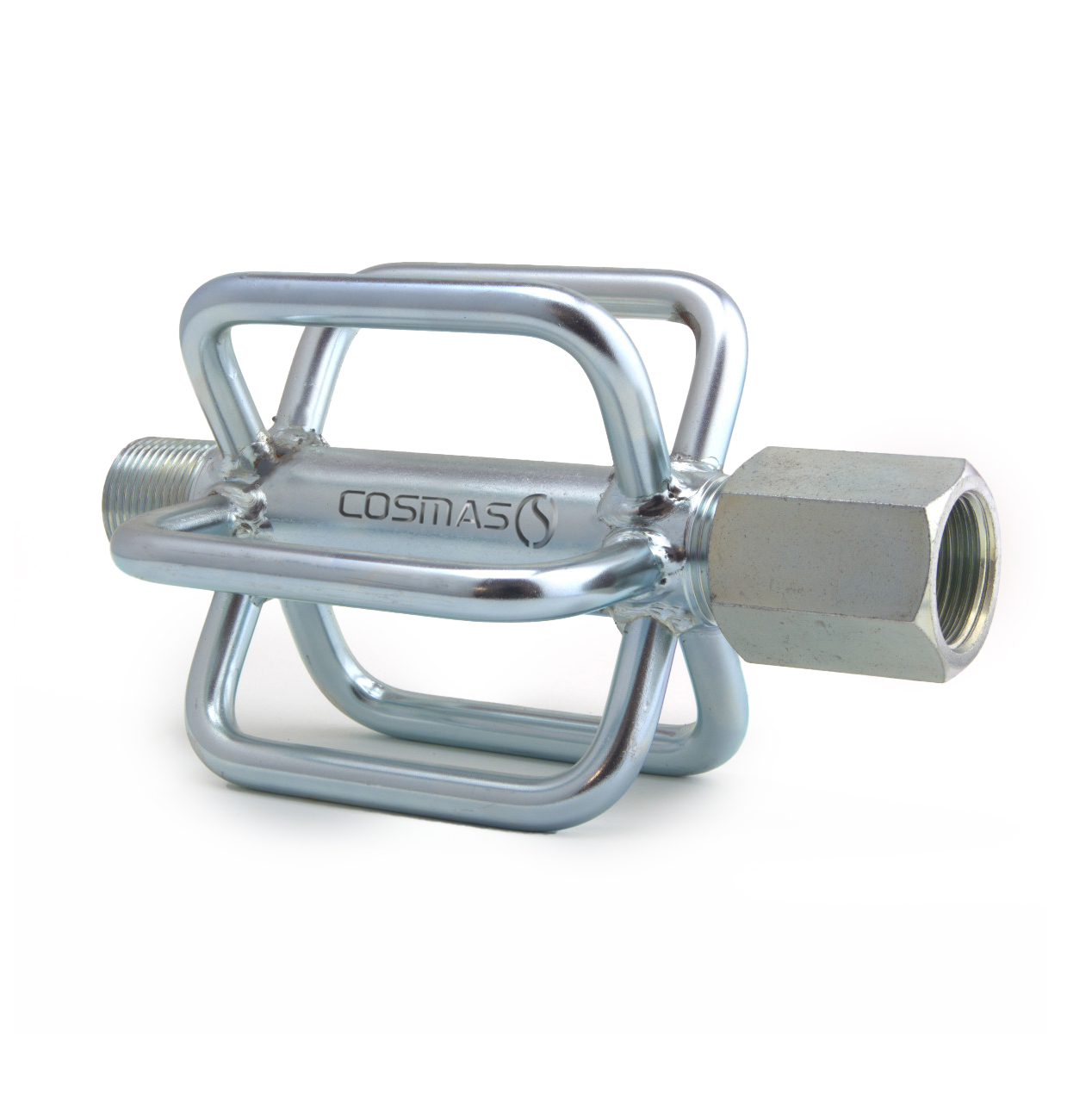

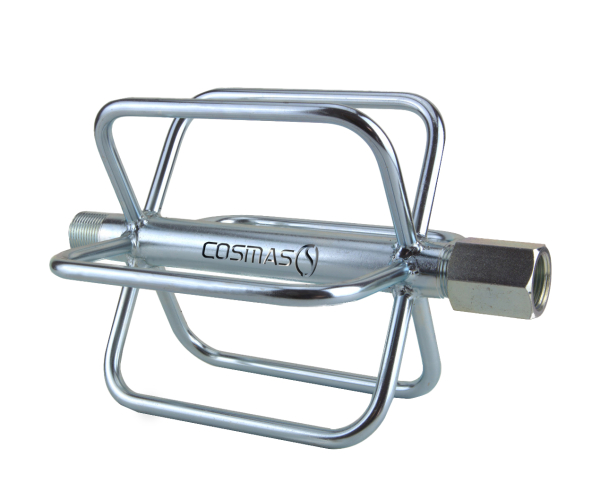

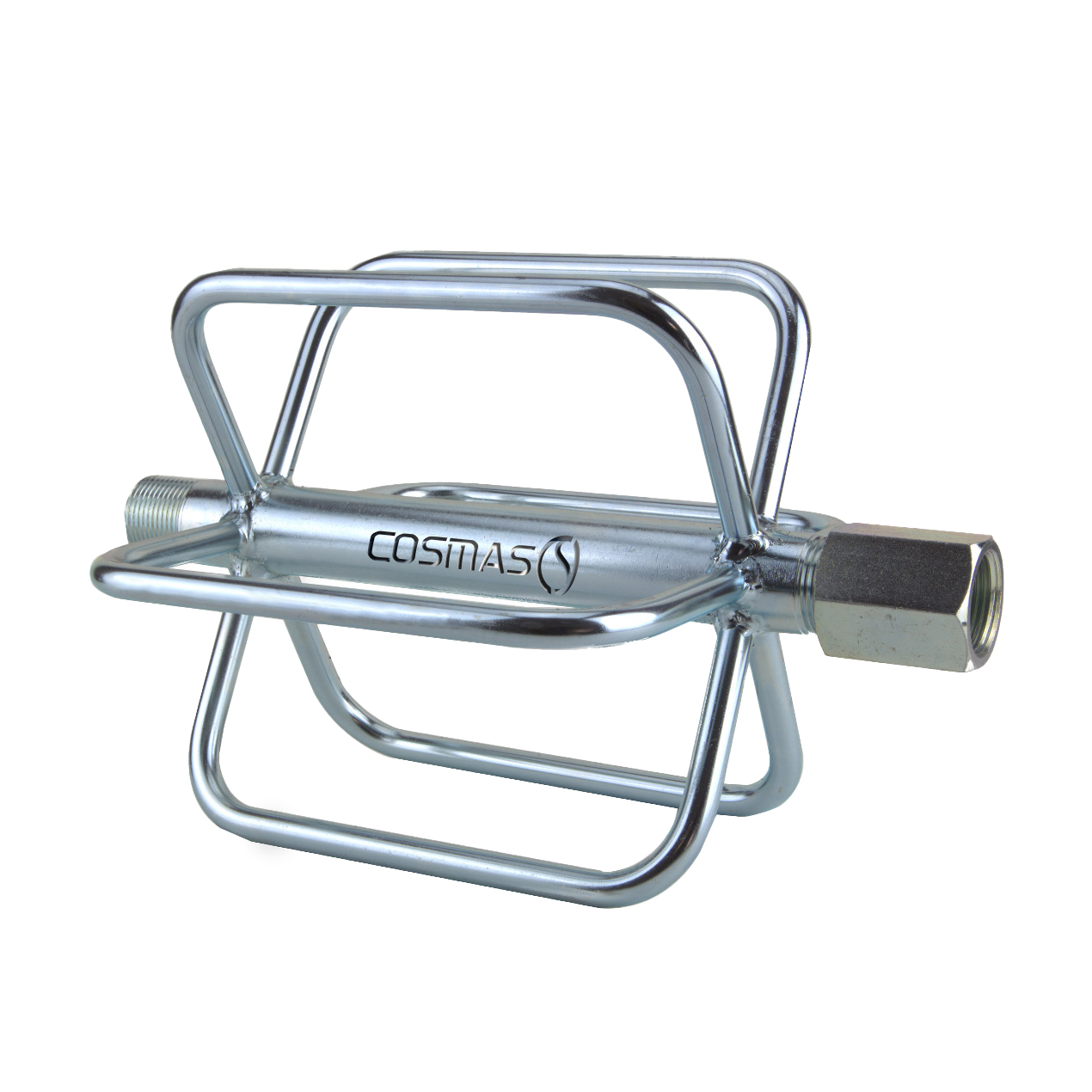

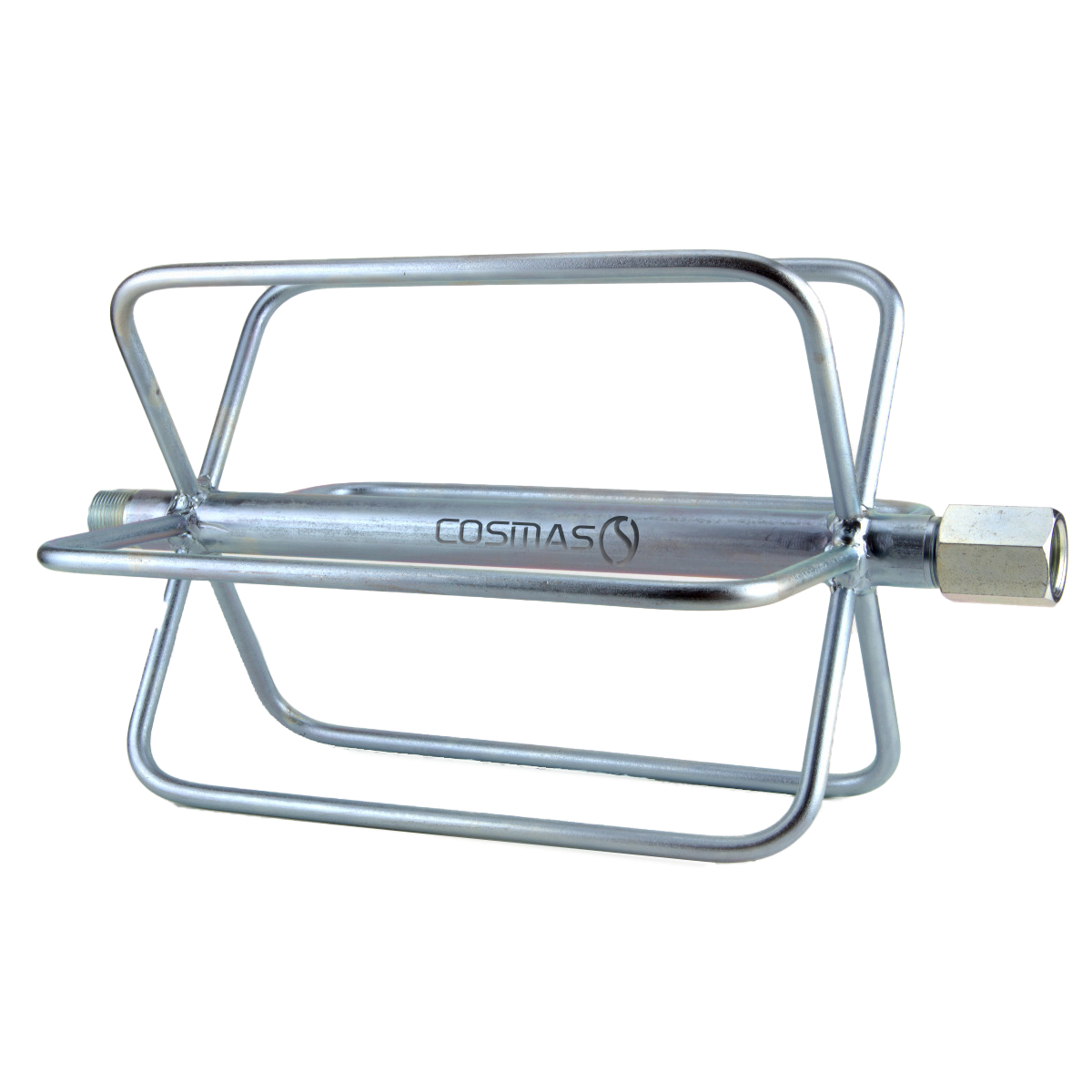

Fixed Centering Guides

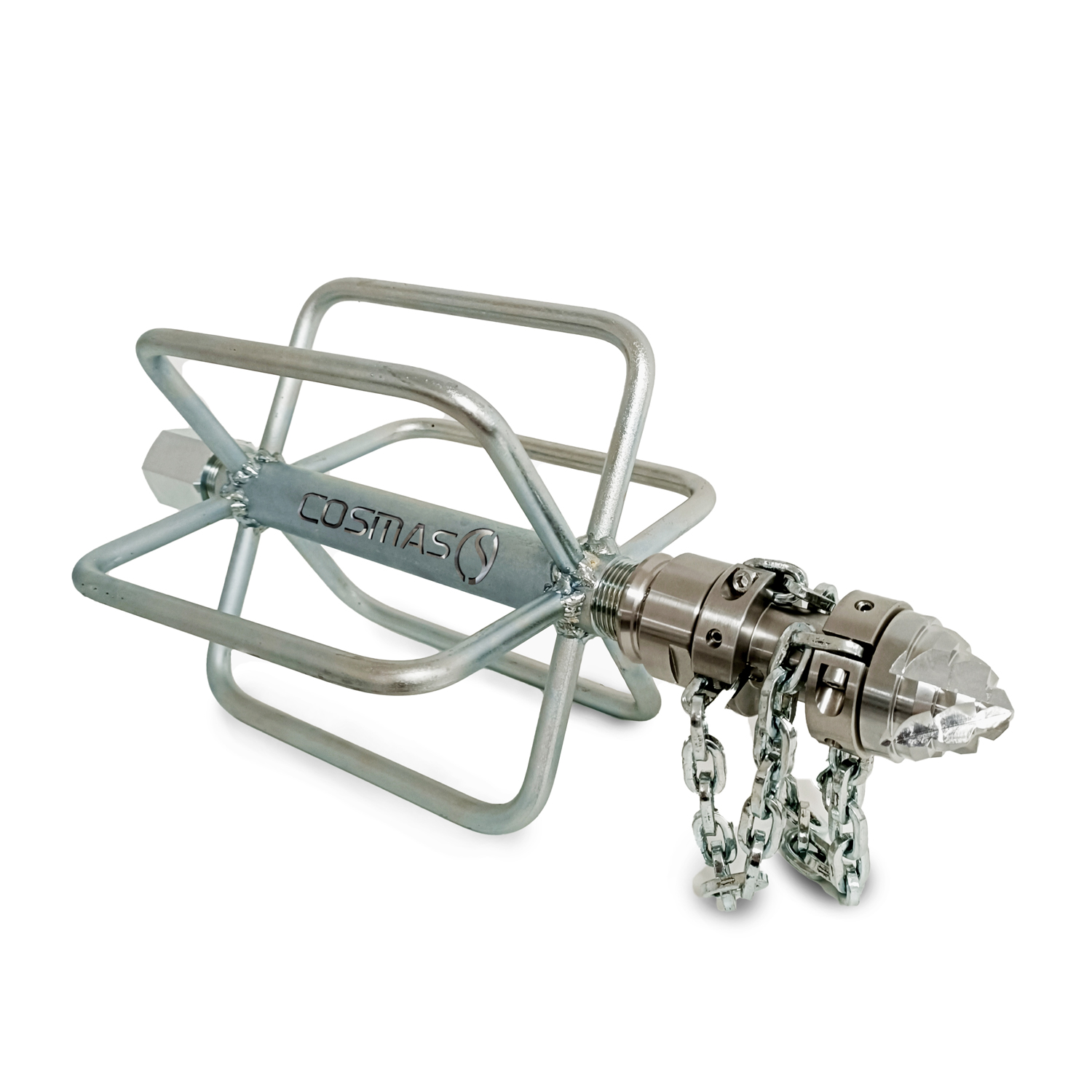

Fixed Centering Guides are used to maintain Nozzles in central position inside pipe A proper use of saving guide reduces hose bursting and increases its life time.
It's raccomended to be used with Rotating, Chain and Porpeller Nozzles

Part No.	Description	For Hose	DN mm/"	ØxL	Kg
22510.01	Fixed Centering Guide	1/2"	80 - 3"	77x100	0,50
22510.02	Fixed Centering Guide	1/2"	100 - 4"	87xh65	0,65
22510.03	Fixed Centering Guide	1/2"	120 - 5"	100x160	1,00
22550.01	Kit x 3  Fixed Centering Guide	1/2"	3" - 4" - 5"

Part No.	Description	For Hose	DN mm/"	ØxL	Kg
22500.02	Fixed Centering Guide Small	3/4"	150 - 200 (6" 8")	140x190	2,50
22500.03	Fixed Centering Guide Small	1"	150 - 200 (6" 8")	140x190	2,10
22500.12	Fixed Centering Guide Medium	3/4"	250 - 300 (10"- 12")	235x300	4,00
22500.13	Fixed Centering Guide Medium	1"	250 - 300 (10"- 12")	235x300	3,60
22500.22	Fixed Centering Guide Big	3/4"	350 - 400 (14"- 16")	320x500	5,70
22500.23	Fixed Centering Guide Big	1"	350 - 400 (14"- 16")	320x500	5,50
22500.24	Fixed Centering Guide Big	1" 1/4"	350 - 400 (14"- 16")	320x500	6,00

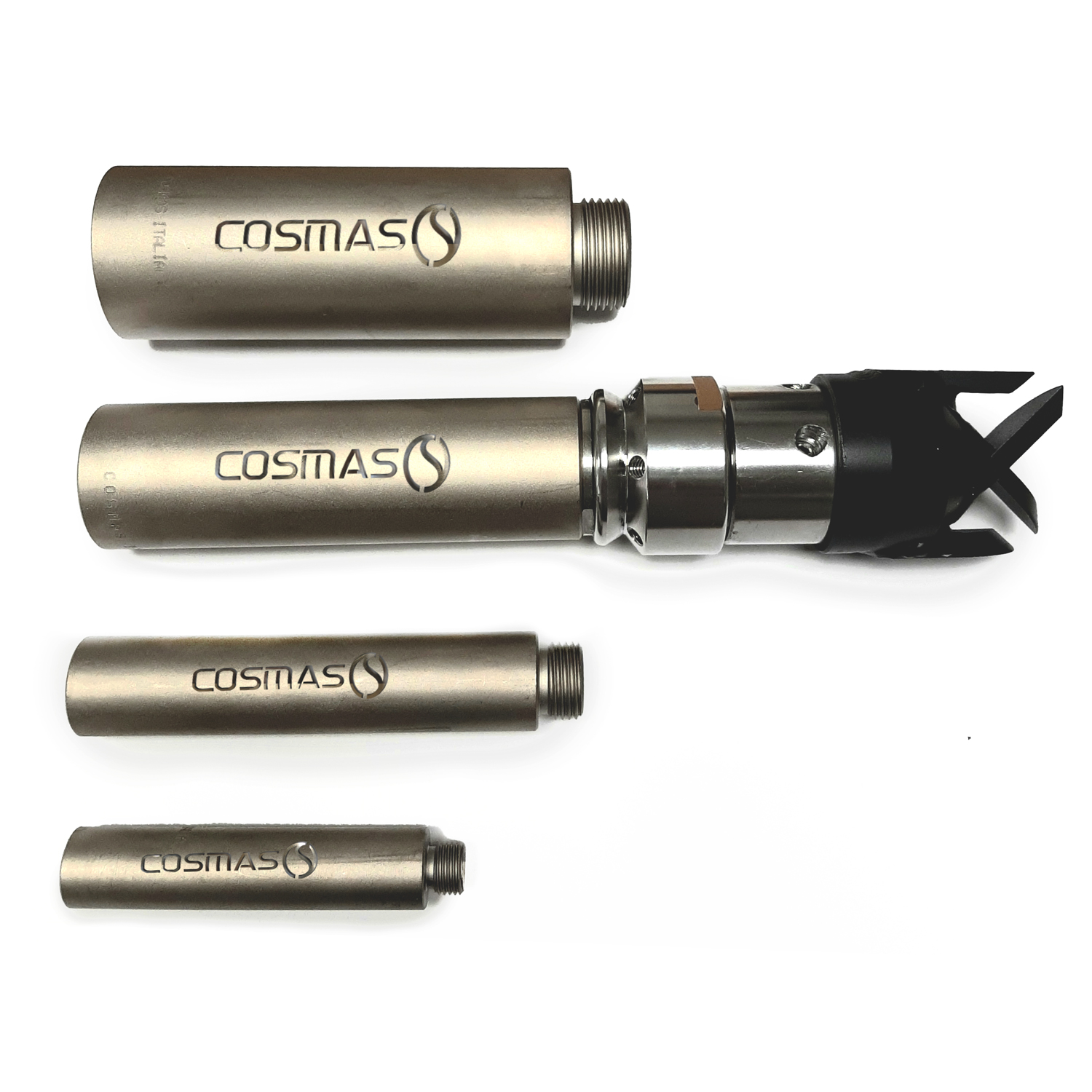

Extension Guide

Part No.	Description	Hose Ø	Pipe Ø mm / "	ØxL mm	Kg
19100.01	Extension Guide	1/4" M - 1/4" F	25 - 50 (1"-2")	20x90	0,20
19100.02	Extension Guide	1/2" M - 1/2" F	50 - 150 (1"-2")	26x120	0,35
19100.03	Extension Guide	3/4" M - 3/4" F	80 - 200 (4"-8")	40x130	1,00
19100.04	Extension Guide	1" M - 1" F	100 - 300 (4"-12")	50x130	1,60

Saving Hose Guides

Saving Hose Guides protect high pressure hoses from manhole sharp edge avoiding frictions,bursting and peeling of it.
These devices allows a fluent progress of hose inside the pipe during cleaning operations.
Saving hose guides are essential devices for a safty work.
A proper use of hoses saving guides reduces hose bursting and increases its life time.

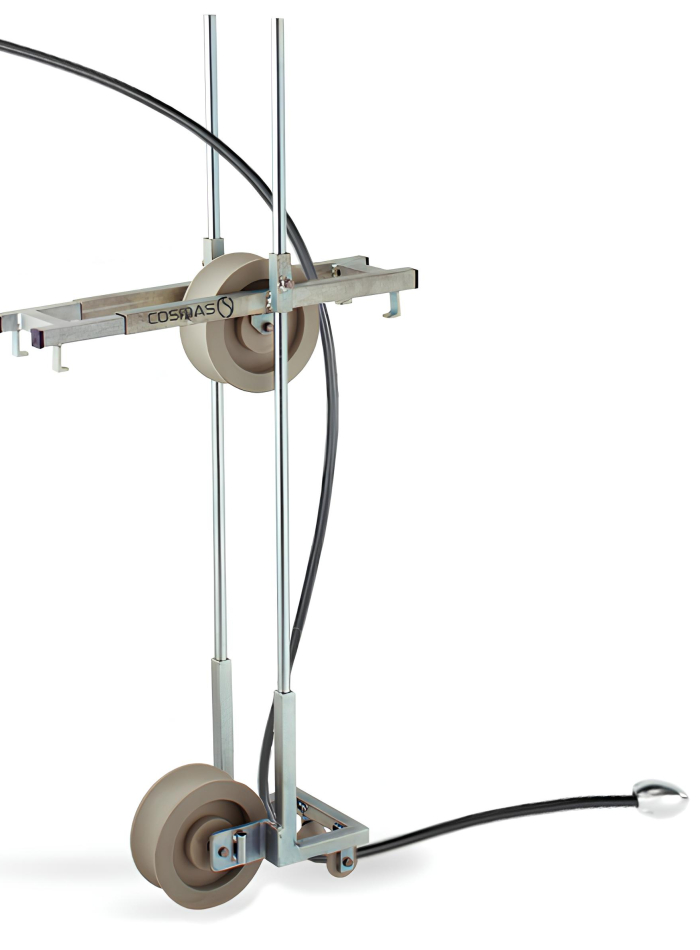

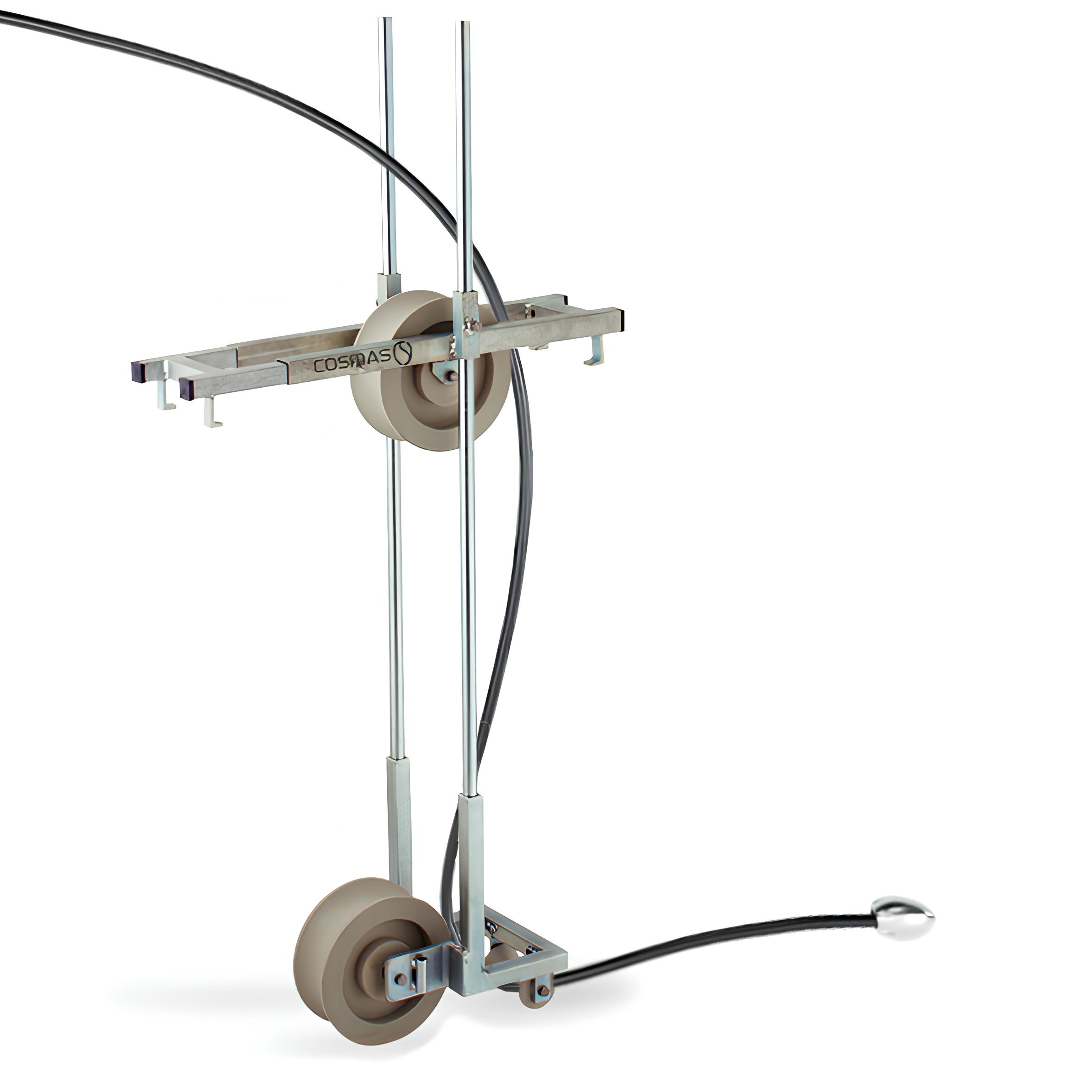

Upper & Lower Guides

Part No.	Description		Lxlxh mm	Kg
20500.02	Upper Saving Hose Guide		600x250xh240	4,00
20500.03	Lower Saving Hose Guide		360x370xh200	3,00
20500.04	Shaft L=1mm		20x1000	0,50
20500.05	Kit 1xUpper +1xLower+2x Shaft			8,00
Upper Saving Hose Guide has to be fixed on lateral sides of manhole.
Lower Saving Hose Guide has to be placed on the inner bottom part of manhole by 2 shafts

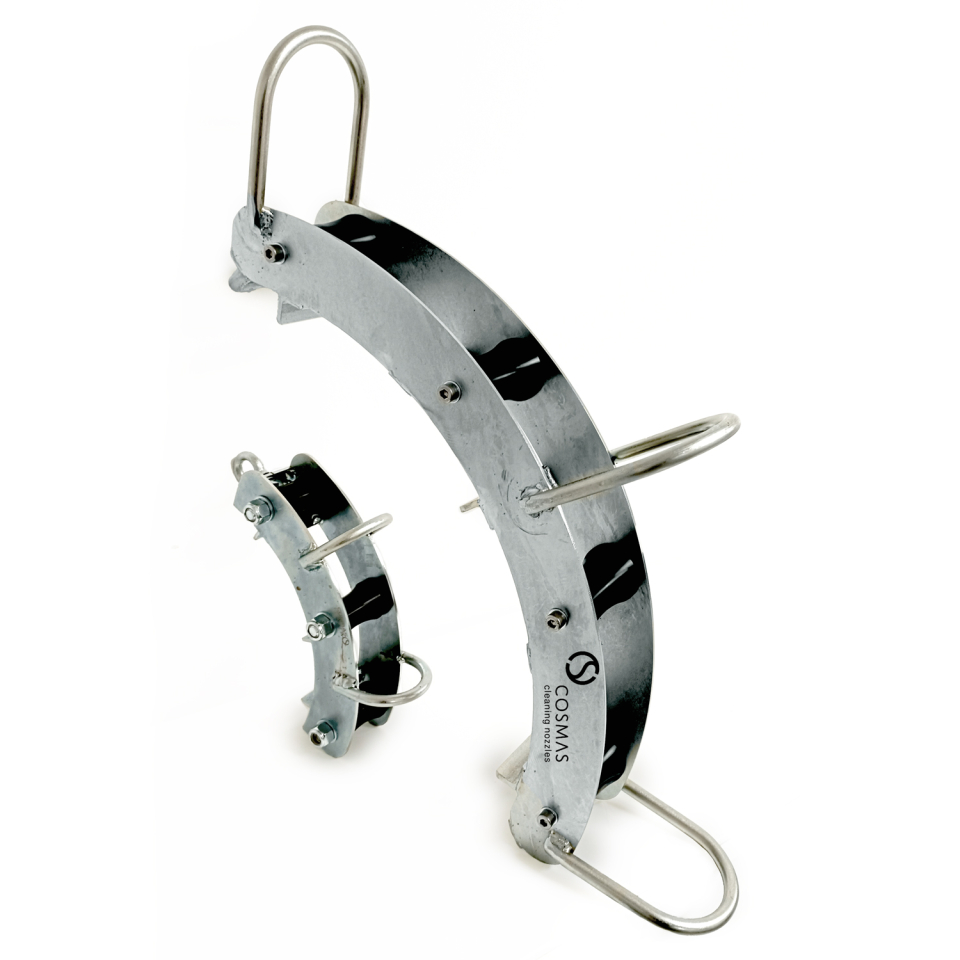

Curved Guides

Part No.	Description	For Hose	Lxlxh mm	Kg
21500.02	Saving Curved Lower Guide	1/2"	300x90xh160	1,60
21500.03	Saving Curved Lower Guide	3/4" - 1"	530x120xh280	3,50
21500.04	Saving Curved Lower Guide	1" - 1 1/4"	740x120xh340	4,50
21500.05	Saving Curved Lower Guide	1"1/4" - 1 1/2"	900x120x450	6,50
Curved Saving Hose Guide has to be placed on the inner lower part of manhole

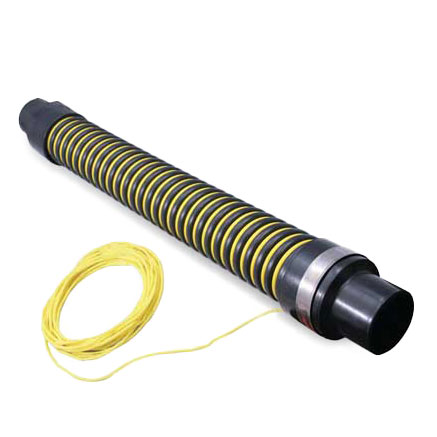

Tiger Tail Protection Hose

Part No.	Description	For Hose	ØØ x L mm	Kg
21500.09	Tiger Hose	1/2" - 3/4" (2")	75 (50 inner)x90	1,00
21500.10	Tiger Hose	3/4" - 1"(3")	90 (75 inner)x96	1,80
Supplied with 2mts polyethylene rope and collar fro easily installation and removal
