Heavy nozzles Round/Conical – S/steel inserts
[box]
Technical Features:
Thanks to their weight,heavy nozzle are able to remove and liquefy aspirable sedimented.
- Material:high quality hardened and polished steel alloy
- Holes nr:rear 6-8 +1 in the front
- Jets angle: 35° rear jets. 20° for conica head diam 110mm part n.12350.01
- Max Pressure: 250 bar
- Engraving: it’ s possible to engrave customer company name
Application:
- Cleaning of frequent sedimented deposits such as sand,mud,sludge,silt.
- Suitable for preparoatory pipe washing before camera inspection
[/box]
| Heavy round/conical with S/steel inserts | |||||||
|---|---|---|---|---|---|---|---|
| Part n. | Description | Hose connection |
Rear jets |
Central jet |
Dimension ØxL |
Weight in Kg |
Diameter Pipe mm |
| 12330.01 | Round Head | 1″F | 6-8 M8x1 | 1 M8x1 | 80×150 | 3,30 | 150 – 400 |
| 12330.02 | Round head | 1″ 1/4″F | 6-8 M8x1 | 1 M8x1 | 80×150 | 3,30 | 150 – 400 |
| 12340.01 | Conical Head | 1″F | 6-8 M8x1 | 1 M8x1 | 80×150 | 3,30 | 150 – 400 |
| 12340.02 | Conical Head | 1″1/4″F | 6-8 M8x1 | 1 M8x1 | 80×150 | 3,30 | 150 – 400 |
| 12350.01 | Conical Head | 1″F | 6-8 1/4″M | 1 -1/4″M | 110×150 | 3,30 | 150 – 400 |
Heavy nozzles Round/Conical – ceramic inserts
[box]
Technical Features:
Thanks to their weight,heavy nozzle are able to remove and liquefy aspirable sedimented.
- Material:high quality hardened and polished steel alloy
- Holes nr:rear 6-8 +1 in the front
- Jets angle: 35° rear jets. 20° for conica head diam 110mm part n.12350.01
- Max Pressure: 250 bar
- Engraving: it’ s possible to engrave customer company name
Application:
- Cleaning of frequent sedimented deposits such as sand,mud,sludge,silt.
- Suitable for preparoatory pipe washing before camera inspection
[/box]
| Heavy round/conical with ceramic inserts | |||||||
|---|---|---|---|---|---|---|---|
| Part n. | Description | Hose connection |
Rear jets |
Central jet |
Dimension ØxL |
Weight in Kg |
Diameter Pipe mm |
| 12330.01C | Round Head | 1″F | 6-8 M8x1 | 1 M8x1 | 80×150 | 3,30 | 150 – 400 |
| 12330.02C | Round head | 1″ 1/4″F | 6-8 M8x1 | 1 M8x1 | 80×150 | 3,30 | 150 – 400 |
| 12340.01C | Conical Head | 1″F | 6-8 M8x1 | 1 M8x1 | 80×150 | 3,30 | 150 – 400 |
| 12340.02C | Conical Head | 1″1/4″F | 6-8 M8x1 | 1 M8x1 | 80×150 | 3,30 | 150 – 400 |
| 12350.01C | Conical Head | 1″F | 6-8 1/4″M | 1 -1/4″M | 110×150 | 3,30 | 150 – 400 |
Venturi MudSucker
[box type=”shadow”]
Technical Features:
Venturi Sucking Devices exploit The Venturi principle to suck liquids in depth injecting water inside sucking chamber cone.
This device sucks various liquids, sludge, mud and stones. It is supplied with 6×1/4”M inner ceramic inserts.
Venturi Devices are essential equipment for plumbing or drainage jobs.
[/box]
| Venturi Jet Pump DN 60 | ||||||||
| Venturi for DN 60 can be connected to high pressure washers or cleaning vehicles to fast suck various liquids such as water, sludge, mud in flooded areas or to fill up tankers and pools. |
|
|||||||
| Part n. | Description | Hose connection |
DN |
Rear jets |
Dimension ØxL (mm) |
Weigh (Kg) |
||
 |
23200.05 | Venturi Jet Pump +Coupling | 1/2″ | 60 – 2″1/2″ | 6 – 1/4M Ceramic | 109×350 | 2,00 | |
| Max pressure 200 bar Capacity to suck up to 10mt in depth |
||||||||
| Venturi MudSucker | ||||||||
| Part n. | Description | Hose connection |
DN |
Inner jets |
Dimension ØxL |
Weight (Kg) |

|
|
|
23200.06 | Venturi MudSucker | 1/2″ | 60 – 2″1/2 | 6 – 1/4″M Ceramic | 109×280 | 2,00 | |
| 23100.01 | Venturi MudSucker | 1/2″ | 80 – 3″ | 6 – 1/4″M Ceramic | 150×350 | 5,20 | ||
| 23100.02 | Venturi MudSucker | 1/2″ | 100 – 4″ | 6 – 1/4″M Ceramic | 150×360 | 5,50 | ||
| 23100.03 | Venturi MudSucker | 1/2″ | 120 – 5″ | 6 – 1/4″M Ceramic | 200×420 | 6,00 | ||
| 23100.04 | Venturi MudSucker | 1/2″ | 150 – 6″ | 6 – 1/4″M Ceramic | 235×435 | 6,50 | ||
| Max pressure 250 bar Capacity to suck up to 15 mt in depth |
||||||||
| Intermediate Venturi | |||||||
| Part n. | Description | Hose connection |
DN |
Inner jets |
Dimension ØxL (mm) |
Weight (Kg) |
 |
| 23200.01 | Intermediate Venturi | 1/2″ | 80 – 3″ | 6 – 1/4″M Ceramic | 150×350 | 5,90 | |
| 23200.02 | Intermediate Venturi | 1/2″ | 100 – 4″ | 6 – 1/4″M Ceramic | 150×360 | 6,20 | |
| 23200.03 | Intermediate Venturi | 1/2″ | 120 – 5″ | 6 – 1/4″M Ceramic | 200×420 | 7,00 | |
| 23200.04 | Intermediate Venturi | 1/2″ | 150 – 6″ | 6 – 1/4″M Ceramic | 235×435 | 7,50 | |
| Max pressure 250 bar 1 Venturi Sucker + 1 Intermediate Venturi: capacity to suck up to 22mt in depth |
|||||||
[button link=”https://cosmasitalia.com/test/wp-content/uploads/2018/01/Venturi-mudSucker.pdf” type=”big”] PDF Version[/button]
Rotating Nozzles
Rotating Nozzles
Nozzles made in stainless steel equipped with thrust rear jets and central radial jets which can uniformly and completely clean all kind of pipes.
Rotating Nozzles are available with 4 interchangeable heads: Cover, Drilling, Widia(Carbide) and Knives.
Ceramic inserts are reccomended when using dirty or recycled water.
In order to extend chain rotating nozzle life time and achieve the best cleaning result it’ s recommended to use these nozzles with centering guides and to plunge them into lubricating liquid after each use.
Applications :
Cover – foam, sand, sludge

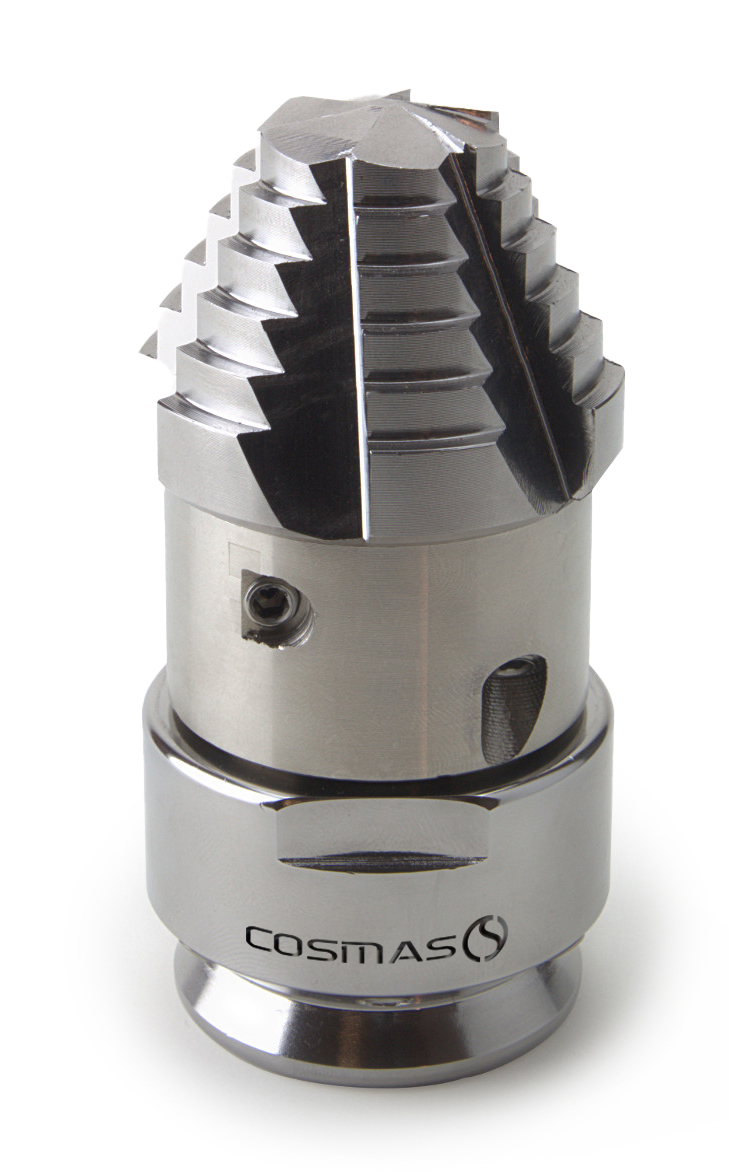

Drilling – rust, soap, limestone

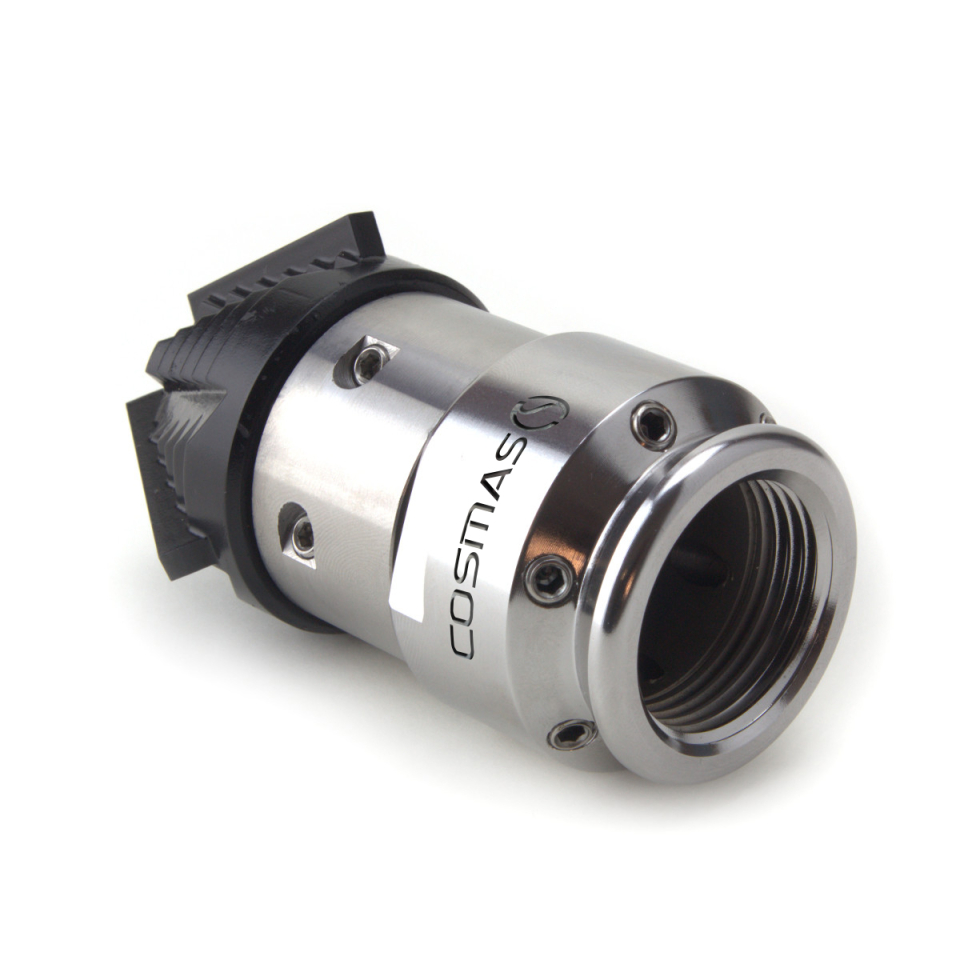

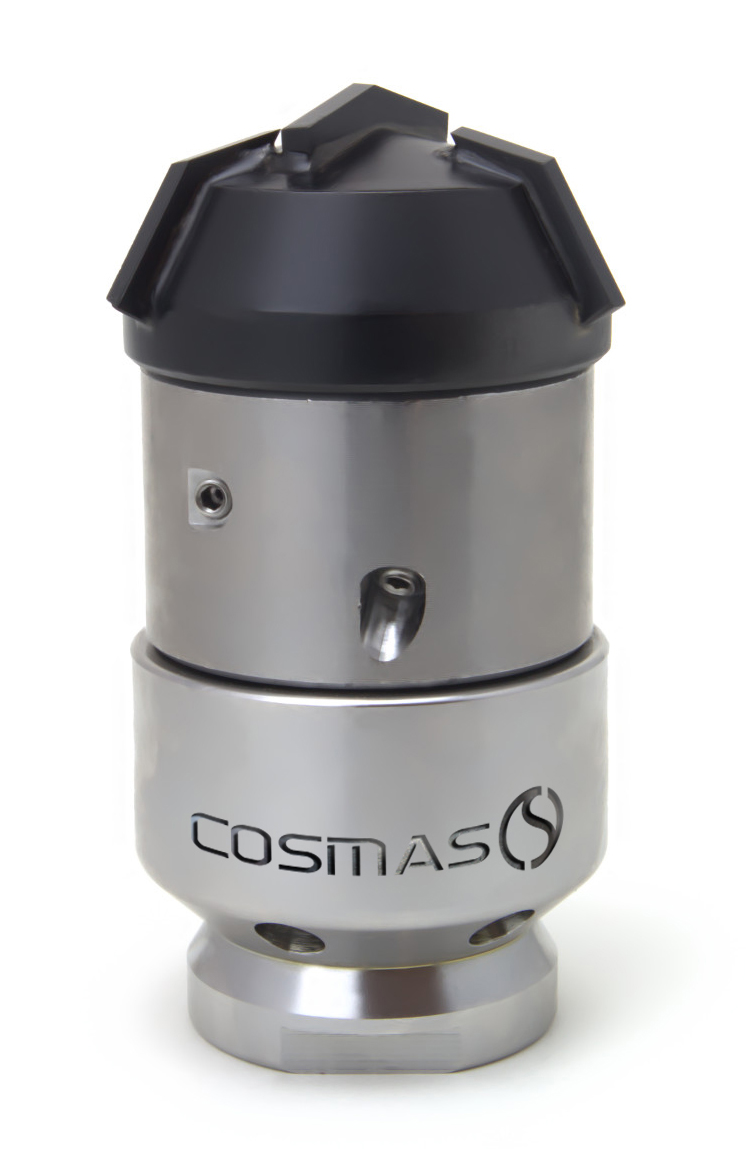

Widia (Carbide) – ice, gravel stones, concrete

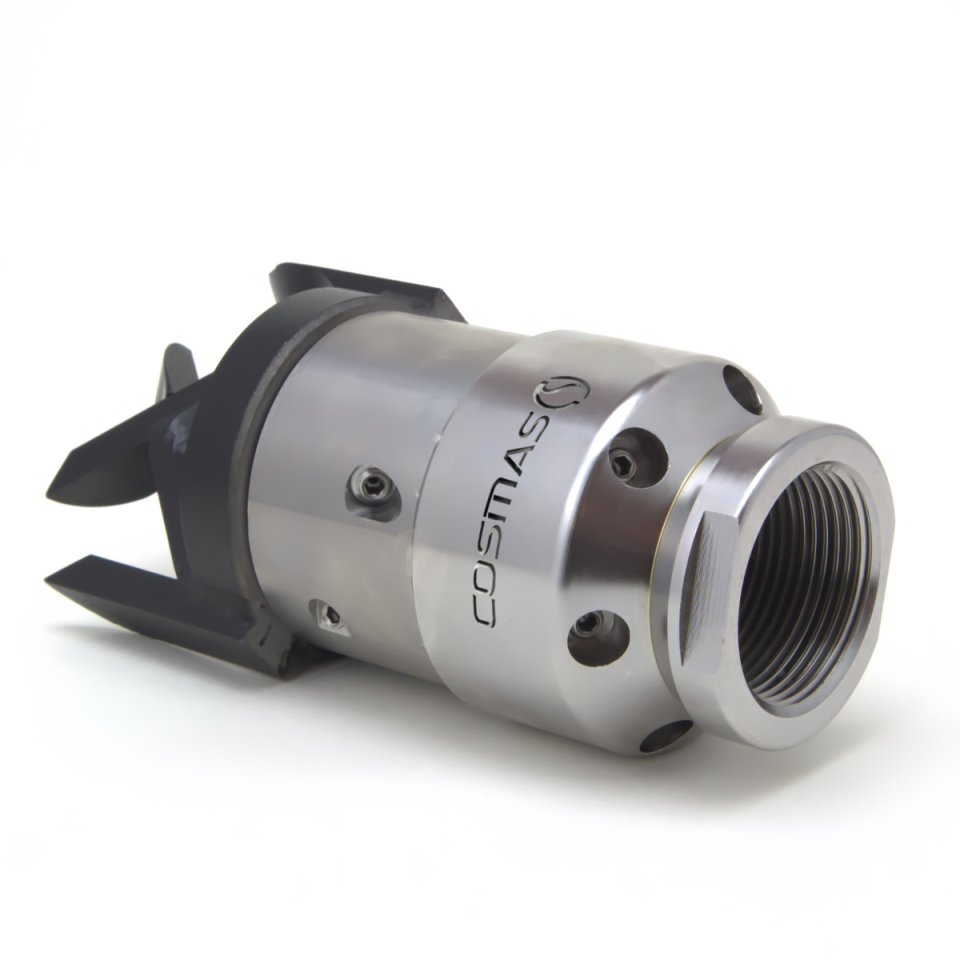

Knives – wood, roots

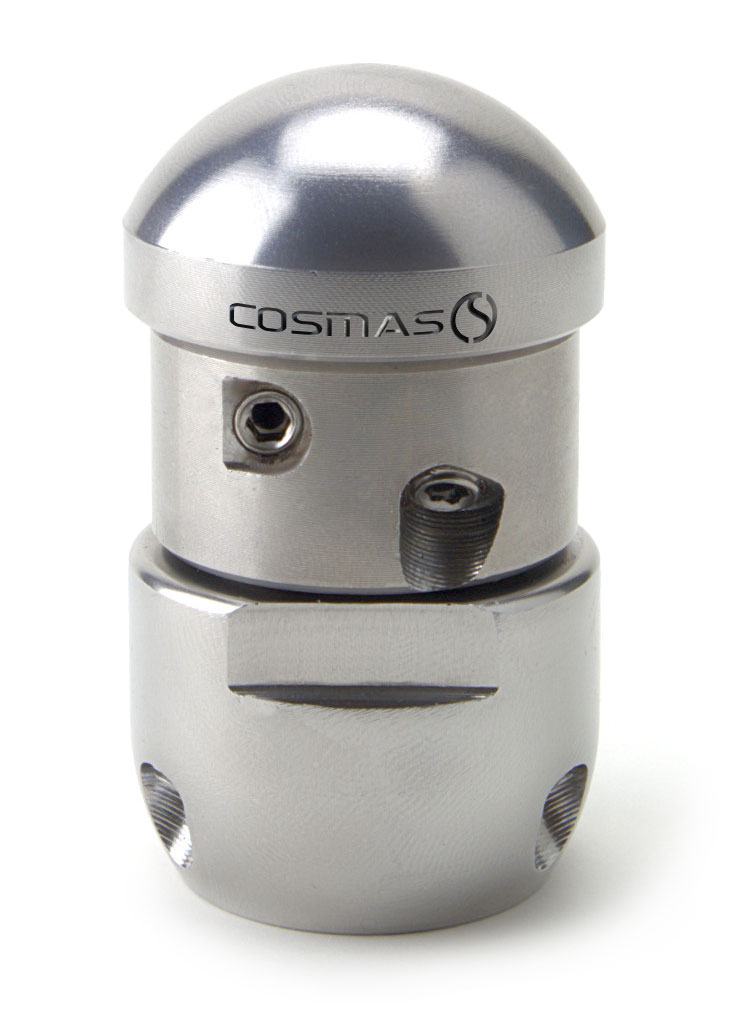

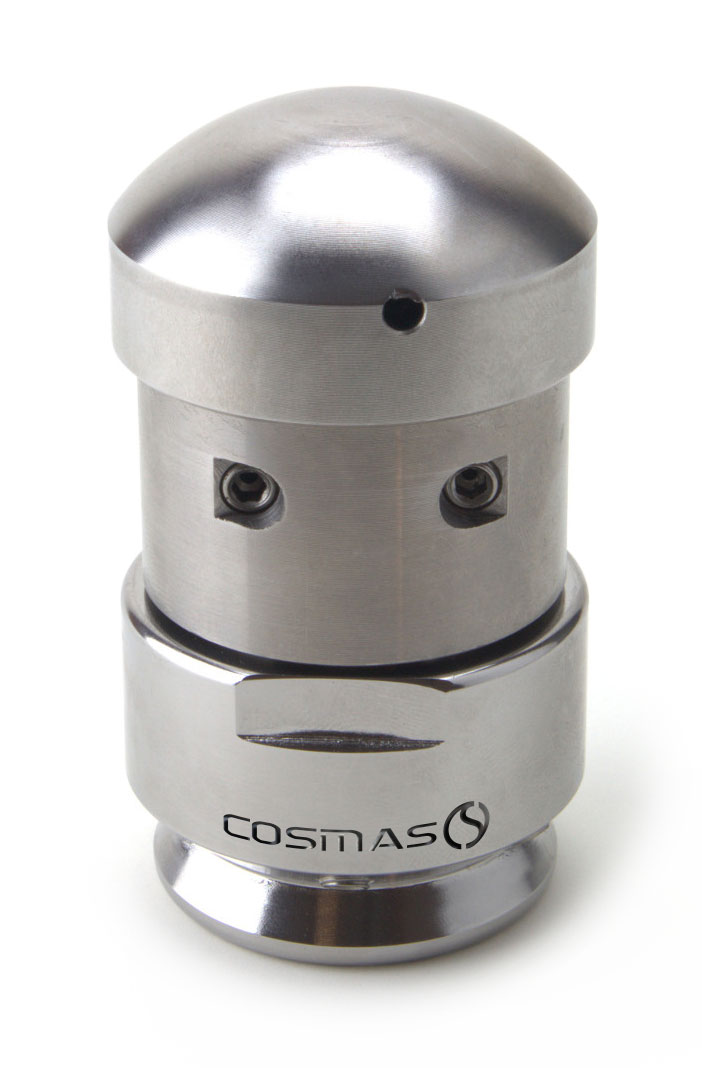

Rotating Nozzles with 4×90° Radial Jets
| Part No. | Description | Inlet | Inserts | Rear Jets | Rotating Jets | ØxL mm | Kg | Ø Pipe | Max Bar |
|---|---|---|---|---|---|---|---|---|---|
| 12530.01 | Rotating Nozzle Ø35 | 3/8″F | SS | 3 – M6x8 – 35° | 4 – M6x6 -90° | 35×77 | 0,35 | 50 -150 | 250 |
| 12530.02 | Rotating Nozzle Ø35 | 1/2″F | SS | 3 – M6x8 – 35° | 4 – M6x6 -90° | 35×77 | 0,35 | 50 -150 | 250 |
| 12530.04 | Rotating Nozzle Ø50 | 1/2″F | SS | 6 – M6x8 – 35° | 4 – M6x6 -90° | 50×100 | 0,80 | 100 – 200 | 250 |
| 12530.05 | Rotating Nozzle Ø50 | 3/4″F | SS | 6 – M6x8 – 35° | 4 – M6x6 -90° | 50×100 | 0,80 | 100 – 200 | 250 |
| 12530.06 | Rotating Nozzle Ø50 | 1″F | SS | 6 – M6x8 – 35° | 4 – M6x6 -90° | 50×100 | 0,80 | 100 – 200 | 250 |
| 12530.07 | Rotating Nozzle Ø70 | 1″F | SS | 6 – M6x8 – 35° | 4 – M6x8 -90° | 70×160 | 2,80 | 100 – 300 | 250 |
| 12530.09 | Rotating Nozzle Ø70 | 1″ 1/4″F | SS | 6 – M6x8 – 35° | 4 – M6x8 -90° | 70×160 | 2,80 | 100 – 300 | 250 |
| 12530.01C | Rotating Nozzle Ø35 | 3/8″F | Ceramic | 3 – M6x8 – 35° | 4 – M6x6 -90° | 35×77 | 0,35 | 50 -150 | 250 |
| 12530.02C | Rotating Nozzle Ø35 | 1/2″F | Ceramic | 3 – M6x8 – 35° | 4 – M6x6 -90° | 35×77 | 0,35 | 50 -150 | 250 |
| 12530.04C | Rotating Nozzle Ø50 | 1/2″F | Ceramic | 6 – M6x8 – 35° | 4 – M6x6 -90° | 50×100 | 0,80 | 100 – 200 | 250 |
| 12530.05C | Rotating Nozzle Ø50 | 3/4″F | Ceramic | 6 – M6x8 – 35° | 4 – M6x6 -90° | 50×100 | 0,80 | 100 – 200 | 250 |
| 12530.06C | Rotating Nozzle Ø50 | 1″F | Ceramic | 6 – M6x8 – 35° | 4 – M6x6 -90° | 50×100 | 0,80 | 100 – 200 | 250 |
| 12530.07C | Rotating Nozzle Ø70 | 1″F | Ceramic | 6 – M6x8 – 35° | 4 – M6x8 -90° | 70×160 | 2,80 | 100 – 300 | 250 |
| 12530.09C | Rotating Nozzle Ø70 | 1″ 1/4″F | Ceramic | 6 – M6x8 – 35° | 4 – M6x8 -90° | 70×160 | 2,80 | 100 – 300 | 250 |
Rotating Nozzles with 2×90° +2×45° Down Radial Jets
| Part No. | Description | Inlet | Inserts | Rear Jets | Rotating Jets | ØxL mm | Kg | Ø Pipe | Max Bar |
|---|---|---|---|---|---|---|---|---|---|
| 12560.08 | Rotating Nozzle Ø 16 | 1/8″F | _ | Drilled 2×25° | Drilled 2×90°2×45° | 16×30 | 0,03 | 18 – 60 | 250 |
| 12560.15 | Rotating Nozzle Ø 17 | 1/4″F | _ | Drilled 2×25° | Drilled 2×90°2×45° | 17×30 | 0,03 | 18 – 60 | 250 |
| 12560.10 | Rotating Nozzle Ø 30 | 1/4″F | SS | 3 – M4x5 – 35° | M4x5 2×90°2×45° | 30×56 | 0,20 | 30 – 100 | 250 |
| 12560.11 | Rotating Nozzle Ø 30 | 3/8″F | SS | 3 – M4x5 – 35° | M4x5 2×90°2×45° | 30×56 | 0,20 | 30 – 100 | 250 |
| 12560.01 | Rotating Nozzle Ø 35 | 3/8″F | SS | 3 – M6x8 – 35° | M6x6 2×90°2×45° | 35×77 | 0,35 | 50 -150 | 250 |
| 12560.02 | Rotating Nozzle Ø 35 | 1/2″F | SS | 3 – M6x8 – 35° | M6x6 2×90°2×45° | 35×77 | 0,35 | 50 -150 | 250 |
| 12560.04 | Rotating Nozzle Ø 50 | 1/2″F | SS | 6 – M6x8 – 35° | M6x6 2×90°2×45° | 50×100 | 0,80 | 100 – 200 | 250 |
| 12560.05 | Rotating Nozzle Ø 50 | 3/4″F | SS | 6 – M6x8 – 35° | M6x6 2×90°2×45° | 50×100 | 0,80 | 100 – 200 | 250 |
| 12560.06 | Rotating Nozzle Ø 50 | 1″F | SS | 6 – M6x8 – 35° | M6x6 2×90°2×45° | 50×100 | 0,80 | 100 – 200 | 250 |
| 12560.07 | Rotating Nozzle Ø 70 | 1″F | SS | 6 – M6x8 – 35° | M6x8 2×90°2×45° | 70×160 | 2,80 | 100 – 300 | 250 |
| 12560.09 | Rotating Nozzle Ø 70 | 1″ 1/4″F | SS | 6 – M6x8 – 35° | M6x8 2×90°2×45° | 70×160 | 2,80 | 100 – 300 | 250 |
| 12560.12 | Rotating Nozzle Ø 100 | 1″F | SS | 6 – 10x10x1 – 35° | M10x0x1 2×90°2×45° | 100×170 | 7,10 | 150 – 600 | 250 |
| 12560.13 | Rotating Nozzle Ø 100 | 1″ 1/4″F | SS | 6 – 10x10x1 – 35° | M10x0x1 2×90°2×45° | 100×170 | 7,10 | 150 – 600 | 250 |
| 12560.11C | Rotating Nozzle Ø 30 | 3/8″F | Ceramic | 3 – M6x8 – 35° | M6x6 2×90°2×45° | 30×56 | 0,20 | 30 – 100 | 250 |
| 12560.01C | Rotating Nozzle Ø 35 | 3/8″F | Ceramic | 3 – M6x8 – 35° | M6x6 2×90°2×45° | 35×77 | 0,35 | 50 -150 | 250 |
| 12560.02C | Rotating Nozzle Ø 35 | 1/2″F | Ceramic | 6 – M6x8 – 35° | M6x6 2×90°2×45° | 35×77 | 0,35 | 50 -150 | 250 |
| 12560.04C | Rotating Nozzle Ø 50 | 1/2″F | Ceramic | 6 – M6x8 – 35° | M6x6 2×90°2×45° | 50×100 | 0,80 | 100 – 200 | 250 |
| 12560.05C | Rotating Nozzle Ø 50 | 3/4″F | Ceramic | 6 – M6x8 – 35° | M6x6 2×90°2×45° | 50×100 | 0,80 | 100 – 200 | 250 |
| 12560.06C | Rotating Nozzle Ø 50 | 1″F | Ceramic | 6 – M6x8 – 35° | M6x8 2×90°2×45° | 50×100 | 0,80 | 100 – 200 | 250 |
| 12560.07C | Rotating Nozzle Ø 70 | 1″F | Ceramic | 6 – M6x8 – 35° | M6x8 2×90°2×45° | 70×160 | 2,80 | 100 – 300 | 250 |
| 12560.09C | Rotating Nozzle Ø 70 | 1″ 1/4″F | Ceramic | 6 – 10x10x1 – 35° | M10x0x1 2×90°2×45° | 70×160 | 2,80 | 100 – 300 | 250 |
| 12560.12C | Rotating Nozzle Ø 100 | 1″F | Ceramic | 6 – 10x10x1 – 35° | M10x0x1 2×90°2×45° | 100×170 | 7,10 | 150 – 600 | 250 |
| 12560.13C | Rotating Nozzle Ø 100 | 1″ 1/4″F | Ceramic | 6 – 10x10x1 – 35° | M10x0x1 2×90°2×45° | 100×170 | 7,10 | 150 – 600 | 250 |
For interchangeable HEADS write as follows after part n (ex. 12530.02T or 12560.06T)
For COVER Head write “T”

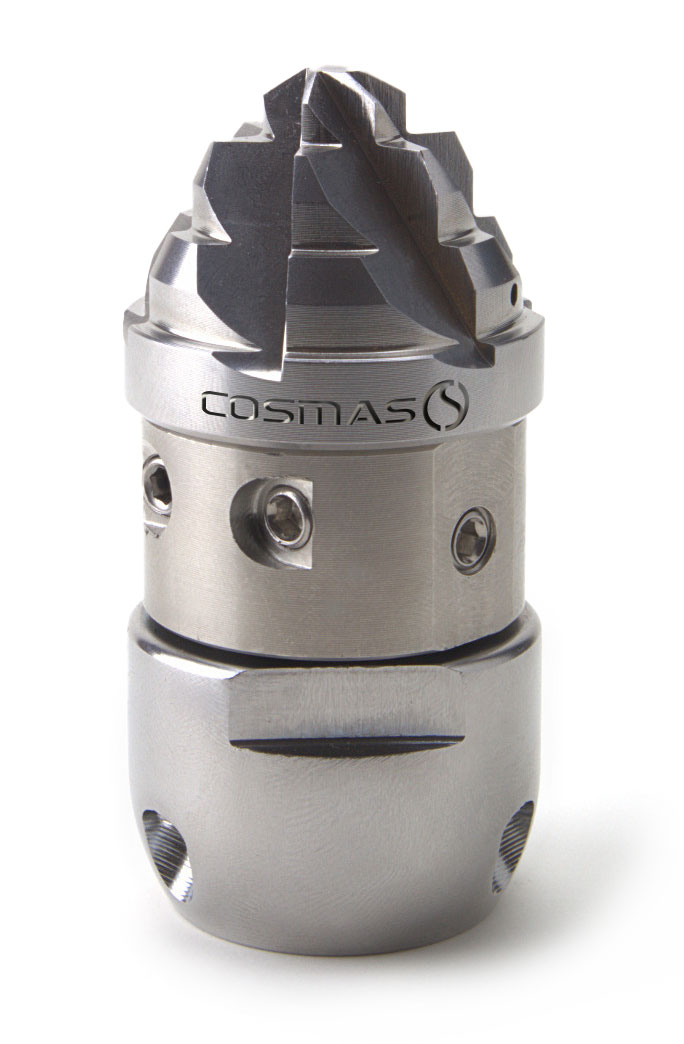

For DRILLING Head write “A”
For CARBIDE Head write “W”

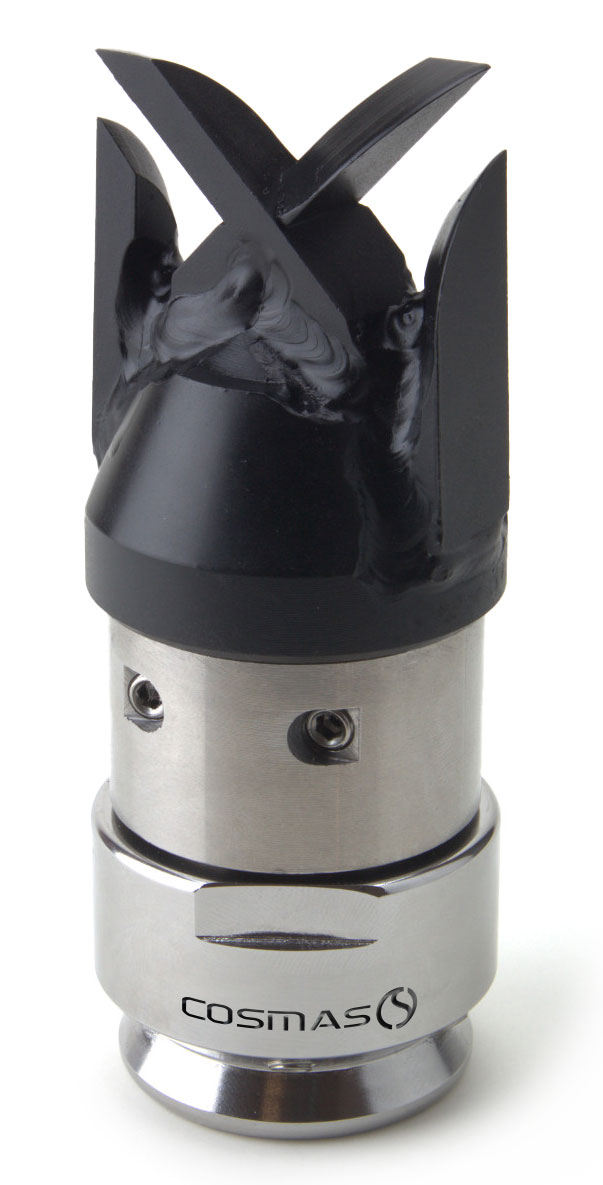

For KNIVES Head write “C”
In order to extend nozzle life time and achieve the best cleaning result, we recommend to use it with centering guides and plunging it into a lubricating liquid after each use.

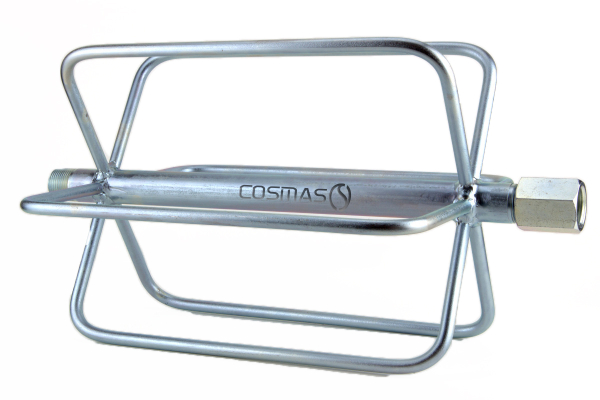

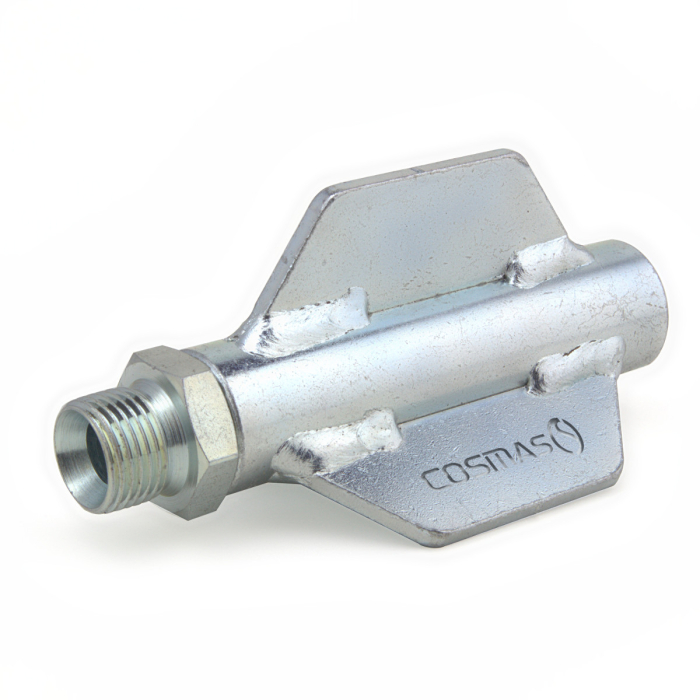

Fixed Guide
Extensible Guide

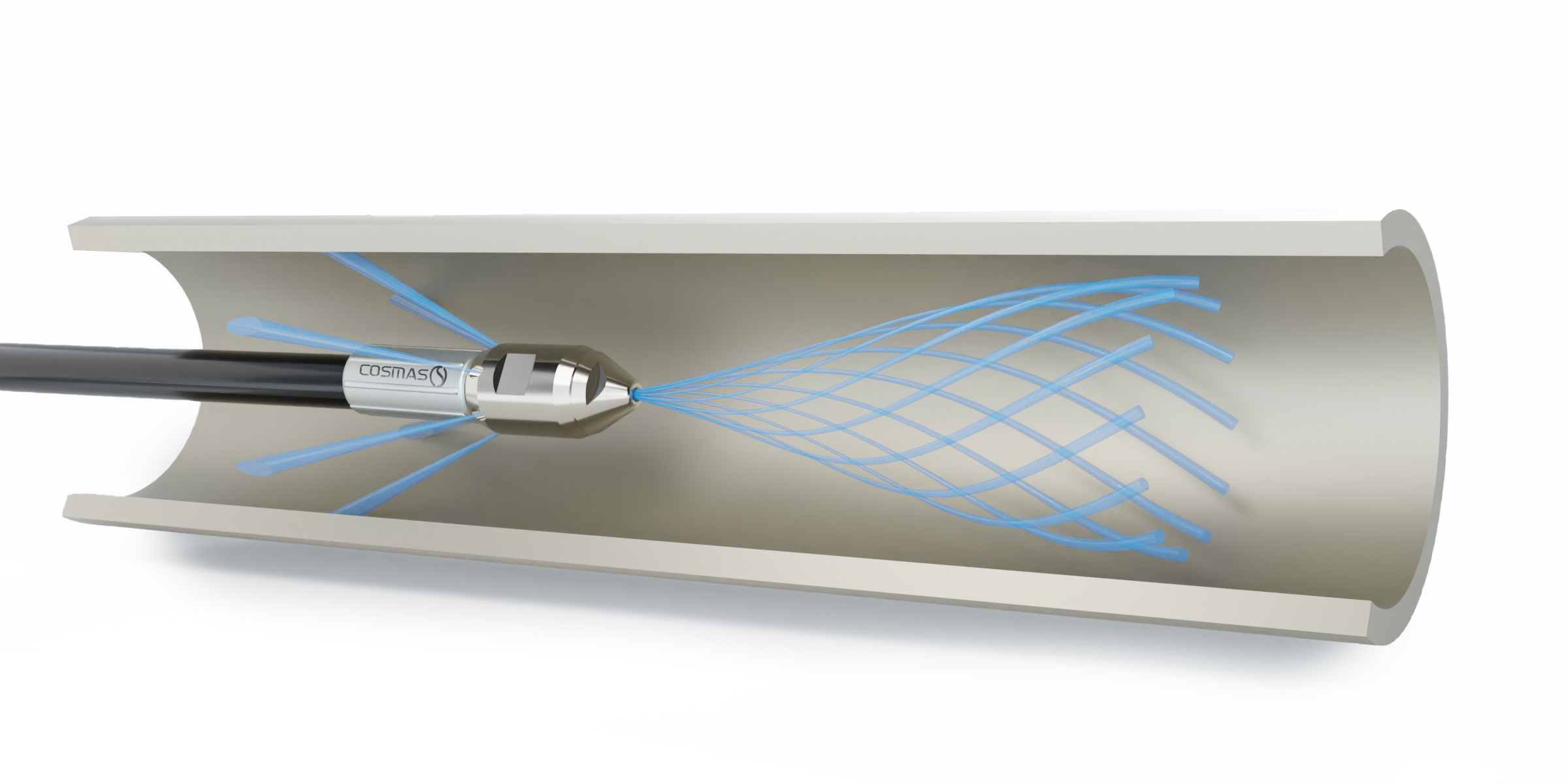

Rotospin

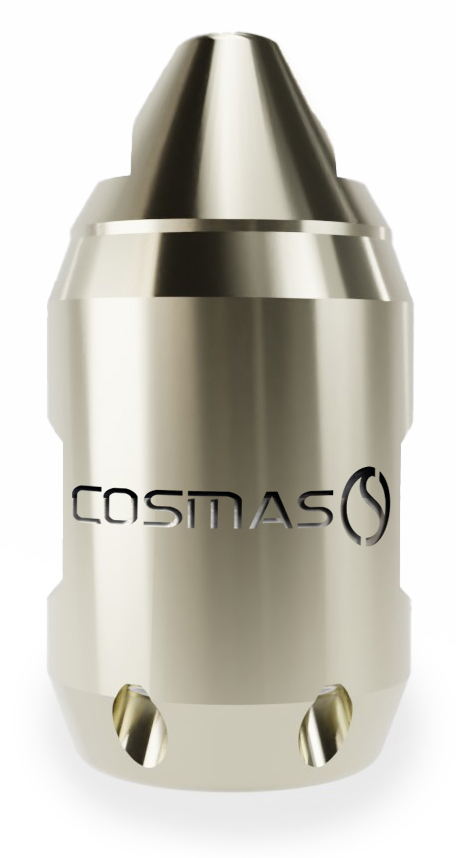

Rotospin

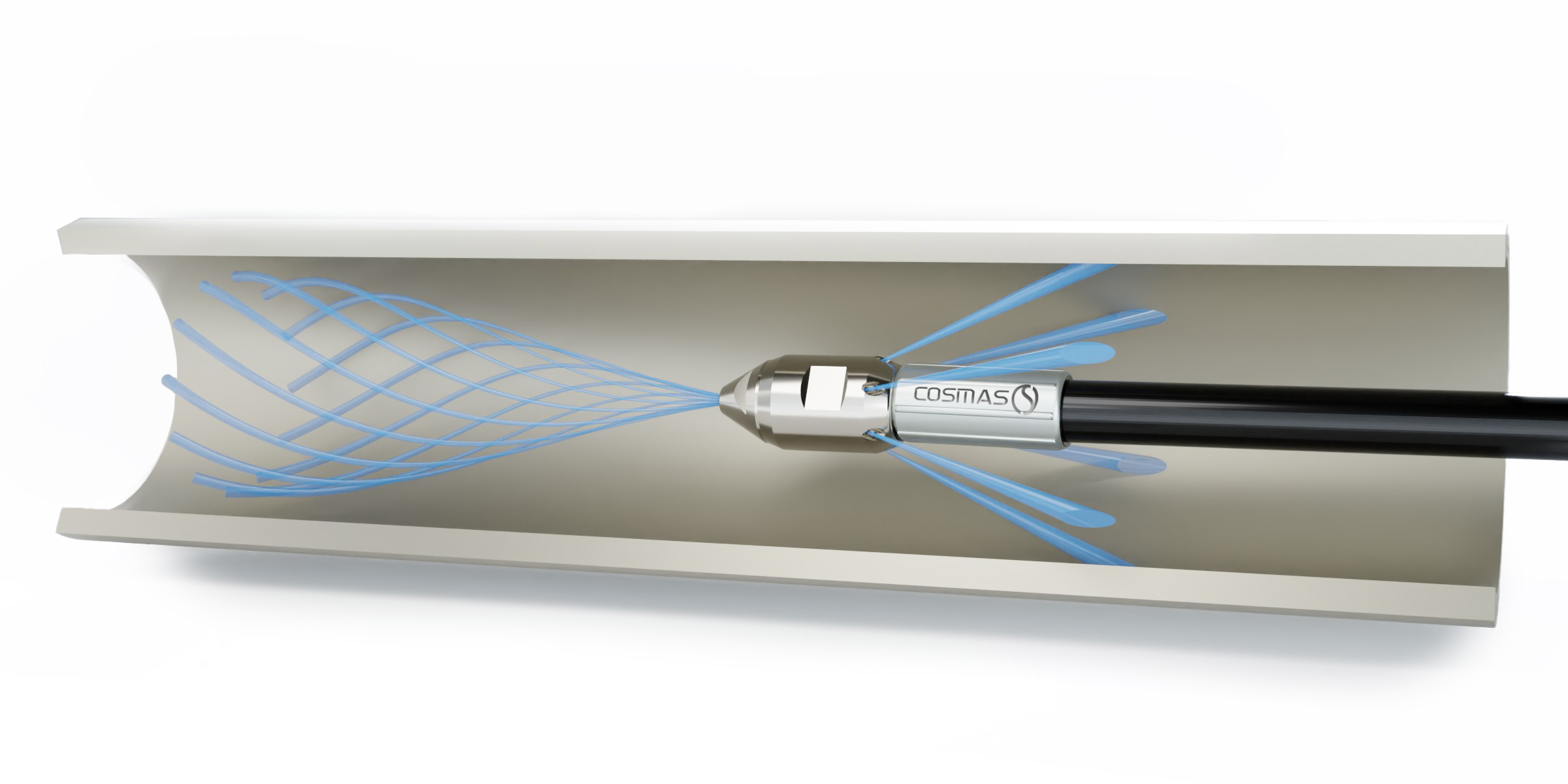

Thanks to its powerful front rotating cone jet this nozzle offers great performances and perfectly breaks strong obstructions and blockages.
Gets around bends and pushes material forward.
Inner replacemnet kit and tools are availbale for an easy maintenance.
Applications :
Removal of wood, grease, sluge, clogs, fine roots, foam, ice.
Rotospin
| Part No. | Description | Inlet | Rear Jets | Front Jet | ØxL mm | Kg | Ø Pipe | Max Bar |
|---|---|---|---|---|---|---|---|---|
| 30200.01CI | Rotospin | 3/8″F | 6 – M4X5 -25° | 1 Rotating 7° | 32 x 63 | 0,20 | 50 – 160 | 250 |
| 30200.02CI | Rotospin | 1/2″F | 6 – M4X5 -25° | 1 Rotating 7° | 32 x 63 | 0,20 | 50 – 160 | 250 |
| 15140.06CI.R | Rotospin – ET4 | 3/4″ F | 8 – ¼M – 20° | 1 Rotating 7° | 88 x 177 | 4,00 | 150 – 500 | 300 |
| 15140.04CI.R | Rotospin – ET4 | 1″F | 8 – ¼M – 20° | 1 Rotating 7° | 88 x 177 | 4,00 | 150 – 500 | 300 |
| 15140.05CI.R | Rotospin – ET4 | 1″ 1/4″ F | 8 – ¼M – 20° | 1 Rotating 7° | 88 x 177 | 4,00 | 150 – 500 | 300 |

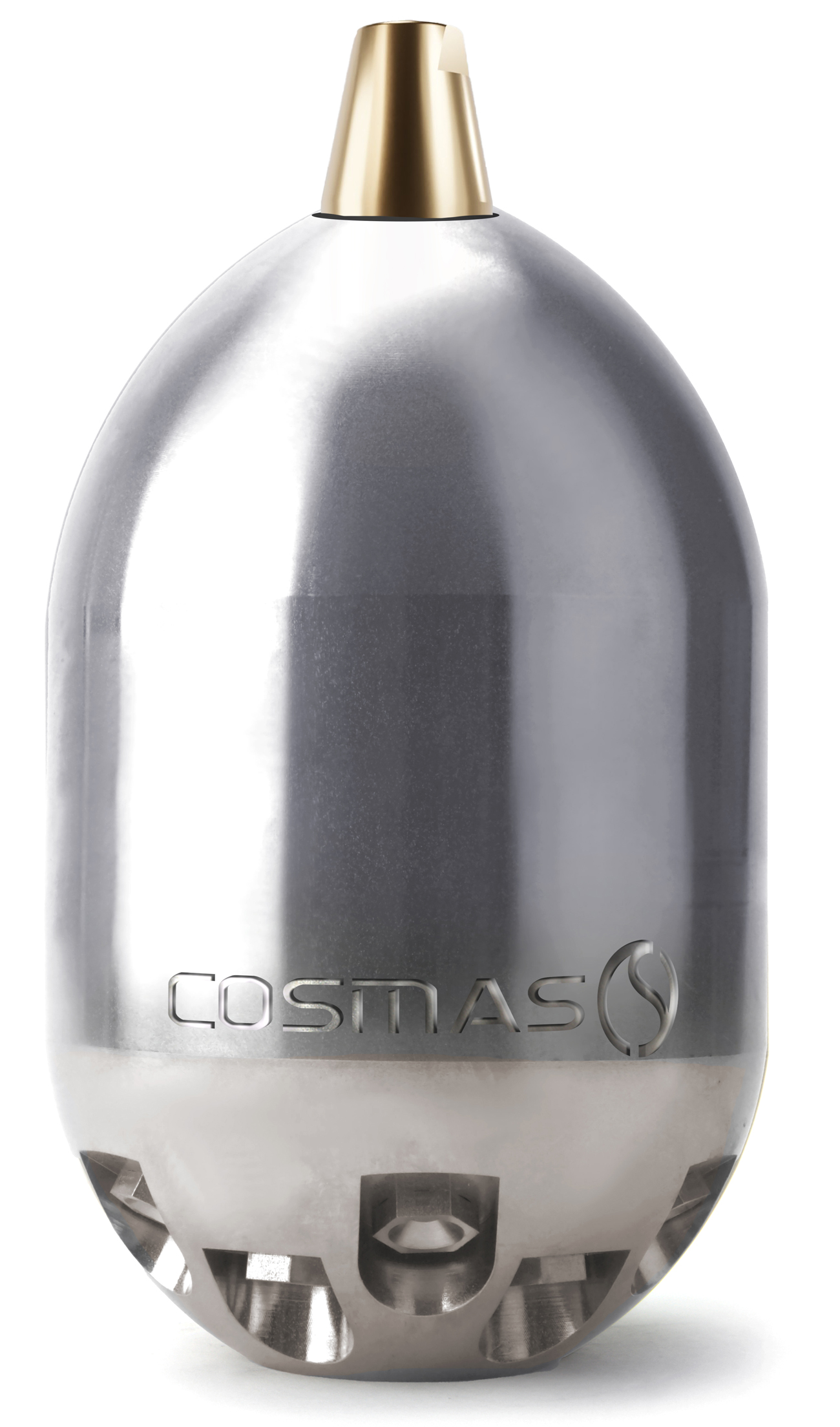

| 15160.04CI.R | Rotospin – ET6 | 1″F | 12 – ¼M – 6×30°6×10° | 1 Rotating 7° | 118 x 222 | 10,60 | 200 – 800 | 300 |
| 15160.05CI.R | Rotospin – ET6 | 1″ 1/4″F | 12 – ¼M – 6×30°6×10° | 1 Rotating 7° | 118 x 222 | 10,60 | 200 – 800 | 300 |

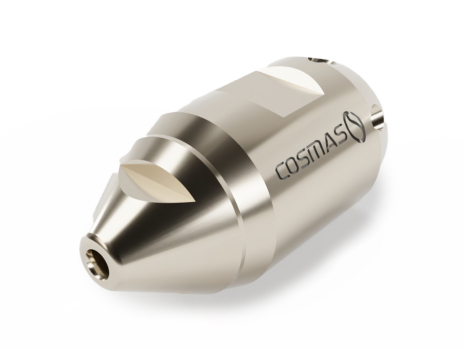

30200.02CI

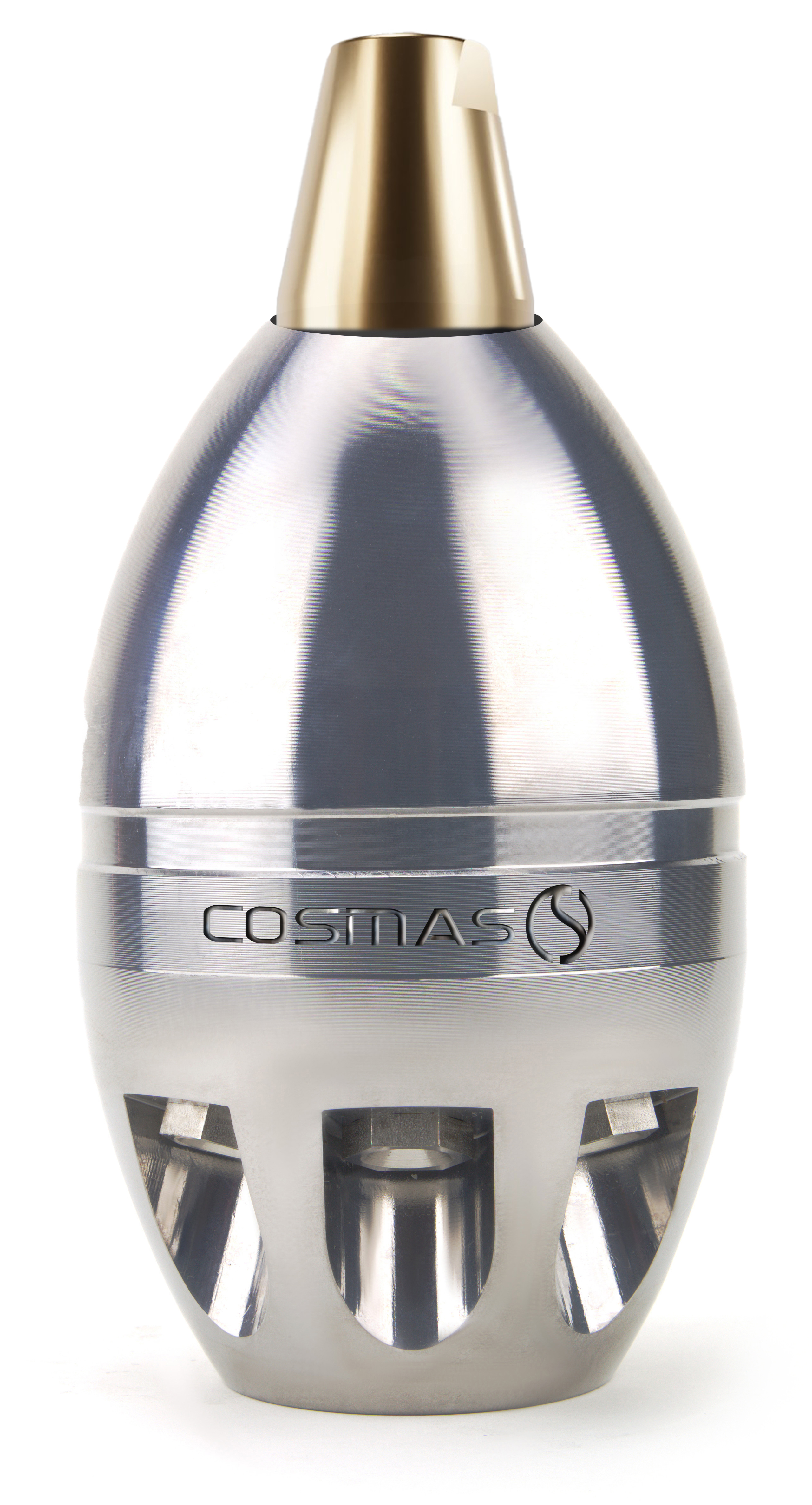

15140.04CI.R
15160.05CI.R

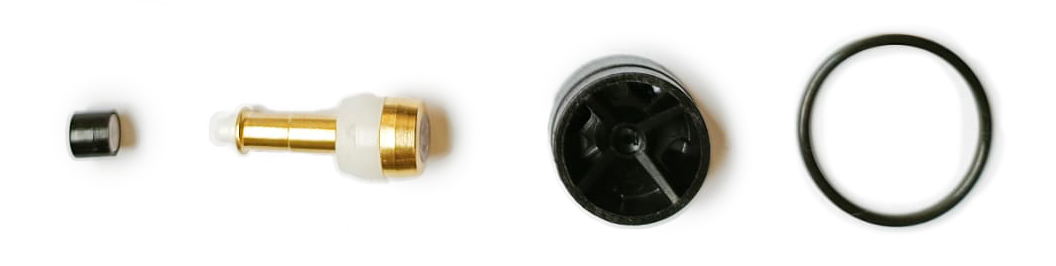

Replacement
| Part n. | Description | |
|---|---|---|
| 30200.KIT | Internal remplacement kit for Rotospin 3/8″ – 1/2″ |  |

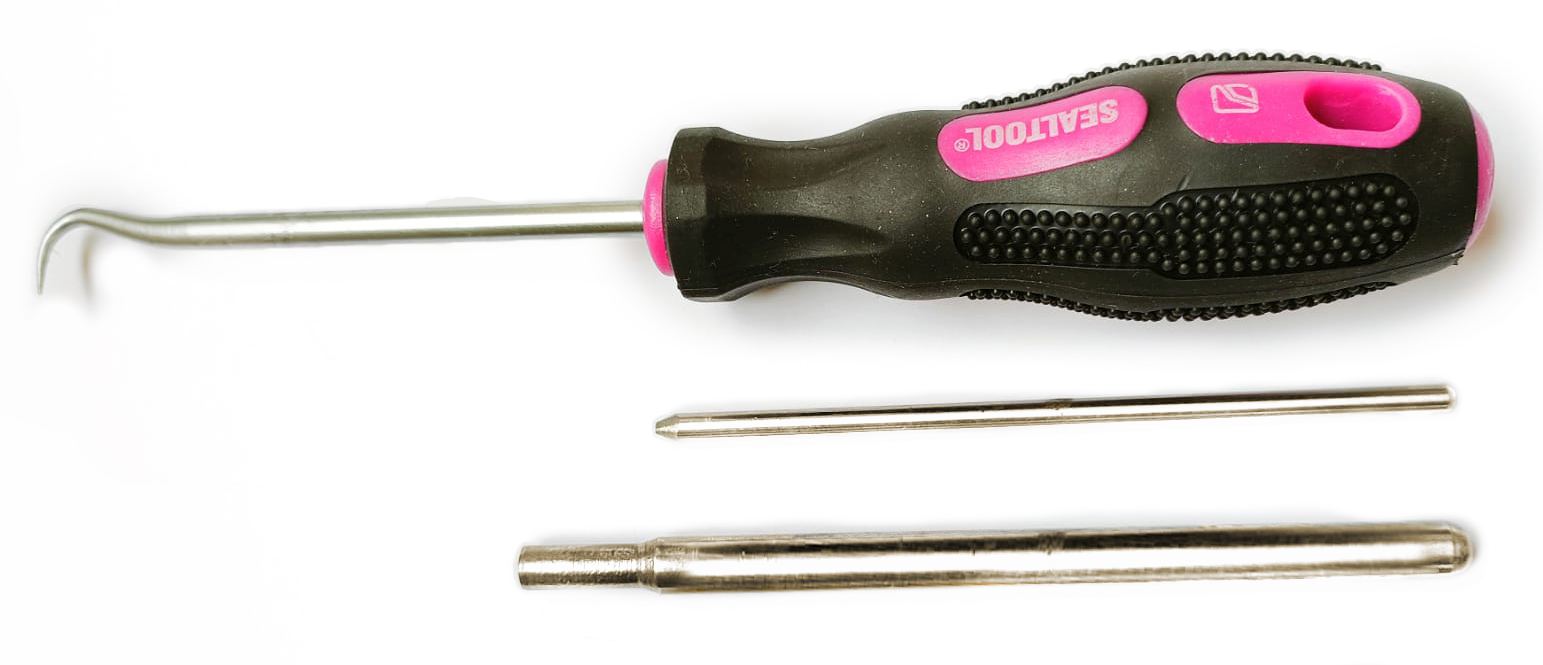

| 30200.T | Tool kit for Rotospin 1/2″ – 3/8″ maintenance |  |
| 15140.R | Replacement Rotojet for Rotospin ET4 3/4″F-1″F-1″ 1/4″F |  |
| 15160.R | Replacement Rotojet for Rotospin ET6 1″F-1″ 1/4″F |

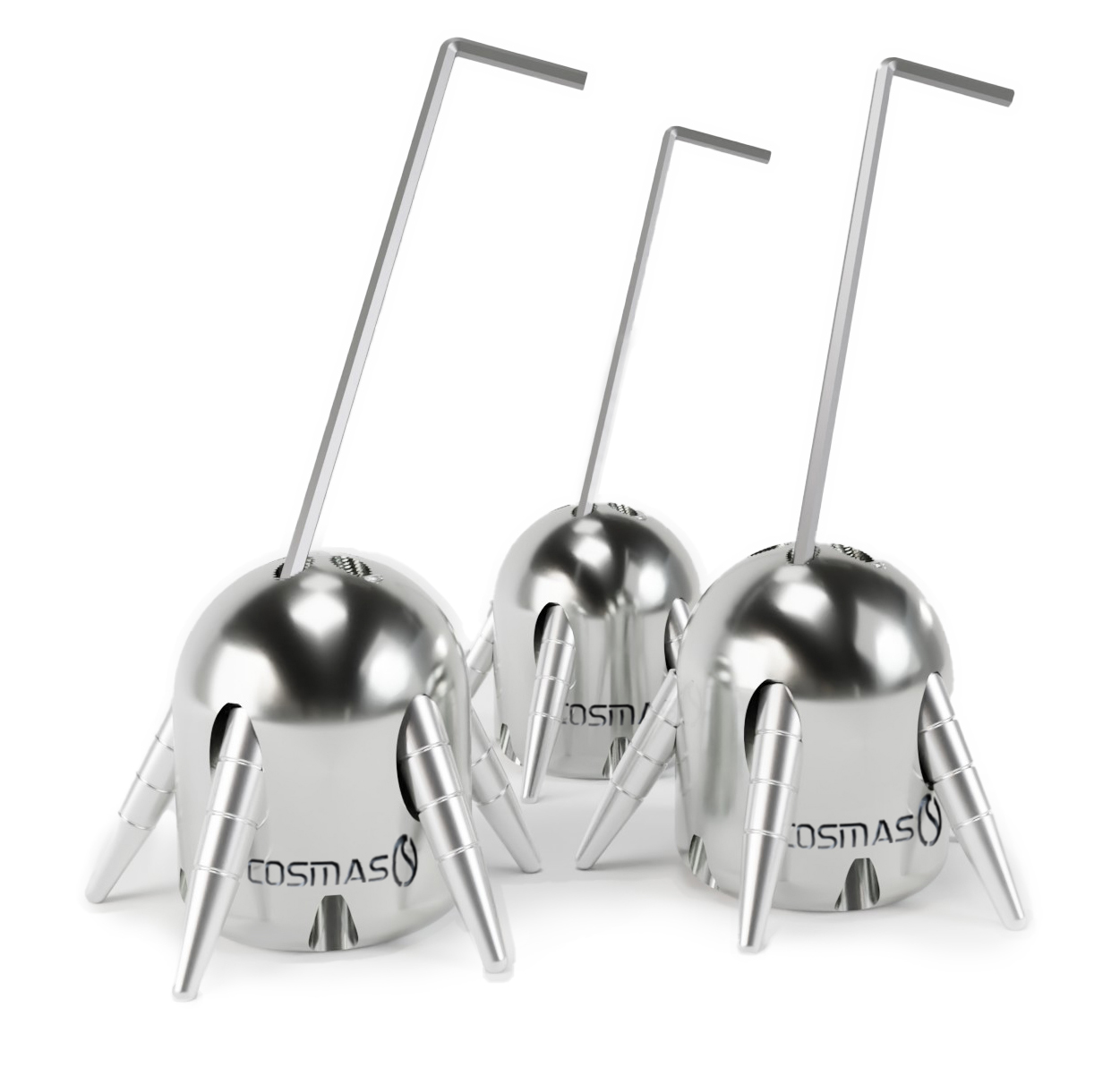

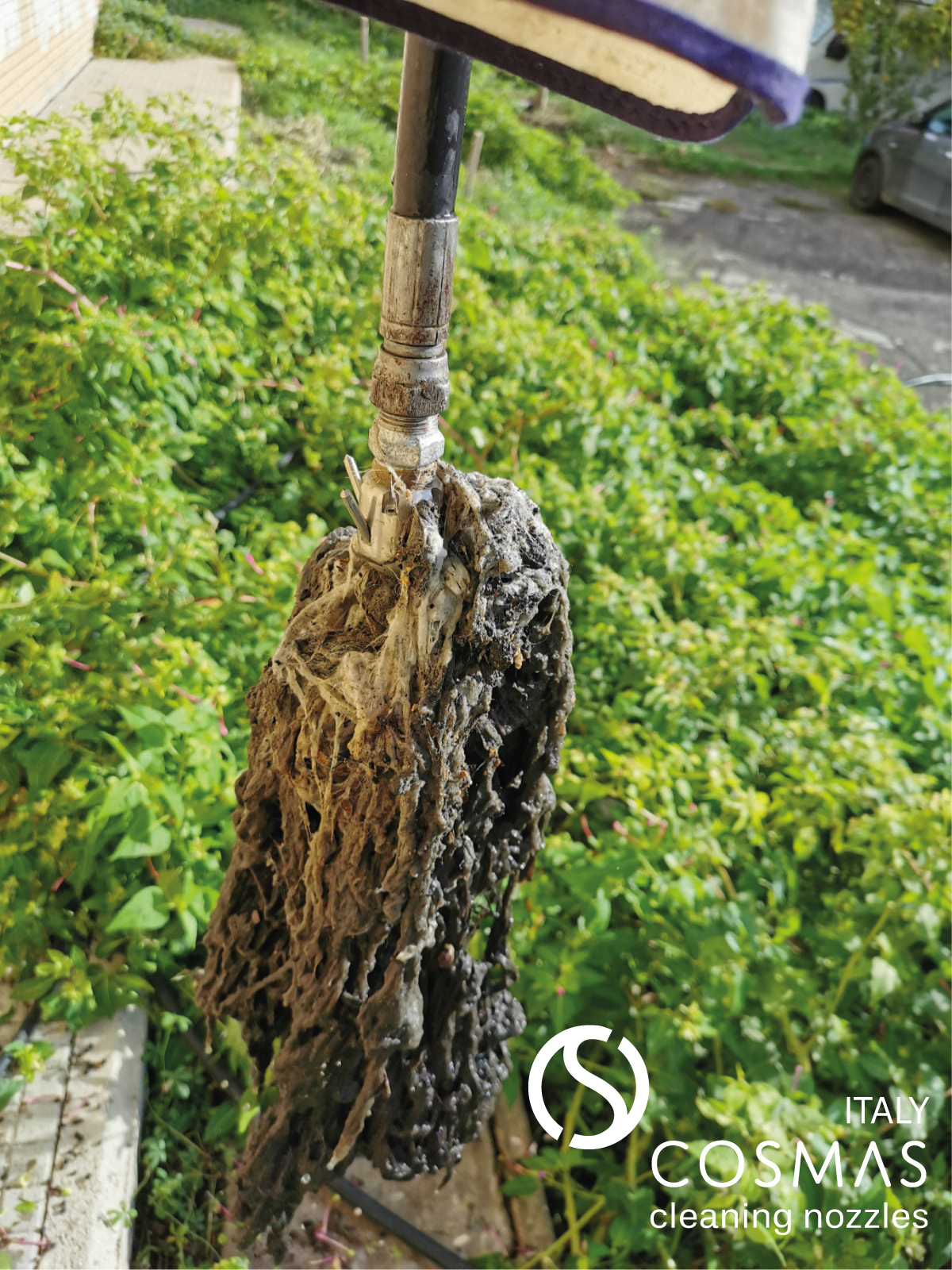

Spider
Spider
Nozzle made in stainless steel with rear thrusting 20° ceramic jets, equipped by 5 removable aluminum Hooks which permitto throw out from the pipe massive presence of rugs and towels and wipes.Thanks to its shape construction it’s very easy and fast to remove and replace the hooks.Hexagonal key supplied
Application :
Removal of grease,soap,roots, rugs, towels and wipes.
| Part No. | Description | Inlet | Rear Jets | Front Jet | ØxL mm | Kg | Ø Pipe | Max Bar |
|---|---|---|---|---|---|---|---|---|
| 15300.01CI | Spider SS+1 Key+5 Hooks | 1/2″ F | 5 – M4x5 – 15° | 1 M4x5 | 30 x 40 | 0,14 | 70-300 | 250 |
| 15300.02CI | Spider SS + 1 Key | 3/8″F | 5 – M4x5 – 15° | 1 M4x5 | 30 x 40 | 0,14 | 70-300 | 250 |
| 15300.01RA | Replacement KIT 5 Aluminum Hooks | |||||||
15300.01RA

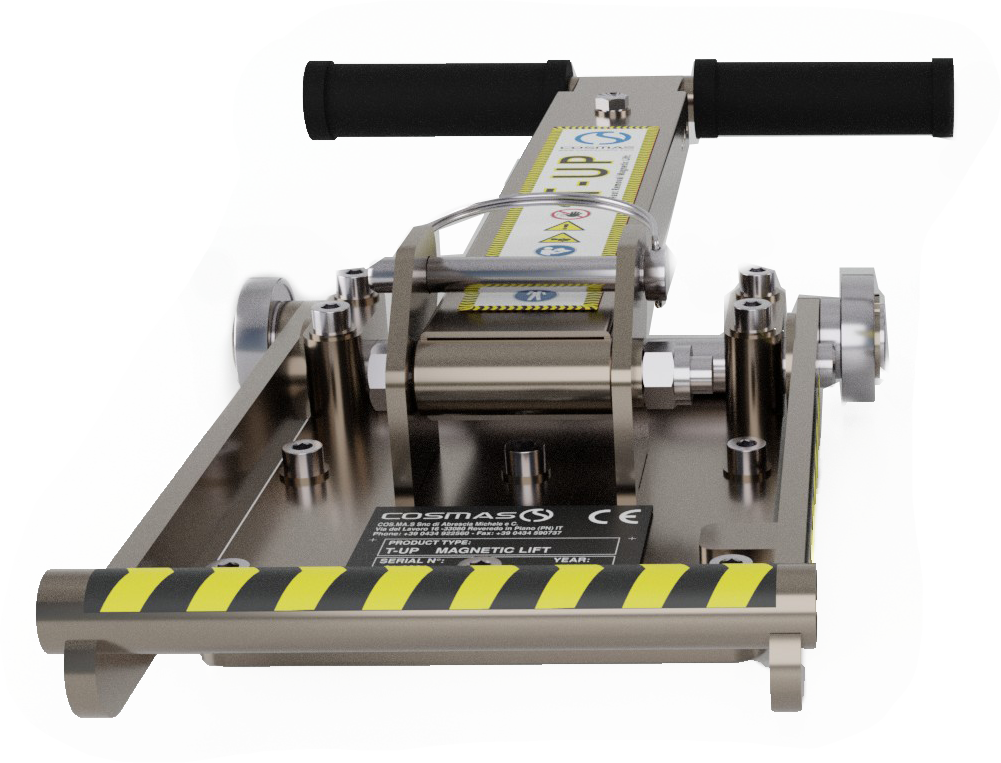

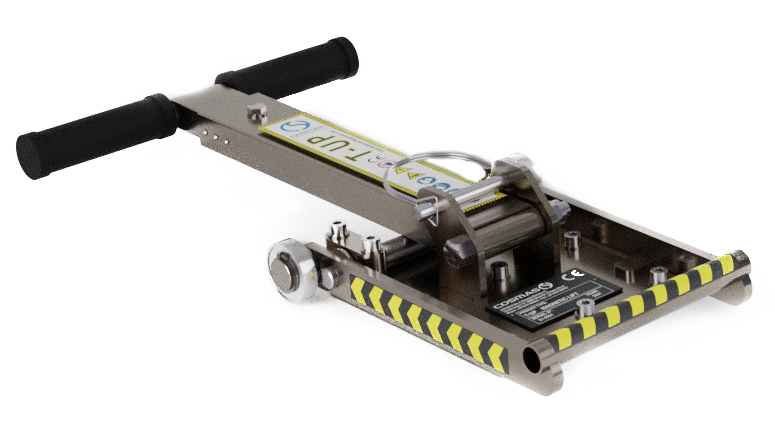

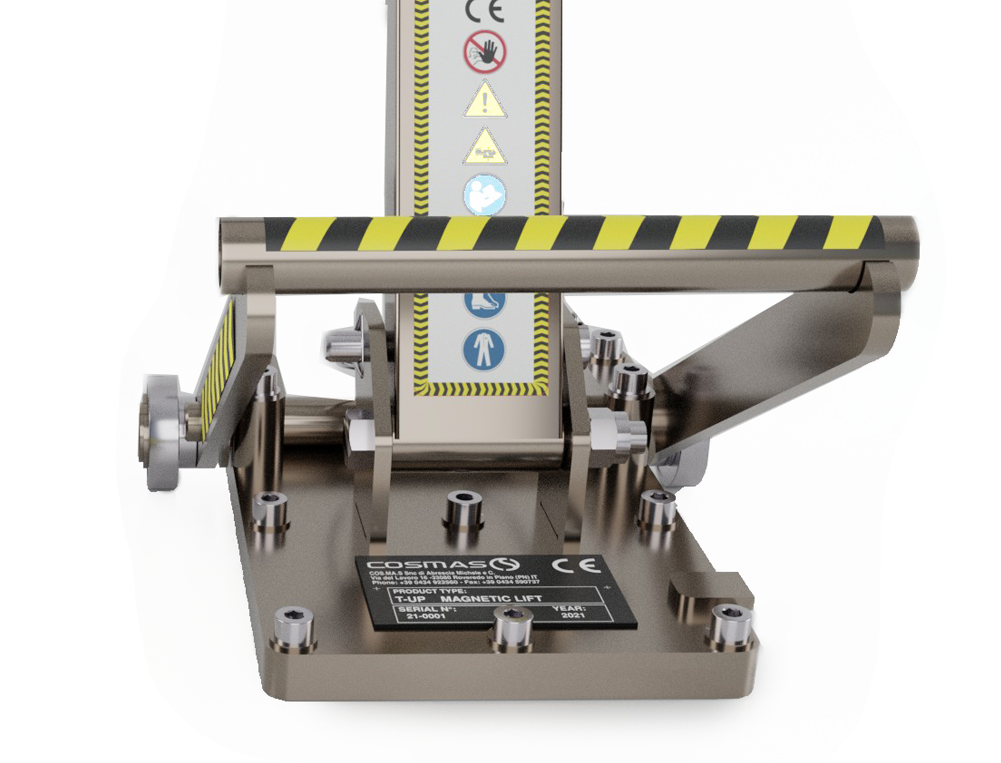

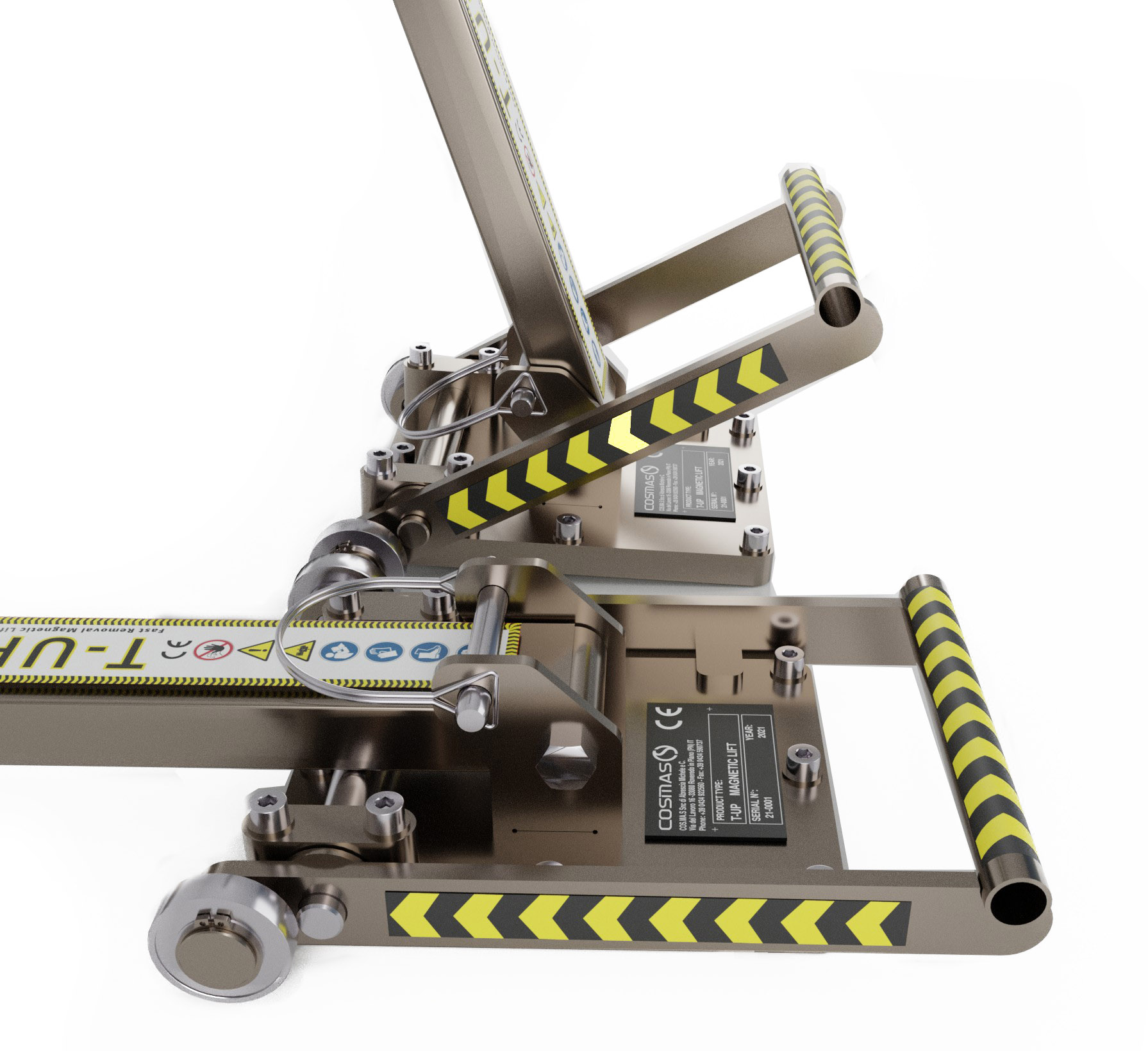

T-UP Magnetic Lifter

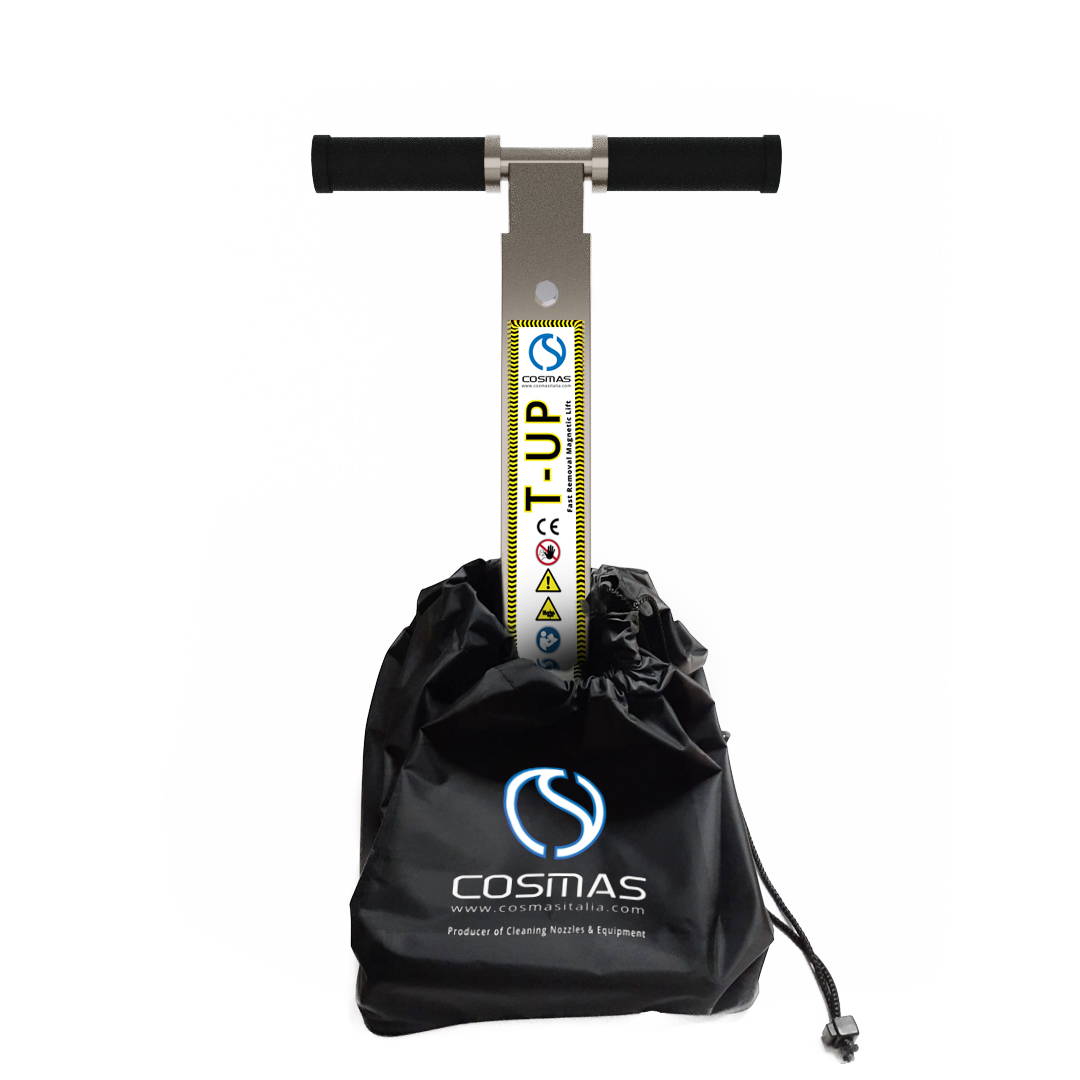

T-UP Magnetic Lifter
- T-UP Magnetic Lifter made with rectangular plate suitable for lifting,moving and repositioning most of manhole covers,storm drains and cast iron grilles.
- Solid Blockage Lifting Plate equipped by 4 Powerful Magnets which can lift up till400 kgsin ideal conditions.
- Equipped withSimple Quick Removal Leverthat completelyavoidsStrains and Risks of Back Injuries
- 2 x T-UP Magnetic Lifter can be used in parallel with “bridge ” connection device realizing double lifting force.
- T-UP Magnetic Lifter is supplied with Instruction Manual and C€ Certificate.
- T – UP LIFTER is supplied with Anti-Magnetic Bag that avoid any metal attachment to Magnetic Lifter,easily to carry and to store it.
| Part No. | Description | Kg | Lift Up |
|---|---|---|---|
| T UP | Magnetic Lifter with lever | 10,00 | < 400Kgs |

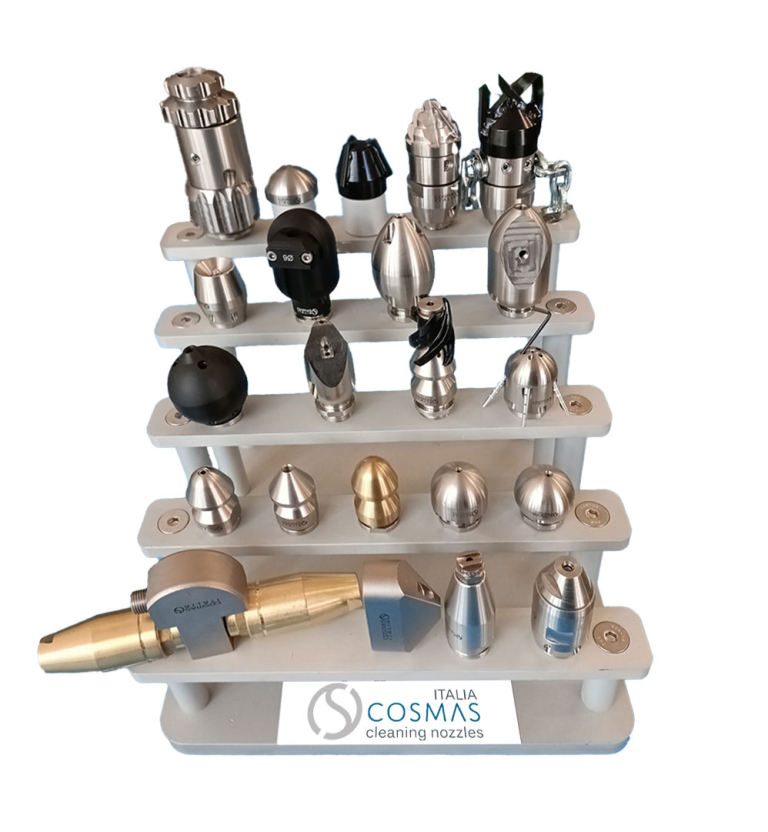

Display unit
Display unit
Part# ESP12
Composed of:
| 18560.05VC | Vibrating Nozzle 1/2″F Ø38 90°/45° Crest Cover Ceramic Ins. |
| 13640.02 | Cover Head for Nozzle Ø35 |
| 13660.02 | Widia Head for Nozzle Ø35 |
| 12560.02A | Nozzle, Rot. 1/2″F Ø35 FC90/45° RJ Drilling H. |
| 12580.02C | Nozzle, Rotating Chain 1/2″F Ø35 Knives H. |
| 13325.01/01 | Trasmitter Support 1/2″F SS NEW |
| 15400.01 | Pushing Camera Nozzles 1/2″F Ceramic ins. + 7 Clamps |
| 12352.05I | Nozzle,Ovoidal 1/2″F SS 6RJx5°+3FJx5°+1FT 0° |
| 15190.03I | Nozzle ET 9 1/2″F SS 3RJ 15° + 1FJ 45° |
| 15130.01A | Nozzle, ET 3 ½”F |
| 12372.01I | Nozzle, Triangular 1/2″F Ø30 SS |
| 12710.03 | Nozzle, Conical Proppeler 1/2″F |
| 15300.01CI | Nozzles, Spider 1/2″F Bring Roots&Clothes SS Ceramic Ins.+Alluminium Hooks |
| 13125.01FTI | Nozzle, Round Head ½”F SS |
| 13145.01FTI | Nozzle, Conical Head ½”F SS |
| 13125.01O | Nozzle, Round Head 1/2″F in Brass |

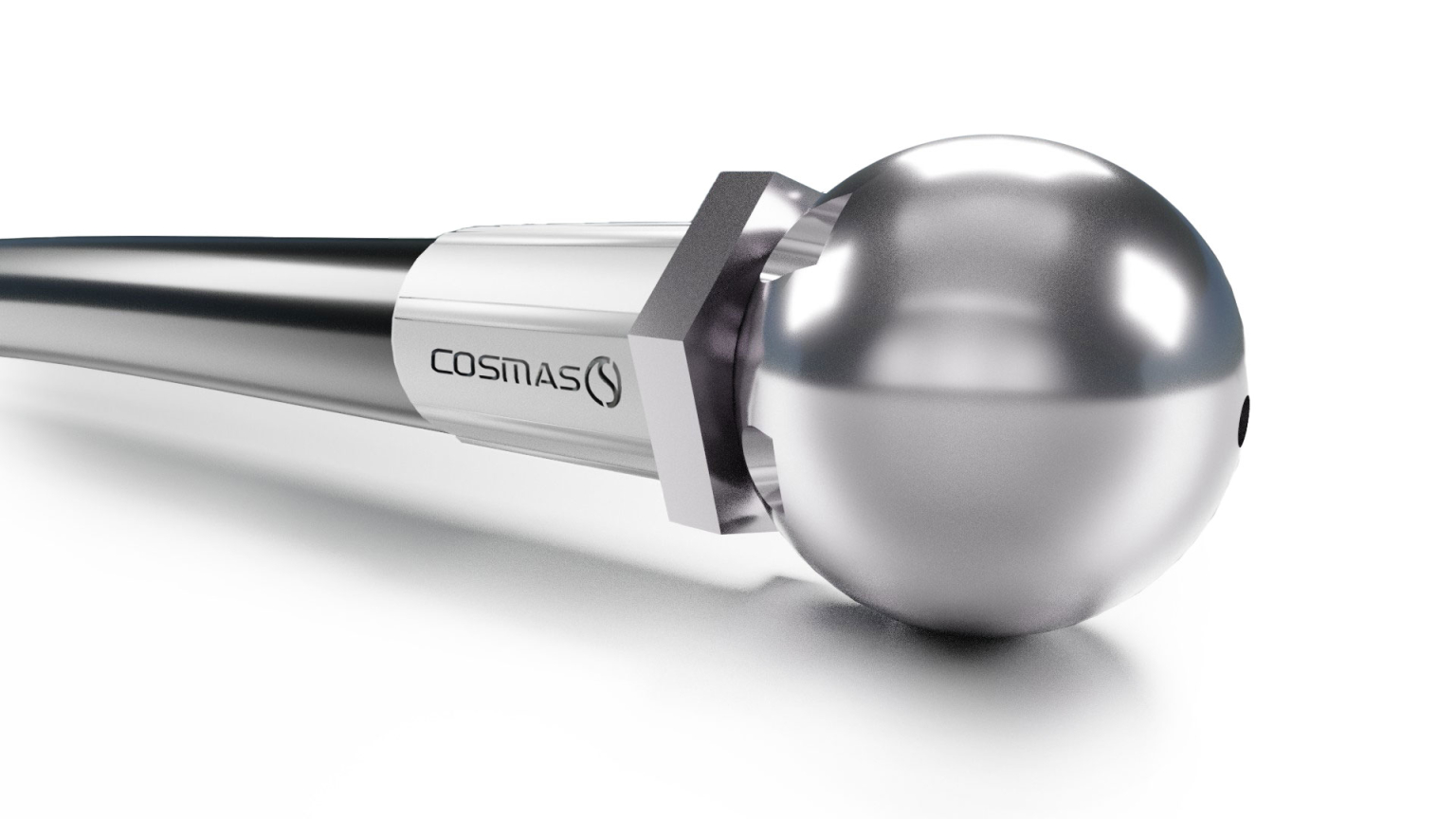

| 15200.12CI | Nozzles, Sphera 1/2″F SS 12RJ Ceramic inserts |

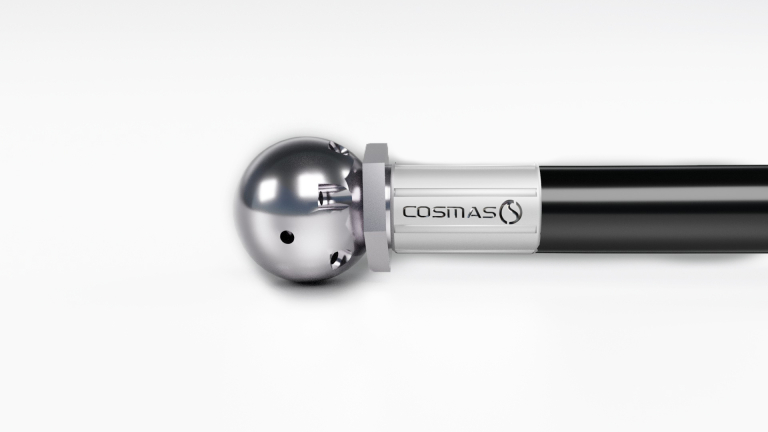

| 15200.01CI | Nozzles, Sphera 1/2″F SS 6RJ Ceramic inserts |
| 30100.02 | Arrow 2 1/4″F + 2 Rotative Nozzles |
| 30100.05 | Arrow 5 1/2″F + 2 Rotative Nozzles |
| 30200.02CI | Nozzle, Rotospin 1/2″F SS with ceramic inserts and rotating front jet |
| 15170.02F | Nozzle, ET 7 1/2″F with Fan inserts ¼” M |
| ESP1 | Display unit without nozzles |

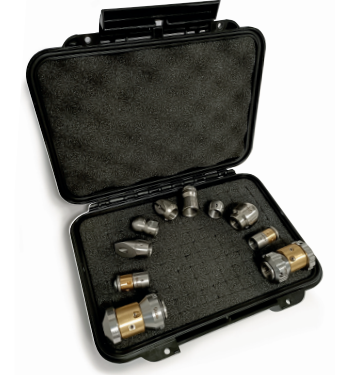

Nozzle Cases

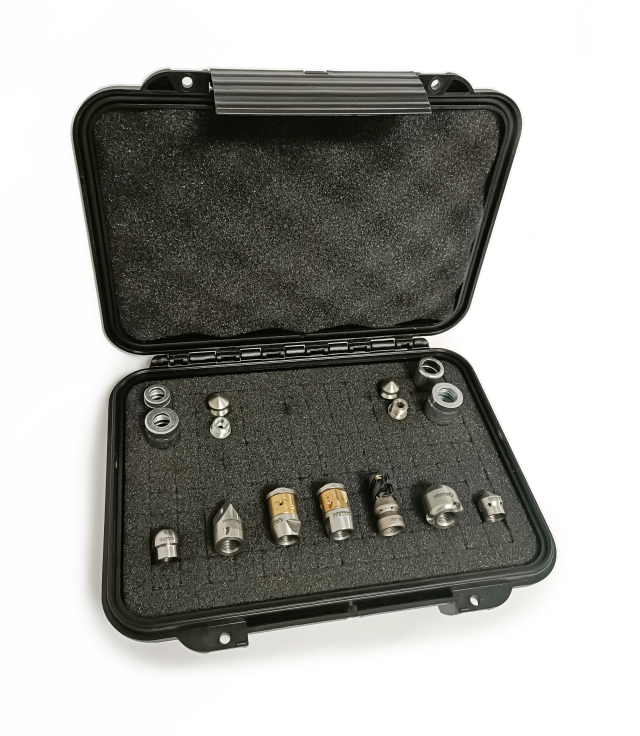

Nozzles’ Case
NOZZLES’ CASE 1/8″F
CASE18F.A
| 13110.01I | Nozzle, Round Head 1/8″F Ø14 SS |
| 13130.01I | Nozzle, Conical Head 1/8″F Ø14 SS |
| 12369.01I | Nozzle, Triangular 1/8″F SS Ø16 SS |
| 12560.08T | Nozzle, Rotating 1/8″F Ø16 SS/Brass 90°/45° with Cover |
| 18560.01T | Nozzle, Vibrating 1/8″F Ø16 SS/Brass 90°/45° with Cover |
| 12700.01 | Nozzle, Propeller 1/8″F S Cylindrical |
| 13112.01CI | Nozzle, Mini Ball 1/8″F Ø20 SS 3JxM4 Ceramic |
| 13810.01 | Coupling for Hose 3/16″ – 1/8″M |
| 13820.01 | Coupling-Nozzle(1 body) for Hose 3/16″ – 1/8″M |
| 13840.01 | Bushing for Hose 3/16″ R7 Synthetic |
| 13840.03 | Bushing for Hose 3/16″ R1AT Rubber |
| 13810.02I | Coupling for Hose 1/4″ – 1/8″M |
| 13820.02 | Coupling-Nozzle(1 body) for Hose 1/4″ – 1/8″M |
| 13840.02 | Bushing for Hose 1/4″ R7 Synthetic |
| 13840.04 | Bushing for Hose 1/4″ R1AT Rubber |
| V002S | Case 212 x 140 x 47 mm |
NOZZLES’ CASE 1/4″F
CASE14F.A
| 13114.01I | Nozzle, Round Head 1/4″F Ø18 SS |
| 12370.01I | Nozzle, Triangular 1/4″F Ø20 SS |
| 13113.03I | Nozzle, Mini Ball 1/4″F Ø18 SS Drilled |
| 13113.02CI | Nozzle, Mini Ball 1/4″F Ø28 SS 3JxM4 Ceramic |
| 15190.01I | Nozzle, ET 9 Bifurcation 1/4″F Ø20 SS 3JA15°+ 1JA 45° |
| 12200.05I | Nozzle, Reversible 1/4″F Ø20 SS |
| 12560.15T | Nozzle, Rotating 1/4″F Ø17 SS/Brass 90°/45° with Cover |
| 12560.10T | Nozzle, Rotating 1/4″F Ø30 SS/Brass 90°/45° with Cover |
| 18560.15T | Nozzle, Vibrating 1/4″F Ø17 SS/Brass 90°/45° with Cover |
| 18560.02V | Nozzle, Vibrating 1/4″F Ø30 SS/Brass 90°/45° with Crests |
| V002S | Case 212 x 140 x 47 mm |
NOZZLES’ CASE 3/8″F
CASE38F.A
| 13122.01FTI | Nozzle, Round Head 3/8”F Ø20 SS |
| 13142.01I | Nozzle, Round Head 3/8”F Ø20 SS |
| 12371.01/01I | Nozzle, Conical Head 3/8”F Ø21 SS |
| 12357.01I | Nozzle, Triangular 3/8”F Ø28 SS |
| 13115.01I | Nozzle, Ovoidal 3/8”F Ø30 SS |
| 15190.02I | Nozzle, Mini Ball 3/8”F Ø23 SS Drilled |
| 12560.01T | Nozzle, ET 9 Bifurcation 3/8″F Ø23 SS 3JA15+1JA 45° |
| 18560.03VC | Nozzle, Rotating 3/8″F Ø30 SS/Brass 90°/45° with Cover |
| V002S | Nozzle, Vibrating 3/8”F Ø30 SS/Brass 90°/45° with Crest |
| Case 212 x 140 x 47 mm |
NOZZLES’ CASE 1/2″F
CASE12F.A
| 13125.01AI | Nozzle, Round Head 1/2″F Ø28 SS with SS inserts |
| 13145.01I | Nozzle, Conical Head 1/2″F Ø28 SS |
| 12372.01I | Nozzle, Triangular 1/2″F Ø30 SS |
| 12352.01I | Ovoidal Nozzle 1/2″F Ø 42 SS |
| 12560.02T | Nozzle, Rotating 1/2″F Ø35 SS 90°/45° with Cover |
| 13650.02 | Drilling Head for Rotating Ø35 SS |
| 12700.03 | Nozzle, Propeller 1/2″F Cylindrical |
| V002S | Case 212 x 140 x 47 mm |
NOZZLES’ CASE 1/2″F MASTER
CASE14F.B
| 13125.01AI | Nozzle, Round Head 1/2″F Ø28 SS with SS inserts |
| 13145.01I | Nozzle, Conical Head 1/2″F Ø28 SS |
| 12372.01I | Nozzle, Triangular 1/2″F SS Ø30 SS |
| 12352.05I | Nozzle, Ovoidal 1/2″F Ø 42 6+4 5° MISSILE SS |
| 12560.02T | Nozzle, Rotating 1/2″F Ø35 SS 90°/45° with Cover |
| 12580.02C | Nozzle, Chian 1/2″F Ø35 SS with Knives Head |
| 18560.05VC | Nozzle, Vibrating 1/2″F Ø38 SS/Brass 90°/45° with Crest |
| 13650.02 | Drilling Head for Rotating Ø35 |
| 15110.02 | Nozzle, ET1 1/2″F Ø30 SS 20° |
| 15200.01CI | Nozzle, Sphere 1/2″F Ø35 SS Ceramic Inserts |
| 15300.01CI | Nozzle, Spider 1/2″F Ø32 SS Ceramic Inserts |
| V003S | Case 320 x 250 x 150 mm |

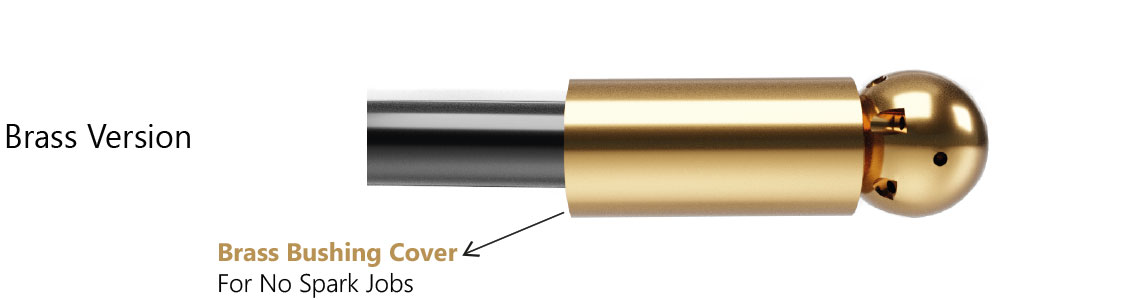

Sphera
Sphera

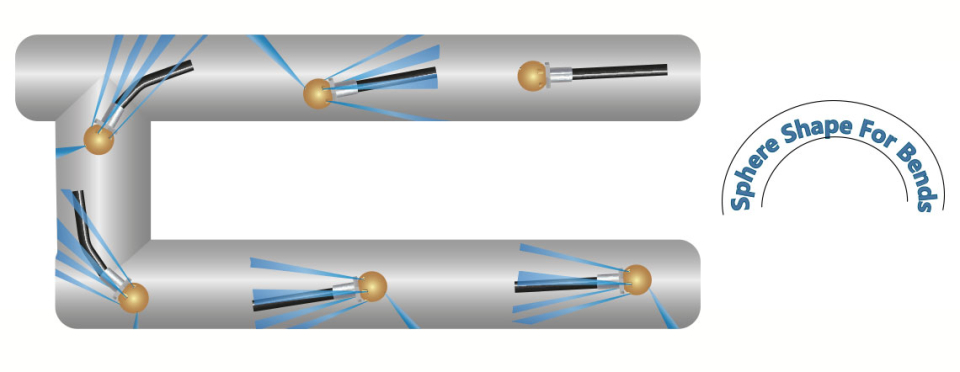

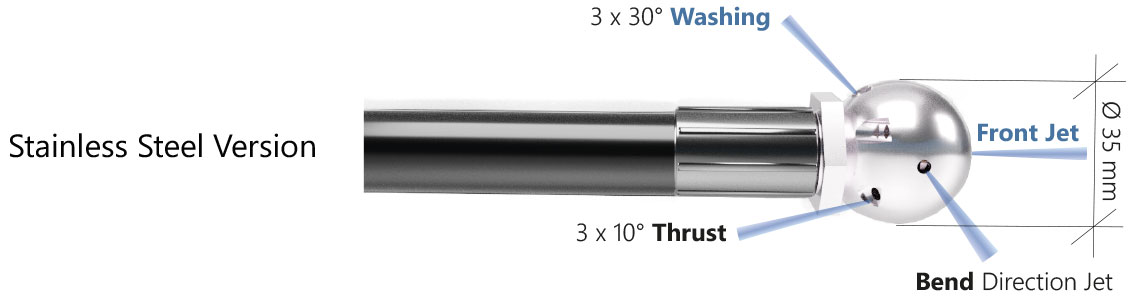

Nozzle made in stainless steel or brass, excellent for going over bends and keep right or left direction according to the lateral hole position.
Application :
Cleaning of limestone, soap, mud, oily residues, going over bends.
| Part No. | Description | Inlet | Rear Jets | Front/Lateral Jets | ØxL mm | Kg | Pipe mm | Max Bar | |
|---|---|---|---|---|---|---|---|---|---|
| M4x5 ceramic | M4x5 ceramic | ||||||||
| 15200.02CI | Sphera SS | 1/4″F | 3×30° + 3×10° | 1×0°/ 1×90° | 35×35 | 0,15 | 50 -150 | 250 |  |
| 15200.03CI | Sphera SS | 3/8″F | 3×30° + 3×10° | 1×0°/ 1×90° | 35×35 | 0,15 | 50 -150 | 250 | |
| 15200.01CI | Sphera SS | 1/2″F | 3×30° + 3×10° | 1×0°/ 1×90° | 35×35 | 0,15 | 50 -150 | 250 | |
| 15200.12CI | Sphera SS | 1/2″F | 12 x M4x5 7° | 1×0° | 35×35 | 0,25 | 50 -150 | 250 |   |
| 15200.01CO | Sphera Brass | 1/2″F | 3×30° + 3×10° | 1×0°/ 1×90° | 35×35 | 0,25 | 50 -150 | 250 |  |
| 13840.11 | Brass Bushing | 1/2″F | 0,08 | 50 -150 | 50 -150 | ||||
Mini Ball
Mini Ball
1/8″F
1/4″F
3/8″F

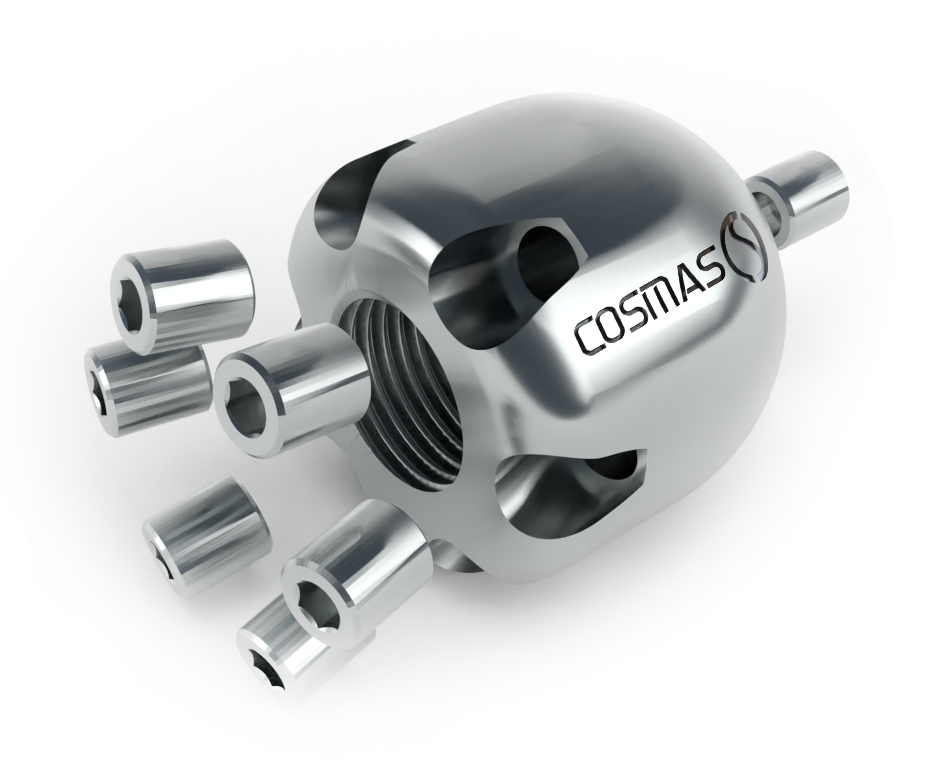

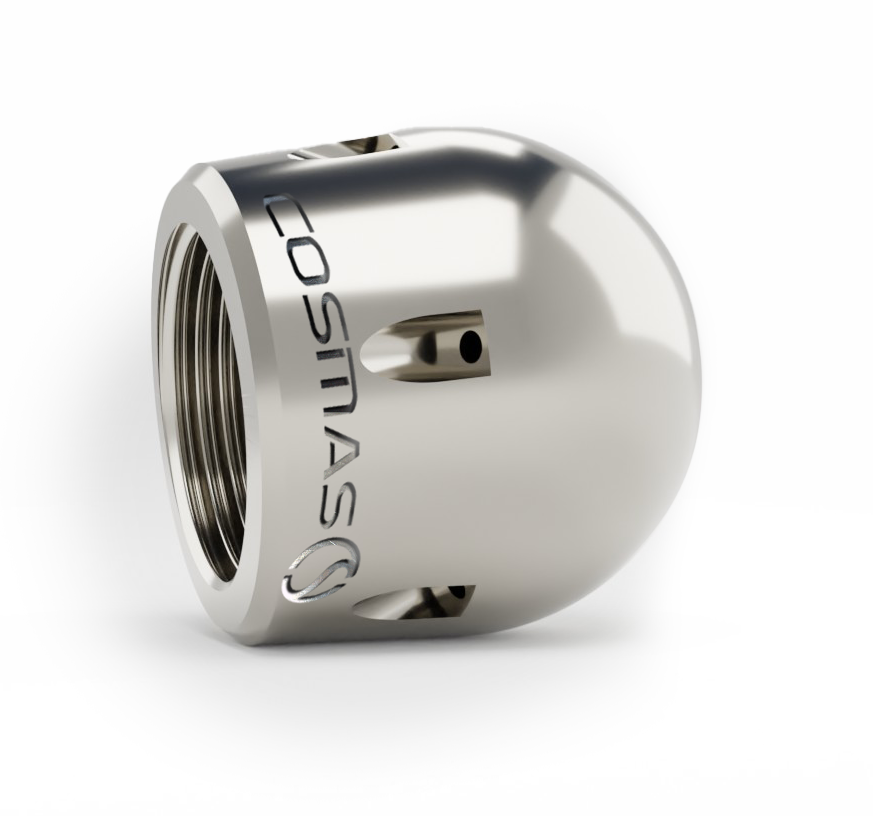

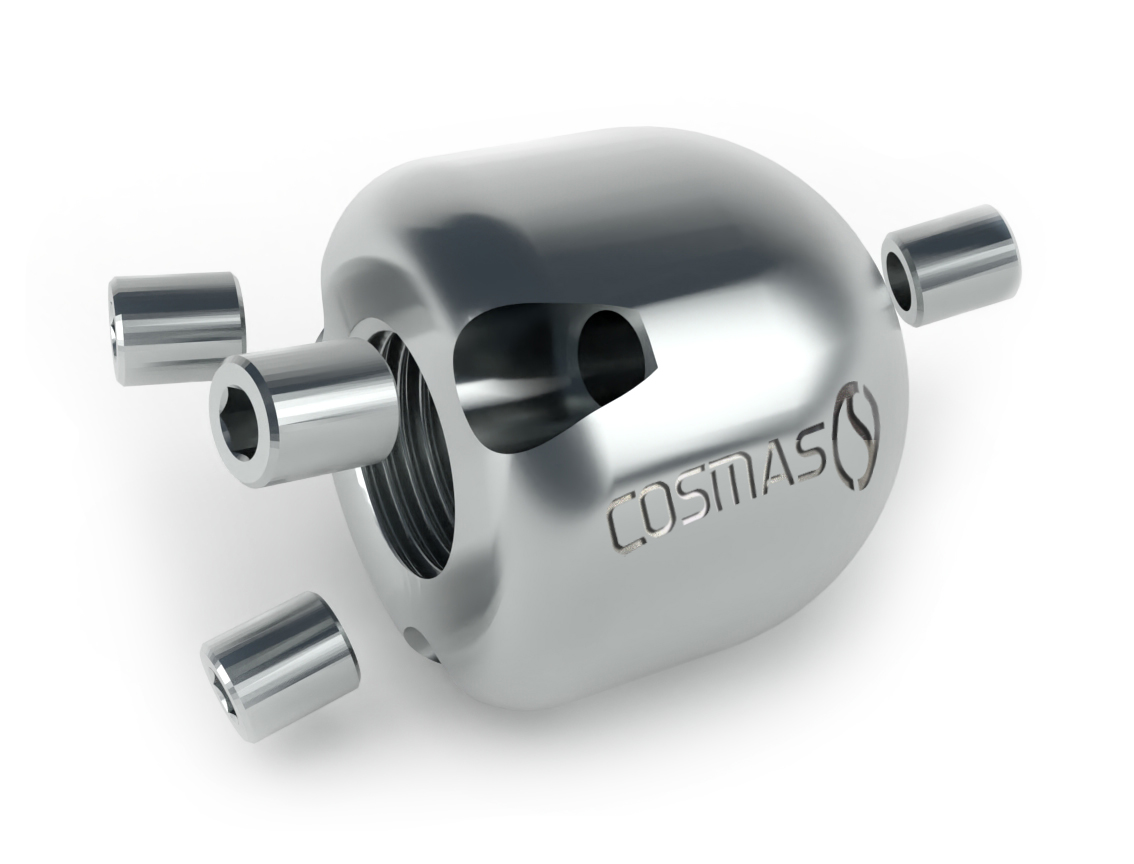

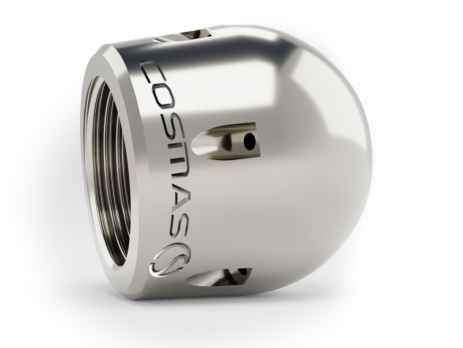

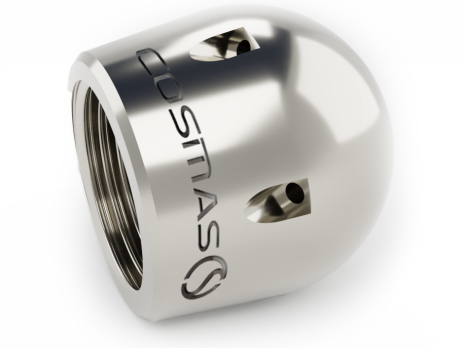

High Efficiency Mini Ball nozzles made in stainless steel with thrusting rear jets.
Available drilled or with ceramic inserts, with front jet or blind one.
Thanks to the small rounded shape these nozzles perfectly go over bends inside pipelines.
Applications :
Flushing out of oily debris, soap, grease, limestone.
| Part No. | Description | Inlet | Rear Jets | °RJ | Front Jets | ØxL mm | Kg | Ø Pipe mm | Max Bar | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

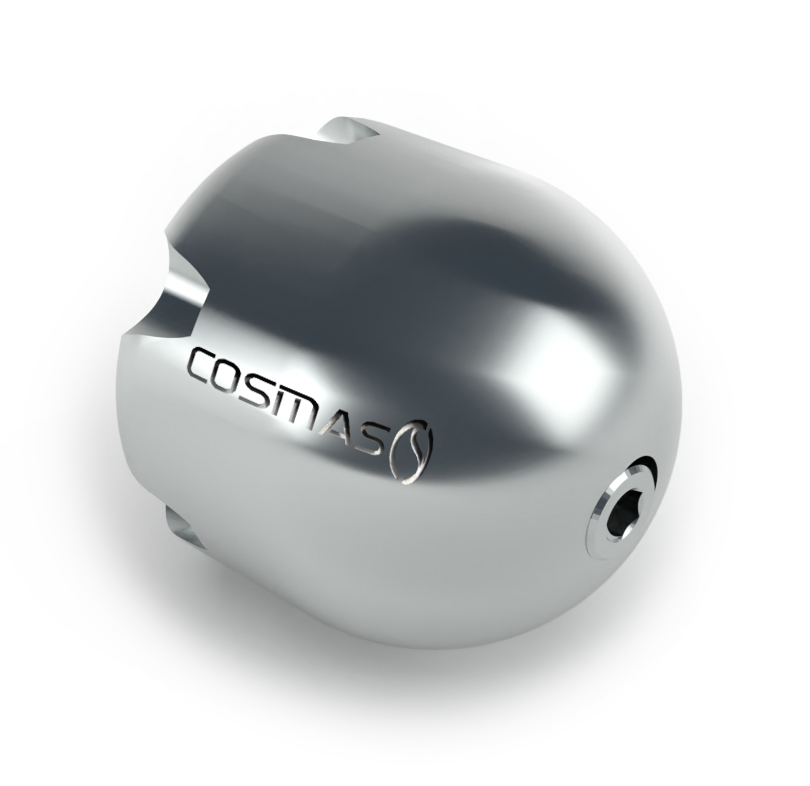

| 13112.01CI | Mini Ball SS | 1/8″F | 3 x M4x5 ceramic | 12° | M4x5 | 20×20 | 0,028 | 25-80 | 250 |  |
 |
1/8″F |
| 13112.02CI | Mini Ball SS | 1/8″F | 6 x M4x5 ceramic | 12° | M4x5 | 20×20 | 0,028 | 25-80 | 250 |  |
|
|
| 13110.01I | Mini Ball SS | 1/8″F | Drilled | 15° | Drilled | 13×17 | 0,010 | 20-60 | 250 |  |
||
| 13113.03I | Mini Ball SS | 1/4″ F | Drilled | 15° | Drilled | 16×16 | 0,012 | 25-80 | 250 | |
1/4″F | |
| 13113.01I | Mini Ball SS | 1/4″ F | Drilled | 15° | Drilled | 20×22 | 0,022 | 25-80 | 250 |  |
||

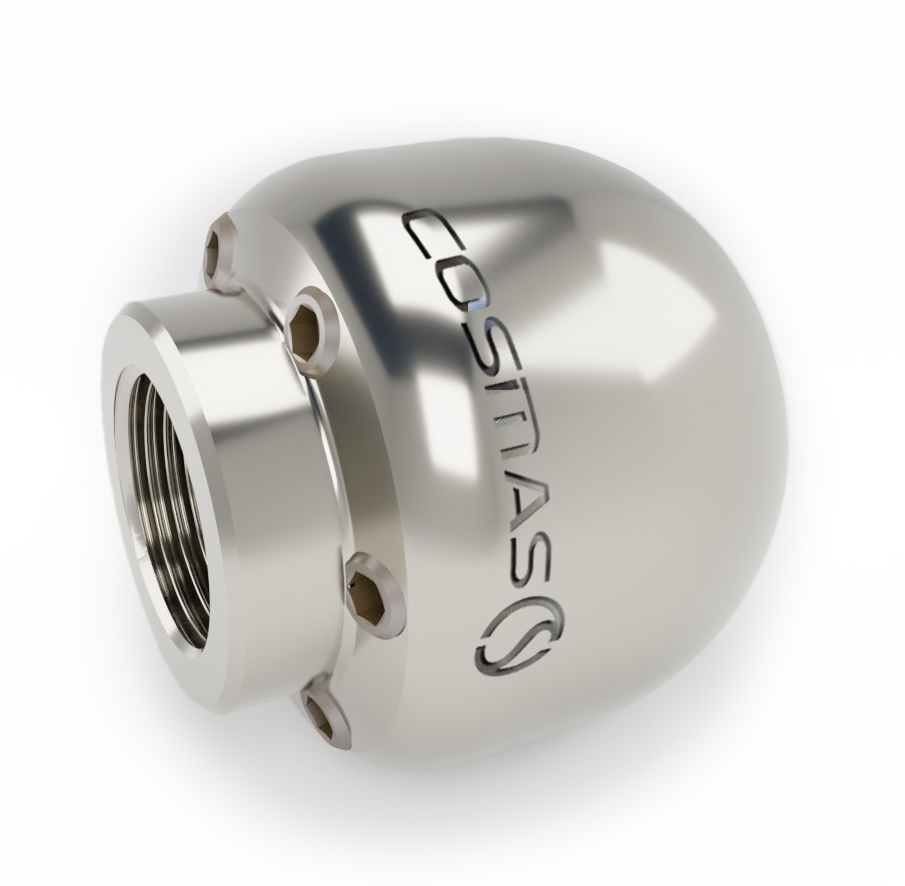

| 13113.02CI | Mini Ball SS | 1/4″ F | 6 x M4x5 ceramic | 20° | M4x5 | 28×30 | 0,087 | 40 – 80 | 250 |  |
||
| 13115.01I | Mini Ball SS | 3/8″F | Drilled | 15° | Drilled | 23×23 | 0,03 | 30 – 80 | 250 |  |
3/8″F | |

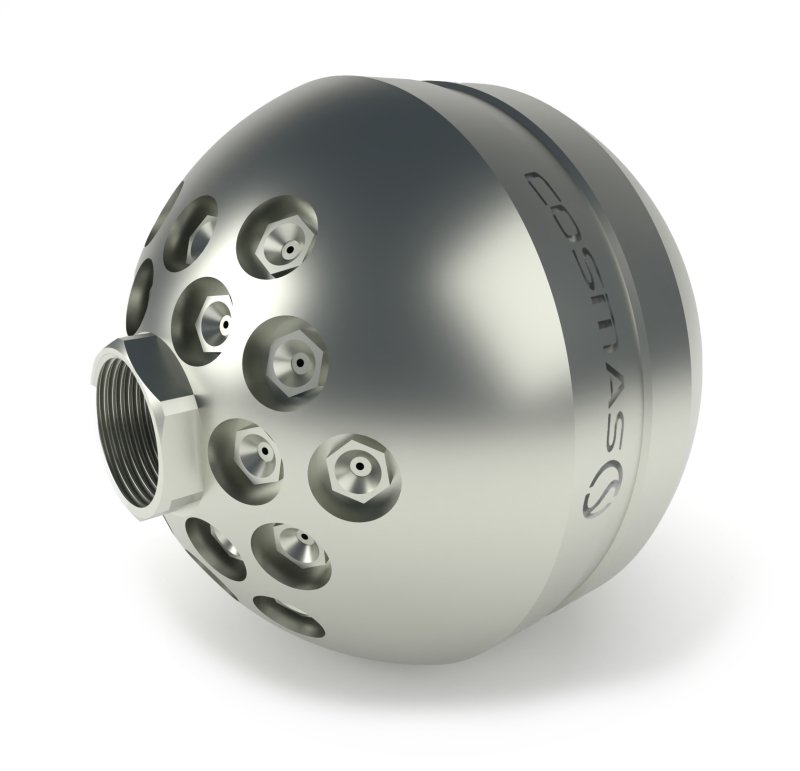

Titano
Titano

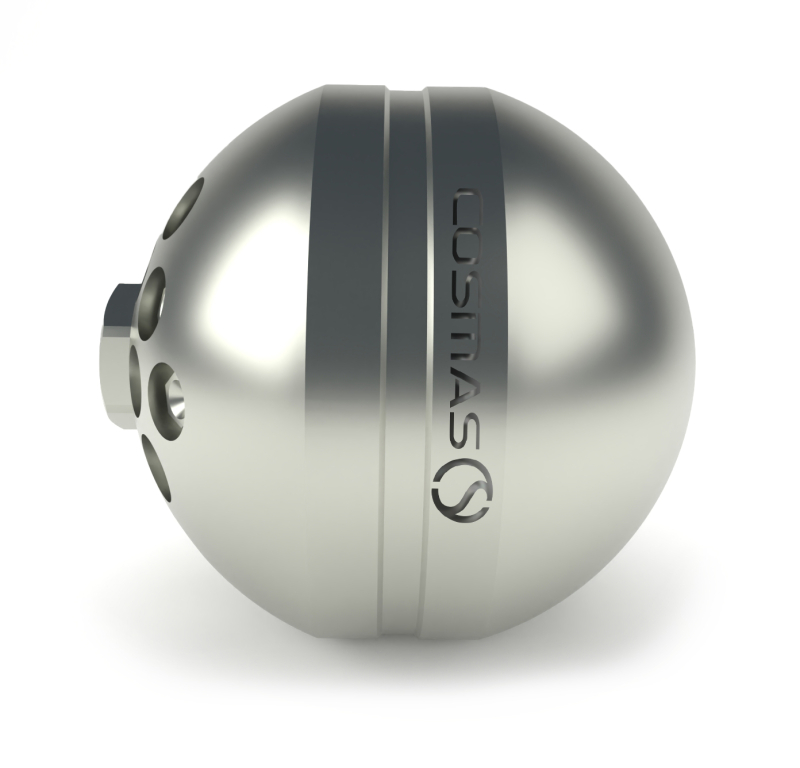

27 kgs, made with a high quality steel alloy.
Spherical shape, 18 rear ceramic inserts with triple inclination are the features of this high efficiency nozzle.
TITANO is an excellent nozzle suitable for cleaning out debris in long and big sewer pipes up to 2000 mm of diameter.
Application :
Removal and expulsion of strong and sedimented debris in long canalisations.
Flushing out of calcareous deposits, sand, sludge, gravel, mud.
| Part No. | Description | Inlet | Rear Jets | Front Jets | ØxL mm | Kg | Ø Pipe mm | Max Bar |
|---|---|---|---|---|---|---|---|---|
| 18 Ceramic Inserts 1/4″M | ||||||||
| 15166.01C | Titano | 1″ | 6×15°+6×20°+6×30° | 1xM12 | 180×180 | 27 | 2000 | 350 |
| 15166.02C | Titano | 1 1/4″ | 6×15°+6×20°+6×30° | 1xM12 | 180×180 | 27 | 2000 | 350 |
